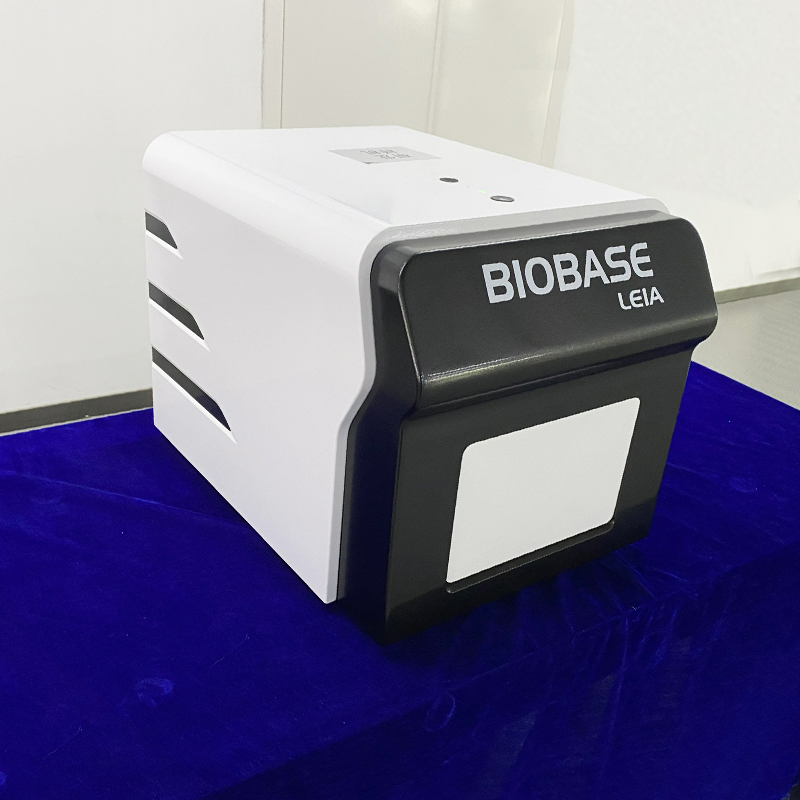

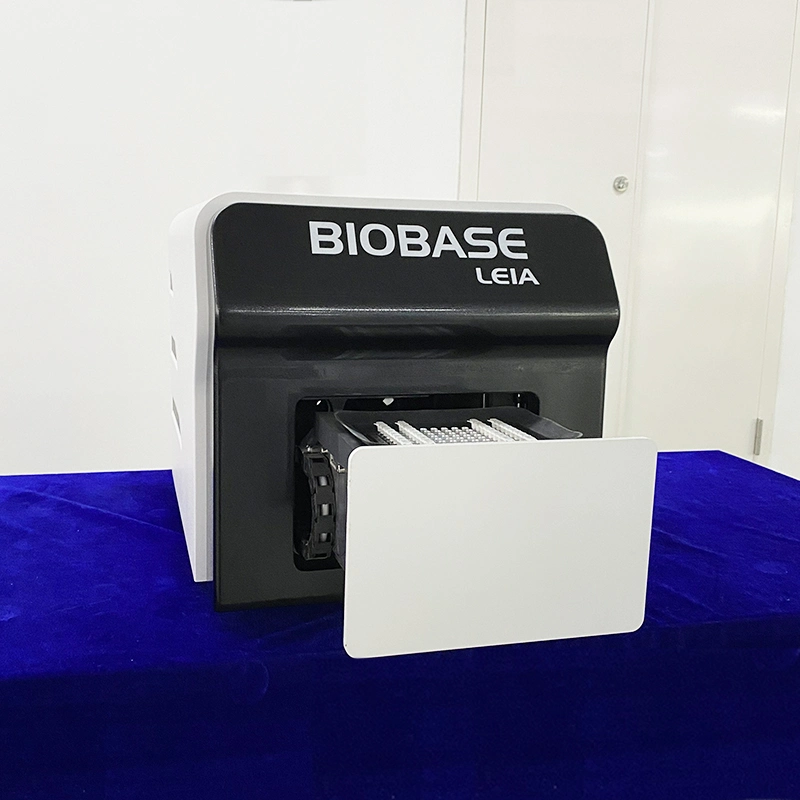

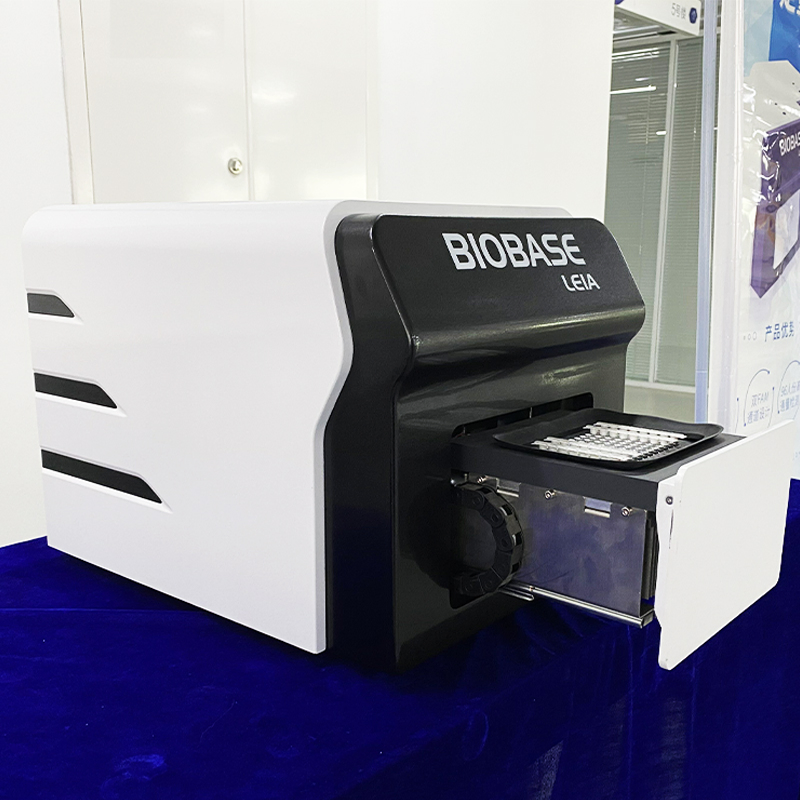

Biobase China Laboratory PCR System Medical Real Time PCR System for Labs
Biobase China Laboratory PCR System Medical Real Time PCR System for Labs
Biobase China Laboratory PCR System Medical Real Time PCR System for Labs
Biobase China Laboratory PCR System Medical Real Time PCR System for Labs
Biobase China Laboratory PCR System Medical Real Time PCR System for Labs
1 / 5
Biobase China Laboratory PCR System Medical Real Time PCR System for Labs
Biobase China Laboratory PCR System Medical Real Time PCR System for Labs
Biobase China Laboratory PCR System Medical Real Time PCR System for Labs
Biobase China Laboratory PCR System Medical Real Time PCR System for Labs
Biobase China Laboratory PCR System Medical Real Time PCR System for Labs

Biobase China Laboratory PCR System Medical Real Time PCR System for Labs

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📊 Basic Information
Model NO.
LEIA-X4
Product Name
Fluorescence Quantitative PCR Detection System
Sample Capacity
96X0.2ml PCR Plate, 12X8-Strip Tubes
Reaction System
5~100UL
Dynamics Range
1-10^10
Channel
4
Ramprate
4.0c/S(Max)
Temp. Control
Block Mode and Tube Mode
Hot-Lid Range
30-110c
✨ System Features

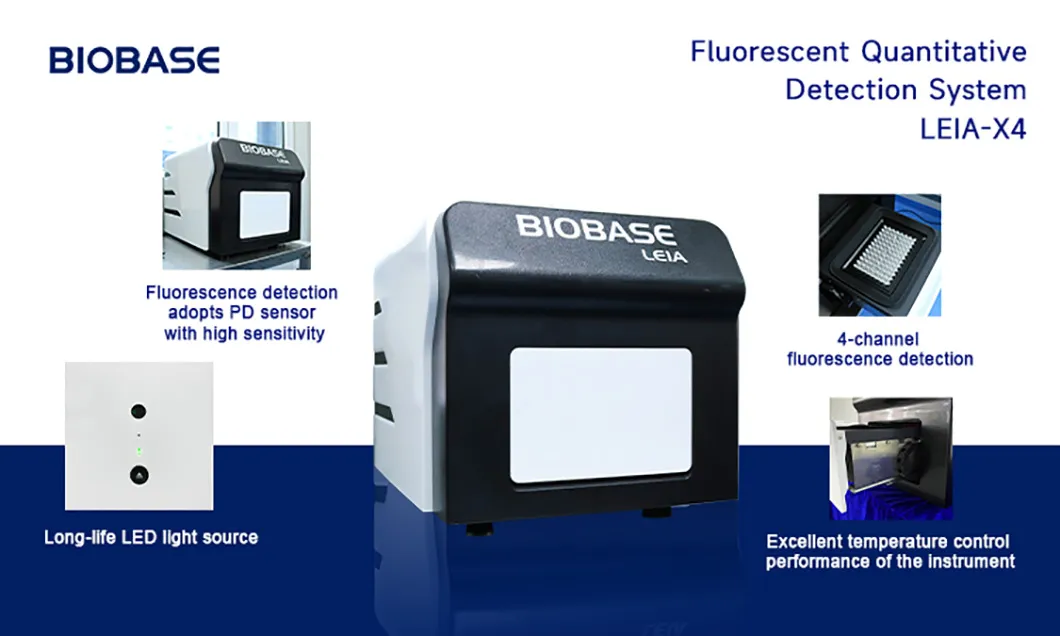

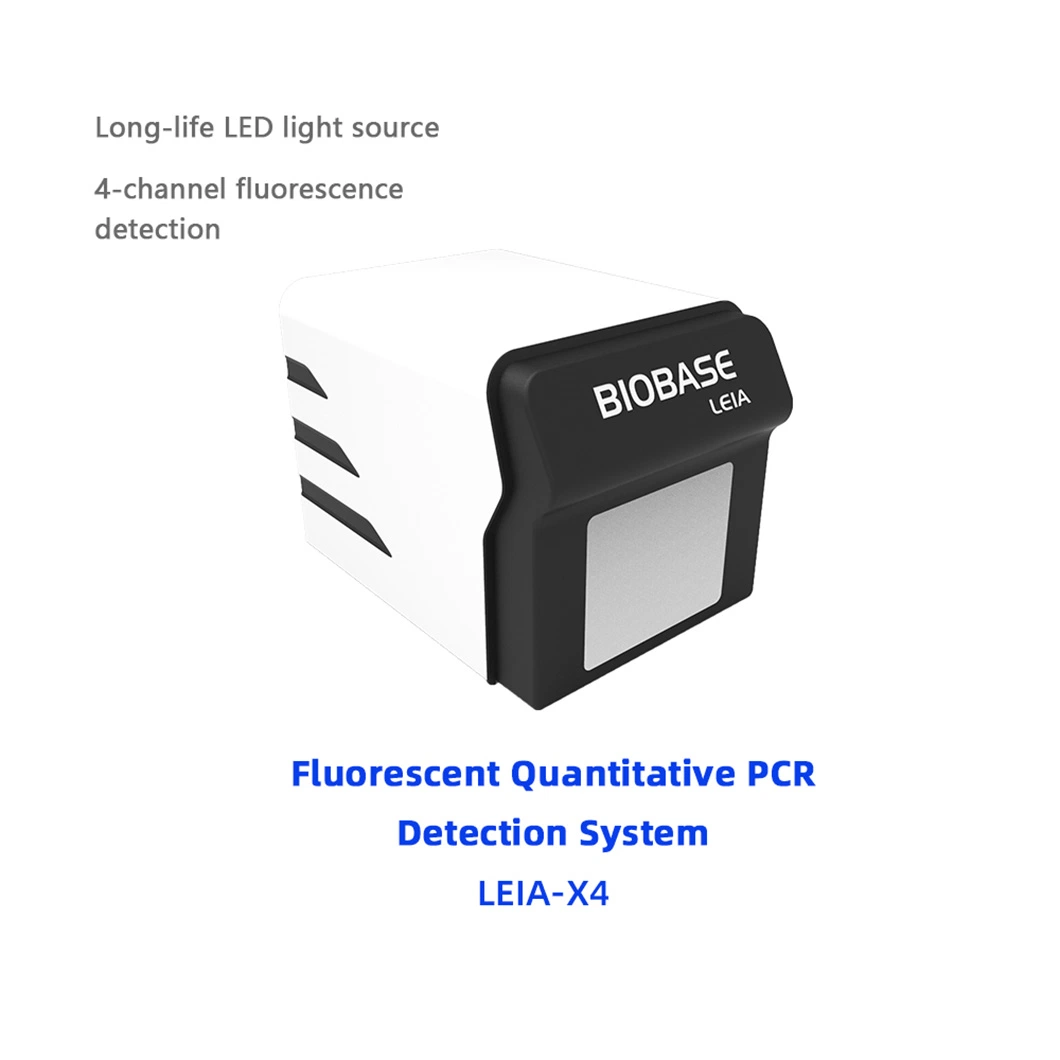

PCR Detection System
  • Excellent temperature control performance with maximum rise and fall rates ≥7.0ºC/s.
  • No edge effect and no optical path correction required due to top excitation and non-contact measurement.
  • High-sensitivity PD sensor for precise fluorescence detection.
  • Long-life, maintenance-free LED light source with stable emission wavelength.
  • 4-channel fluorescence detection ensures no cross interference between channels.
  • User-friendly software with flexible program settings and comprehensive analysis reporting.
⚙️ Technical Parameters
Model LEIA-X4
Sample Capacity 96x0.1ml PCR plate, 12x8-strip tubes, 96*0.1ml single tube
Detector PD
Detection Path F1, F2, F3, F4
Suitable Dyes FAM/SYBR Green, VIC/JOE/HEX/TET, ROX/Texas-Red, Cy5
Excitation Wavelength 455~645nm
Detection Wavelength 510~710nm
Ramp Rate 7.0ºC/s (max)
Temp. Accuracy ±0.3ºC
Scanning Time 8.5s
Dimensions 375*505*375 mm
📦 Packaging & Logistics
Packaging
🖼️ Visual Overview

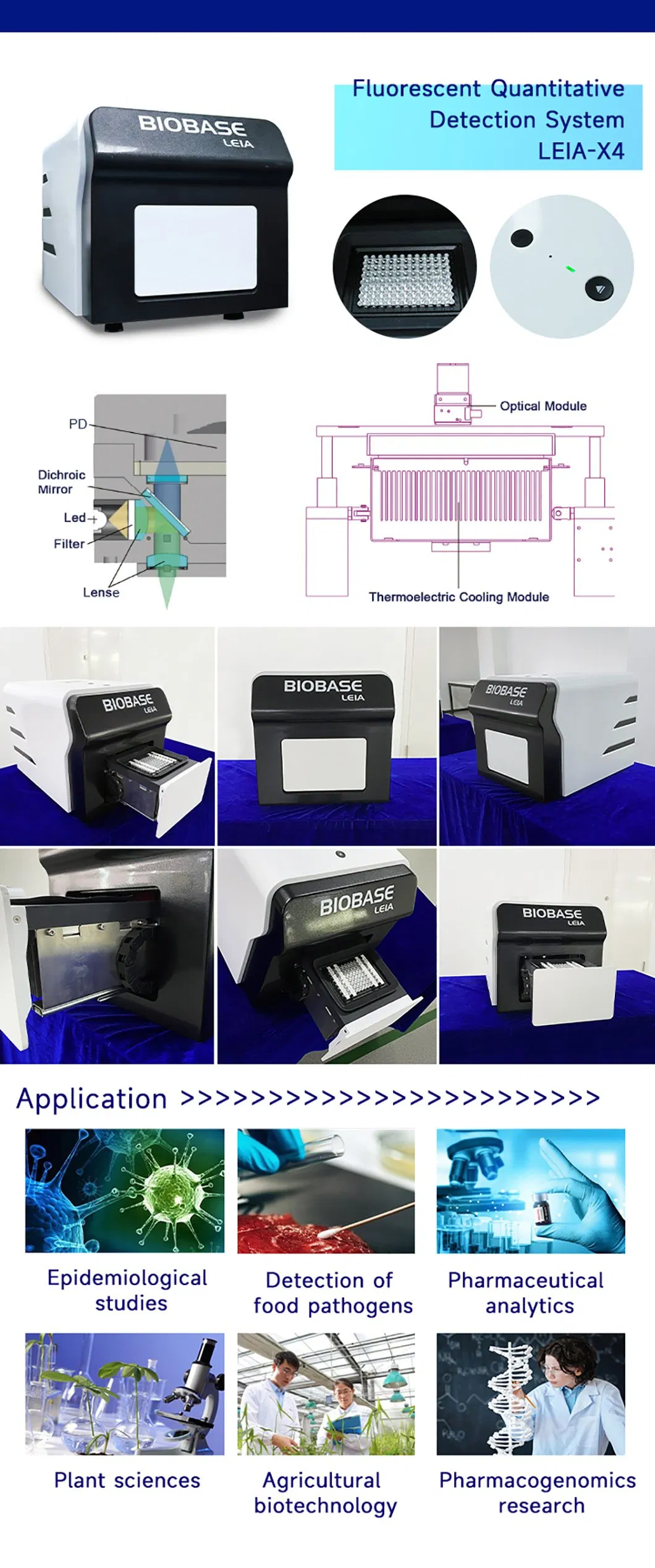

Detail View 1
Detail View 2

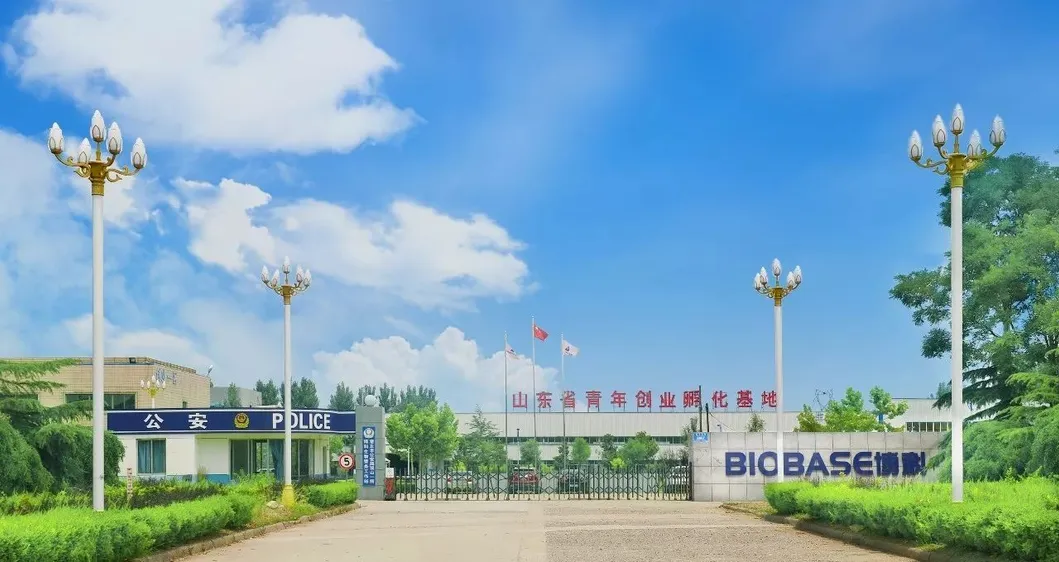

Detail View 3
Detail View 4

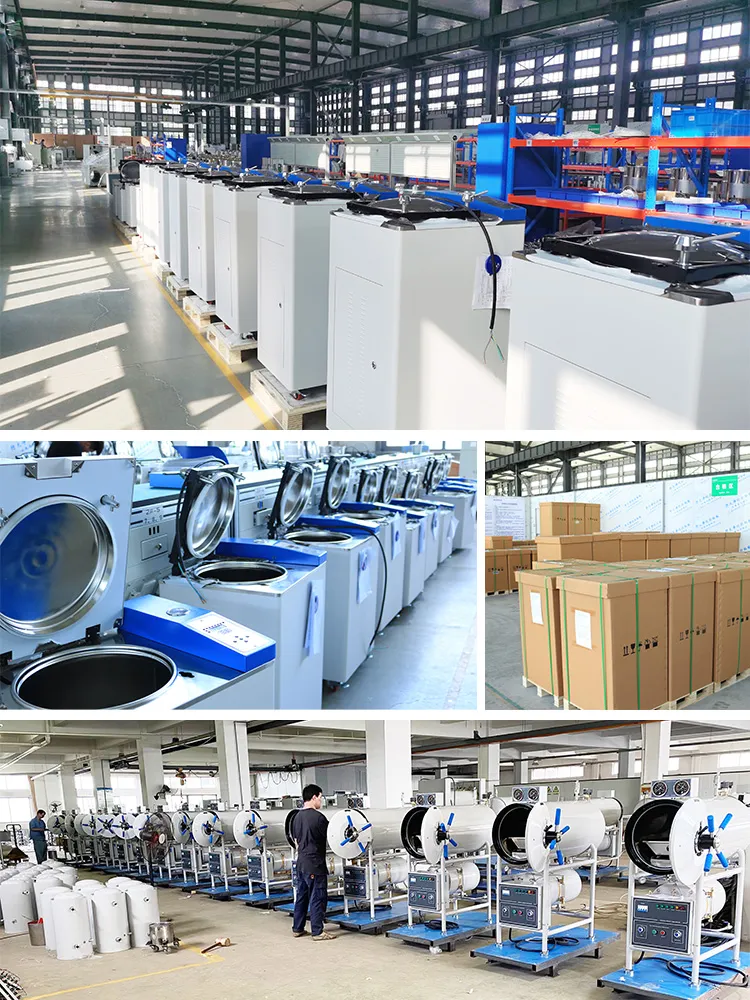

Detail View 5
Detail View 6
🛠️ Support & Service
Service 1
Service 2
Service 3
❓ Frequently Asked Questions
1. What is the maximum heating and cooling rate of the LEIA-X4?
The system features excellent temperature control with a maximum ramp rate of ≥7.0ºC/s.
2. How many fluorescence channels are available for detection?
The system supports 4-channel fluorescence detection (F1, F2, F3, F4) covering a wide range of common dyes like FAM, SYBR Green, VIC, ROX, and Cy5.
3. Does the system require manual optical path correction?
No, the system utilizes top excitation and detection with non-contact measurement, eliminating edge effects and the need for optical path correction.

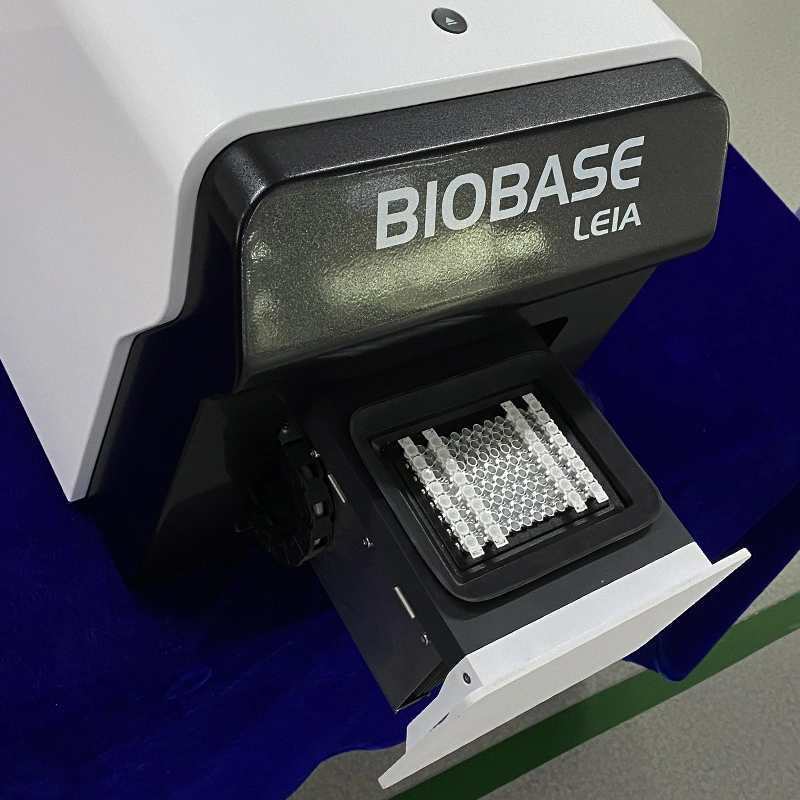

4. What type of samples can the system accommodate?
It is compatible with 96x0.1ml PCR plates, 12x8-strip tubes, and 96x0.1ml single tubes with transparent covers.
5. What analysis functions does the software provide?
The software supports absolute quantitative automatic analysis, relative quantification, and melting curve analysis, among other comprehensive reporting functions.
6. Is the light source durable?
Yes, the system uses a long-life LED light source which provides stable emission wavelengths and is maintenance-free.
