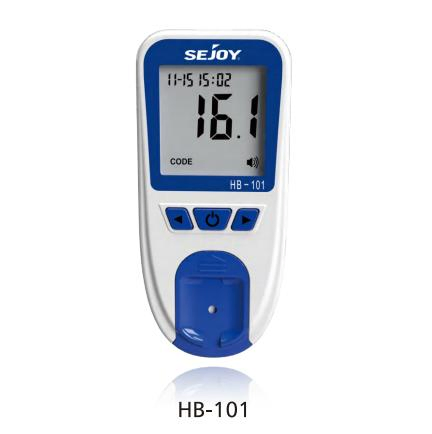

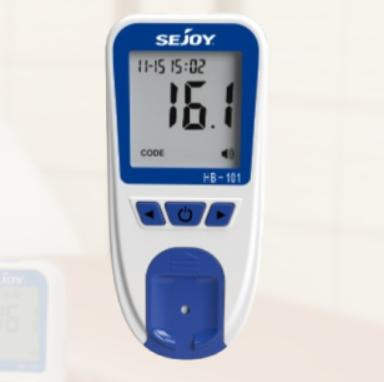

Hemoglobin Monitoring System Hb-101 CE

Customization:	Available
Cold Hot Dressing Application:	Hemoglobin
Usage Mode:	For External Use

Send Inquiry

Product Description

Basic Information

Model NO.

HB-101

Type

Hemoglobin Monitor

Group

Middle-aged and Old

Certification

Specification

126*57*24mm

HS Code

9018129100

Product Features

📺

Large LCD Display

💼

Deluxe Carry Case

💾

1000 Test Memories

🎯

High Accuracy

⚡

10s Fast Testing

🔋

Auto-off Function

📊

Clear Display Icons

💡

Light Reflection Principle

🩸

Small Blood Sample

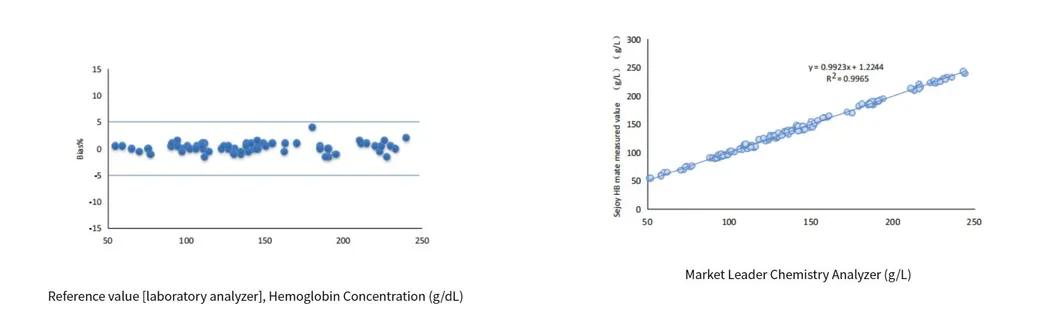

Clinical Validation Accuracy

The evaluation of system accuracy by lDK revealed that measurements obtained with the blood glucose meter fulfill the acceptance criteria as specified by DIN EN ISO 15197:2015.

Product Specifications

Meter Type	HB-101	Storage Environment	-20ºC~55ºC, <90%RH
Blood Sample	Capillary and Venous whole blood	Strip Storage	2ºC ~ 30ºC
Blood Volume	10μL	Dimensions	1265724mm
Measuring Range	4.5-25.6g/dL (45-256g/L)	Repeatability	SD <=0.8g/dL / CV <=3%
Response Time	<10 seconds	Accuracy	Absolute deviation <=1g/dL
Power Source	3*AAA Battery or MiniUSB DC5V	Weight	185g (with battery)
Battery Life	Approx. 2000 tests	Service Life	Ten years
Memory	1000 test results	Auto Power Off	Approx. 3 minutes
