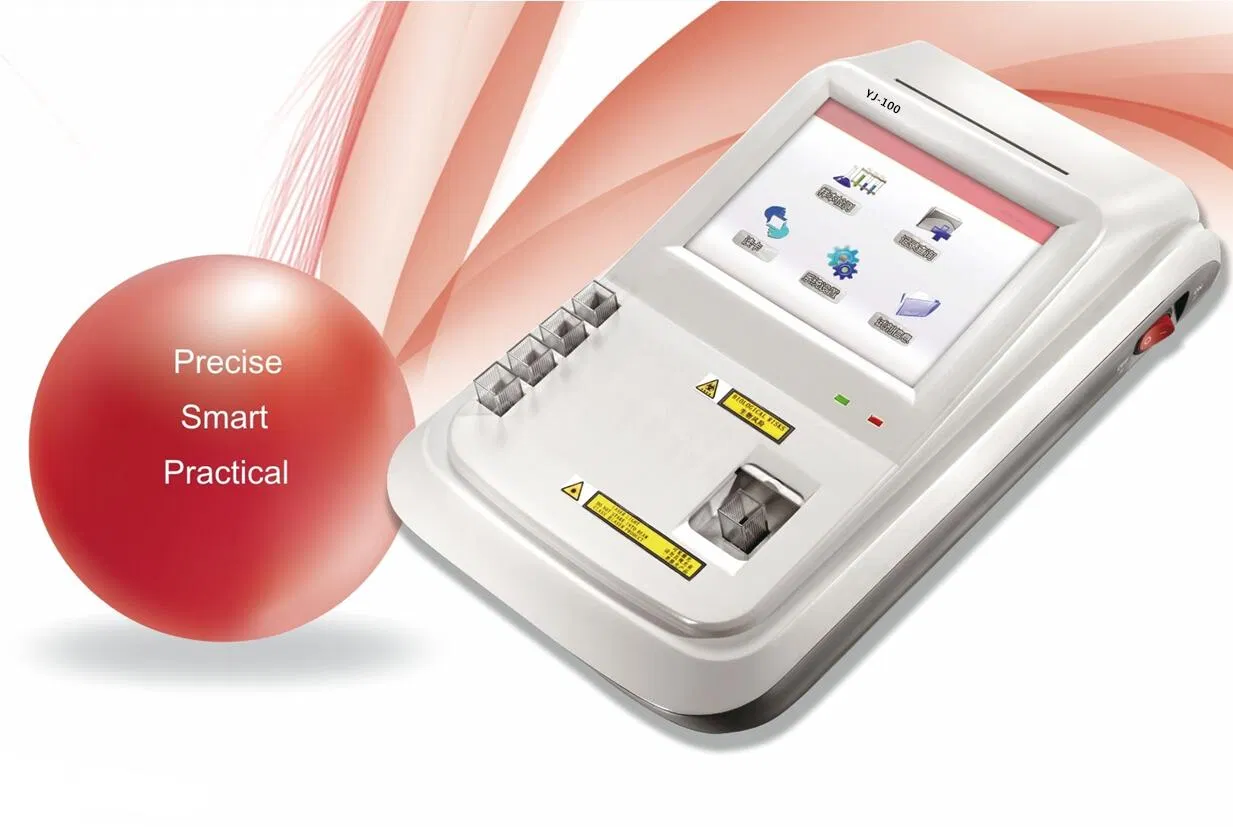

Immunoassay System Type Hba1c Hemoglobin Test Equipment (YJ-100)
Immunoassay System Type Hba1c Hemoglobin Test Equipment (YJ-100)
Immunoassay System Type Hba1c Hemoglobin Test Equipment (YJ-100)
Immunoassay System Type Hba1c Hemoglobin Test Equipment (YJ-100)
Immunoassay System Type Hba1c Hemoglobin Test Equipment (YJ-100)
1 / 5
Immunoassay System Type Hba1c Hemoglobin Test Equipment (YJ-100)
Immunoassay System Type Hba1c Hemoglobin Test Equipment (YJ-100)
Immunoassay System Type Hba1c Hemoglobin Test Equipment (YJ-100)
Immunoassay System Type Hba1c Hemoglobin Test Equipment (YJ-100)
Immunoassay System Type Hba1c Hemoglobin Test Equipment (YJ-100)

Immunoassay System Type Hba1c Hemoglobin Test Equipment (YJ-100)

Customization: Available
Classification: Clinic Hba1c Specfic Protein Analysis System
Type: Clinic Hba1c Specfic Protein Analysis System
Send Inquiry

Product Description

Overview
Model NO.
YJ-100
Certification
CE
Screen
5.6inch LCD Touch Screen
Test Speed
20-120sec/Test
Test Rapid
Within 1 Minutes
Hct Range
00.00-99.99% Adjustable
Test Items
HbA1c, CRP, hs-CRP, mALB, Cys-C
Transport Package
Standard Package
Product Description

HbA1c Specific Protein Analysis System

Rapid New fast immunity measurement system. Test results can be reported within 1 minute.
Quantitative Dual system of nephelometry and turbidimetric tests, high sensitivity, wide testing range.
Convenient RF type non-contact magnetic card for reagent information; human-machine touch screen is intuitive to operate.
Reliable Specimen dilution and calibration of hematocrit (HCT) make the results uniform and accurate.

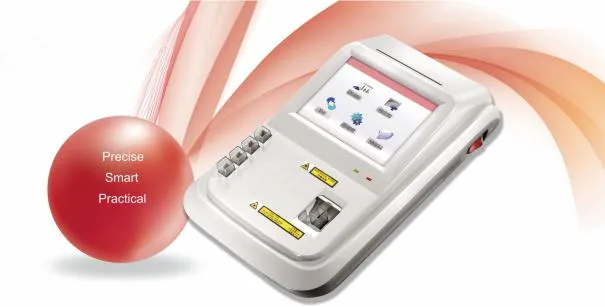

HbA1c Hemoglobin Test Equipment

Main Features:

Test principles: Dual system of nephelometry and turbidimetric test with higher sensitivity.
Test structure: Replaceable laser device and integrated test structure.
Channel quantity: Single or dual channel, testing specimens independently.
Test methods: Automatic Point-OF-Care testing; numbers automatically after tube insertion.
Test operation: Touch screen, easy mixing, automatic blank recognition and calculation.
HCT calibration: Conversion of HCT values makes results unified in whole blood and serums.
Result output: All results displayed on one screen, easy to print and export.

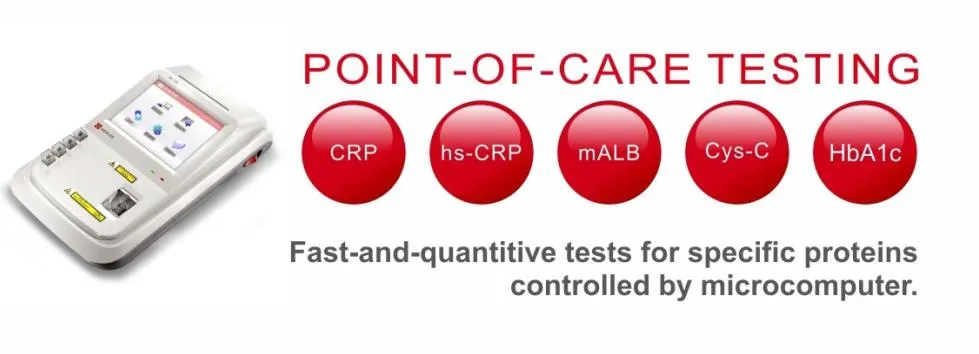

Analysis System Detail

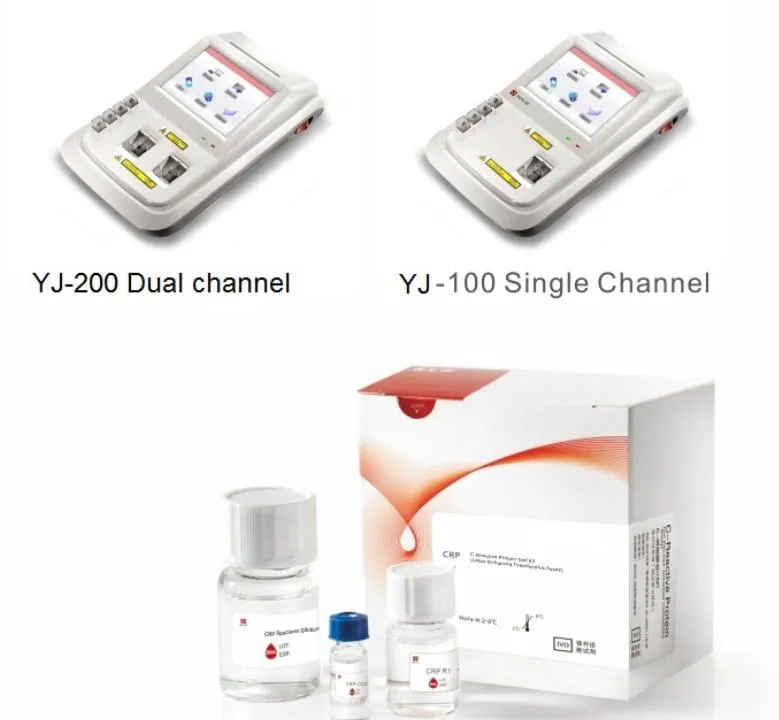

Analysis System Interface
Technical Specifications

Reagent Kits Information:

Item Packing (tests/kit) Specimen Type & Dosage Test Range Reference Range Clinical Significance
CRP 50 / 200 10ul blood/serum/plasma 3-120 mg/l (WB) <10 mg/l Identify bacterial/virus infection; monitor antibiotic effectiveness.
hs-CRP 50 / 200 20ul blood/serum/plasma 0.2-24 mg/l (WB) <1.00 mg/l Predict cardiovascular disease morbidity; identify newborn infection.
mALB 25 / 50 100ul urine 10-160 mg/l <20 mg/l Assess early kidney lesions and diabetic mellitus monitoring.
Cys-C 25 / 50 10ul serum 0.2-0.6 mg/l <1.45 mg/l Monitor early kidney lesions caused by urinary tract infection.
HbA1c 50 10ul whole blood 2%-14% 3.98%-6.31% Golden standard for diabetes control and complication prediction.

Device Specifications:

Specimen Type Peripheral whole blood, vein whole blood, serum, plasma, urine specimens
Specimen Numbering Automatic numbering 1-999; optional barcode scanner
Whole Blood HCT 00.00-99.99% adjustable
Test Speed 20-120 sec/test
Screen 5.6 inch LCD touch screen
Interface 3 RS232C interfaces (Data transmission, external printer, barcode scanner)
Result Storage 1000 records
Operating Voltage AC100V-240V / DC 12V
Manufacturing & Quality Control

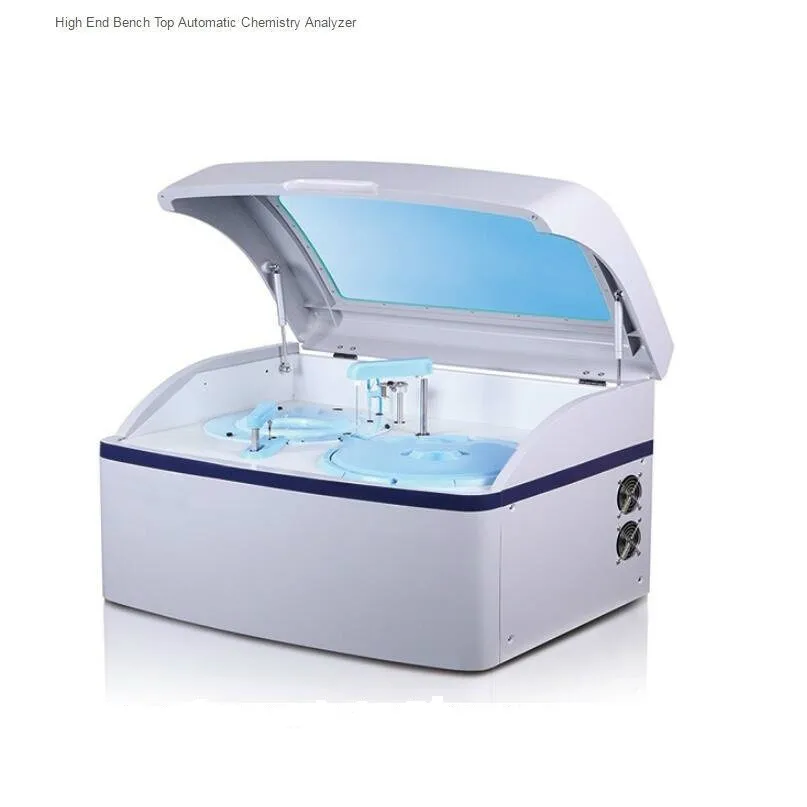

Related Product YJ-180
Production Facility
Quality Inspection
Laboratory
Warehouse
Shipping
Frequently Asked Questions
1. How fast can the YJ-100 provide test results?
The system is designed for rapid testing, with results typically reported within 1 minute (20-120 seconds per test depending on the item).
2. What types of specimens can be analyzed with this system?
The YJ-100 supports a wide range of specimens, including peripheral whole blood, vein whole blood, serum, plasma, and urine.
3. Does the device support automatic calibration for whole blood samples?
Yes, it features HCT (Hematocrit) calibration which converts values to ensure unified and reliable results across whole blood and serum samples.
4. How is reagent information managed in the system?
The system uses an RF-type non-contact magnetic card to store reagent parameters. You only need to read the card once for the same item per day.
5. What is the storage capacity for patient test results?
The device can store up to 1,000 test results, which can be easily viewed on the screen or output via the RS232C interface.
6. Is the interface user-friendly for clinical staff?
Absolutely. It features a 5.6-inch LCD touch screen with an intuitive interface for easy operation, mixing, and automatic result calculation.
