Medical Use Dry Chemistry Urine Analyzer Portable Design Urine Analysis System

Classification:	Biochemical Apparatus
Type:	Urine Analyzer
Certification:	ISO13485

Basic Information

Model NO.

CCL-U1550

Warranty

1 Year

MOQ

1 Unit

Transport Package

Standard Export Package

Origin

China

Production Capacity

1000 units/Month

Product Description

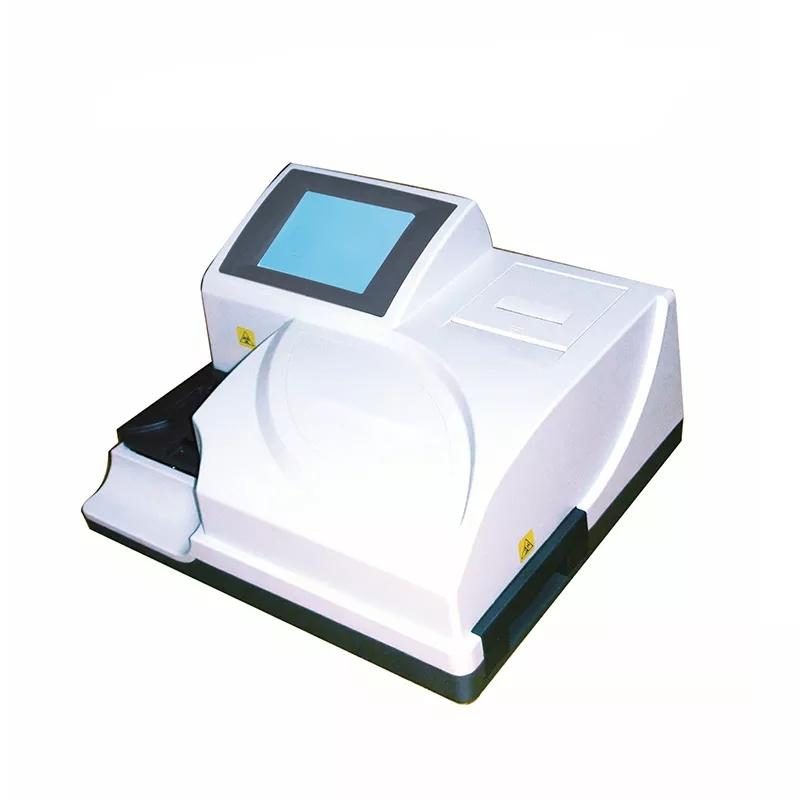

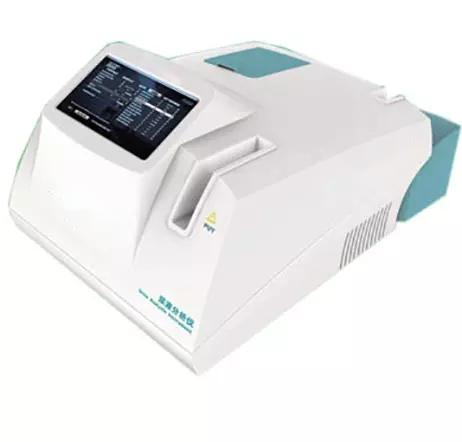

Medical Use Dry Chemistry Urine Analyzer Portable Design Urine Analysis System

Model: CCL-U1550

Technical Parameters

Test speed: 515 / hour
Data store capacity: 2000 test records
Language: English, Chinese, and others
Environment: Altitude ≤2000m, Temp 15ºC~35ºC
Output: RS-232 serial, Parallel printing
Barcode link: Bar code reader supported
Transfer rate: 4800 to 14400 BPS
Power: AC 220/110V, 50Hz
Fuse: 250V 1A specifications
Work rate: 40 VA
Weight: 7.0 Kg
Dimensions: 390mm * 330mm * 210mm
Printer: Built-in thermal / External stylus
Test strips: 10A, 11A, 12A, 13A, 14A

Supply Ability: 300 sets urine analyzer per month

Packaging Details: 1 Set/carton, 390*330*210mm, Weight: 7kg (Volume weight: 9.5kg)

Lead Time: Shipped in 3-15 days depending on order size.

Hospital Medical Equipment Range

One-Stop Shopping Solution	X-Ray Room	X-ray machine, Processor, Film, Cassette, Lead clothing
	Ultrasound	B/W 2D, 2/3/4D Color Ultrasound
	Laboratory	Chemistry analyzer, Hematology analyzer, ELISA reader, Centrifuge, Urine analyzer
	Operation Room	Anesthesia machine, Ventilator, Operating lamp/table, ECG, Patient monitor, Defibrillator

Frequently Asked Questions

What is the testing speed of the CCL-U1550?

The system features a high-speed testing capability of up to 515 tests per hour.

How many test results can the device store?

The internal data storage capacity allows for up to 2000 individual test records.

Which urine test strips are compatible with this analyzer?

It is compatible with 10A, 11A, 12A, 13A, and 14A urine test strips.

Does the analyzer include a built-in printer?

Yes, it comes with a built-in thermal printer and also supports connection to an external stylus printer.

What is the typical lead time for an order?

Orders are typically shipped within 3 to 15 days, depending on the total order size.

What are the language options for the interface?

The system supports English and Chinese by default, and other languages can be added upon request.
