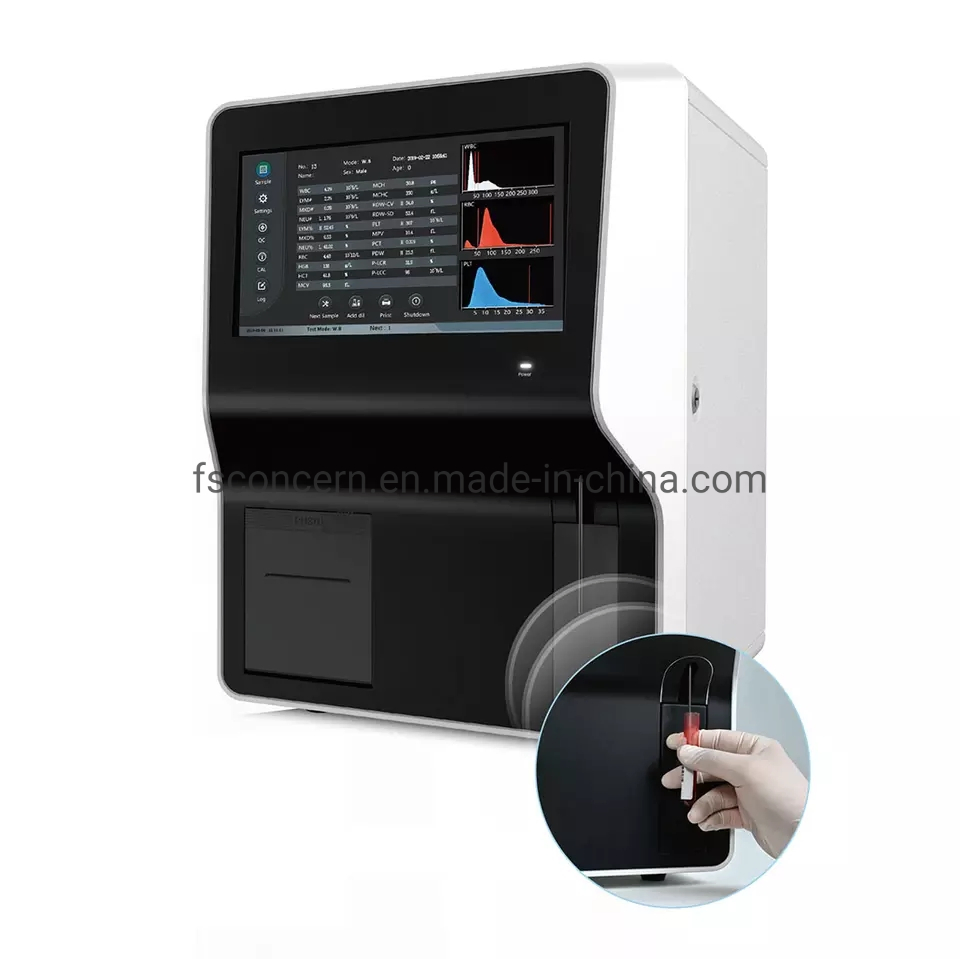

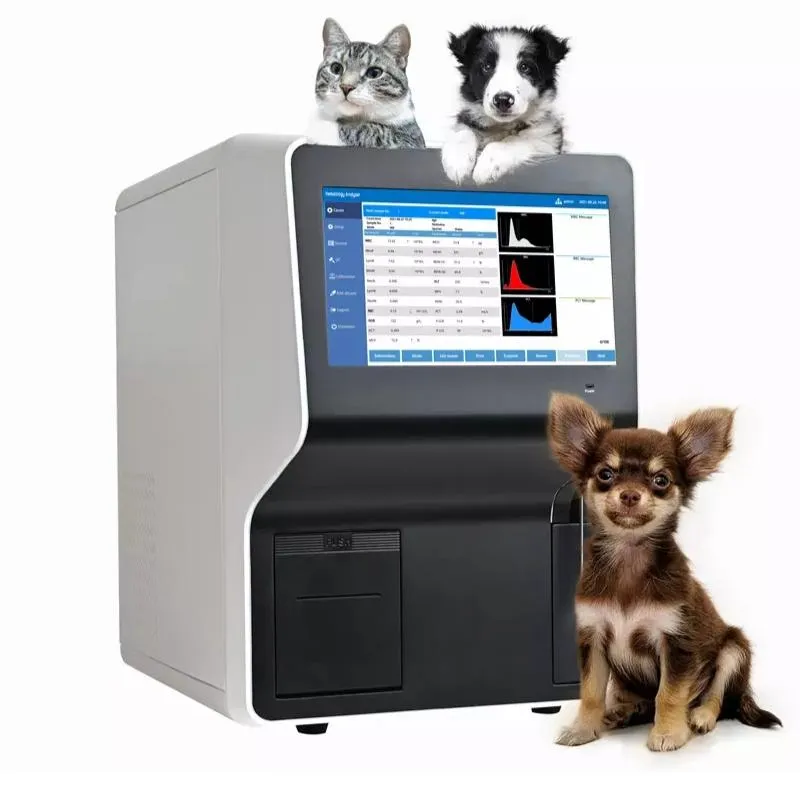

Medical 60T/H Auto Vet CBC FBC Animal Blood Hematology Analysis Equipment
The CCV-H3000 Automatic Hematology Analyzer is designed to count red blood cells, white blood cells, and platelets in blood samples, measuring hemoglobin volume and calculating relevant parameters of blood cells with high precision.

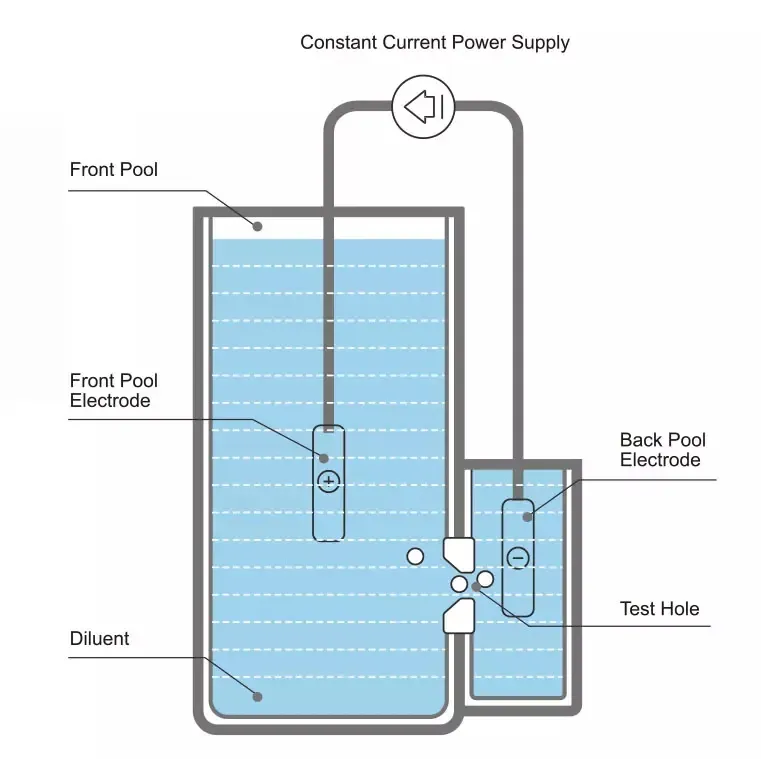

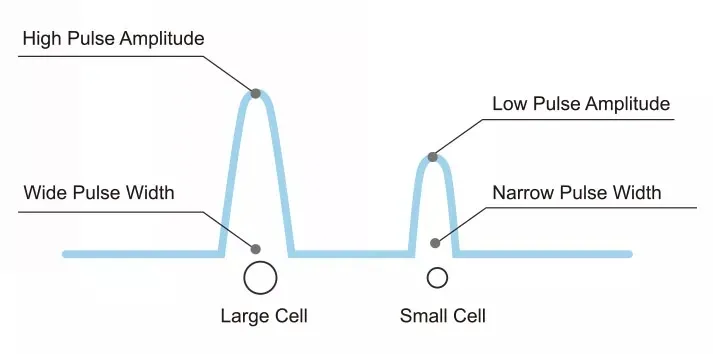

Classic Electrical Impedance Method: Blood cells passing through a small hole create voltage pulses proportional to cell size, allowing accurate counting and classification.
Mature Photoelectric Colorimetry: Utilizes 520 nm green light and high-sensitivity photodiodes for precise hemoglobin analysis.
| Parameters | Details |
|---|---|
| Throughput | 60 Samples/Hour |

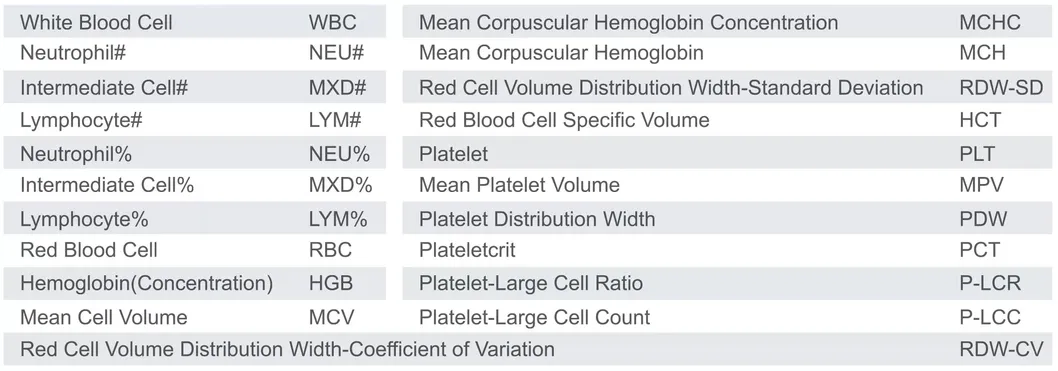

| Reportable Parameters | 21 Parameters + 3 Histograms |
| Data Storage | 10,000 Results |
| Display | 10.4 Inch Resistive Touch Screen |
| Reagent System | 1 Diluent and 1 Lyse |
| Sample Mode | Whole Blood (Venous/Capillary), Pre-dilution |
| Dimensions | 328mm * 425mm * 446mm |
| Weight | 16 KG |
| Environment | 18~30ºC, ≤80% Humidity |
| Department | Equipment Range |
| X-Ray Room | X-ray machine, Processor, Film, Cassette, Lead clothing (apron, glasses, gloves) |
| Ultrasound | B/W 2D Ultrasound, 2D/3D/4D Color Ultrasound |
| Laboratory | Chemistry analyzer, Hematology analyzer, ELISA reader/washer, Centrifuge, Pipette, Urine analyzer |
| Operation Room | Anesthesia machine, Ventilator, Operating lamp/table, ECG, Patient monitor, Defibrillator, Infusion pump |
