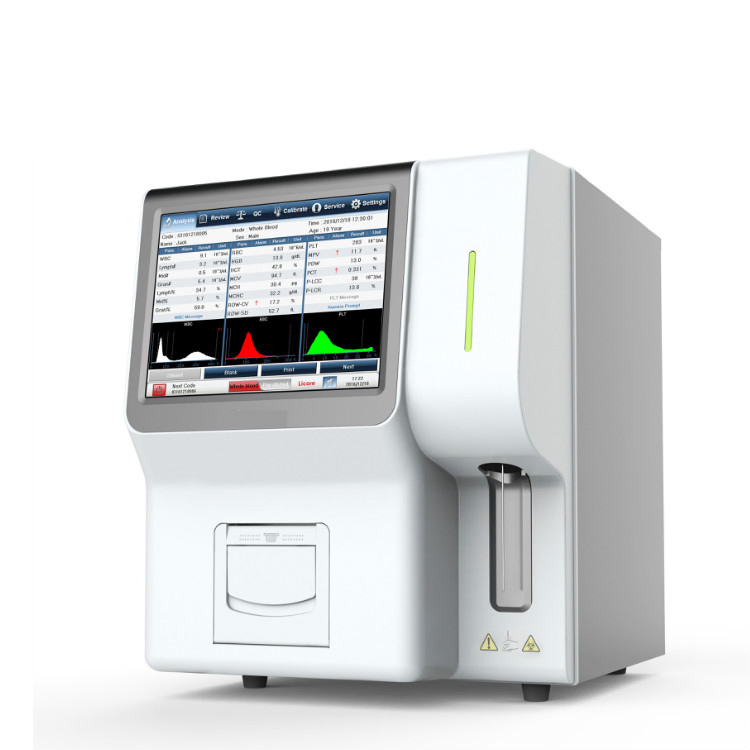

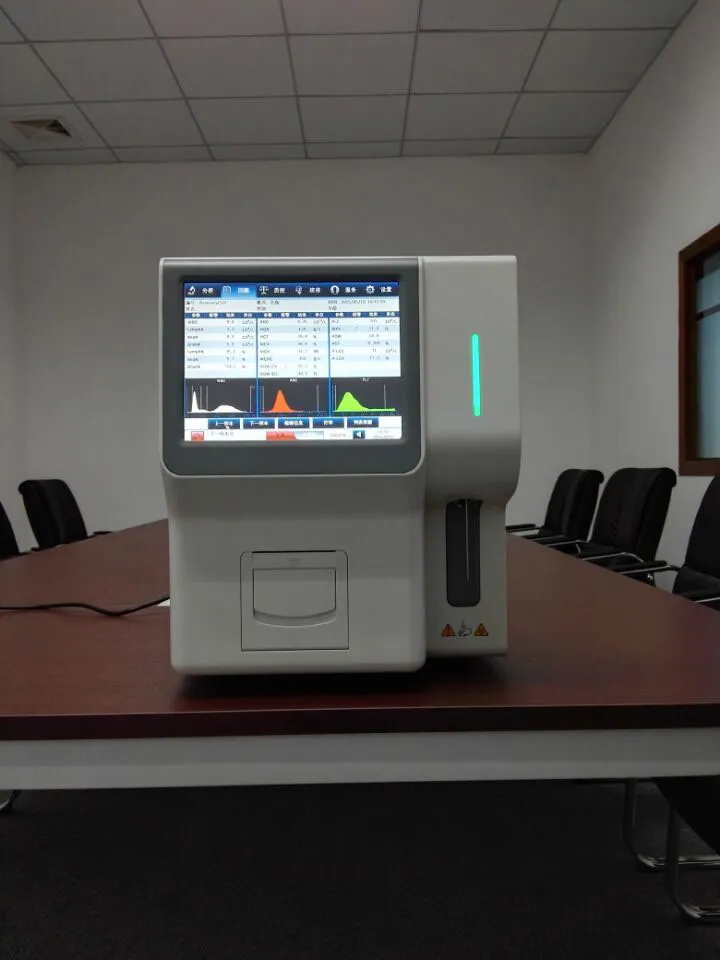

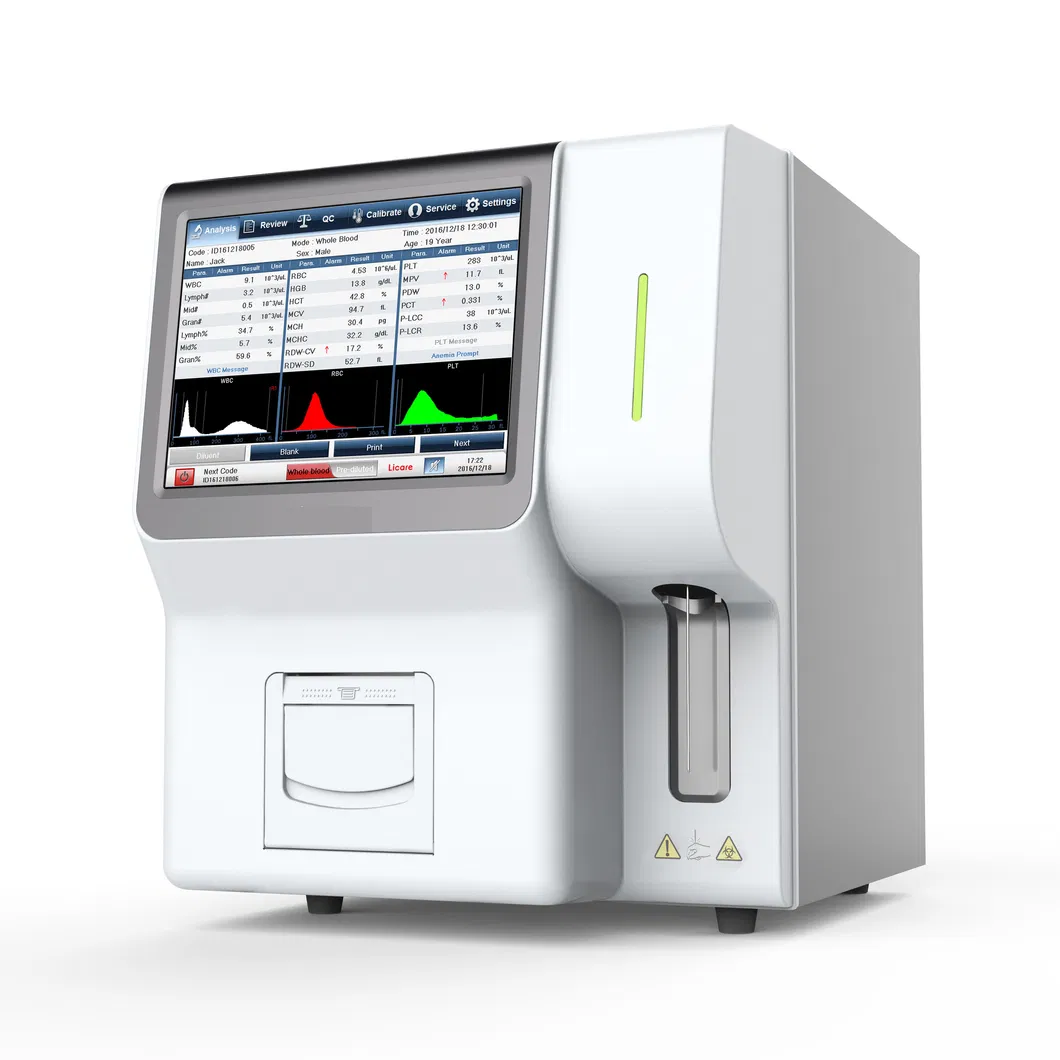

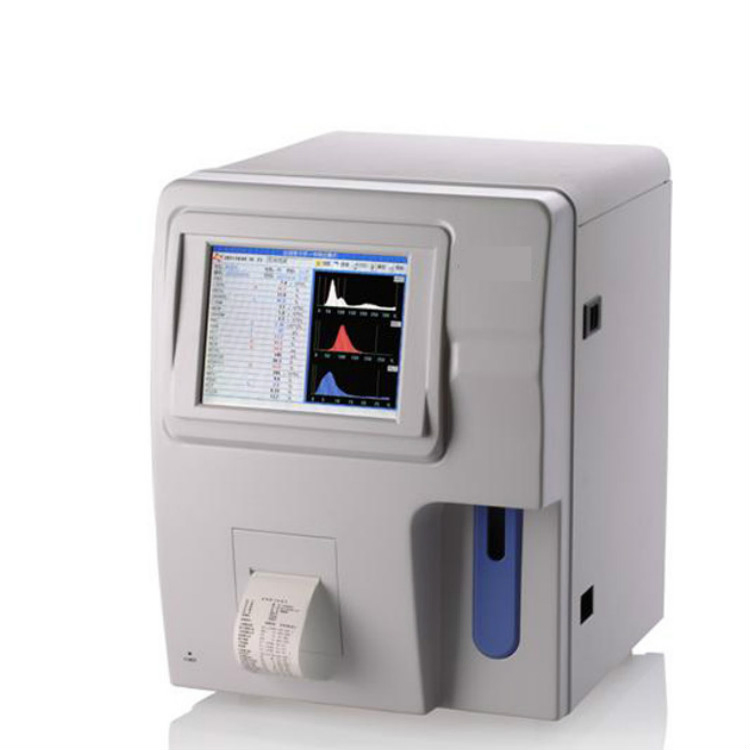

Medical Laboratory Touch Screen CBC 3-Part Open System Fully Automatic Hematology Analysis Equipment
Model: CCL-H3200
User-friendly Interface
10.4 inch true color TFT LCD & touch screen. Minimized interface layers and pop-up soft keyboard for easy operation.
International Support
Multiple parameter units and several languages available with online switching support.
Anemia Indications
Provides various indications including Normocytic, Macrocytic, and Microcytic hypochromic anemia.
Advanced Alarm System
Clear text alarm information (clearer than traditional R1, Rm, Pm characters) for better diagnostics.
Automated Maintenance
Automatic blank counting during start-up and automatic re-counting after unclogging treatment.

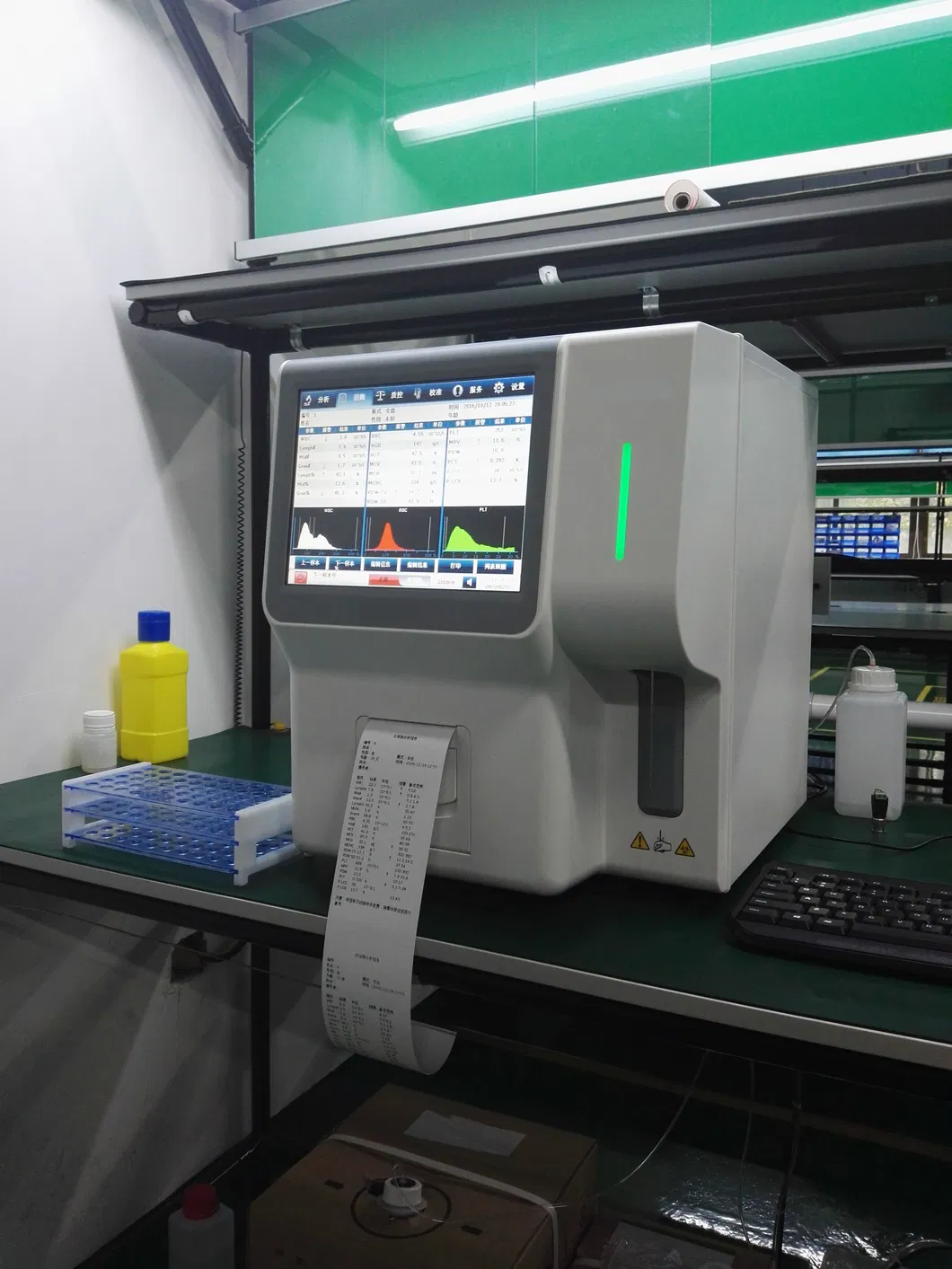

Built-in Thermal Printer
Patented structure for easy paper loading. Fast 80mm wide report printing in just 5 seconds.
| Measuring Principles | Impedance method for cells counting; Cyanide free colorimetric method for HGB measurement |
| Throughput | ≤60 Seconds from test start to printout completion |
| Counting Channels | Double channel for counting |
| Sample Volume | Whole Blood: ≤14µL; Pre-diluted Blood: ≤20µL |
| Parameters | 21 parameters and 3 histograms (WBC, RBC, PLT, etc.) |
| Storage | >10,000 sample results including histograms and patient info |
| Communication | Open protocol; Supports connection to LIS |
| Data Ports | 1 Network port, 1 RS-232 port, 4 USB ports |
| Department | Equipment Range |
|---|---|
| X-Ray Room | X-ray machine, processor, film, cassette, lead clothing (apron, gloves, glasses) |
| Ultrasound | B/W 2D ultrasound, 2D/3D/4D Color ultrasound |
| Laboratory | Chemistry analyzer, hematology analyzer, ELISA reader/washer, centrifuge, pipette |
| Operation Room | Anesthesia machine, ventilator, operating lamp/table, ECG, patient monitor, defibrillator |
