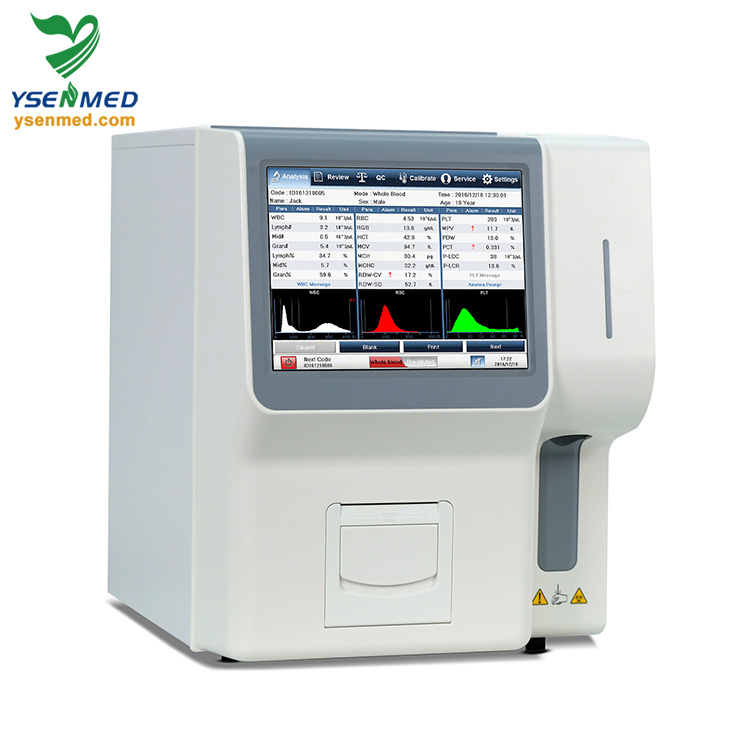

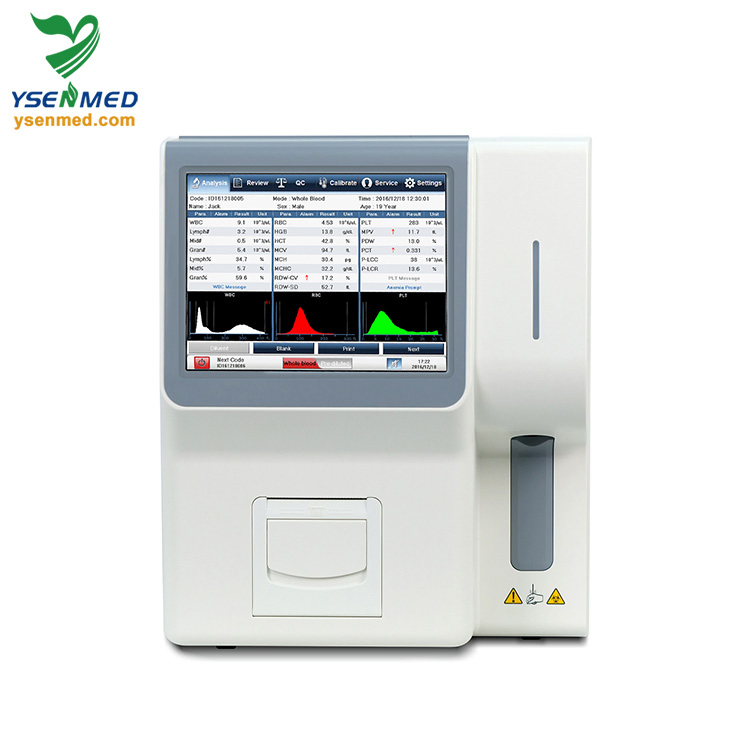

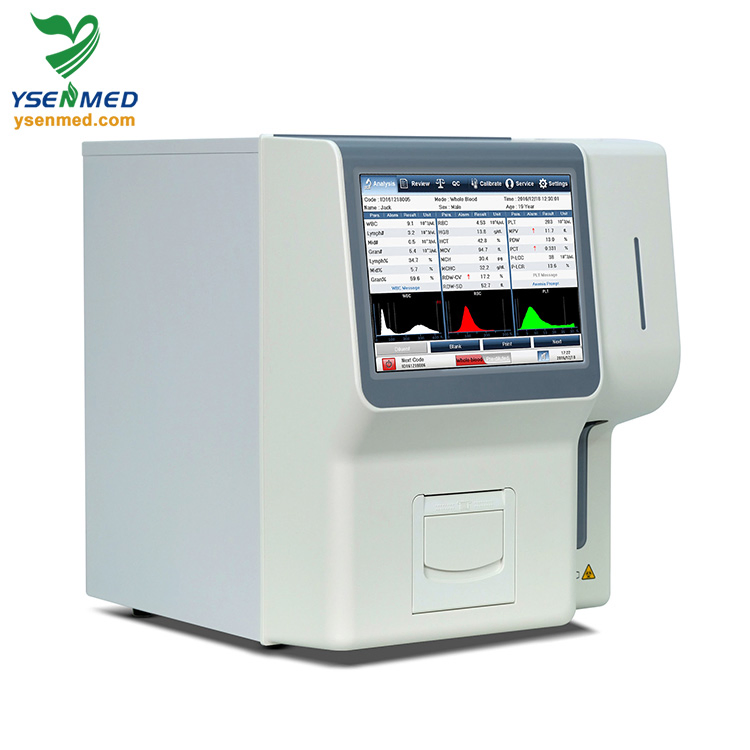

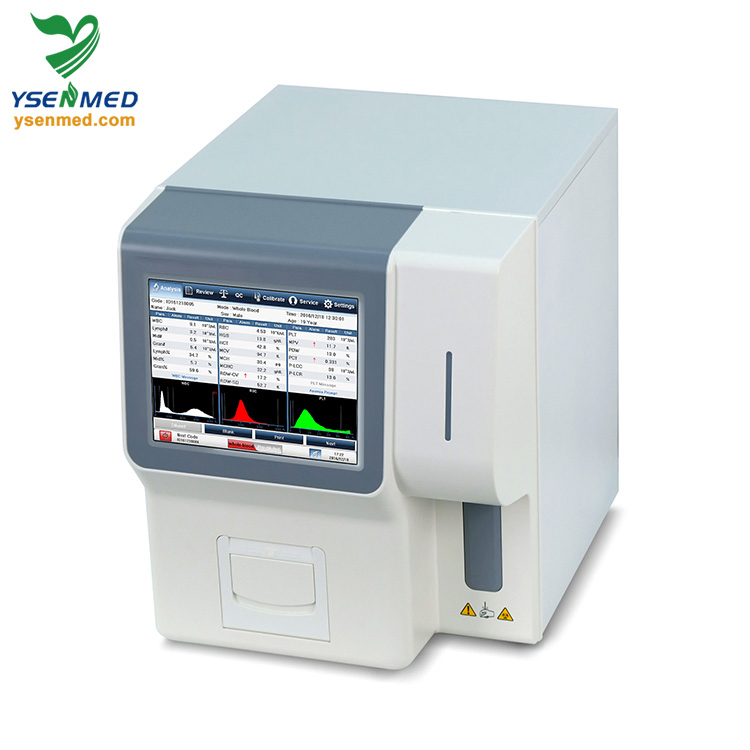

Ysenmed Medical Laboratory Equipment Fully Auto Hematology Analyzer Yste320

Storage: Can Store More Than 10, 000 Sample Results
Dimensions: 368mm X 448mm X 475mm
Power: 220V, 50Hz Input Power: ≤150va

Product Description

Basic Information
Model NO.
YSTE320
Warranty
1 Year
Screen
10.4 Inch True Color TFT LCD & Touch Screen
Printer
Built-in Patented Structure Thermal Printer
Transport Package
Plywood Case
Origin
China
Capacity
1000 PCS/Year
Product Highlights

3-Part 23 Parameters Auto Hematology Analyzer

📱
User-friendly Interface
10.4 inch true color TFT LCD & touch screen. Pop-up soft keyboard for easy operation.
🌍
International Support
Multiple parameter units and languages available with online switching.
🔍
Anemia Indications
Provides indications for Normocytic, Macrocytic, and Microcytic anemia.
⚠️
Clear Alarm System
Detailed text alarm information for clearer diagnostics than traditional characters.
⚙️
Smart Maintenance
Automatic blank counting during start-up and automatic re-counting after unclogging.
🖨️
Fast Printing
Built-in thermal printer (80mm). Report printing takes only 5 seconds.
Technical Specifications
Measuring Principles Impedance method for cells counting; Cyanide free colorimetric method for HGB measurement
Throughput ≤60 Seconds from test start to printout completion
Sample Volume Whole Blood: ≤14µL; Pre-diluted Blood: ≤20µL
Parameters 21 parameters and 3 histograms (WBC, RBC, PLT, HGB, MCV, etc.)
Storage Over 10,000 sample results including histograms and patient info
Data Ports 1 Network port, 1 RS-232 port, 4 USB ports
Environment Temp: 10℃ ~ 30℃; Humidity: ≤70%
Dimensions & Weight 368mm x 448mm x 475mm; Weight: ≤23Kg
Product Gallery & Video
Hematology Analyzer View 1
Hematology Analyzer View 2
Hematology Analyzer View 3
Hematology Analyzer View 4
Hematology Analyzer View 5
Hematology Analyzer View 6
Hematology Analyzer View 7
Hematology Analyzer View 8
Hematology Analyzer View 9
About Our Professional Service

We are a professional supplier of medical equipment, specialized in R&D and sales of high-quality medical devices. Our business covers medical imaging, laboratory equipment, operation room solutions, dental equipment, and hospital furniture.

Our mission is to provide the most cost-effective medical equipment for hospitals and clinics around the world. With years of experience, we have established strong cooperation with customers from over 160 countries globally. We prioritize reputation and customer satisfaction, supported by a dedicated after-sales service team providing powerful technical backup.

Frequently Asked Questions
What are the main testing capabilities of this analyzer?
The analyzer is a 3-part automated system that provides 21 parameters and 3 histograms, covering WBC, RBC, and PLT populations with high precision.
How much blood sample is required for a test?
It requires a very small sample volume: ≤14µL for whole blood and ≤20µL for pre-diluted blood modes.
Does the system require frequent manual cleaning?
No, the system features automatic unclogging treatments (back flushing, soaking, and burning) before and after sample analysis to ensure smooth operation.
Can the data be exported to a hospital LIS system?
Yes, it uses an open communication protocol and supports direct connection to LIS (Laboratory Information Systems) via its network ports.
What is the storage capacity for test results?
The internal storage can hold more than 10,000 complete sample results, including all parameters, histograms, and patient information.
What kind of maintenance does the syringe system need?
The analyzer is designed with a maintenance-free syringe system, significantly reducing the long-term operational costs and downtime.
