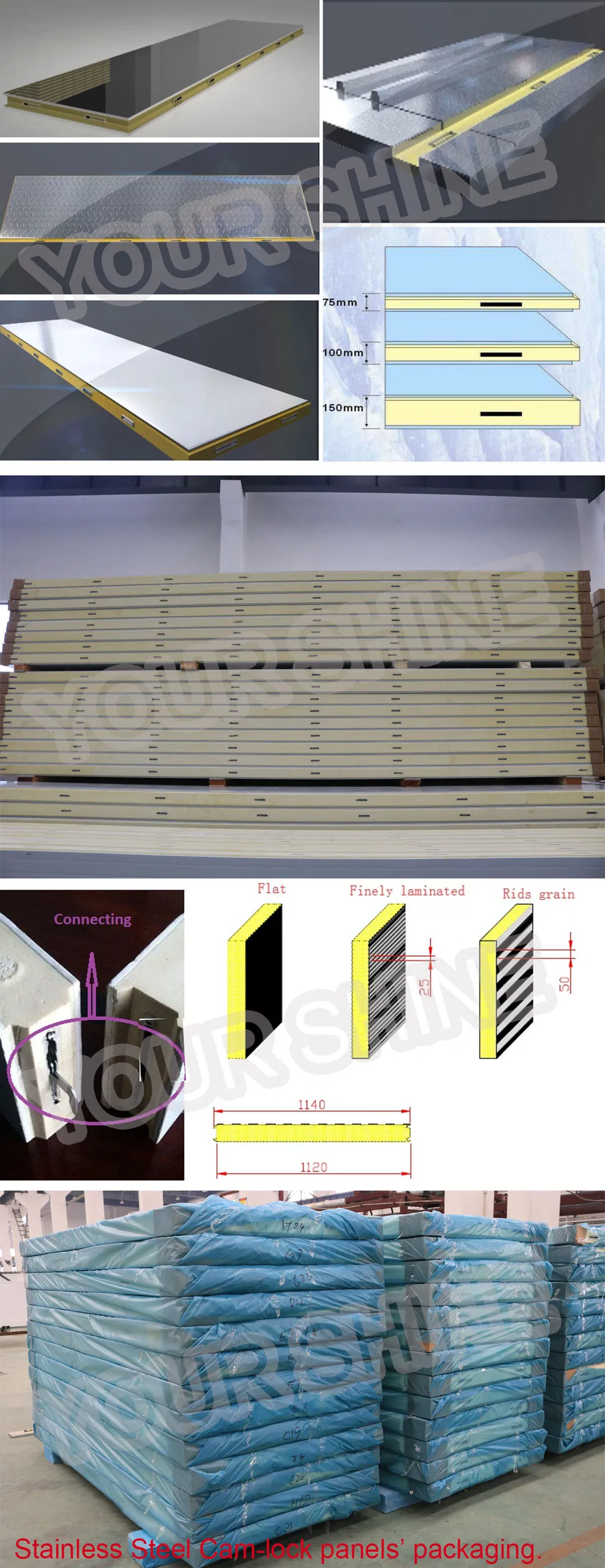

Cam-lock PU panel: The structure of the cam lock panel (eccentric hook type) is a polyurethane sandwich panel made with traditional molds. The eccentric hook is embedded in the mold around the sandwich panel during production, allowing for convenient assembly. It is generally applicable to small or medium-sized cold storage.

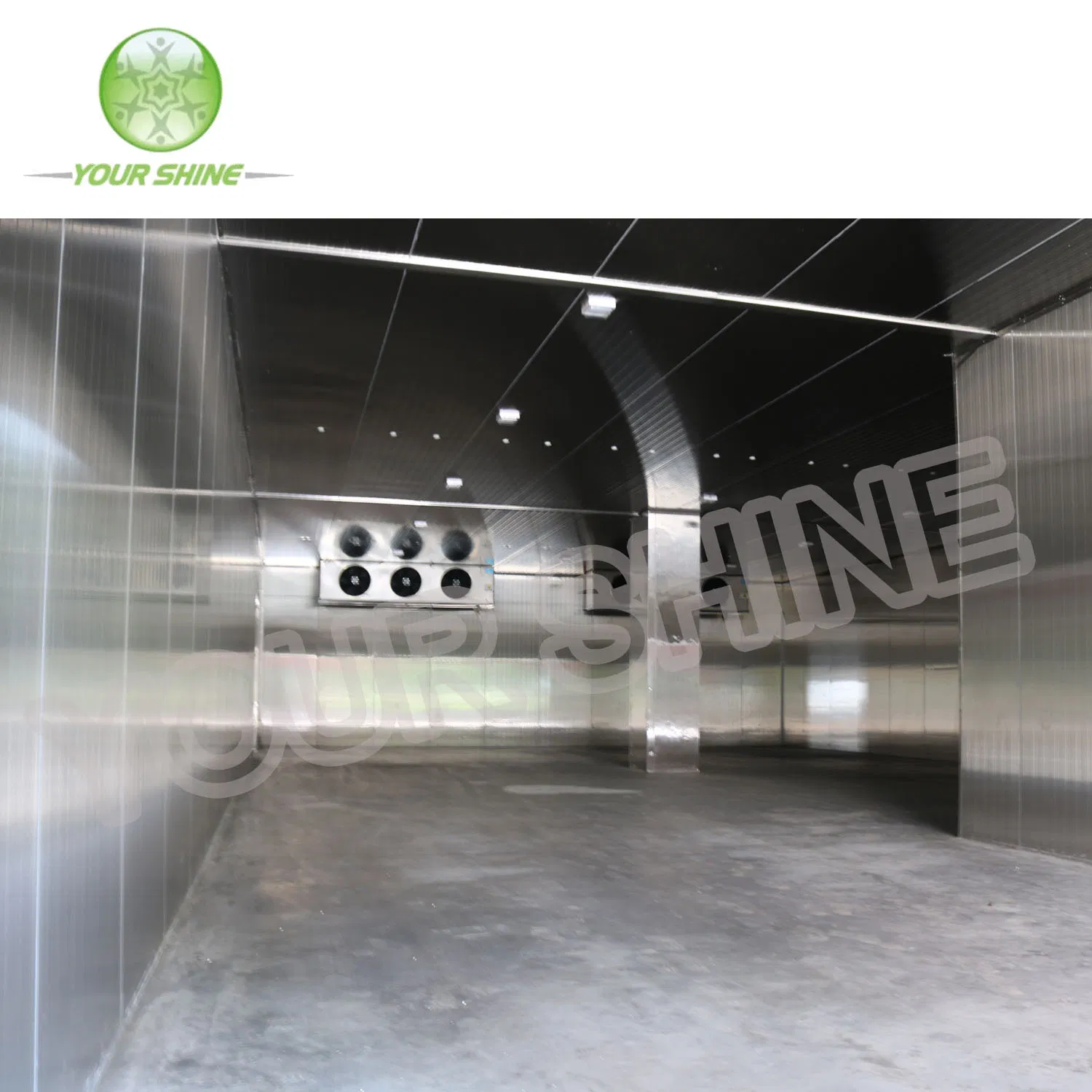

PU cold storage room panel is a type of board used for enclosing structures, offering excellent heat insulation and high intensity. It reduces heat transmission caused by internal and external temperature differences, maximizing the efficiency of freezing and refrigeration systems. Designed scientifically and easy to use, it is a cost-effective heat insulation material available in multiple varieties and specifications.

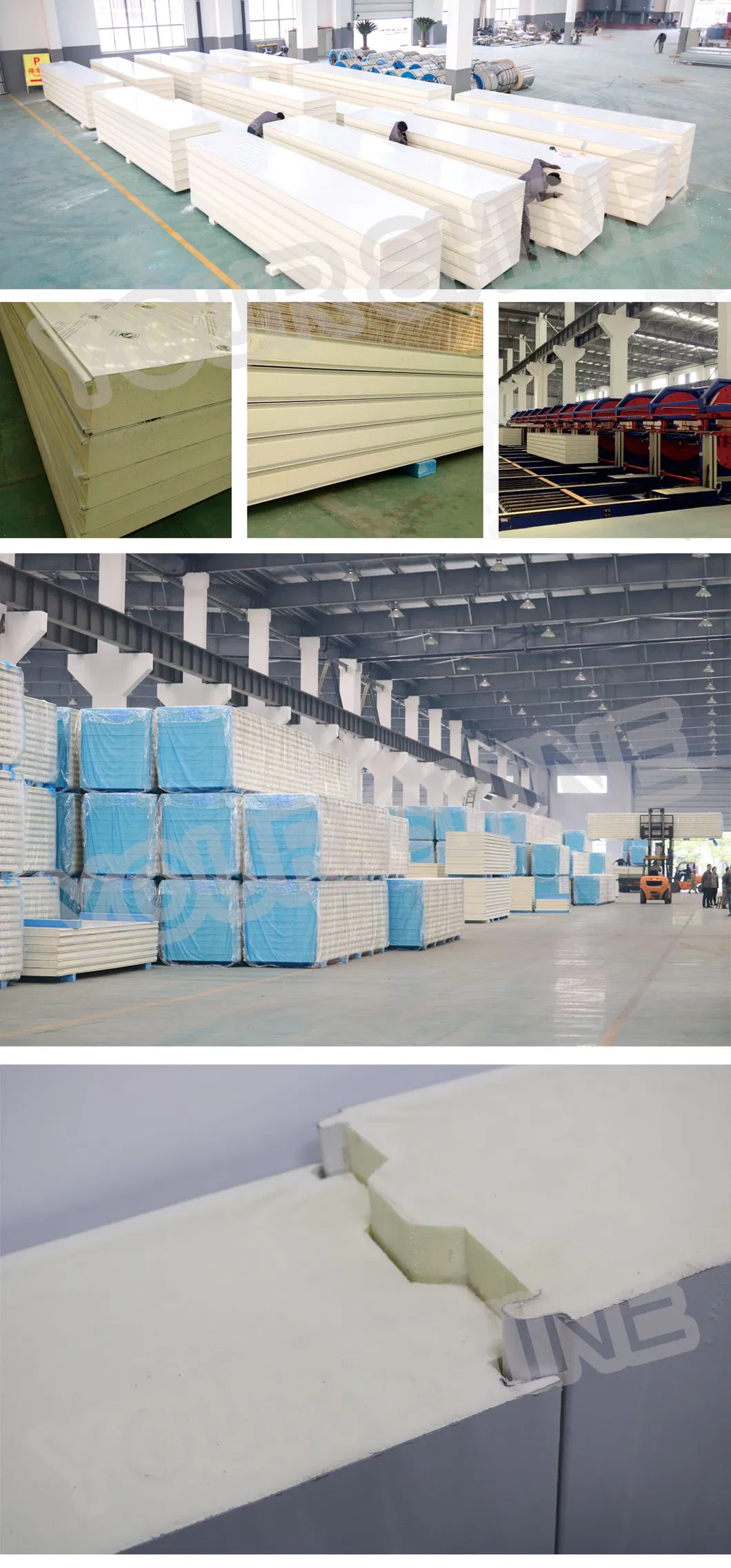

Fast-fit PUR panel: The core material of PUR insulation panel is a product of polyisocyanate and polyether or polyester type polyol. Features include good heat conductivity, great water absorption, excellent temperature preservation, and high compressive strength. It is widely used in cold storage structures due to its resistance to deformation.
| Feature | Details |
|---|---|
| Type | Polyurethane Sandwich Panels (PU, PUR, PIR) |
| Panel Material | Color steel sheet, Galvanized steel, Stainless steel sheet, etc. |
| Effective Width | 960mm (cam-lock); 1120mm (Fast-fit) |
| Core Thickness | 50mm to 250mm |
| Features | Insulation, Soundproof, Fireproof, Waterproof |
| Fire Proof Rate | B1, B2 |
| Lifetime | 10-30 years |
| Technical Standard of PUR/PIR Panels | |||
|---|---|---|---|
| Item | Unit | PUR Requirement | PIR Requirement |
| Density | kg/m3 | 40±2 | 45±2 |
| Heat conductivity | W/m.k | <= 0.024 | <= 0.022 |
| Compressive strength | KPa | ≥ 150 | ≥ 150 |
| Combustion performance | - | B2 | B1 |
| Thickness of Sandwich Panel | Application Temperature |
|---|---|
| 50mm | ≥ 5°C |
| 75mm | ≥ -5°C |
| 120mm | ≥ -15°C |
| 150mm | ≥ -25°C |
| 175mm | ≥ -35°C |
| 200mm | ≥ -45°C |
| 250mm | ≥ -55°C |

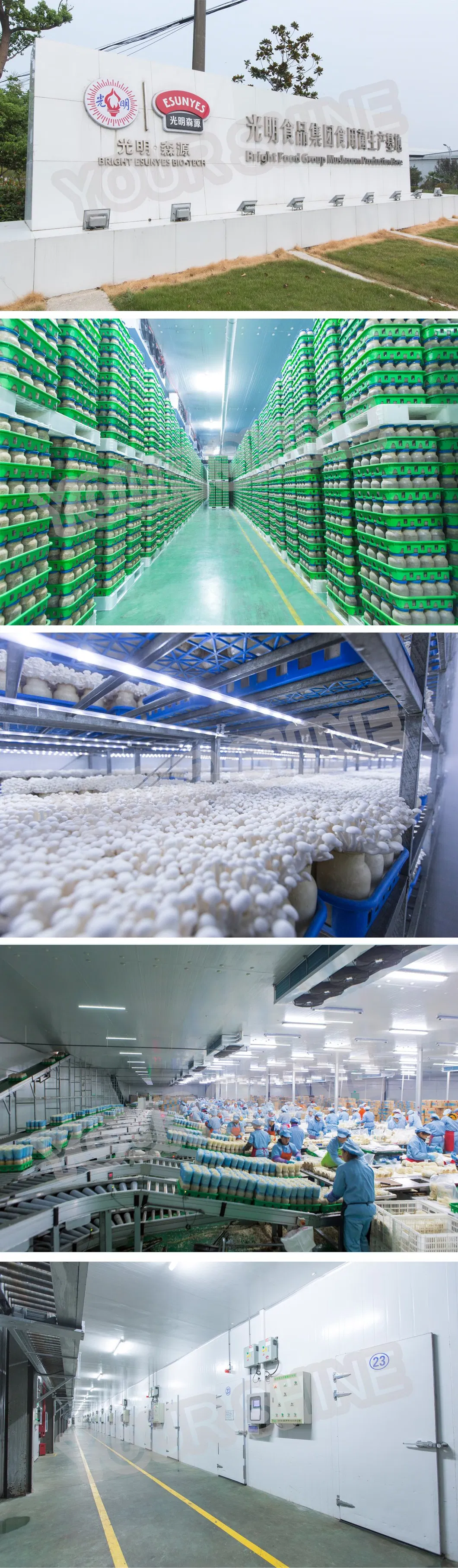

1. Edible Production Base (Shanghai)
Area: 180,000 sqm; Doors: 900 sets. Modern edible fungus base with 120 tons daily yield.
2. Edible Production Base (Hebei)
Area: 260,000 sqm; Doors: 1,200 sets. High-efficiency insulation for large-scale mushroom production.
3. Agricultural Logistics Center
Area: 80,000 sqm; Doors: 300 sets. Includes meat frozen and vegetable preservation areas.
4. Dairy Center Factory
Area: 180,000 sqm; Height: 9 meters. Includes cold storage, frozen, and quick-frozen areas.
5. Biological Product Institute
Area: 22,000 sqm; Doors: 75 sets. Specialized for drug processing, blood storage, and precious drug storage.
