📊 Basic Information
Corrosion Durability
Higher
Operating Voltage
380/400 VAC
Application Fields
Mechanical Engineering
Certification
RoHS, ISO, CE
Function
Cooling Heating Ventilate Heat Recovery
Cooling Capacity
10kw-300kw
Heating Capacity
10kw-300kw
Refrigerant
R22/R407c/R410A/R134A
Condenser
Copper Tube Aluminum Fin
Evaporator
Copper Tube Aluminum Fin
Transport Package
Wrap Film
Production Capacity
20000PCS/Month
🛠️ Product Description & Features
Complying with China Standards; ISO9001 and ISO14001 qualified.
Premium materials and main components from top brands or imported.
Modular casing design for easy interchanging, installation, and maintenance.
Unique no-cold-bridge design, total air leak rate ≤2.5%.
Dynamic balanced double inlet Centrifugal fan with high efficiency and low noise.
High efficient heat exchanger coil with optional breakwater panel.
Strong structure with permanent color and professional aesthetics.
Reasonable internal structure for easy cleaning and maintenance.
Double-skin Sandwich type construction (0.5mm skins, 30mm polystyrene insulation).
The combined air handling units are modularly designed. Each module can be used independently or work together with fan coil units to add fresh air, optimizing air quality and reducing operation costs.
📋 Technical Data
🏢 Application Occasions
Widely used in industries such as mechanical, electronic, textile, medical, chemical, energy, and food industries. Ideal for restaurants, office buildings, hospitals, theaters, and supermarkets.

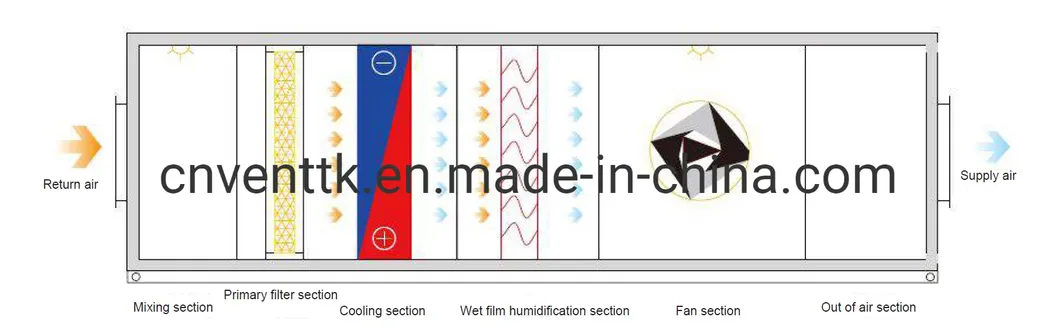

General Comfort Occasion

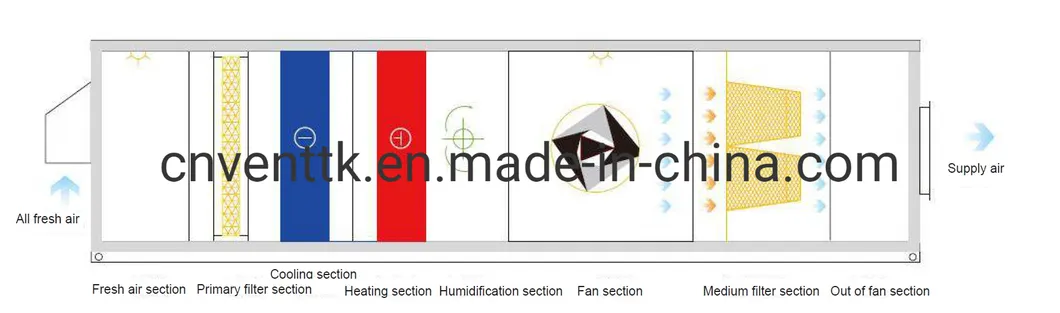

All Fresh Air Occasion

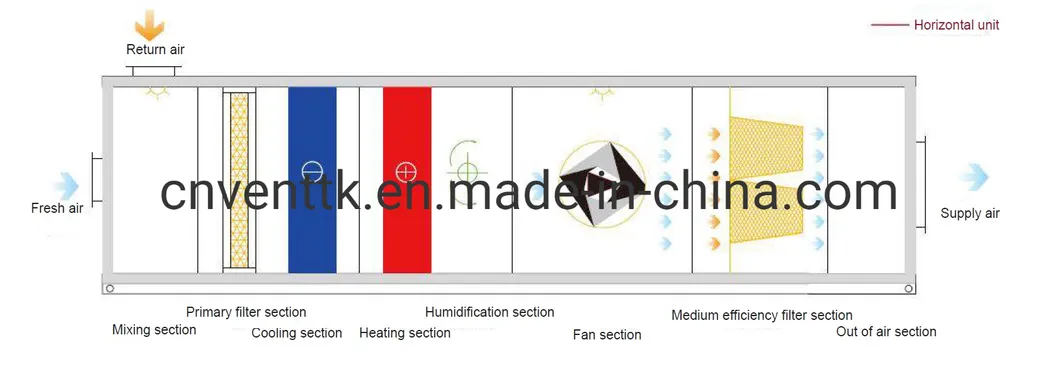

Technology Purification

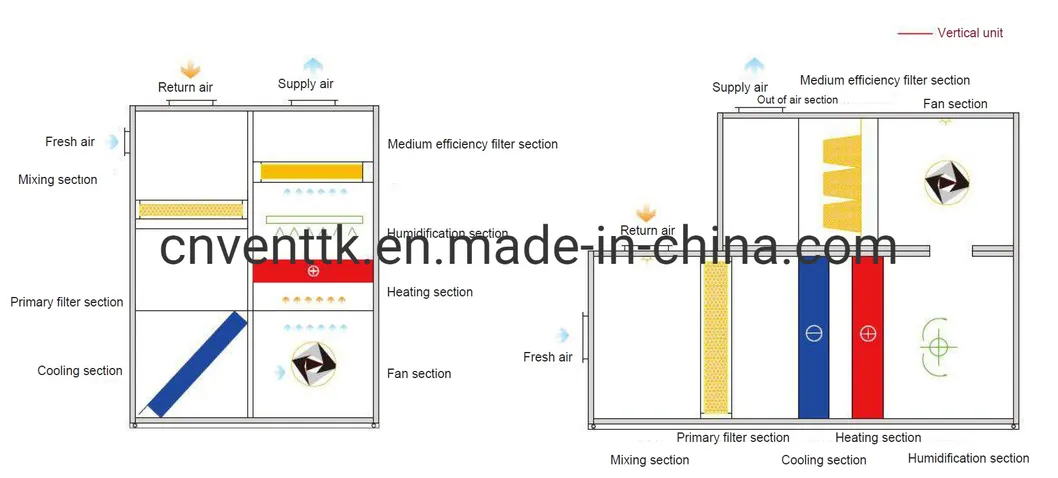

Ceiling/Roof Structure

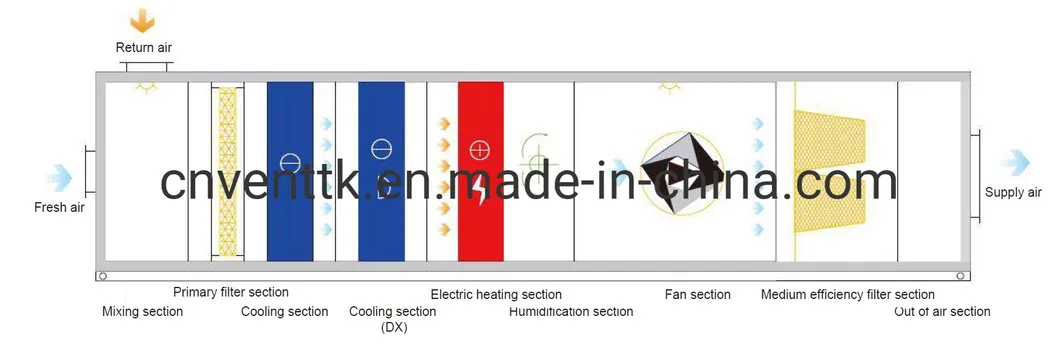

Operating Room/Medical

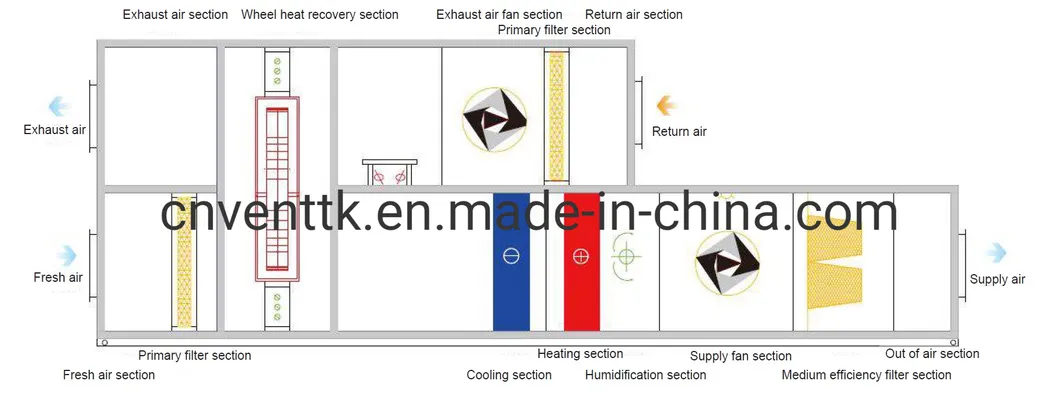

Heat Recovery (Wheel)

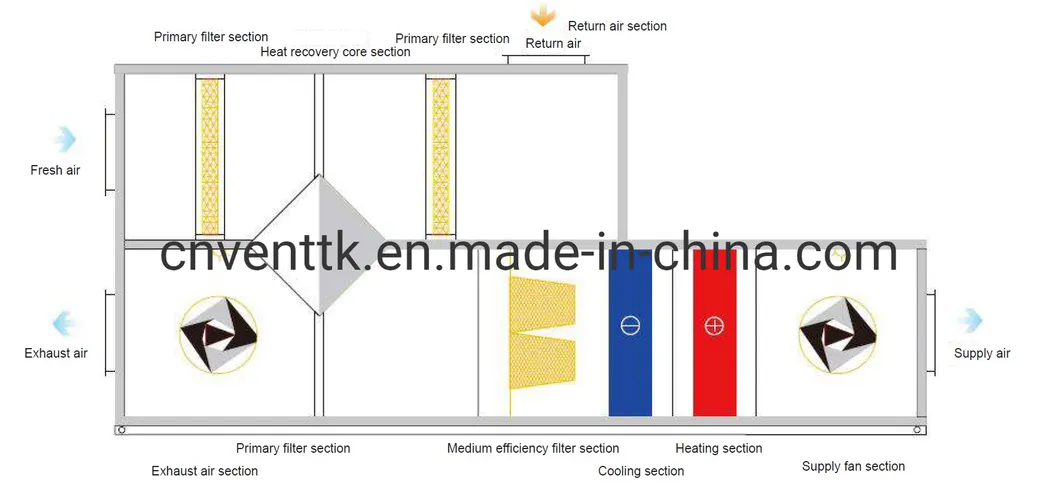

Plate Fin Heat Recovery
Unit Internal View
Structure Detail
Frequently Asked Questions (FAQ)
What are the primary applications for this Air Handling Unit?
These units are widely used in mechanical, electronic, textile, medical, chemical, and food industries, as well as in office buildings, hospitals, and supermarkets.
What is the expected lifetime of the equipment?
The unit is designed with high-quality materials and corrosion durability features, ensuring a service life of more than 20 years.
Does the unit support energy-saving heat recovery?
Yes, the units can be configured with either wheel heat recovery or plate fin heat recovery devices, achieving heat exchange efficiency higher than 75%.
What certifications do these AHUs hold?
Our units are RoHS, ISO, and CE certified, complying with international quality and environmental standards.
How does the "no-cold-bridge" design benefit the user?
The unique no-cold-bridge design significantly improves insulation and air tightness, reducing the total air leak rate to ≤2.5%, which enhances overall energy efficiency.
Can the unit be installed outdoors?
Yes, we provide roof waterproof structure units specifically designed with professional rainproof devices and special thermal insulation for outdoor roof or floor installation.
