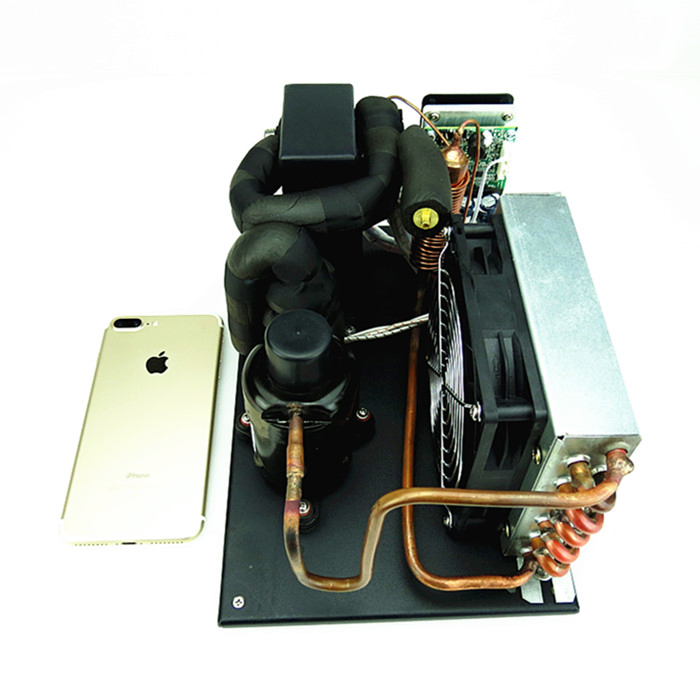

Factory Price HVAC Compact 12V 24V 48V DC R134A 400W Lab Laser Medical Use Water Cooling Module Machine Chiller Unit

1 / 5

Factory Price HVAC Compact 12V 24V 48V DC R134A 400W Lab Laser Medical Use Water Cooling Module Machine Chiller Unit

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

FSCH019Z24B

Type

Air-Cooled

Cooling Method

Air-cooled

Unit Structure

Integral

Selected Voltage

DC 24V

Cooling Capacity

300watt - 400watt

Application

Electronic / Laser Machine

Certification

ISO, CE, CVC

Refrigerant

R134A

Compressor

DC Inverter Rotary Mini Compressor

Net Weight

3.0 - 4.0 Kg

Efficiency COP

3.3W/W

📦

Packaging & Delivery

Package Size

28.00cm * 26.00cm * 22.00cm

Gross Weight

5.000kg

Lead Time

15 days (1-5 Pcs); 20 days (6-20 Pcs)

☰

Product Description

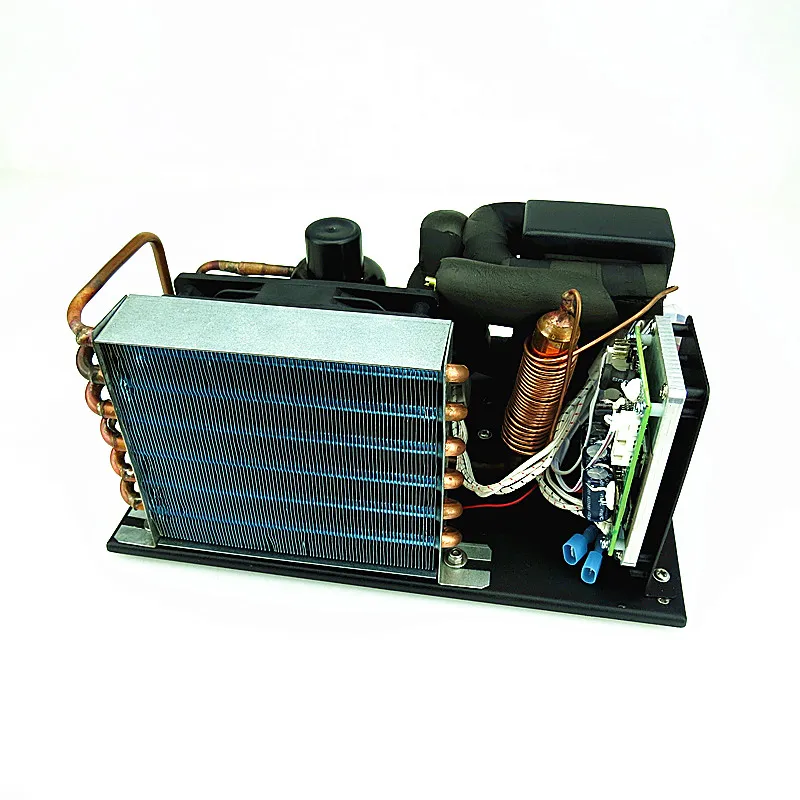

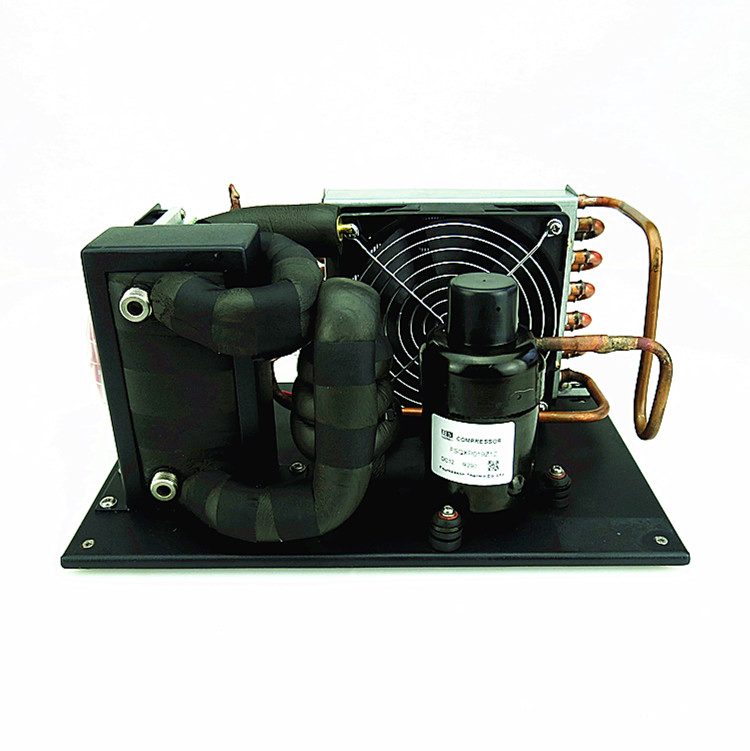

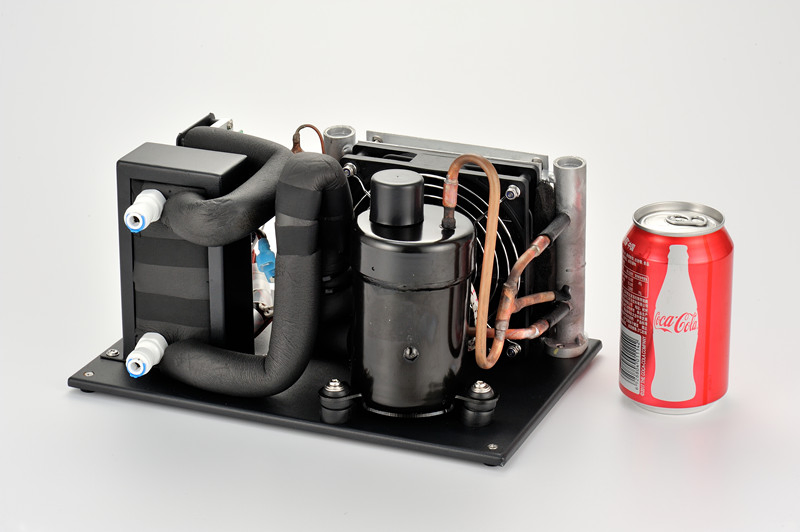

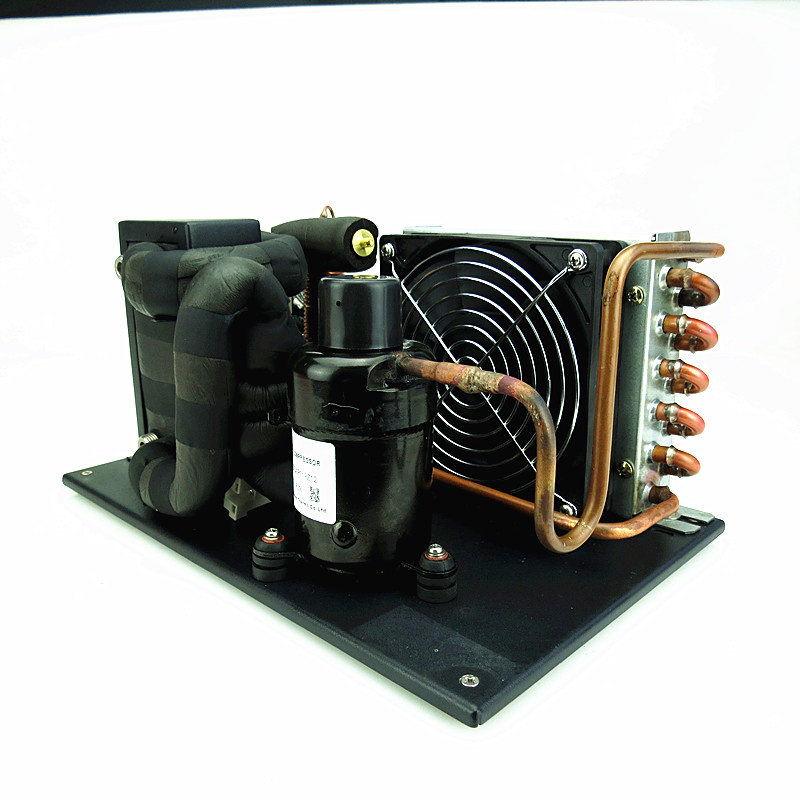

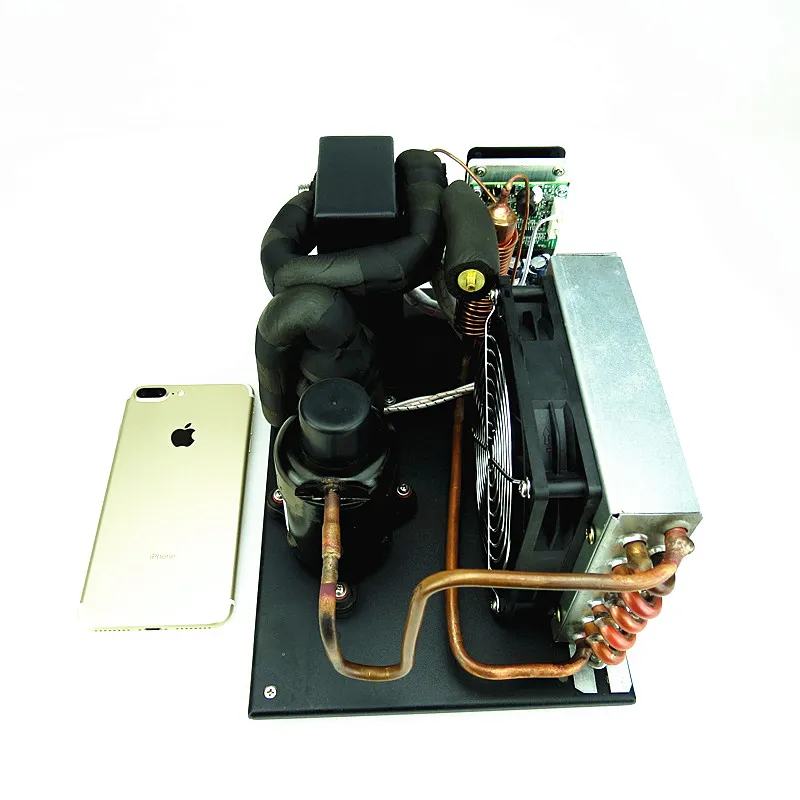

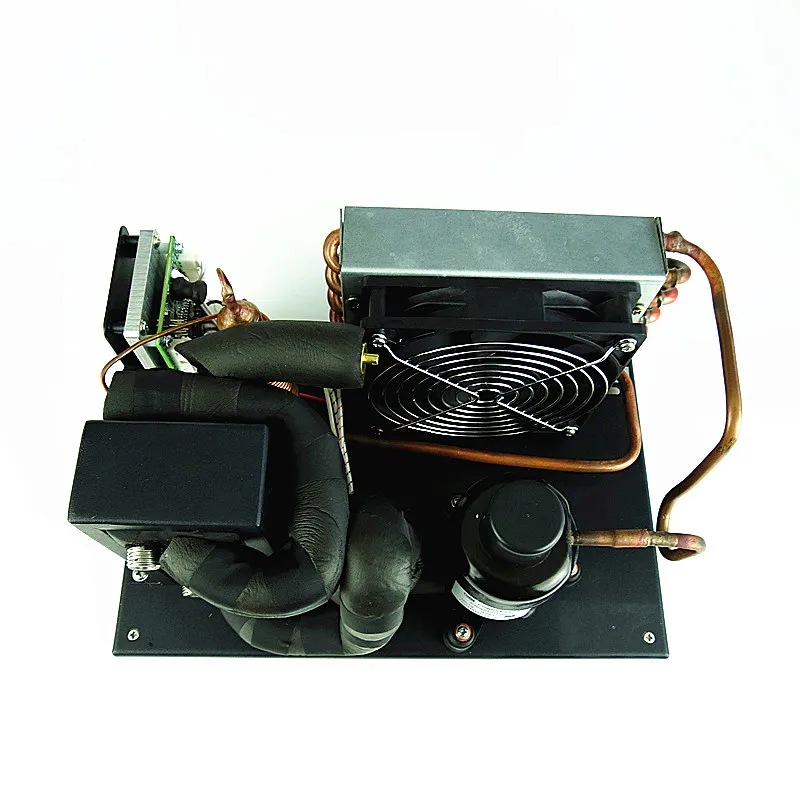

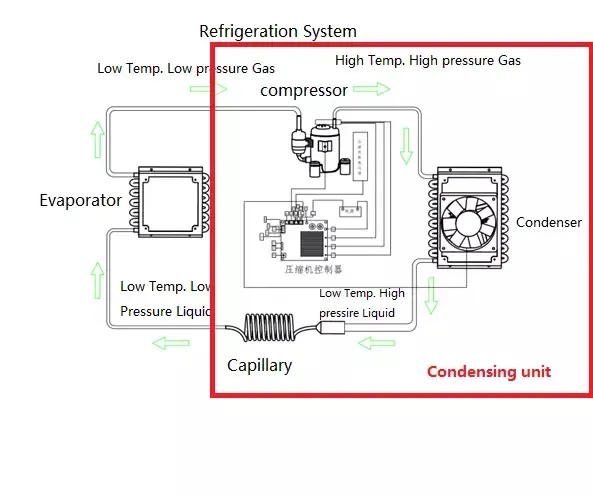

Mini liquid chiller module units are the world's smallest cooling systems, featuring compact and high-efficiency refrigeration designs to cool liquids in confined spaces. These units typically consist of a mini rotary compressor, a condenser, an expansion valve, and a stainless steel plate evaporator.

Commonly utilized in laser cooling, medical equipment, laboratory devices, and EV battery cooling, these modules support power supplies from 12V to 312V with cooling capacities ranging from 400W to 2000W.

Name	Mini refrigeration liquid chiller module unit
Model	FSCHP019Z24B
Refrigeration Parts	Mini rotary compressor & driver, mini condenser, axial flow fan, plate evaporator, capillary.
Voltage	DC 24V
Size	275175138mm
Cooling Capacity	100~400W (360~1444Btu)
Production Capacity	3000 units per month

📷

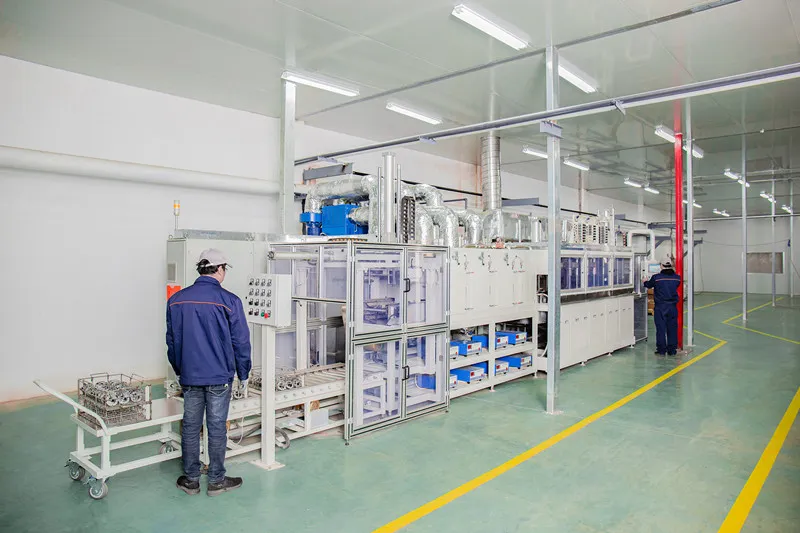

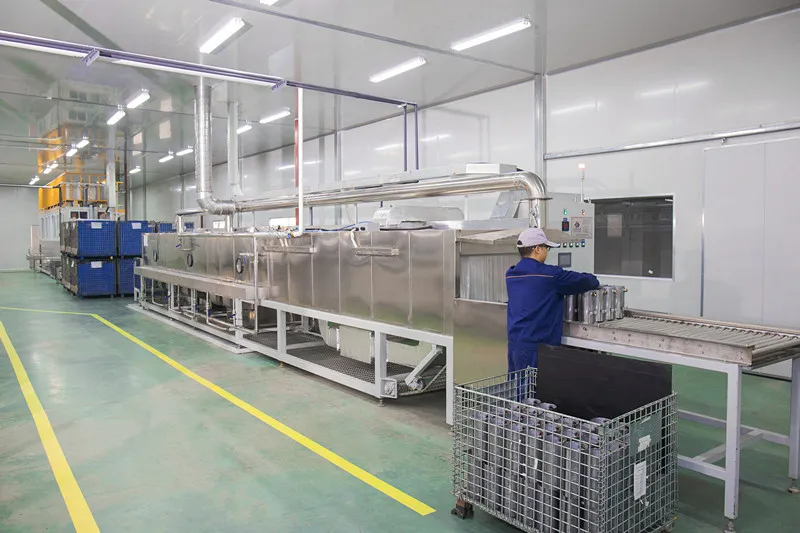

Production Show

★

Key Characteristics

Smallest size & most compact

Low height & Light weight

High COP & Low energy consumption

Environmental-friendly R134a

Low noise and vibration

High efficiency mini rotary compressor

Compressor overcurrent protection

DC / Battery / Solar power compatibility

Main Applications

Laboratory device cooling
Mini glycol cooling
Laser machine cooling
PC and chip cooling

Personal body cooling vest
Beauty machine cooling
Bio technology cooling
Automotive climate control

🏭

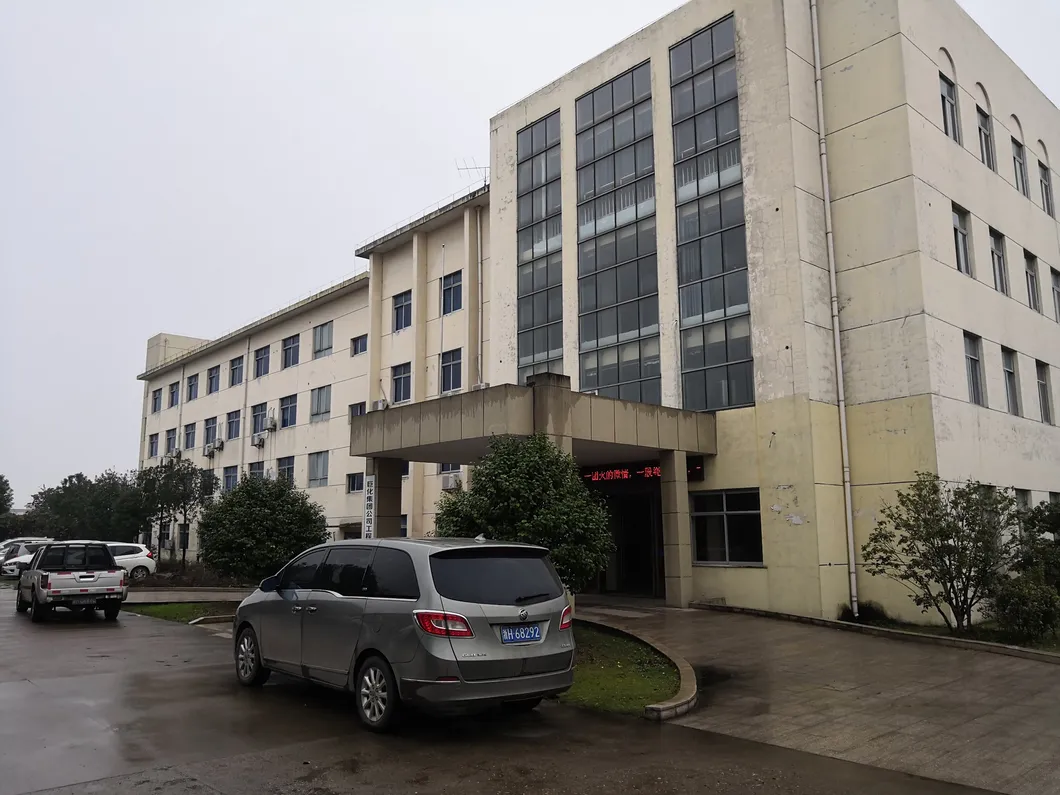

Facility & Packing

Frequently Asked Questions

What is the Minimum Order Quantity (MOQ)?

The MOQ for our mini liquid chiller modules is 1 piece.

What power sources can be used with this unit?

The system is designed for hybrid power sources including DC electrical power (12V/24V/48V), batteries, and solar power.

What is the typical delivery time?

Sample orders are generally delivered within 10 days after payment, while bulk orders take approximately 25 days.

What coolant does the system use?

The system uses water or a glycol mixture as a coolant, making it environmentally friendly and safe for operation.

Can these units be customized?

Yes, we provide custom thermal solutions and can adjust specifications to meet specific cooling requirements.

What are the main product categories available?

Our range includes mini DC compressors, mini chiller modules, condensing units, spot cooling systems, and rotary compressors for industrial dehumidification.
