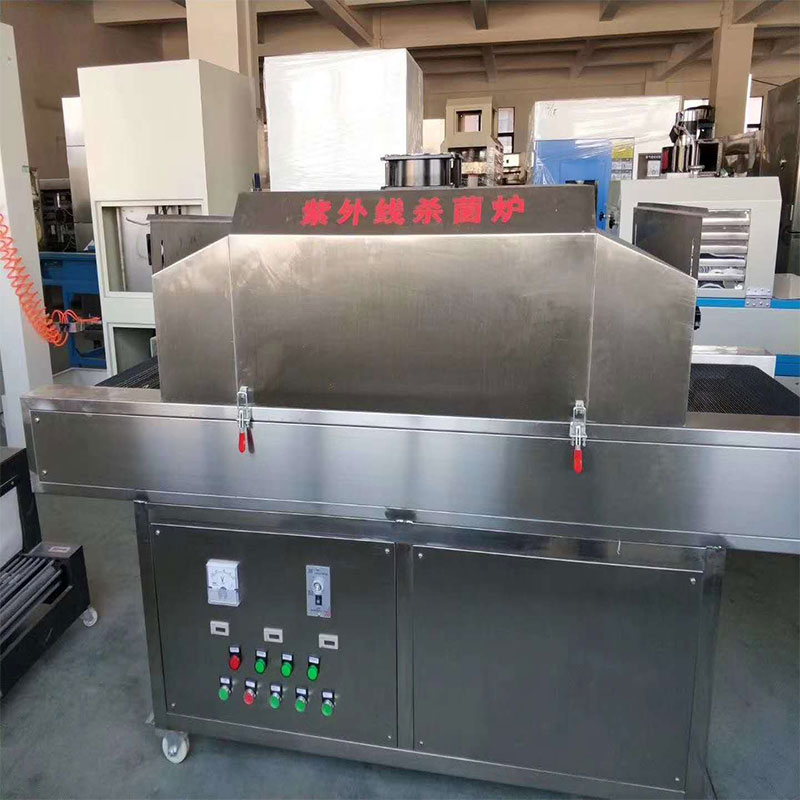

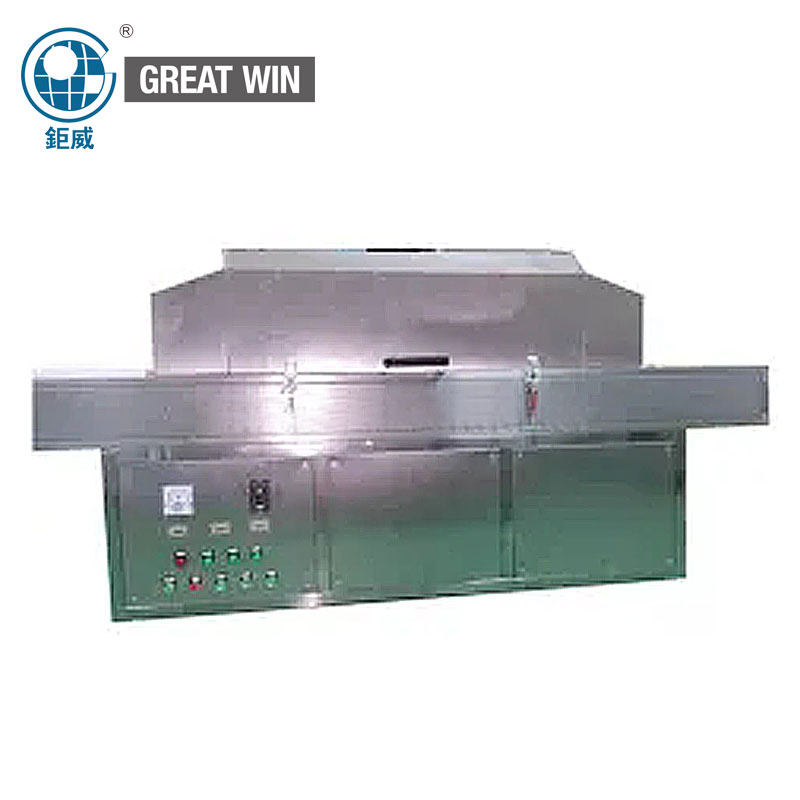

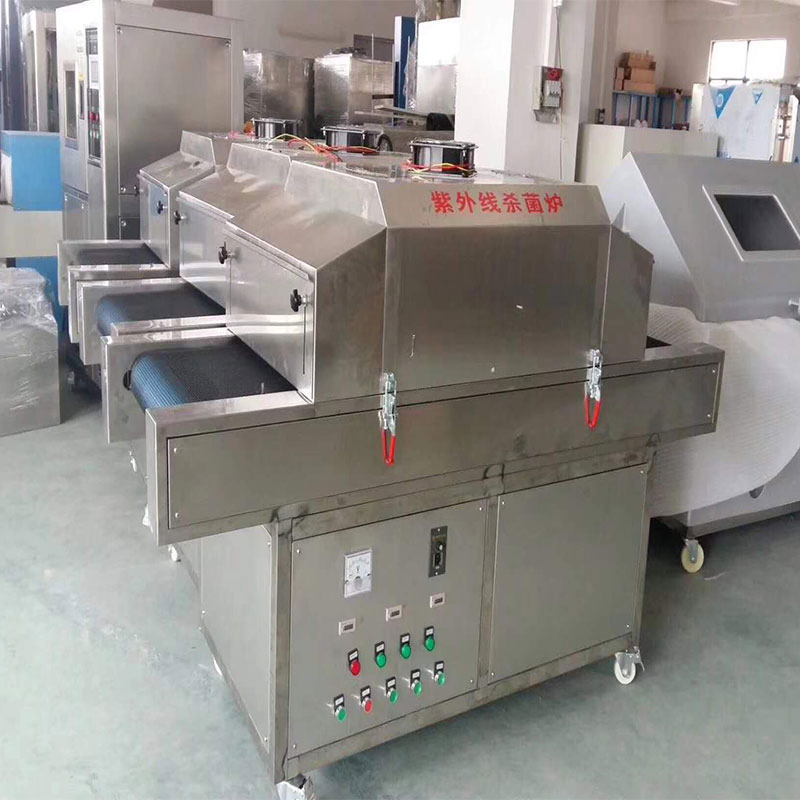

UV Sterilization Lab Equipment Disinfection Equipment for Masks

After-sales Service: Online Service or Door to Door Training
Warranty: 1
Total Equipment Length: 2000mm

Product Description

Basic Information
Model NO.
GW-903
Working Area
1000mm
Discharging Area
500mm
Entrance/Exit Height
200mm
Conveyor Width
500mm
Transport Package
Wooden Case
Origin
China
HS Code
9024800000
Production Capacity
500 Sets/Year
UV Sterilization and Disinfection Equipment

Ultraviolet disinfection technology is the latest generation of disinfection technology emerging in the late 1990s. It integrates optics, microbiology, electronics, fluid mechanics, and aerodynamics. It has the characteristics of high efficiency, broad spectrum, low cost, long life, large water volume, and no secondary pollution.

Working Principle: The ultraviolet sterilization band is mainly between 200-300nm, with 253.7nm being the strongest. When bacterial viruses pass through the irradiation area, UV rays penetrate the cell membrane and nucleus, destroying DNA or RNA molecular bonds, causing them to lose replication ability and die.

Mainly used to sterilize cooked food, water, masks, and packaging. Widely used in hospitals, food processing, cosmetics factories, dairy factories, and laboratories.

Sterilization Efficiency & Features

Ultraviolet disinfection technology has unparalleled sterilization efficiency, reaching 99% - 99.9%. Traditional chemical methods like chlorine and ozone require 20 minutes to 1 hour, whereas UV technology generally takes less than 1 second.

  • Uniform water flow and air circulation with no dead corners.
  • Main body made of high-quality stainless steel to prevent metal ion infection.
  • Sealed container quartz sleeve type structure with internal electrical control.
  • UV lamp life up to 10,000 hours.
  • Compact structure, convenient operation, and maintenance.
Technical Parameters & Configuration
Total Length
2000mm
Conveyor Height
750 ± 20mm
Tunnel Cavity
1.0mm Mirror Stainless Steel (#304)
Transport Motor
800W (Inverter Speed Regulation)
UV Lamp Tubes
16 Tubes * 20W (Longitudinal Installation)
Radiation Intensity
> 160 μW/cm² (at 1 meter)
Working Voltage
200V - 220V (± 5%) 50Hz
Max Load Capacity
2.2 KW
Product Visuals
UV Sterilization Banner UV Sterilization Footer
Frequently Asked Questions
Q: What is the primary application of this UV sterilization equipment? A: It is designed for sterilizing masks, cooked food, water, and various packaging materials in industries such as medical, food processing, and cosmetics.
Q: How effective is the UV disinfection process? A: The equipment provides a sterilization efficiency of 99% to 99.9% by using 253.7nm wavelength UV rays to destroy the DNA/RNA of microorganisms.
Q: What is the expected lifespan of the UV lamps? A: The high-quality UV germicidal lamps have an operational life of approximately 8,000 to 10,000 hours.
Q: Is the conveyor speed adjustable for different products? A: Yes, the equipment features an 800W motor with electronic stepless inverter speed regulation and a digital display for precise control.
Q: What materials are used in the construction of the tunnel? A: The tunnel cavity is constructed from 1.0mm mirror stainless steel (Model #304) to ensure maximum UV reflection and hygiene.
Q: What are the power requirements for installation? A: The equipment operates on AC220V (± 5%), 50Hz, with a maximum load capacity of 2.2 KW.
