Classification: Biological Diagnostics
Type: Hematology Analyzer
Certification: ISO13485
Send Inquiry

Product Description

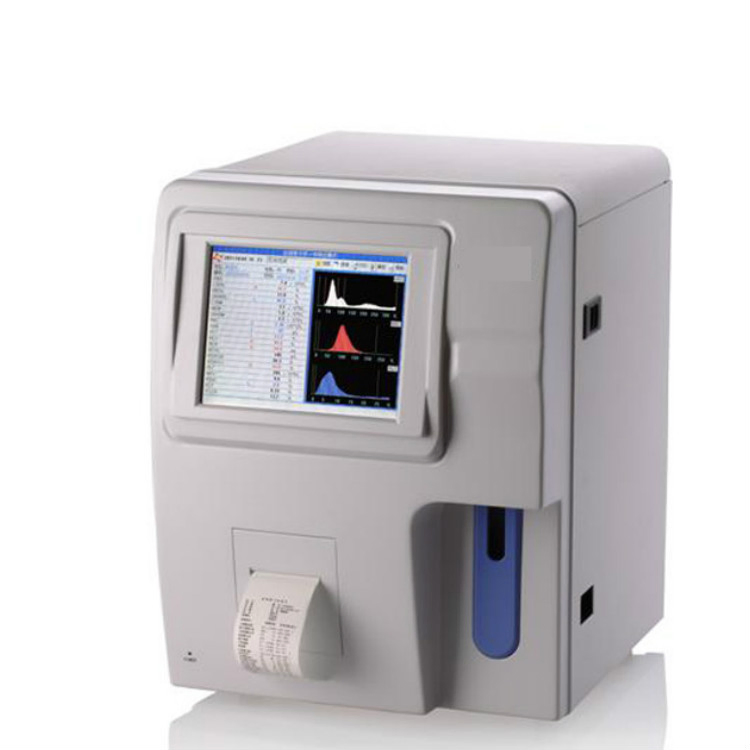

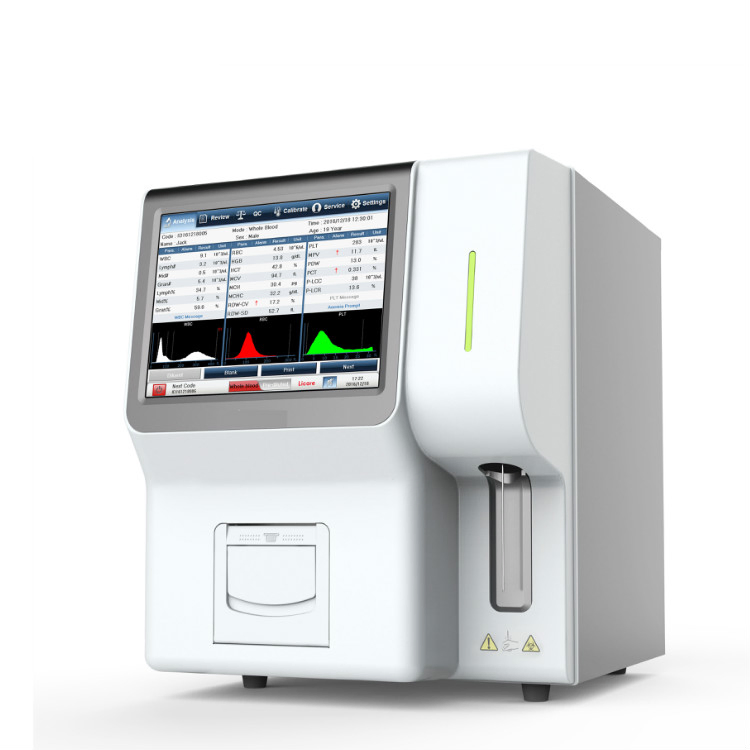

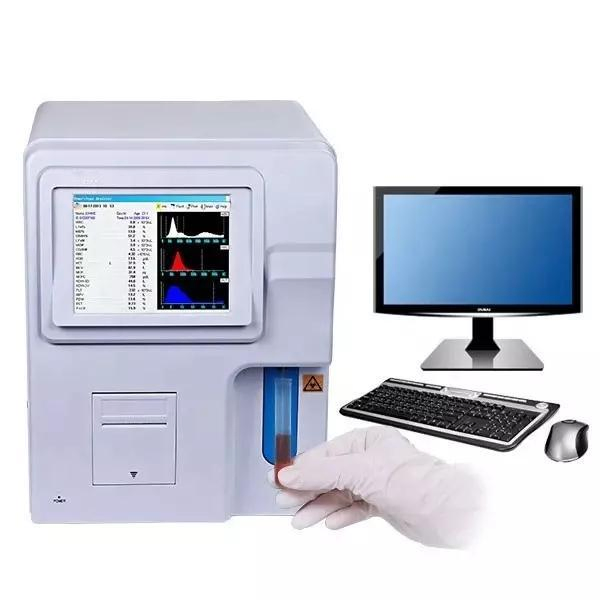

Hospital Vet Pet Clinic 3-part LCD Touch Screen Animal Blood Hematology Analysis System Equipment

Model: CCV-H3200

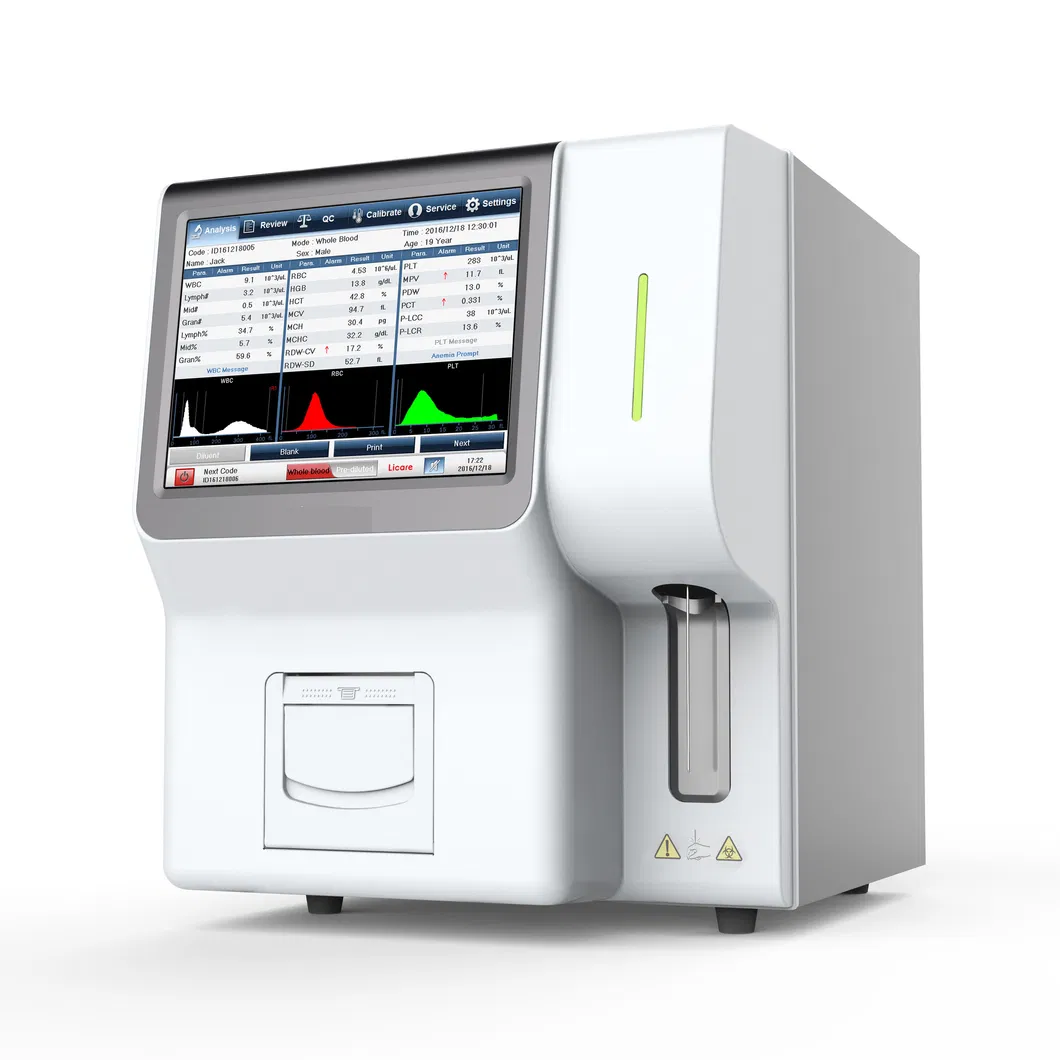

Animal Blood Hematology Analysis System
Basic Information
Model NO.
CCV-H3200
Warranty
1 Year
Transport Package
Standard Export Package
Origin
China

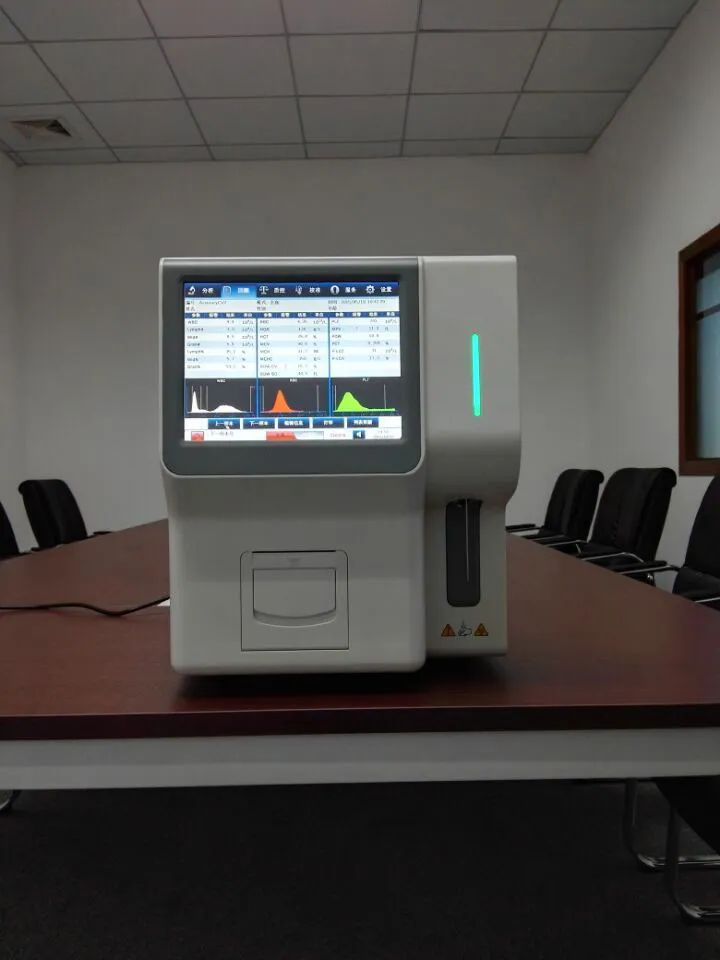

Hematology Analyzer View 1

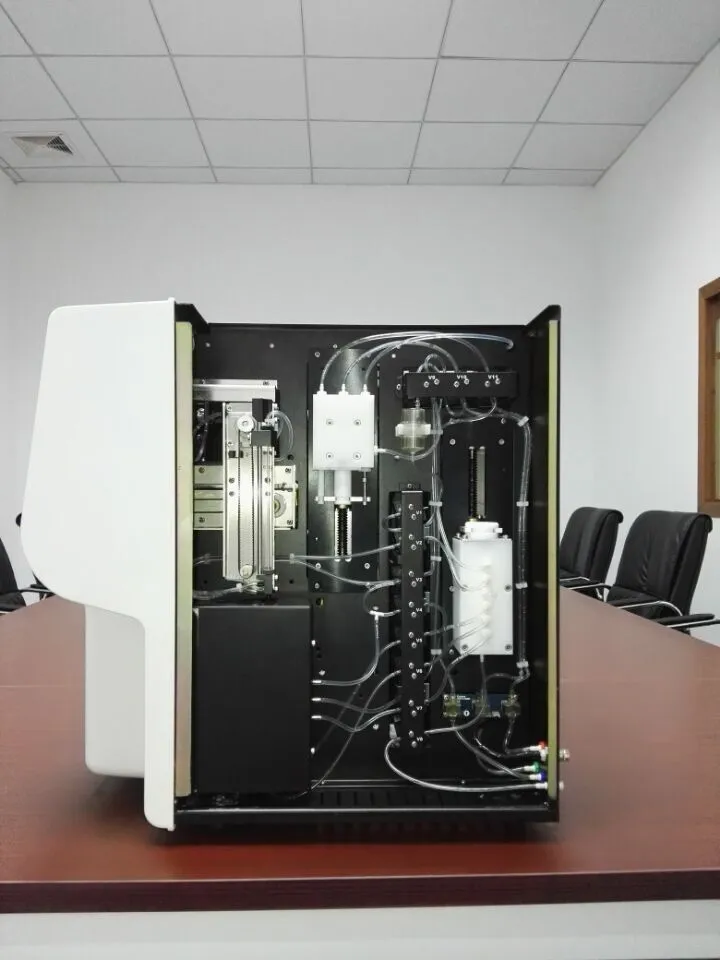

Hematology Analyzer View 2

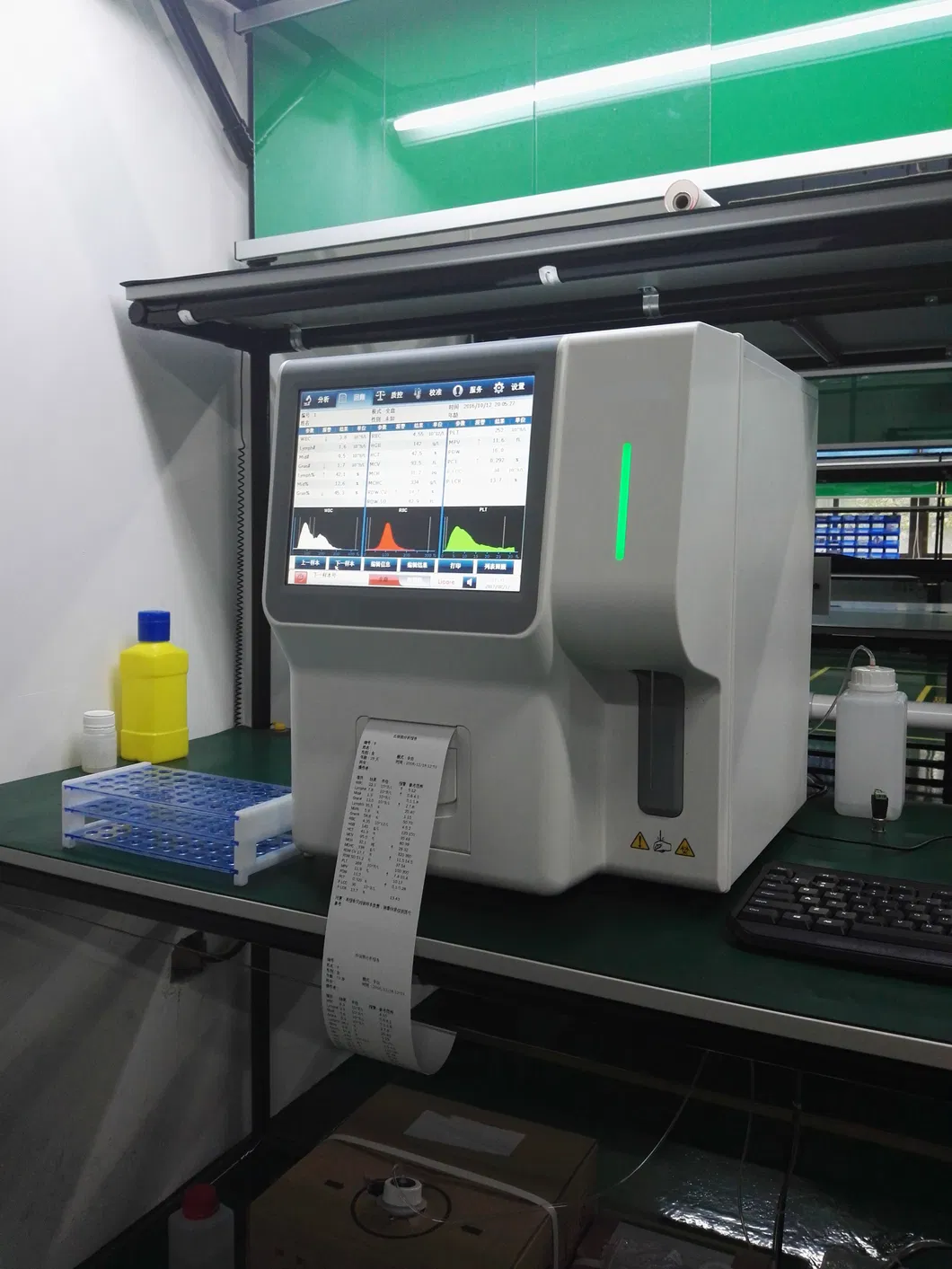

Hematology Analyzer View 3
Technical Parameters
  • User-friendly interface: 10.4 inch true color TFT LCD & touch screen, minimize interface layers with pop-up soft keyboard.
  • Internationalization support: Choice of parameter units and several languages available online.
  • Anemia indications: Provides Normocytic, Macrocytic, and Microcytic anemia indications.
  • Clear Alarm System: Text-based alarm information for clearer diagnostics (R1, Rm, Pm).
  • Automatic blank counting: Auto-assessment during start-up process.
  • Automatic re-counting: Auto-count after unclogging treatment to avoid re-collecting blood.
  • Maintenance-free syringe: High durability and reduced operational costs.
  • Fast Printing: Built-in patented thermal printer, 80mm wide paper, prints in only 5 seconds.
  • State-of-the-art technology: Sweeping flow, Pulse discrimination, and intelligent floating threshold technology.
Specifications
Principles
Impedance for cells, Cyanide free for HGB
Throughput
≤60 Seconds per test
Sample Volume
Whole Blood ≤14µL, Pre-diluted ≤20µL
Parameters
21 parameters + 3 histograms
Storage
>10,000 sample results
Display
10.4 inch Color Touch Screen
One-Stop Hospital Medical Equipment Solution
Department Equipment Type
X-Ray Room X-ray machine, Processor, X-ray film, Cassette, Lead clothing (apron, collar, glasses)
Ultrasound B/W 2D ultrasound, 2/3/4D color ultrasound
Laboratory Chemistry analyzer, Hematology analyzer, ELISA reader, Centrifuge, Pipette, Urine analyzer
Operation Room Anesthesia machine, Ventilator, Operating lamp, Table, Patient monitor, Defibrillator, Infusion pump
Medical Equipment Overview

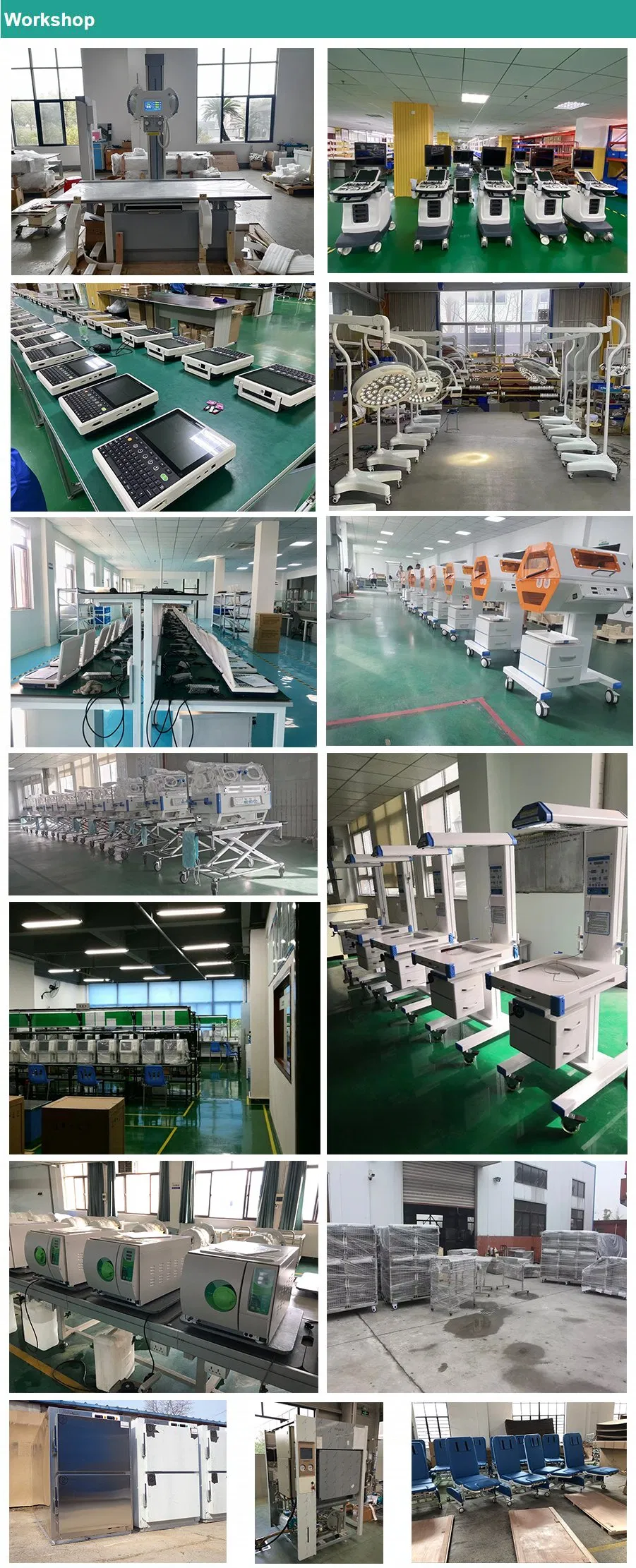

Detailed Specifications Chart
Product Features Detail
Frequently Asked Questions
How fast can the CCV-H3200 process a blood sample?
The system is highly efficient, completing the process from the beginning of a test to the final printout in 60 seconds or less.
What is the required sample volume for testing?
The device requires a very small sample size: ≤14µL for Whole Blood and ≤20µL for Pre-diluted Blood.
Does the analyzer support different languages?
Yes, it features internationalization support with several languages available that can be switched online.
How many test results can be stored in the device?
The CCV-H3200 can store more than 10,000 sample results, including all parameters, histograms, and patient information.
What kind of maintenance does the syringe require?
The system utilizes a maintenance-free syringe, significantly reducing the need for routine technical intervention and operational downtime.
Can the device connect to a Laboratory Information System (LIS)?
Yes, it features an open communication protocol that supports seamless connection to LIS for data management.
