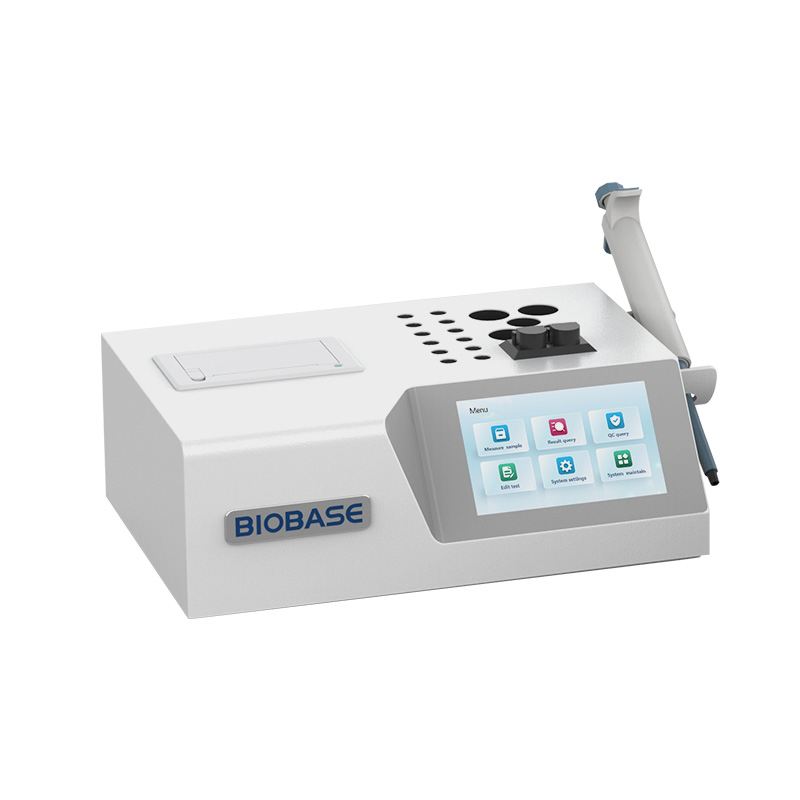

Biobase 2 Channels Semi Auto Coagulation Analyzer Blood Coagulation Analyzer for Lab

Still deciding? Get samples of $ !
Request Sample

Product Description

Overview & Basic Information
Model NO.BK-CA02
GroupMiddle-aged and Old
Test PrincipleOptical Colorimetry
Test ItemsPT, Aptt, Tt, Fib
Test Channel2 (Can test different projects simultaneously)
Wavelength470nm
Detection TimeNormal sample detection time is 20 to 40 seconds
Sample Incubation Position12
Reagent Incubation Position5
Detection Position Temperature37.0±1.0ºC
Incubation Position Temperature37.0±1.0ºC
Incubation Time1-999s
Reaction Time1-99s
Reagent DosageMinimum dosage 20μL
Sample Volume20μL~40μL
Display5-Inch High-Definition Color Touch Screen
Storage20,000 Results Storage
OriginChina
Production Capacity1000 units/Month
Product Description
Coagulation Analyzer Overview
📊
Advanced optical colorimetry for precise blood coagulation analysis. Supports 2 independent channels for simultaneous multi-project testing.

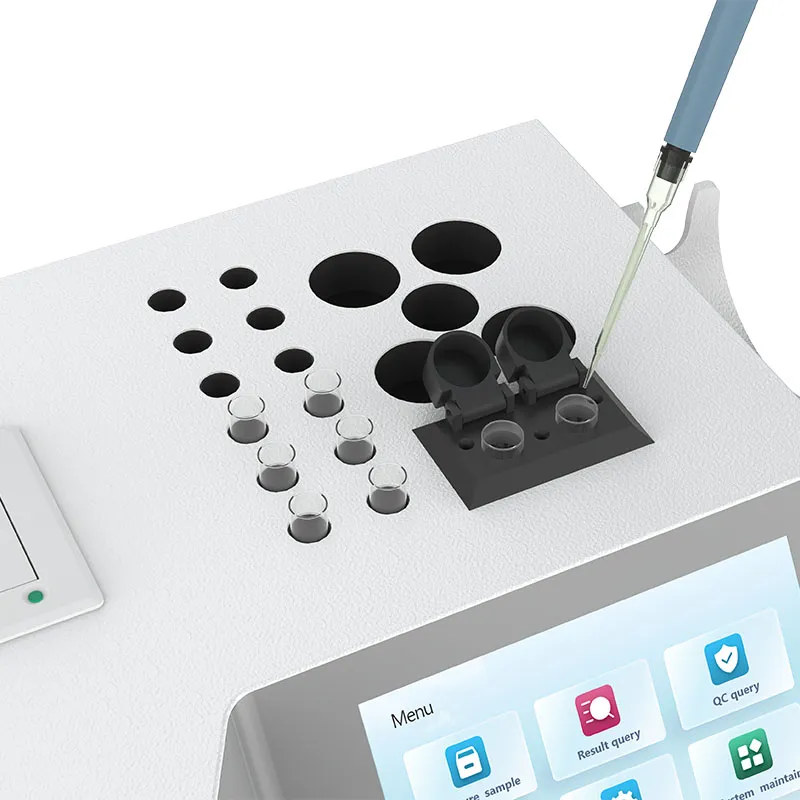

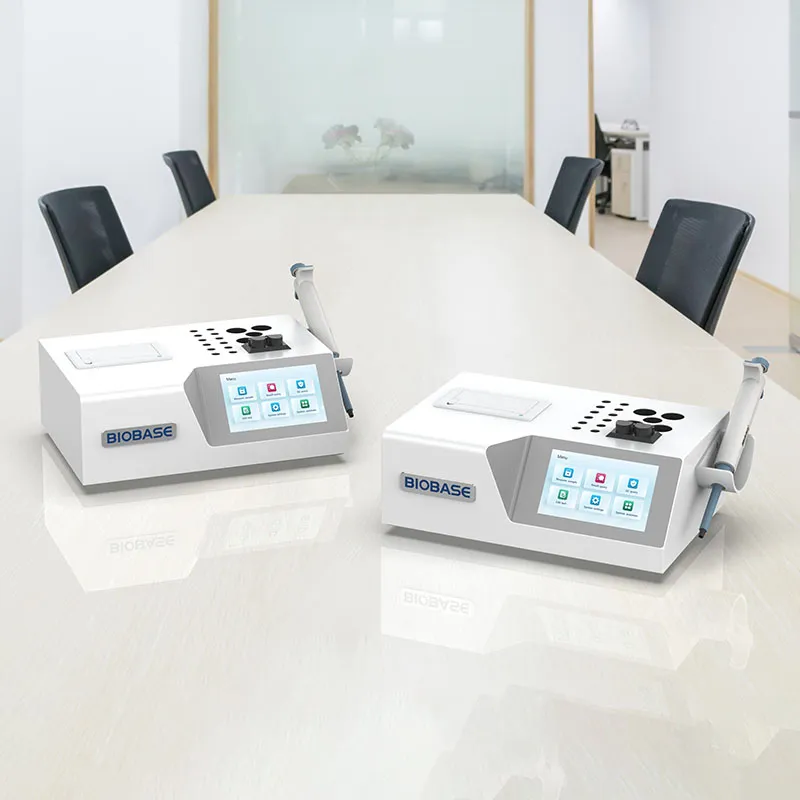

Analyzer Detail 1 Analyzer Detail 2
Technical Parameters
ModelBK-CA02
Test PrincipleOptical Colorimetry
Test ItemsPT, APTT, TT, FIB
Detection Time Range20 to 99 seconds (arbitrary setting)
Storage Capacity20,000 results with power-off auto-save
Display Type7-inch color LCD touch screen / 5-inch color touch screen options
CommunicationRS232 serial interface, support LIS system
PrinterBuilt-in thermal printer
Power SupplyAC100~240V, 50/60Hz
Consumption70VA
External Size (W*D*H)360*210*120mm
Net Weight3.5kg
Interface and Features
Packaging & Shipping
Packaging Information
Production & Capability
Manufacturing Profile
Service & Support
After Sales Process
Global Exhibition
International Exhibitions
Frequently Asked Questions (FAQ)
1. Which test items can the BK-CA02 handle?
The analyzer is designed to perform PT, APTT, TT, and FIB tests accurately using optical colorimetry principle.
2. Can the device test different parameters simultaneously?
Yes, it features 2 independent test channels which allow for different projects to be tested at the same time, increasing laboratory efficiency.
3. How many test results can the device store?
The BK-CA02 has a built-in memory capable of storing up to 20,000 results, and it automatically saves measurement data in case of power failure.
4. What is the minimum sample and reagent volume required?
The device is highly efficient, requiring only 20μL~40μL of sample and a minimum reagent dosage of just 20μL.
5. Is it compatible with laboratory information systems?
Yes, the device includes an RS232 serial interface that fully supports connection to LIS systems for seamless data management.
6. Does it include a built-in printer for reports?
Yes, there is a built-in thermal printer included for immediate physical report generation after testing.
