Sewer Underwater Sonar Pipe Detection System

1 / 5

Sewer Underwater Sonar Pipe Detection System

Customization:	Available
After-sales Service:	Spare Parts Offered
Warranty:	12months

Send Inquiry

Product Description

Basic Information

Model NO.

Type

Environmental Monitoring Instrument

Sonar Capsule Size

346*70mm

Max Pipe Diameter

6000mm

Main Controller

110*165*35mm

Cable Reel Size

420*330*520mm

Cable Length

150m

Signal Cable

Package

Plywood Case

HS Code

9031809090

Production Capacity

50 Sets Per Month

Sonar Pipeline Underwater Inspection (Model: X4)

Product Description:
When a pipeline is full of water without emptying conditions, traditional video testing methods fail. The X4 pipeline section sonar imager is specifically designed for such conditions, applicable to various pipelines with diameters from 125mm up to 6000mm.

Technical Parameters

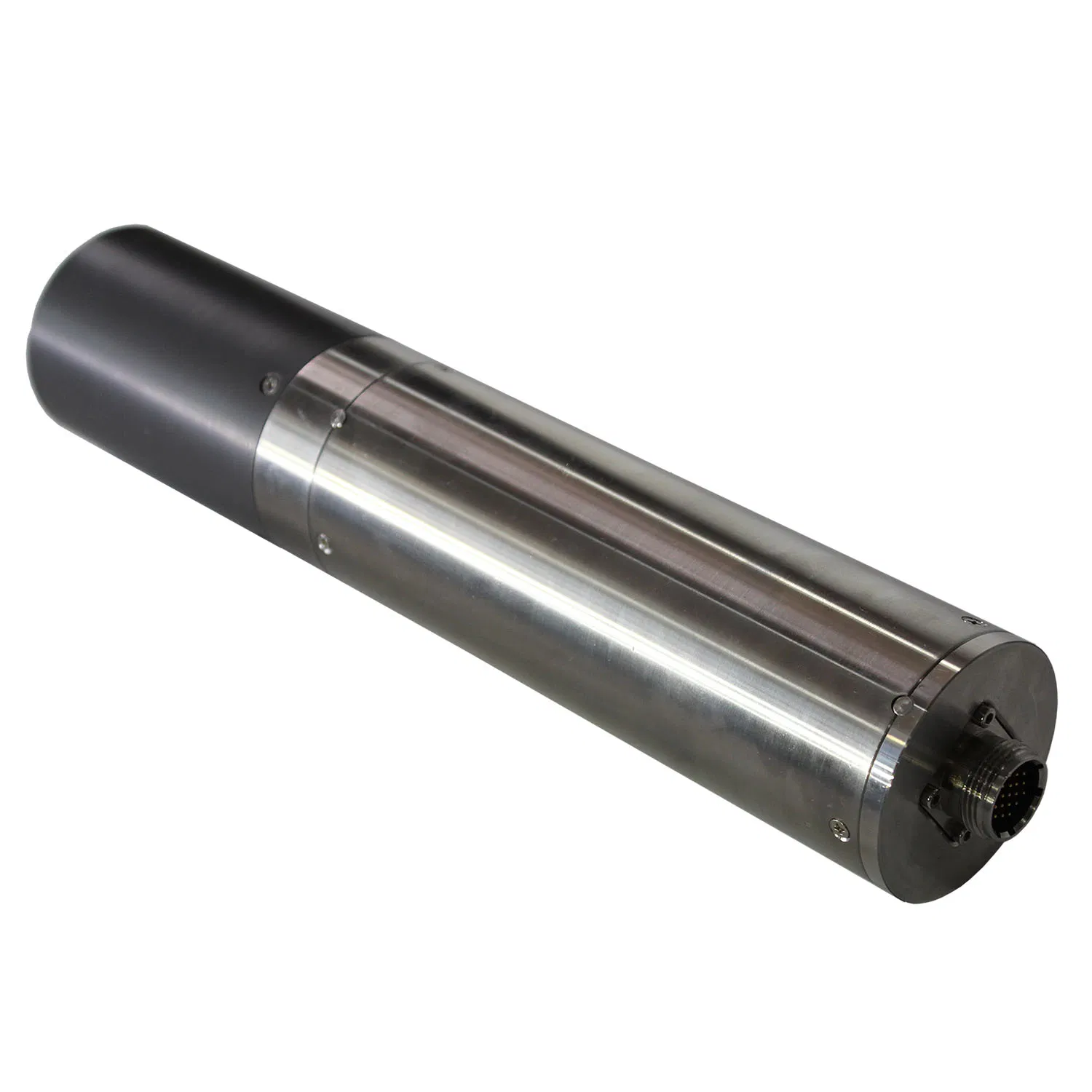

Sonar Capsule	- Length: 346mm; Diameter: 50mm/70mm - Material: Stainless casing - Max pipe diameter: 6000mm - Power: 26V DC, 0.5A-1A peak - Weight: 3kg
Master Control Box	- Size: 110mm * 165mm * 35mm - Weight: 0.2kg - Power supply: 220V connection

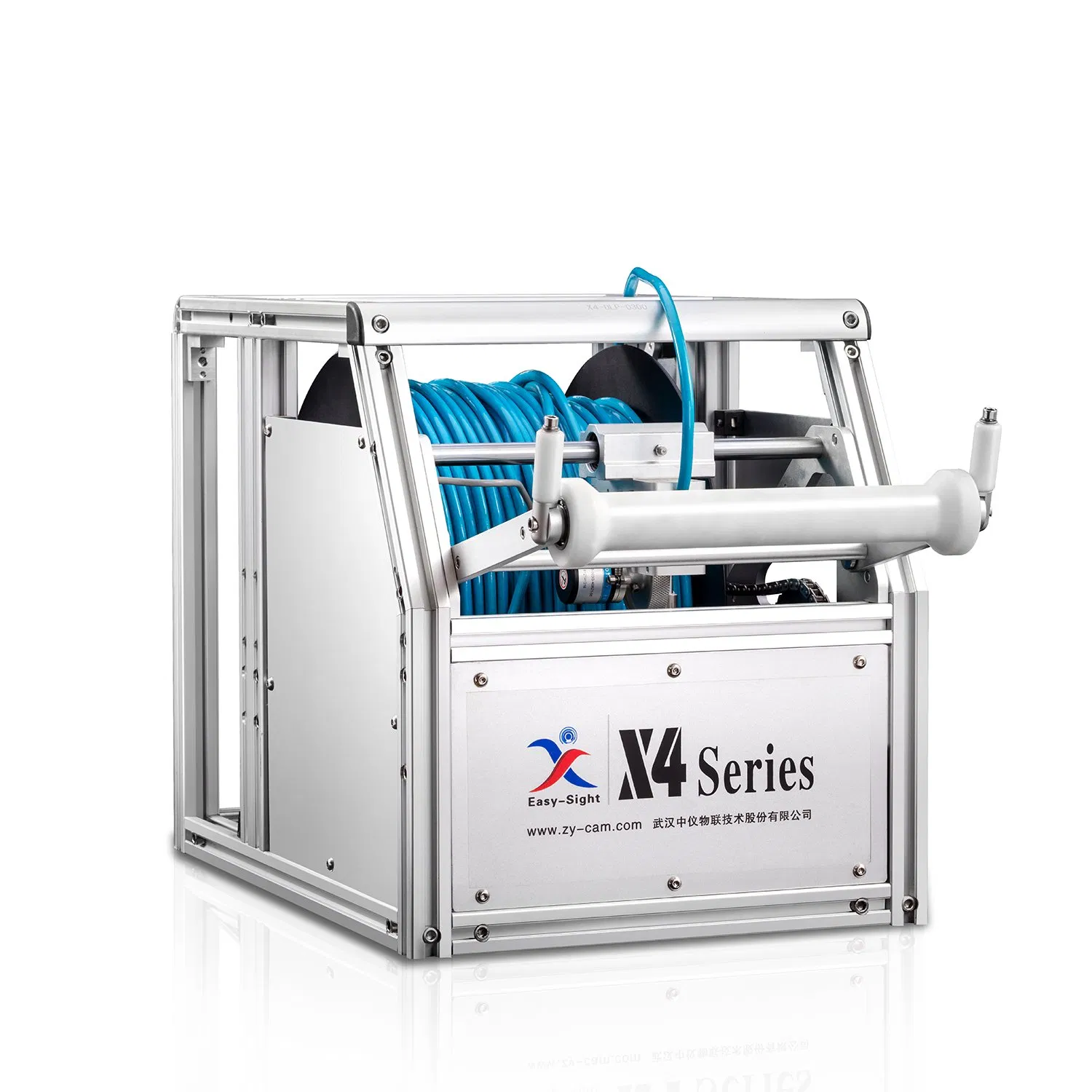

Manual Cable Reel	- Counting: High precision coder (+ 0.1M) - Arrangement: Manual winding device - Protection: IP63 dust and water resistance - Standard Length: 150m (Customizable) - Size: 330mm * 420mm * 570mm

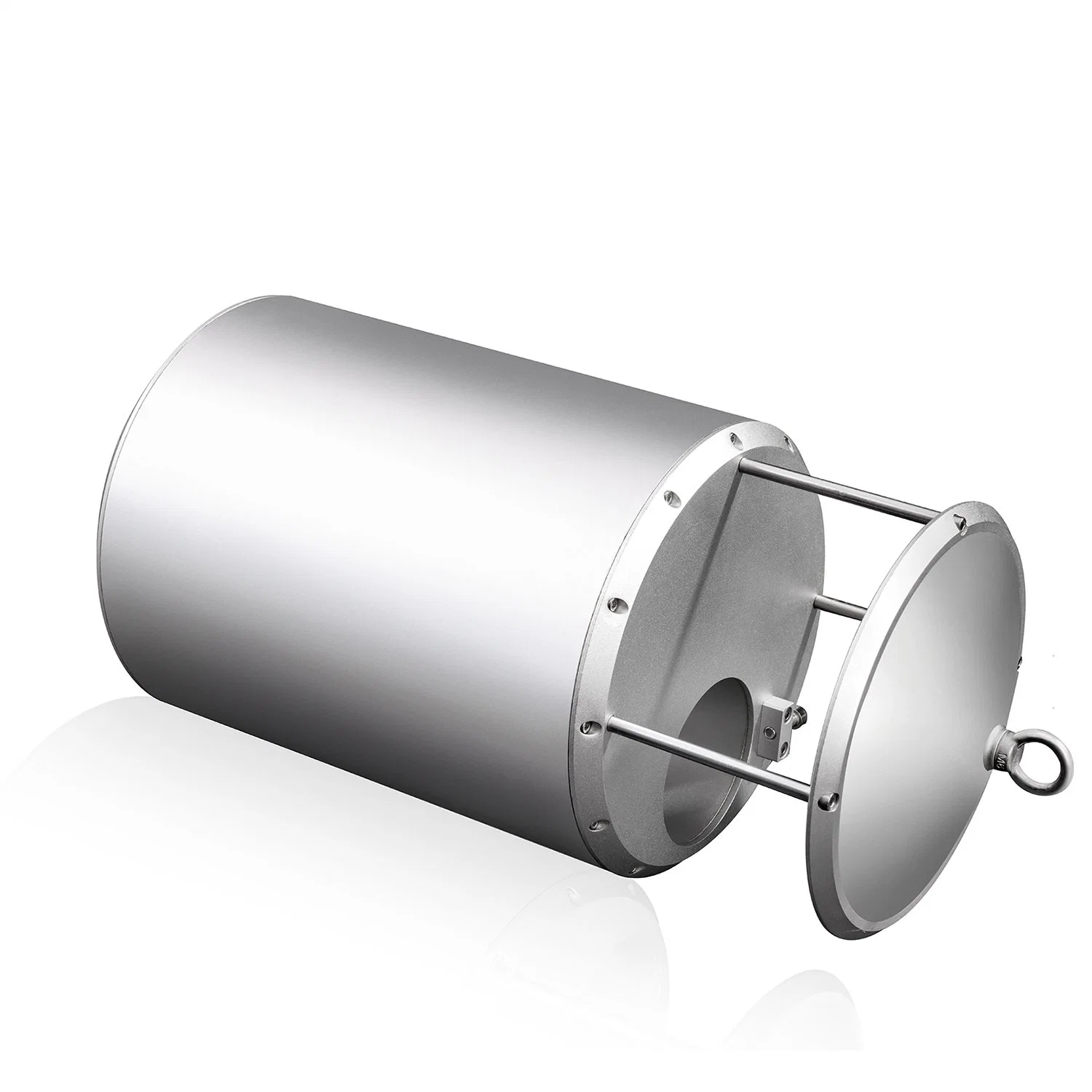

Probe Floating Cylinder	- Material: Stainless steel integral design - Pipe Range: 150mm~6000mm - Size: 140mm * 70mm * 400mm - Buoyancy force: 5kg

Product Application & Details

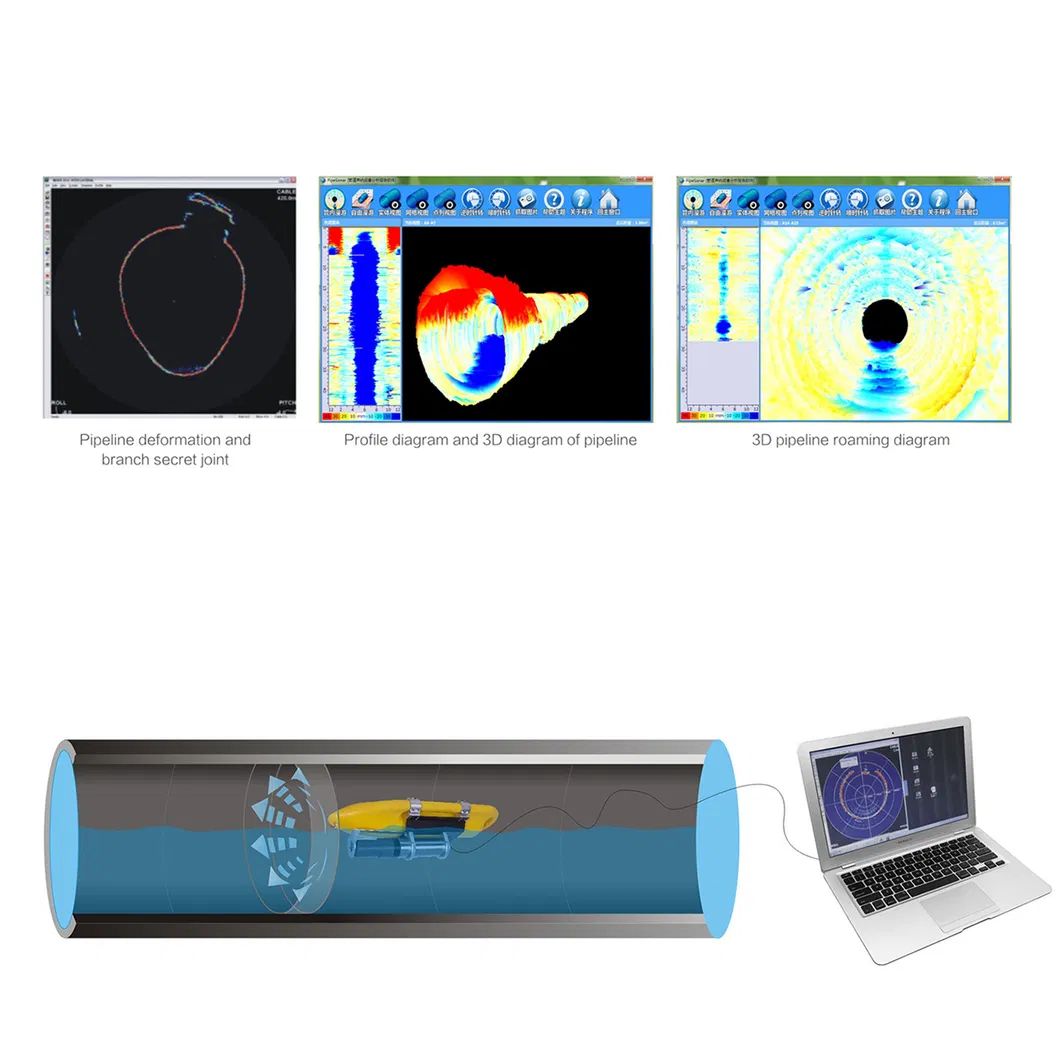

The X4 system accurately detects structural defects (deformation, collapse, cracks, encrustation) and functional defects (deposition, floaters). It uses sonar imaging technology to scan underwater units within full or semi-full pipelines.

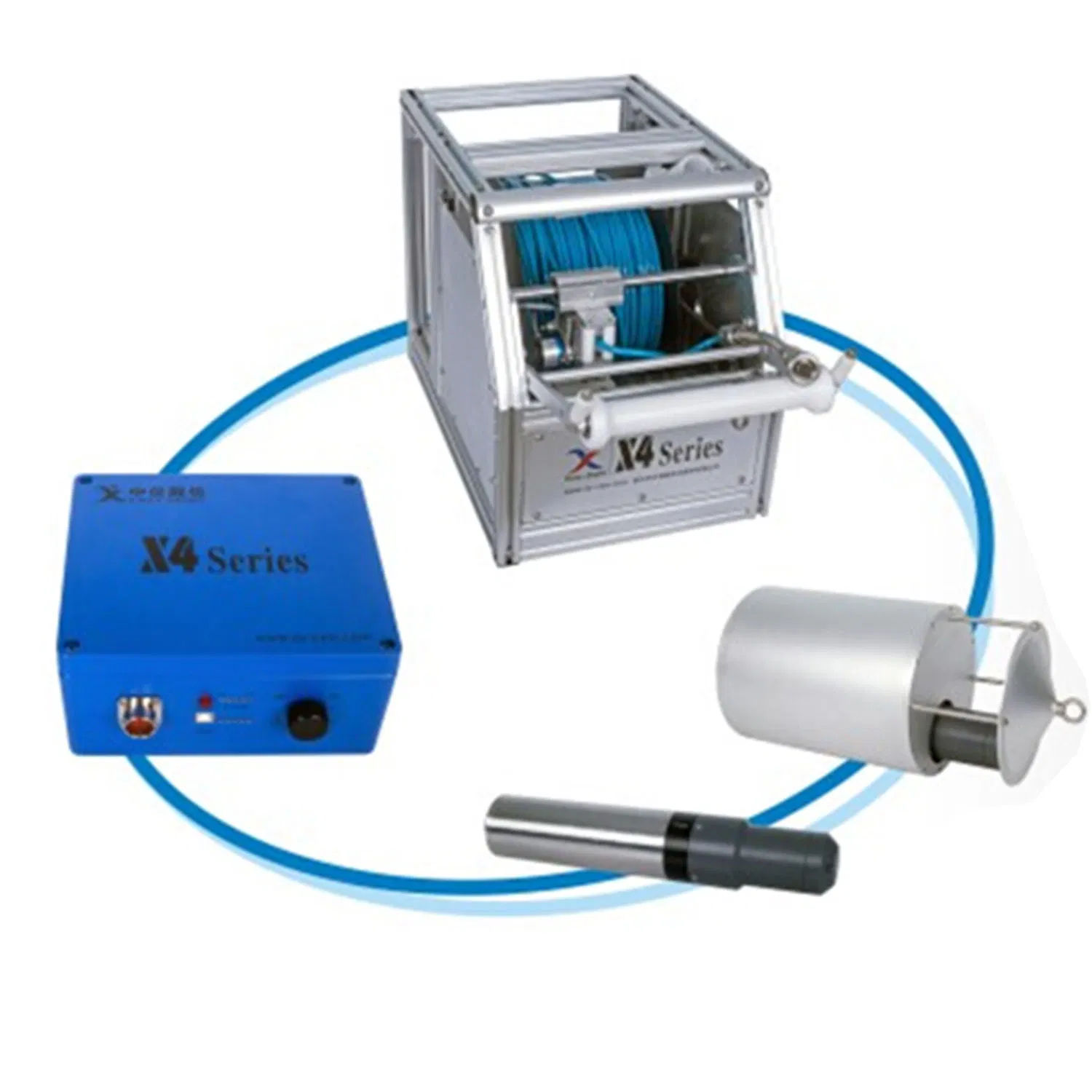

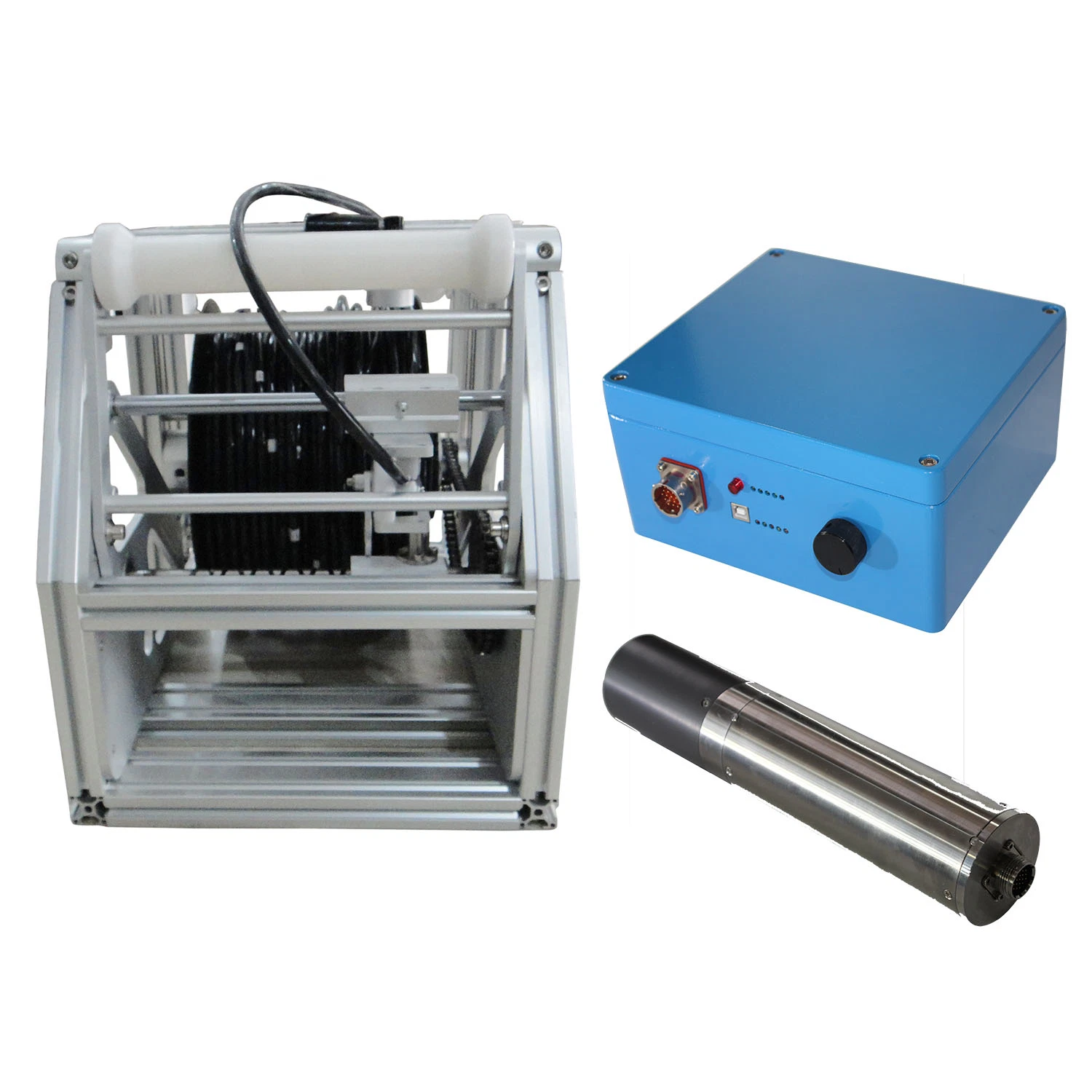

The system is composed of four main parts: sonar capsule, cable reel, host computer, and specialized imaging analysis software. It provides high-resolution profile pictures to determine pipe wall damage or deposition.

Exhibition & Certificates

X4 Sonar Inspection System Advantages

Three-dimensional Imaging

3D sonar system with 3D display allows operators to rotate images to any orientation to check construction defects clearly.

Deep Pipe Water Inspection

Designed for pipe networks where water depth exceeds 300mm and drainage is not possible.

Synchronous Above & Under Water Inspection

Optional floating valves realize CCTV inspection for both above and under water sections simultaneously.

Packing & Service

Technical Support: Focused on providing efficient and environmentally friendly drainage network solutions.
Warranty Policy: 12 months warranty from arrival date, with lifelong maintenance support.
Quality Assurance: Every machine is strictly tested before packaging.
Professional Training: Detailed operational manuals and English training materials provided.
OEM Services: Customizable branding and logo printing available.

Frequently Asked Questions

Q: What type of pipelines is the X4 sonar system suitable for? A: It is ideal for water-filled pipelines where traditional CCTV cannot operate, covering diameters from 125mm to 6000mm.

Q: Will the package be damaged during international transportation? A: No, we use standard plywood cases with internal foam protection and waterproof plastic bags to ensure the machine arrives in good condition.

Q: Is the sonar imaging available in 3D? A: Yes, the system features 3D perspective and scale, allowing the operator to rotate and check images and videos from any orientation.

Q: How difficult is it to install and run the machine? A: Most components are pre-installed. We provide detailed training videos and English manuals so most customers can learn to operate it independently.

Q: What happens if the machine encounters a technical fault? A: We respond within 24 hours to provide technical assistance. During the 12-month warranty, replacement parts for non-human errors are free.

Q: Can the cable length be customized beyond the standard 150m? A: Yes, while 150m is the standard configuration, the cable length can be customized based on your specific project requirements.
