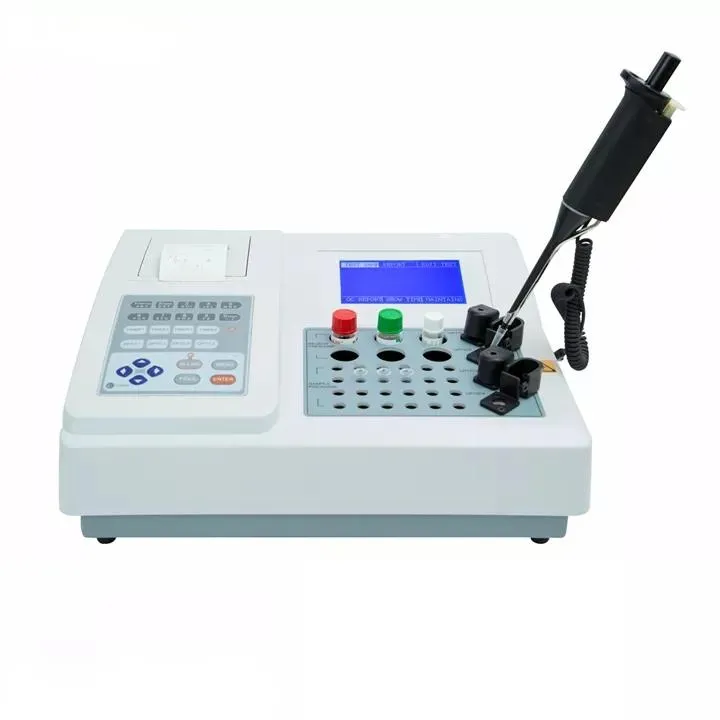

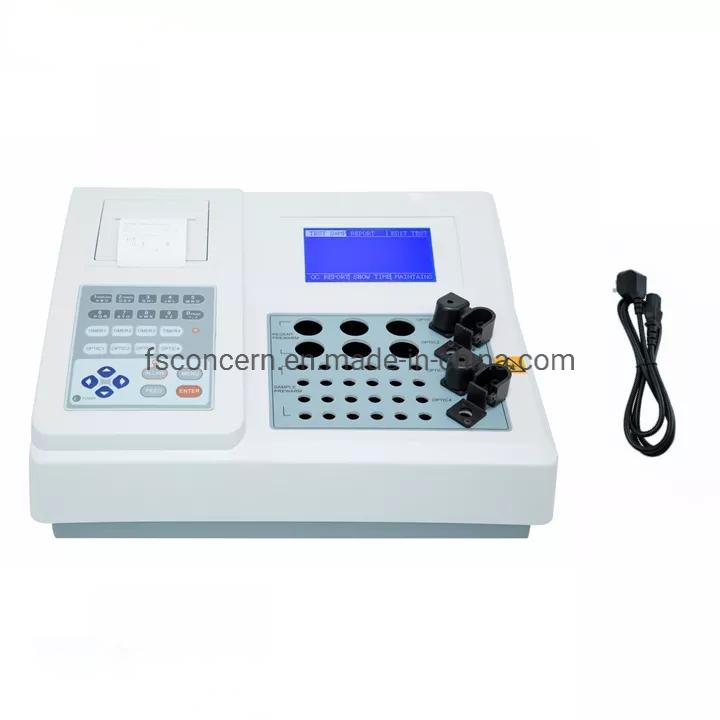

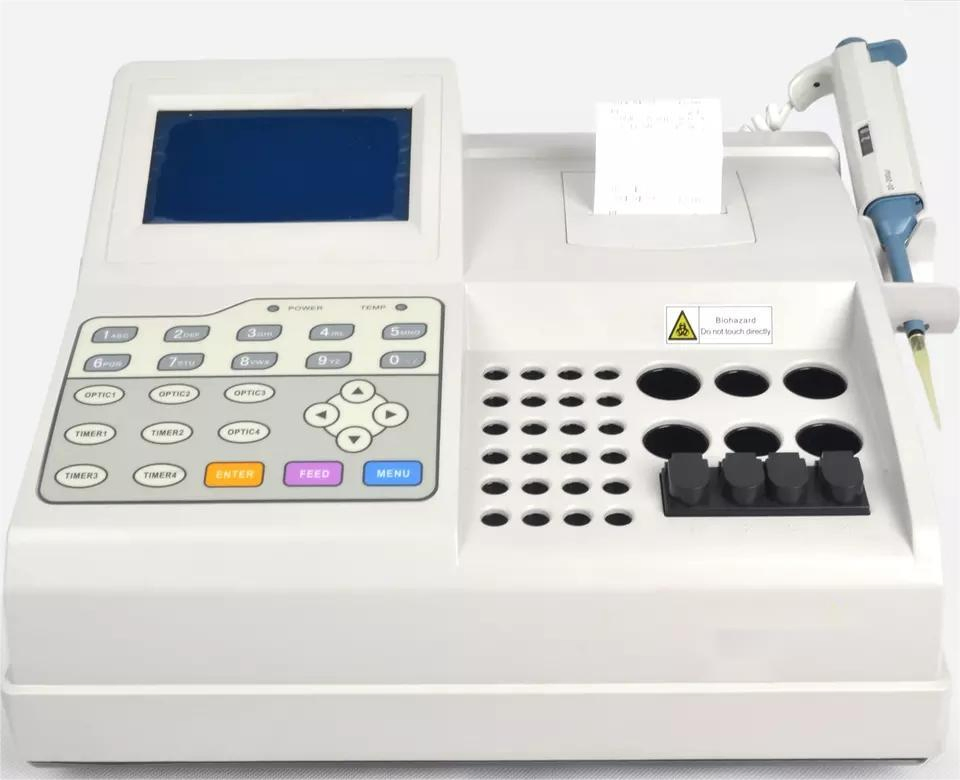

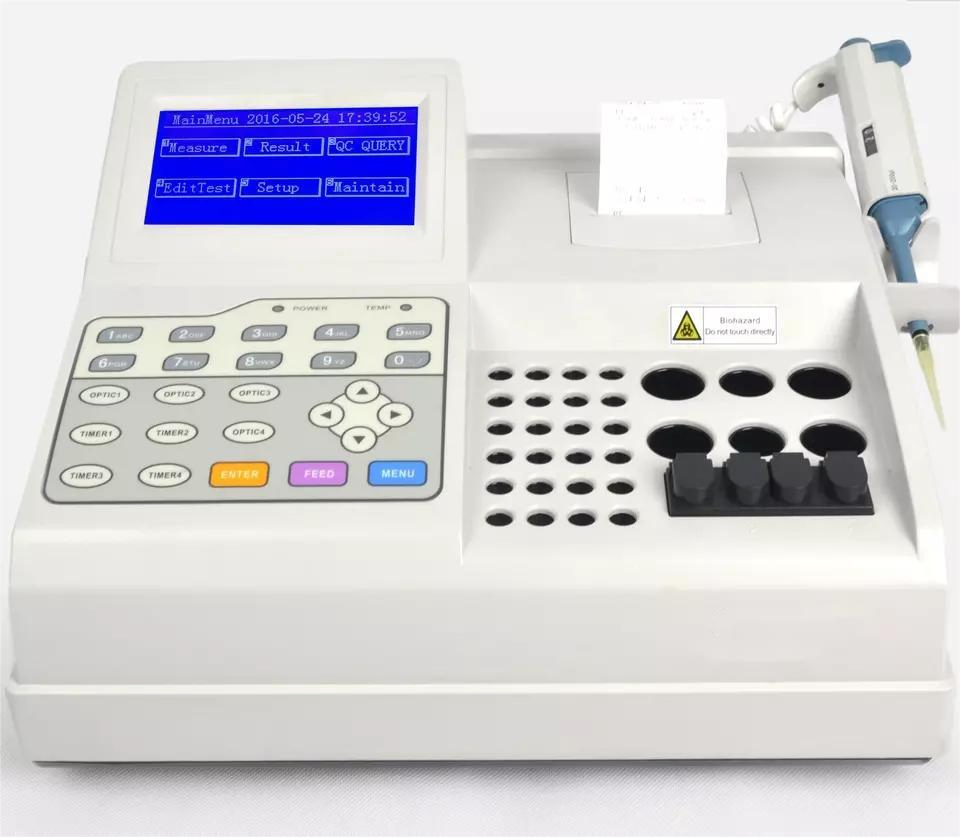

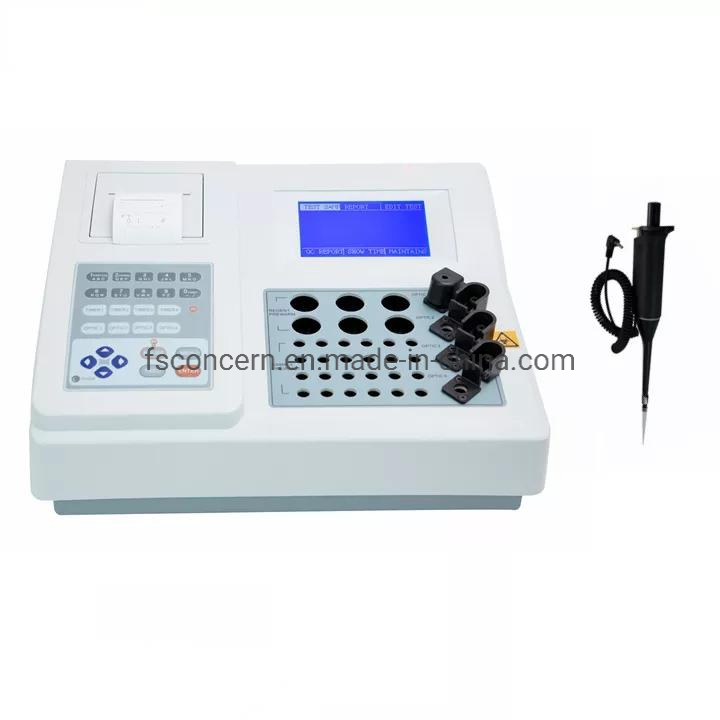

High Quality Cheap Price Semi-Auto Medical Laboratory Equipment 4-Channels Blood Coagulation Analyzer

1 / 5

High Quality Cheap Price Semi-Auto Medical Laboratory Equipment 4-Channels Blood Coagulation Analyzer

Classification:	Coagulation Analysis System
Type:	Coagulometer
Certification:	ISO13485

Send Inquiry

Product Description

Basic Information

Model NO.

CCL-XN5004

Warranty

1 Year

Transport Package

Standard Export Package

Specification

Optional

Origin

China

Production Capacity

1000 units/Month

Product Description

High Quality Semi-auto Medical Laboratory Equipment 4-channels Blood Coagulation Analyzer

Model: CCL-XN5004

Product Features

✔ Four testing channels: 4 different items analysis at the same time
✔ High Capacity: Sample hot position: 24; Reagent hot position: 6
✔ Low Consumption: PT: 40ul, APTT: 20ul, others: 30ul (Open reagent)
✔ Precision Control: Incubate precision 37±0.3ºC; Test precision (CV) < 2%
✔ Data Storage: Up to 10,000 testing results restored
✔ Integrated Printing: Inner thermal-sensitive printer included
✔ Connectivity: RS 232 interface for PC connecting
✔ Versatile Testing: Performs PT, APTT, TT, FIB and clotting factors

Usual Test List

Prothrombin PT, Activated Partial thromboplastin time APTT, Thrombin Time TT, Fibrinogen FIB, RT; VT; VIII; IX; XI; XII; II; VVII; X; PS; PC; Xa; etc.

Technical Specifications

Parameter	Specification
Test wavelength	470nm
Memory	10,000 test results
Temp control precision	37±0.3ºC
Sample consume	20uL-40uL
Reagent consume	20uL-40uL
Coincidence indicator	≤3%
Notation of Result	S, %, PTR, INR, g/L
Operation language	English
Screen	240*128 LCD
Power supply	220VAC±15% 50-60Hz
Dimensions	395mm(L) * 320mm(W) * 135mm(H)
Weight	7KG

One-Stop Medical Equipment Solution

Department	Available Equipment
X-Ray Room	X-ray machine, Processor, X-ray film, Cassette, Intensifying screen, Lead clothing (gloves, glasses, cap, apron, collar)
Ultrasound	B/W 2D ultrasound, 2/3/4D color ultrasound
Laboratory Room	Chemistry analyzer, Hematology analyzer, Microplate ELISA reader, Microplate washer, Centrifuge, Pipette, Water bath, Urine analyzer
Operation Room	Anesthesia machine, Ventilator, Operating lamp, Operation table, Pendant, Medical drill and saw, ECG, Patient monitor, Defibrillator, Infusion pump, Electrocoagulation, Oxygen generator, Suction device, Autoclave sterilizer

Product Gallery

Frequently Asked Questions

Q1: How many tests can the CCL-XN5004 perform simultaneously?

A: It features 4 independent testing channels, allowing for the simultaneous analysis of 4 different items.

Q2: What is the sample and reagent capacity of the incubator?

A: The device provides 24 sample hot positions and 6 reagent hot positions for efficient pre-heating.

Q3: Can I connect this analyzer to a computer?

A: Yes, it is equipped with an RS 232 interface specifically for PC connectivity and data management.

Q4: Does the system support open reagents?

A: Yes, the system is designed to work with open reagents, offering flexibility in your laboratory operations.

Q5: What kind of printer does it use?

A: The analyzer includes a built-in thermal-sensitive printer for immediate result documentation.

Q6: What is the data storage limit for test results?

A: The internal memory can store and restore up to 10,000 individual testing results.
