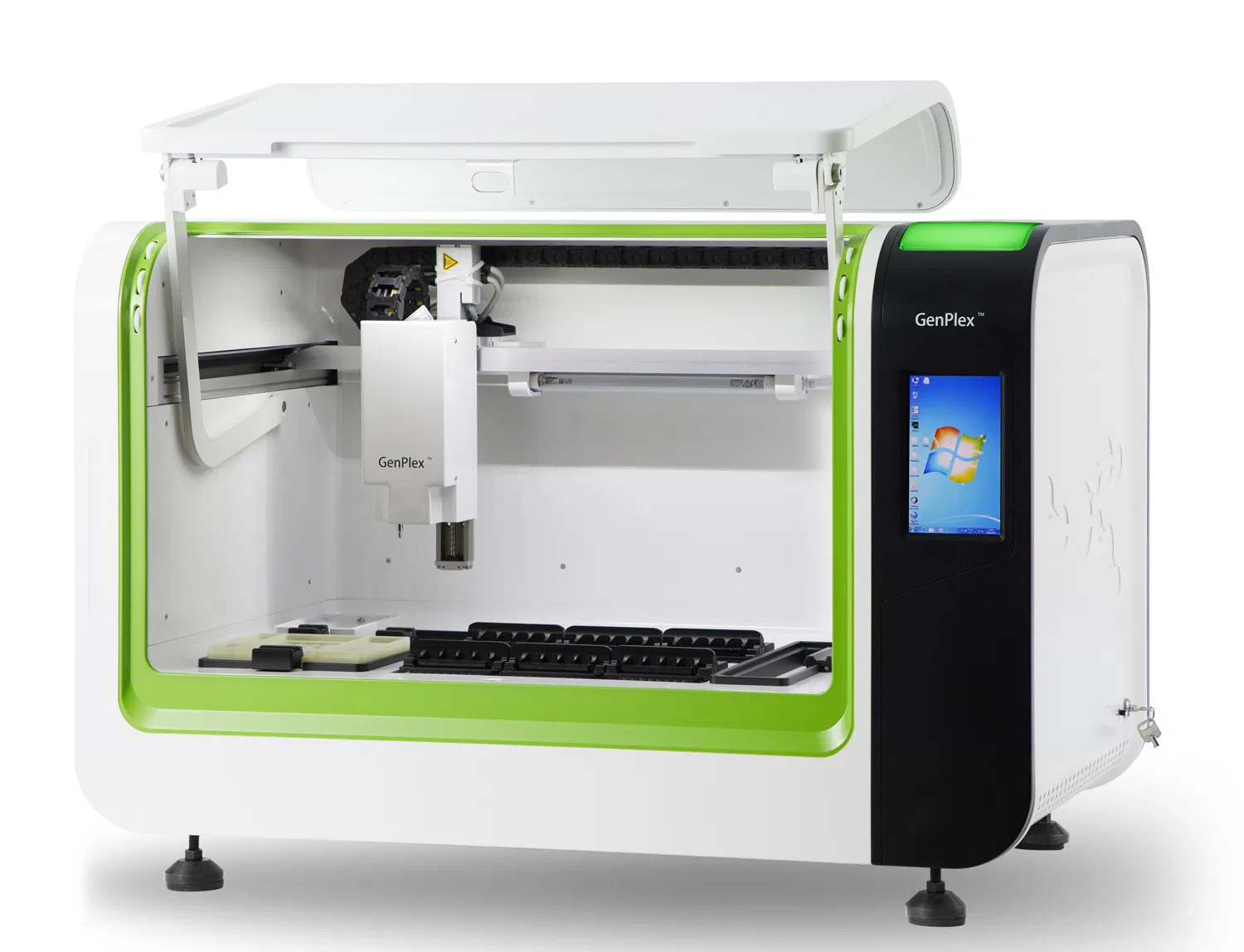

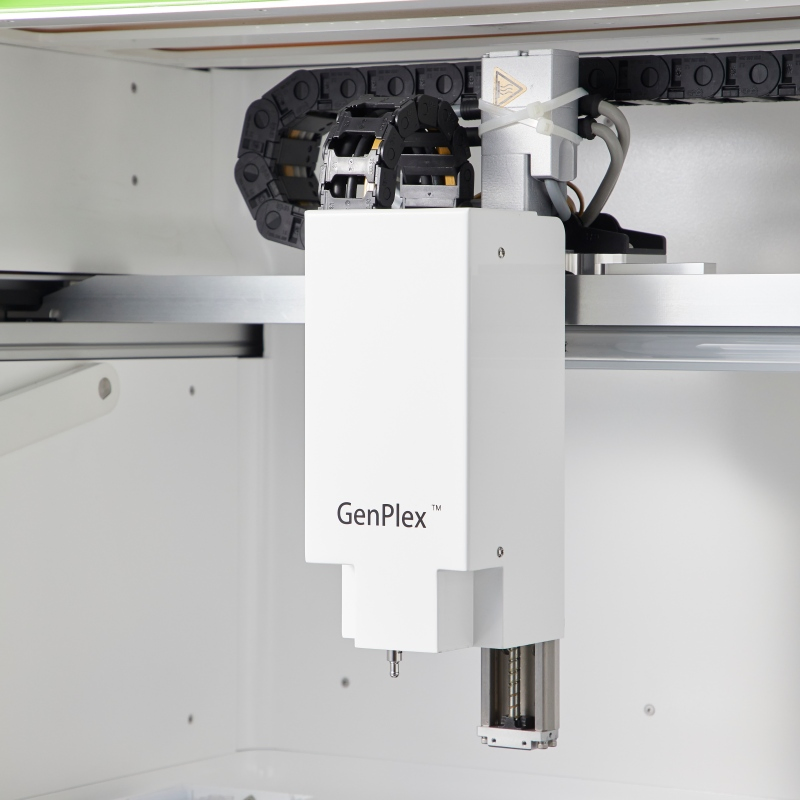

Bohui Nucleic Acid Chip Analyzer: High-Performance Lab Instrument
Bohui Nucleic Acid Chip Analyzer: High-Performance Lab Instrument
Bohui Nucleic Acid Chip Analyzer: High-Performance Lab Instrument
Bohui Nucleic Acid Chip Analyzer: High-Performance Lab Instrument
Bohui Nucleic Acid Chip Analyzer: High-Performance Lab Instrument
1 / 5
Bohui Nucleic Acid Chip Analyzer: High-Performance Lab Instrument
Bohui Nucleic Acid Chip Analyzer: High-Performance Lab Instrument
Bohui Nucleic Acid Chip Analyzer: High-Performance Lab Instrument
Bohui Nucleic Acid Chip Analyzer: High-Performance Lab Instrument
Bohui Nucleic Acid Chip Analyzer: High-Performance Lab Instrument

Bohui Nucleic Acid Chip Analyzer: High-Performance Lab Instrument

Customization: Available
Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Type: Molecular Diagnostic Instrument
Send Inquiry

Product Description

Overview & Basic Info
Model NO.
BHF-VI
Certification
CE, ISO13485
Group
Full Range
Method
PCR and Hybridization
Advanced
Microfludic Chip
Trademark
BOHUI
The instrument adopts reverse hybridization assay for qualitative analysis of virus sub-types. When specimens to be tested are added into specimen slot, the instrument will automatically add process-required reagent into Chip reagent slot, respectively extract DNA and amplify PCR under the drive of micro-pumps on Chip, and finally transfer amplified products to Chip test area.
Product Description
The system consists of a host unit and an optional printer. The instrument is designed for nucleic acid detection and analysis, suitable for clinical screening applications such as HPV testing.
Host Unit Integrates:
  • Image display system
  • Automated Reagent Dispensing System
  • Pneumatic Control System (positive/negative pressure)
  • Temperature Control System
  • Image Detection System
  • 3D Movable Platform System

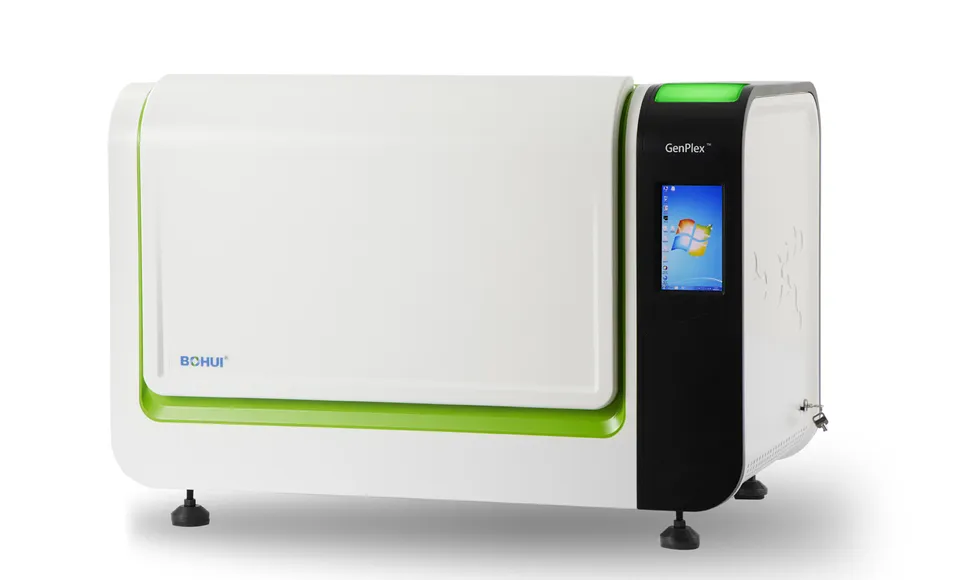

Nucleic Acid Chip Analyzer
Technical Specifications
Feature Specification
ModelBHF-VI
Detection PlatformPCR & Reverse dot blot hybridization
Detection Modules6 Modules
Sample Capacity24
Heating rate≥1.5 ℃/s (from 50℃ to 90℃)
Cooling rate≥1.5 ℃/s (from 90℃ to 50℃)
Electrical specification230V, 50Hz, 600VA
Dimension1000 x 610 x 690±10 (mm)
Weight≤80kg

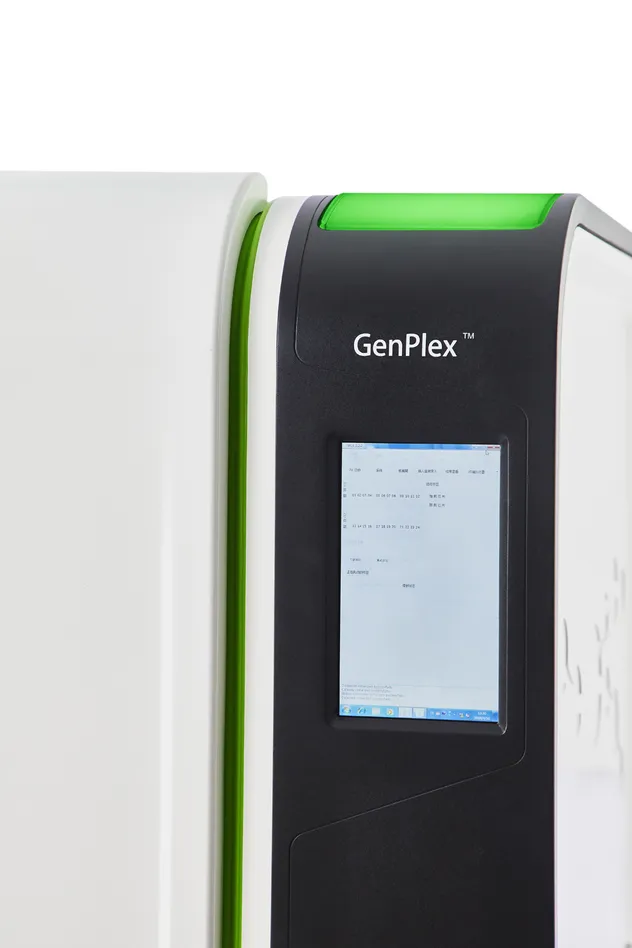

Instrument Detail 1

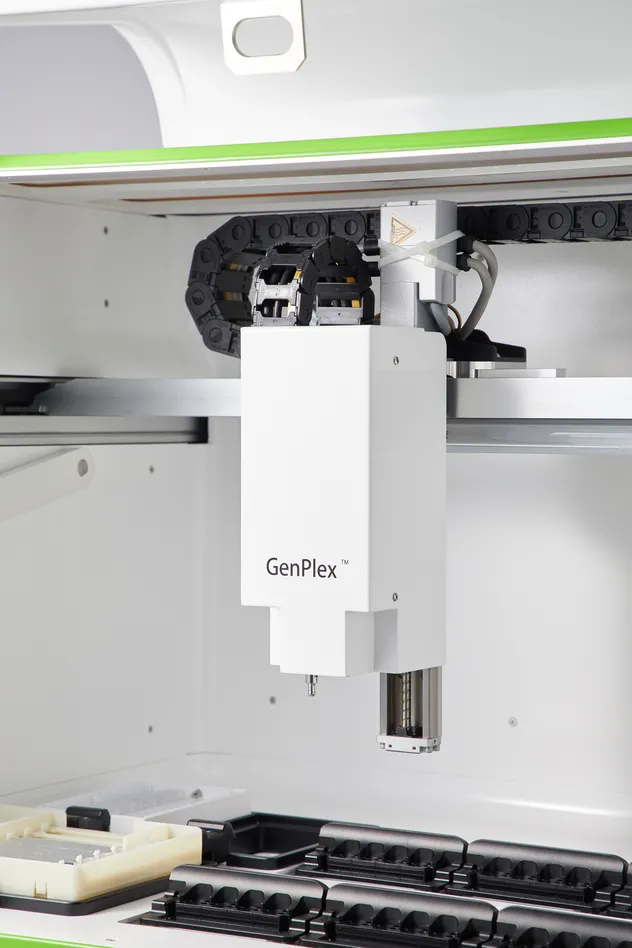

Instrument Detail 2

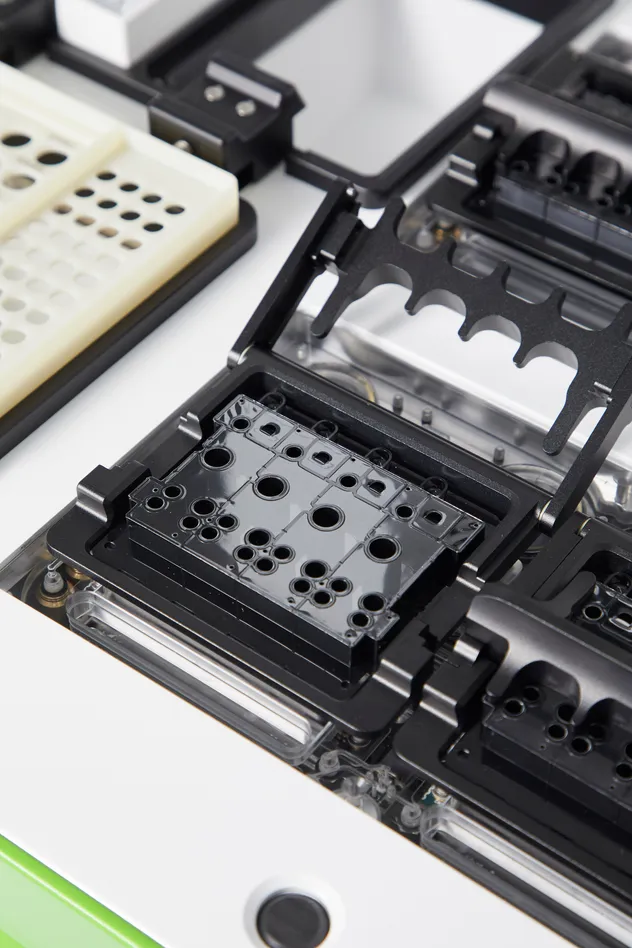

Instrument Detail 3
Product Features
Simple
Only 5 minutes of hands-on time required.
Easy
No precise measuring or pipetting required.
Fast
Turnaround time of about 3.5 hours.
Comprehensive
24/28 target genotypes HPV panel.
Workflow
Company Profile
Founded in 2001, the group has evolved into a high-tech biomedical enterprise that integrates R&D, production, sales, and after-sales service into a comprehensive system. The company operates a 40,000-square-meter integrated R&D center and is listed on the Stock Exchange.
R&D Center

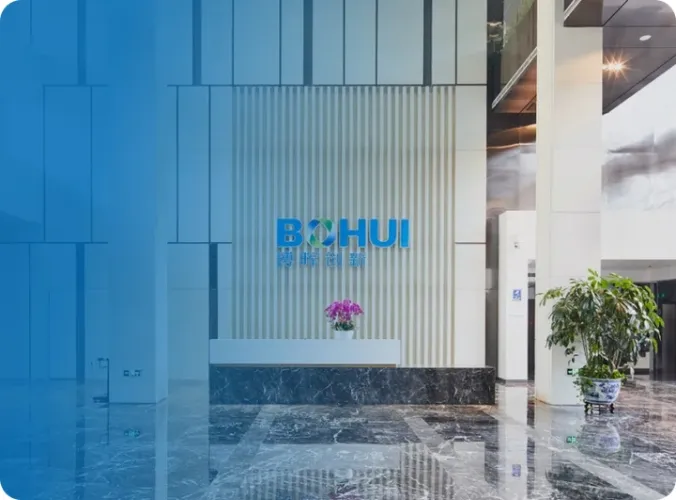

Laboratory
The group boasts strong independent R&D capabilities and has developed technical platforms such as molecular diagnosis, immunoassay, atomic absorption, and mass spectrometry. The fully automated nucleic acid testing products based on microfluidic technology, hailed as a "laboratory on a chip", serve a wide range of medical and health institutions.
Frequently Asked Questions
Q: Can I obtain samples for testing?
A: Yes, samples can be obtained. Please contact our sales team for specific arrangements.
Q: Do you support OEM/ODM services for custom logos?
A: No, we currently do not support OEM/ODM services. We provide our products under our established brand.
Q: Are you a manufacturer with your own factory?
A: Absolutely. We are a professional manufacturer with a large-scale production facility. You are welcome to visit our facility.
Q: What is your monthly production capacity?
A: Our capacity is approximately 2,000 analyzer units and 1 million person-time reagents per month.
Q: How long does shipping take after an order is placed?
A: Most products are in stock and will be shipped within 7 days after order confirmation.
Q: What sample types are compatible with the BHF-VI?
A: The system is optimized for exfoliated cervical epithelial cells, primarily for HPV screening applications.
