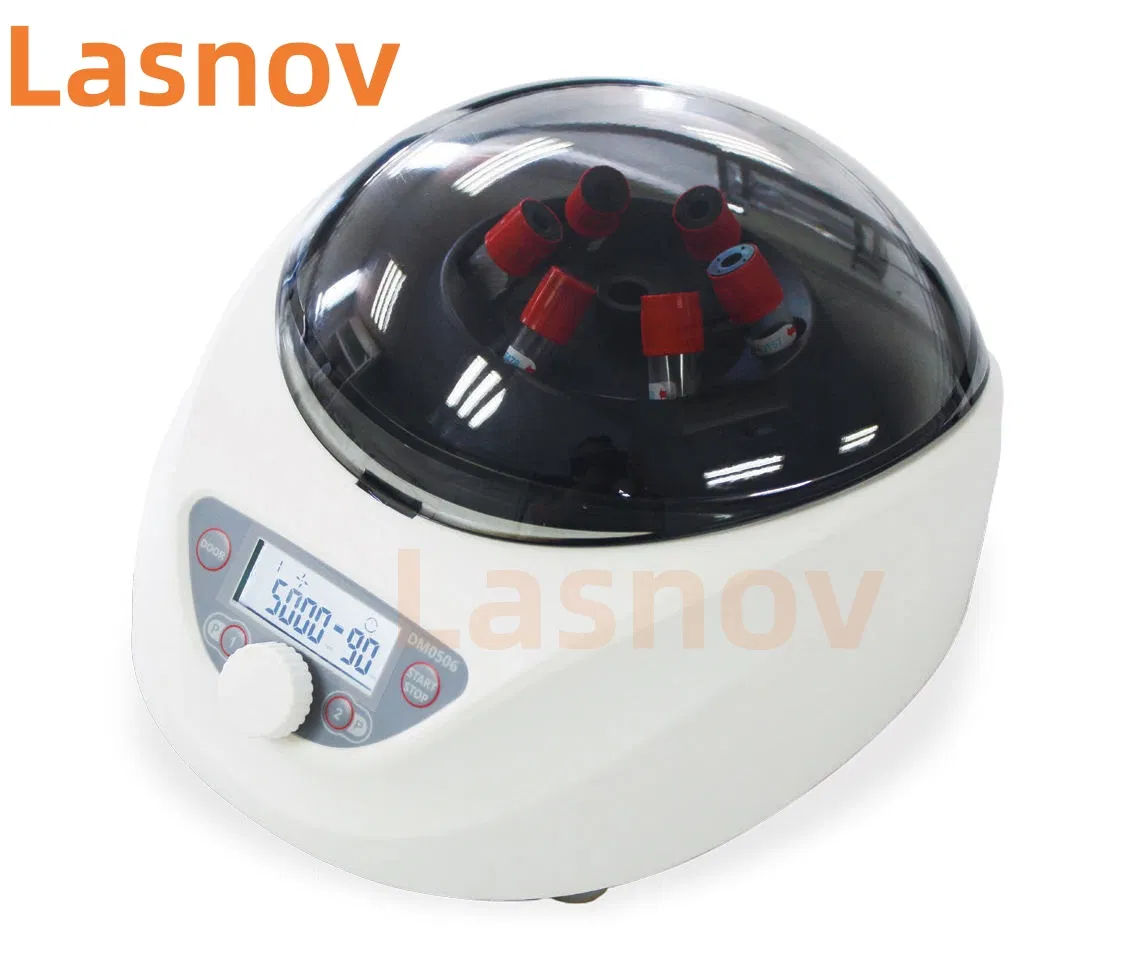

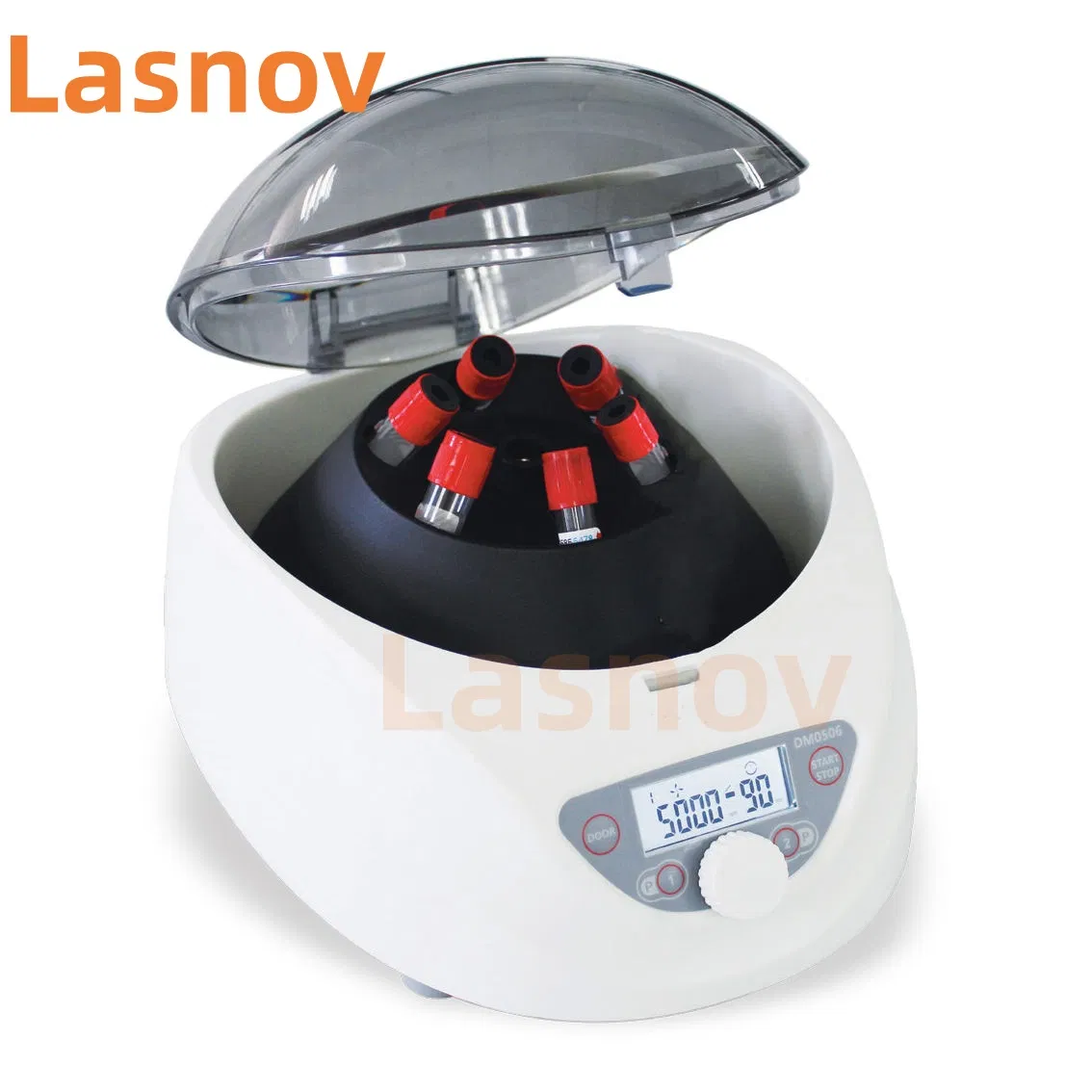

Lsn-Dm0511 Efficient Biomedical Centrifuge 5 1kgs Low Speed Lab Equipment

Customization:	Available
After-sales Service:	12 Months
Warranty:	12 Months

Basic Information

Model NO.

LSN-DM0506

Application

Industry, School, Hospital, Lab

Certification

CE, ISO, RoHS

Structure

Desktop

Material

Plastic

Max Speed

<8000r/min

Speed Range

300-5000rpm

Weight

5.1kgs

Motor

Brushless DC Motor

Display

LCD

Product Description

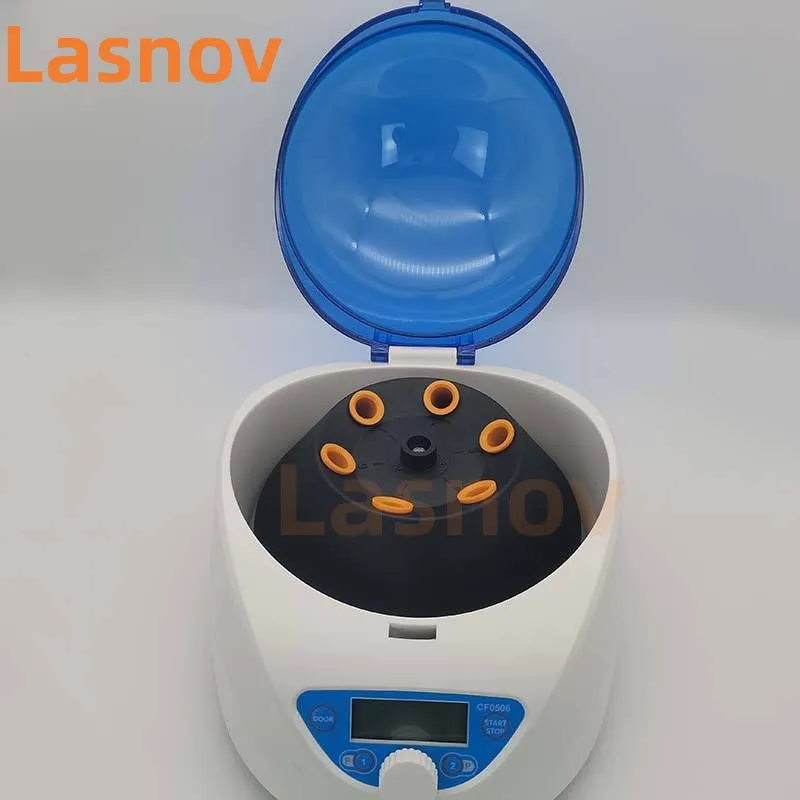

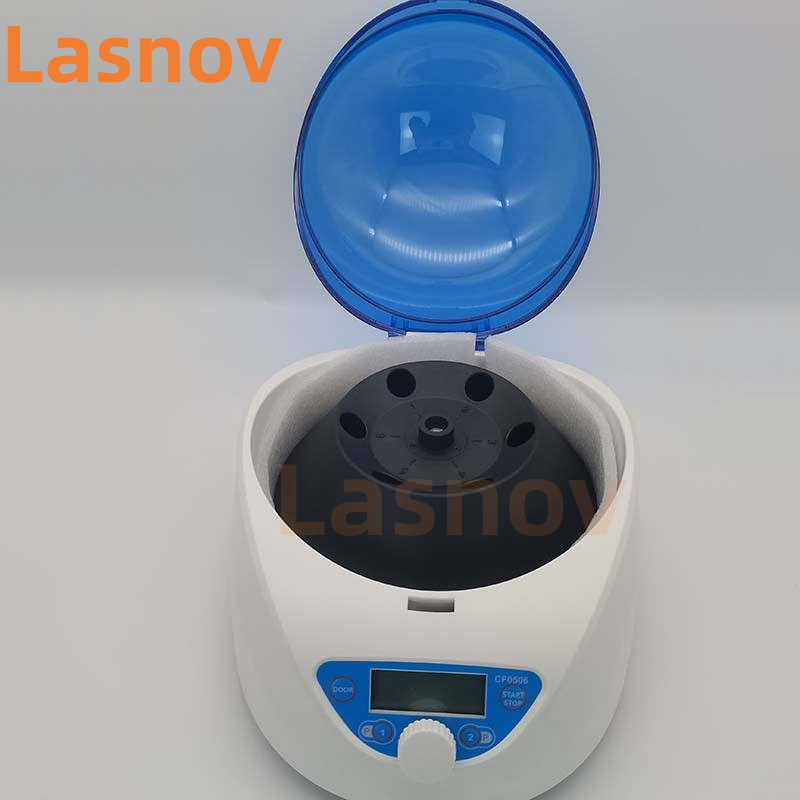

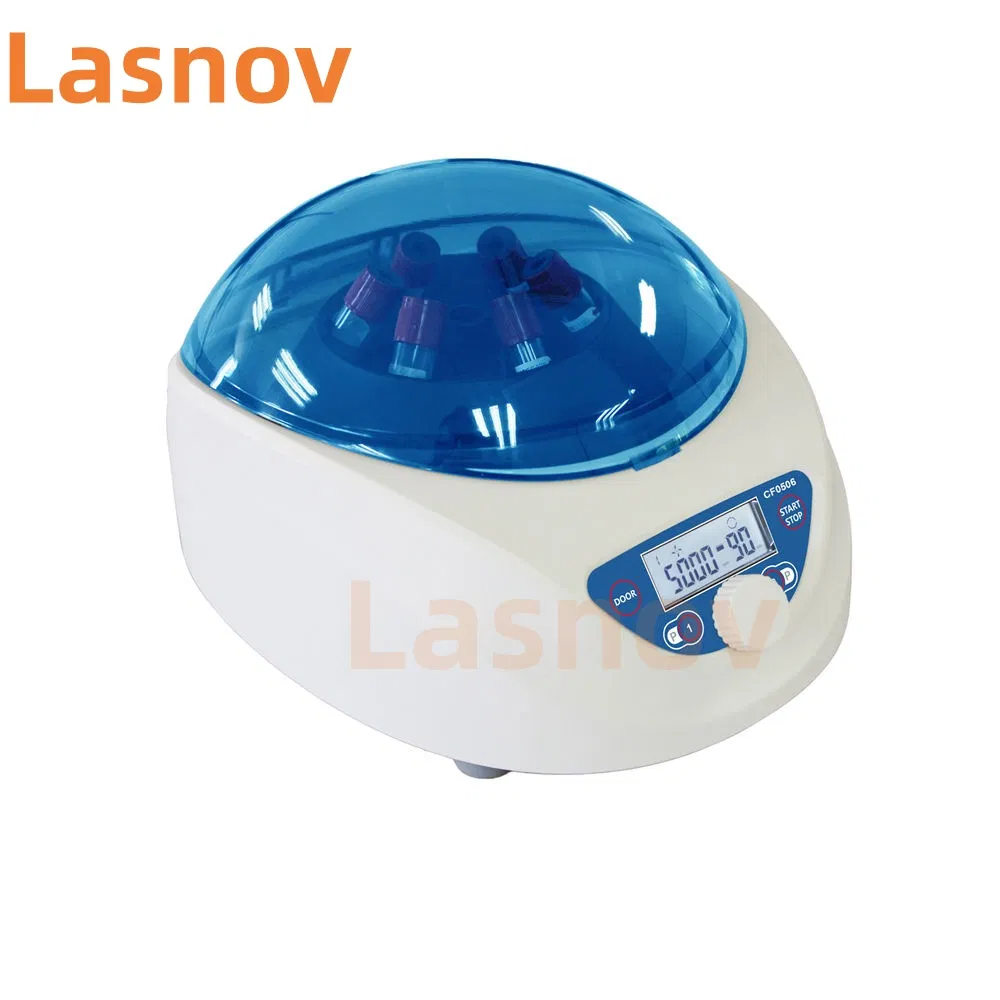

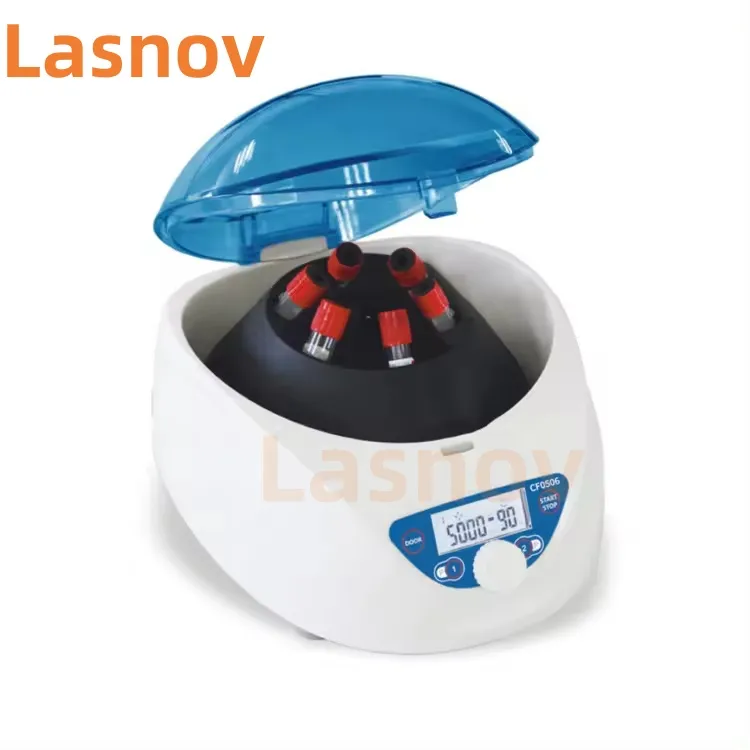

DM0506 Portable Low-speed Centrifuge for Clinics & Hospitals

Key Features

Speed range: 300-5000 rpm
Set and display via RPM or G-force
Two programs P1/P2 for easy startup
Start procedure with one key
Two deceleration settings available
Clear LCD display with sound alert
Auto lid-lock release post-operation
Maintenance-free brushless DC motor

Applications

DM0506 is extensively used in the medical field. Perfect for separating serum, plasma, urine, and fecal samples in biochemical and medical labs. Essential for clinical labs, blood banks, medical colleges, and research institutes.

Technical Specification

Specifications	DM0506 Details
Speed Range	300-5000rpm, increment: 10rpm
Max. RCF	2600×g, increment: 10×g
Speed Accuracy	±20rpm
Rotor Type	6x15mL/10mL/7mL/1.5-5mL
Run Time	30sec-99min, HD (Continuous Running)
Display	LCD
Preloaded Program	P1/P2
Acceleration/Deceleration	1↑ 2↓
Safety Devices	Door interlock, Overspeed detector, Automatic internal diagnosis
Motor	Brushless DC motor
Power Requirements	Single-phase, 100V-240V, 50Hz/60Hz, 70W

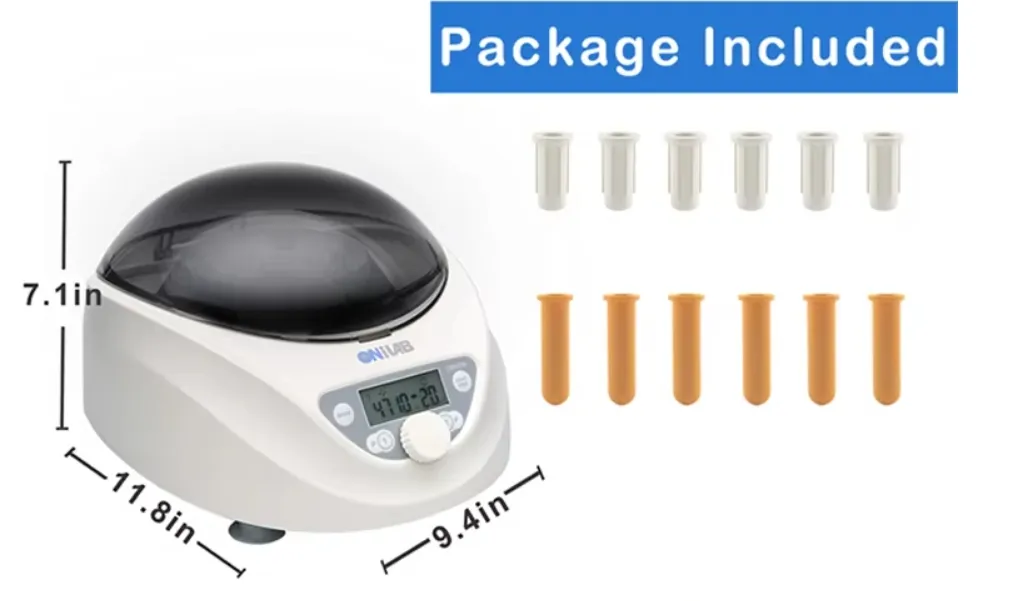

Dimension [WxDxH]	300 x 240 x 180mm
Weight	5.2kg

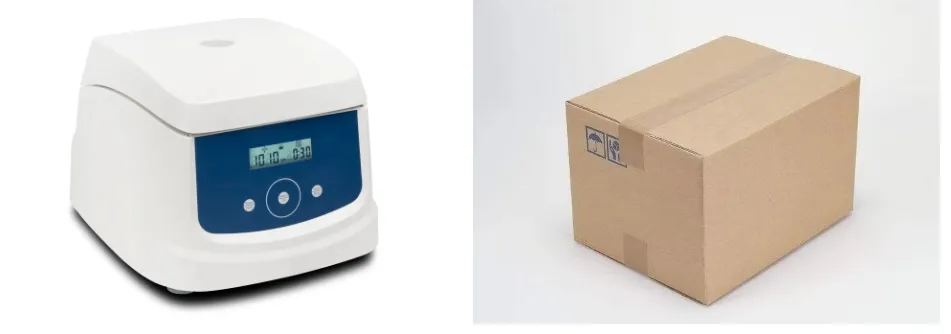

Packing & Delivery

Package Size

41.00cm * 36.00cm * 27.00cm

Gross Weight

6.300kg

Manufacturing Capability

A seasoned manufacturer and exporter of test equipment with 20 years of experience and a decade in exports, certified by CE. Main products include electronic universal testing machines, hydraulic universal testing machines, impact testing machines, hardness testers, and various lab equipment. Successfully exported to over 30 countries across North America, Europe, Southeast Asia, and the Middle East.

Frequently Asked Questions

Q1: What is the maximum speed and RCF of the DM0506 centrifuge?

The DM0506 has a speed range of 300-5000rpm with a maximum RCF of 2600×g. Both speed and RCF can be adjusted in increments of 10.

Q2: What type of motor does this centrifuge use?

It uses a maintenance-free brushless DC motor, which ensures long-term reliability and quiet operation in laboratory environments.

Q3: Is the centrifuge easy to operate for beginners?

Yes, it features two pre-loaded programs (P1/P2) for easy startup and a one-key start procedure. The clear LCD display and sound alerts further simplify operation.

Q4: What safety features are included?

The device is equipped with a door interlock system, an overspeed detector, and an automatic internal diagnosis system to ensure user safety and equipment integrity.

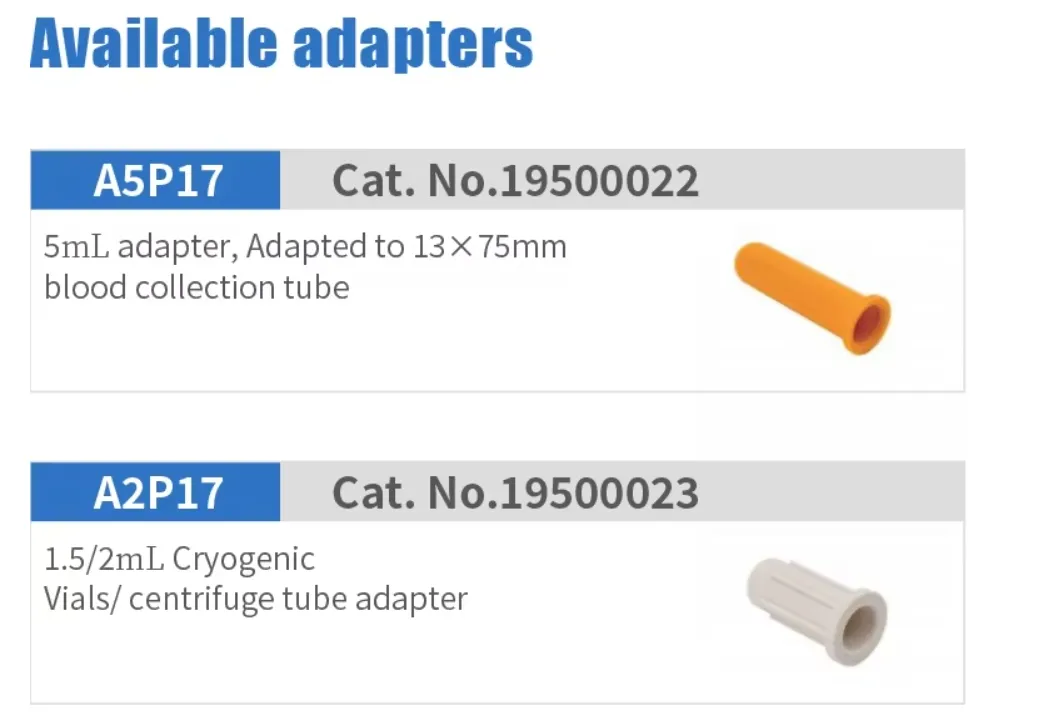

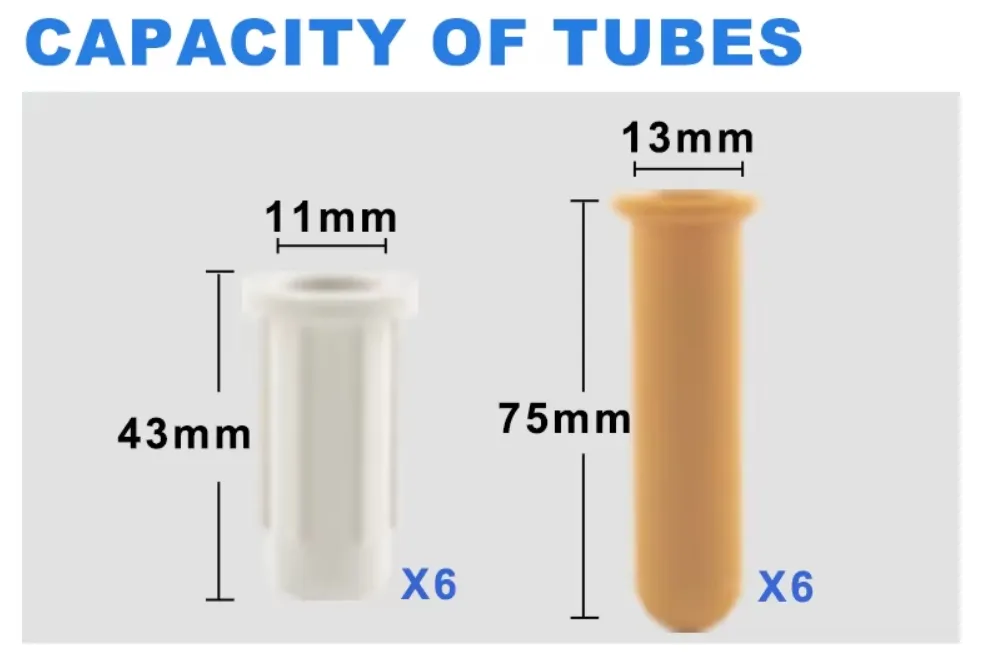

Q5: What are the compatible tube sizes for the rotor?

The standard rotor capacity is 6x15mL, which is also compatible with 10mL, 7mL, and 1.5-5mL tubes, making it versatile for various clinical and research needs.

Q6: Can it run continuously?

Yes, the run time can be set from 30 seconds up to 99 minutes, and it also includes an "HD" mode for continuous running.
