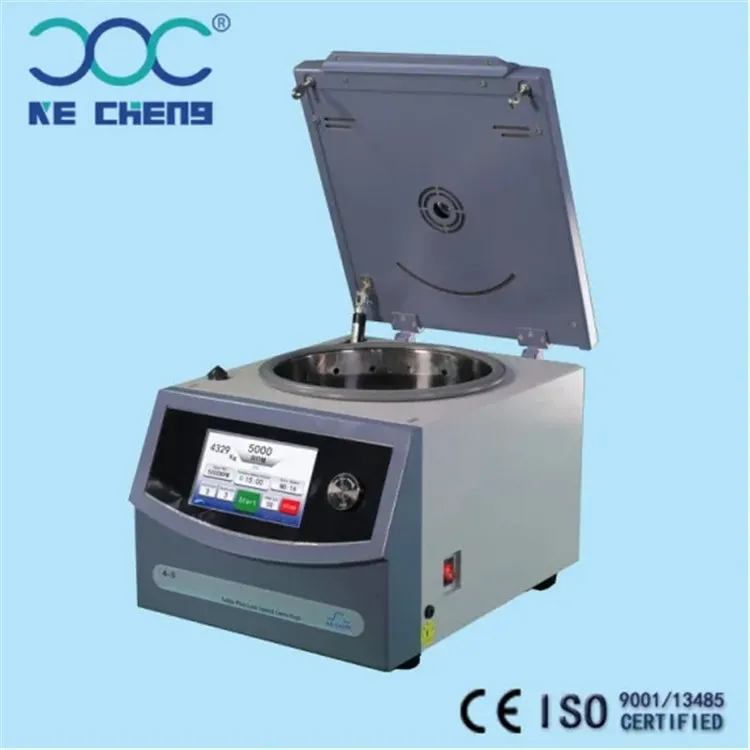

Lab Centrifuge Machine Blood Testing Equipments 4-5 for Hematocrit

1 / 5

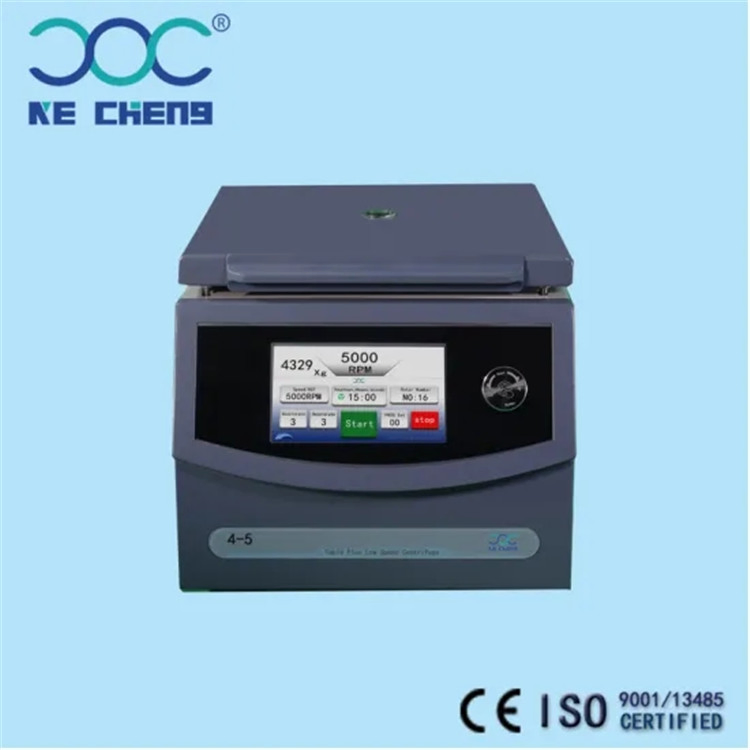

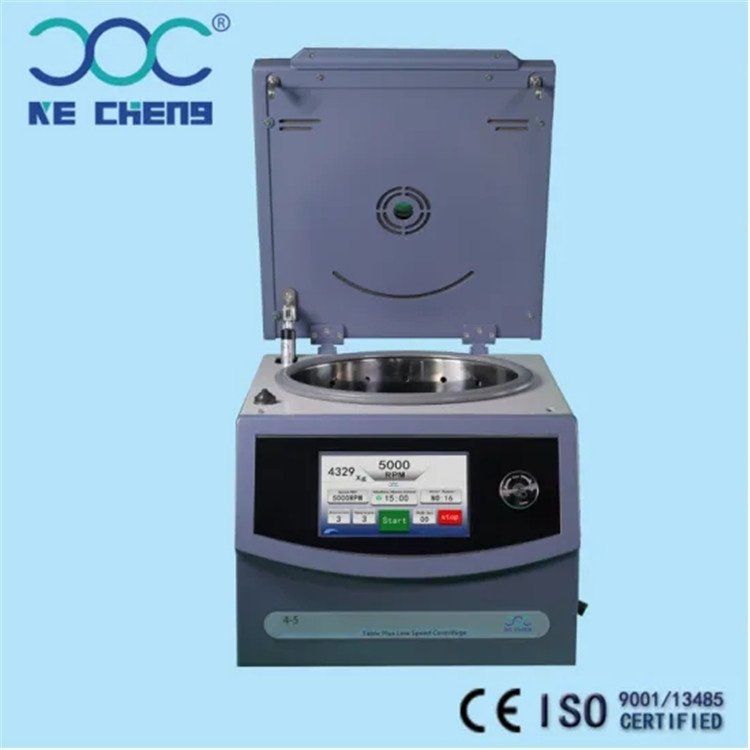

Lab Centrifuge Machine Blood Testing Equipments 4-5 for Hematocrit

Customization:	Available
After-sales Service:	2 Year Warranty
Warranty:	2 Year Warranty

Send Inquiry

Product Description

Basic Specifications

Model NO.

4-5

Application

Industry, School, Hospital, Lab

Certification

CE, ISO

Structure

Desktop

Material

Steel

Max Speed

8000~30000r/min

Max Rcf

5190* G

Max Capacity

4 X 750ml

Net Weight

58kg

Packing Size

637 X 537 X 484mm

Transport Package

Standard Export Plywood Carton

HS Code

8421199090

Product Overview

Hematocrit Centrifuge Lab Centrifuge Machine Blood Testing Equipments 4-5. This high performance centrifuge machine is widely used in clinical medicine, biochemistry, genetic engineering, immunology and other fields. It is a necessary instrument for centrifugation in hospitals, research institutes and universities at all levels.

Key Features

Smart Interface: 7-inch full touch screen plus multi-functional knob combination with a simple interface display.
Safety Identification: Automatic identification system for magnetic rotor to prevent misoperation.
Self-Diagnosis: Failure self-diagnostic function with voice alerts and solution display.
Precision Control: Stepless speed adjustment and automatic conversion of centrifugal force.
Security: Password lock function to protect settings and parameters.
Custom Programs: Large storage for up to 99 program groups and use records.
Durability: Double electronic door lock, full steel door cover, and high-quality hydraulic rods.
Maintenance Free: High torque frequency conversion motor for faster acceleration and deceleration.

Technical Parameters

Model: 4-5
Max Speed	6500rpm	Power	750W
Max RCF	5190×g	Noise Level	≤60dB(A)
Max Capacity	4×750ml	Chamber Diameter	Φ430mm
Timing Range	1min~99h59min59s	Machine Dimensions	560×460×390mm
Speed Accuracy	±10r/min	Net Weight	58kg
Power Supply	AC 220±22V 50Hz 15A	Packing Dimensions	637×537×484mm

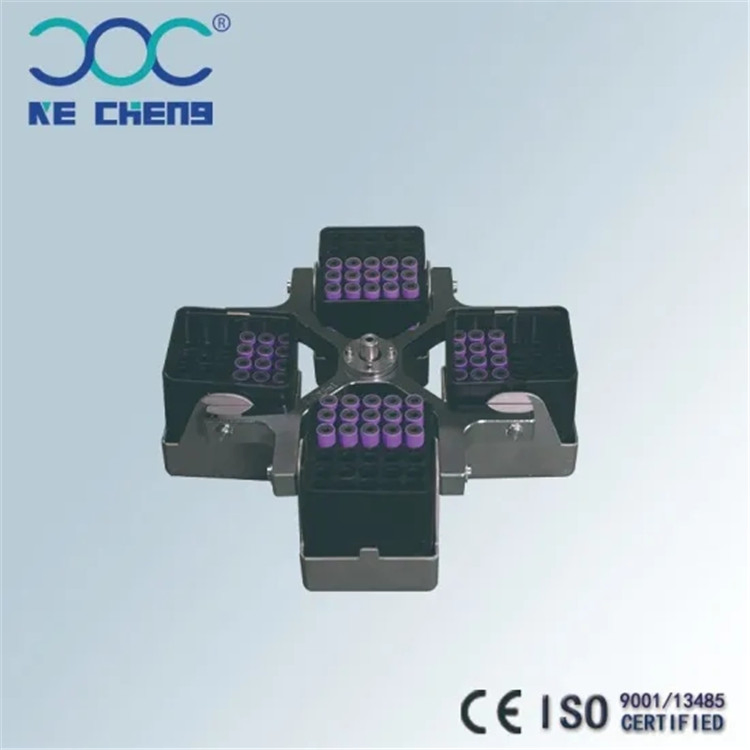

Rotor Parameters

Rotor Name	Capacity	Max Speed(r/min)	Max RCF(×g)
Angle Rotor	6×50ml / 12×10ml	6500	5190

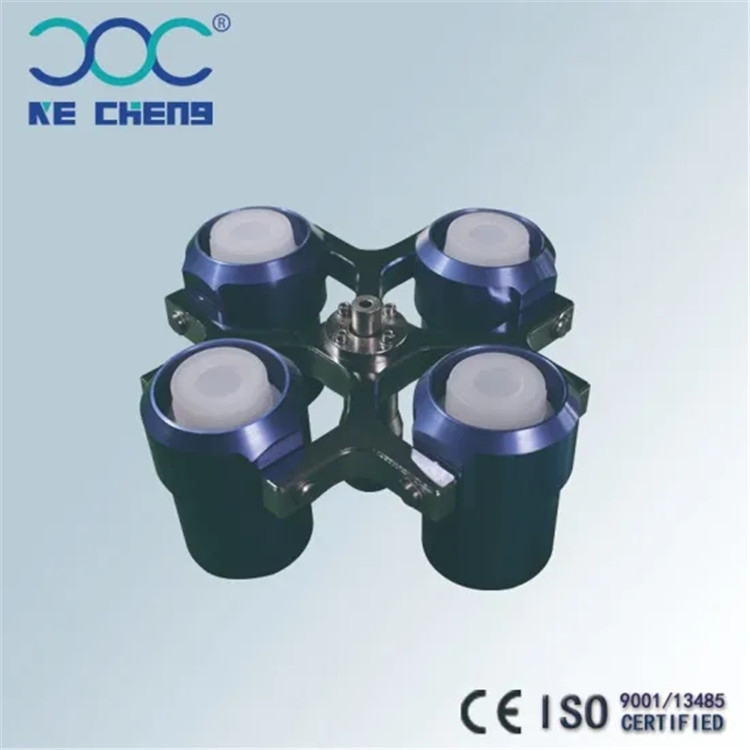

Swing out Rotor	4×50ml / 4×100ml	4000	2810
Swing out Rotor	16×10/15ml / 32×10/15ml	4000	2810
Swing out Rotor	4/6×250ml	4000	3500
Swing out Rotor	4×500/750ml	4000	3580
Enzyme Plate	2×2×96 holes	4000	2300
