Product Description & Key Parameters

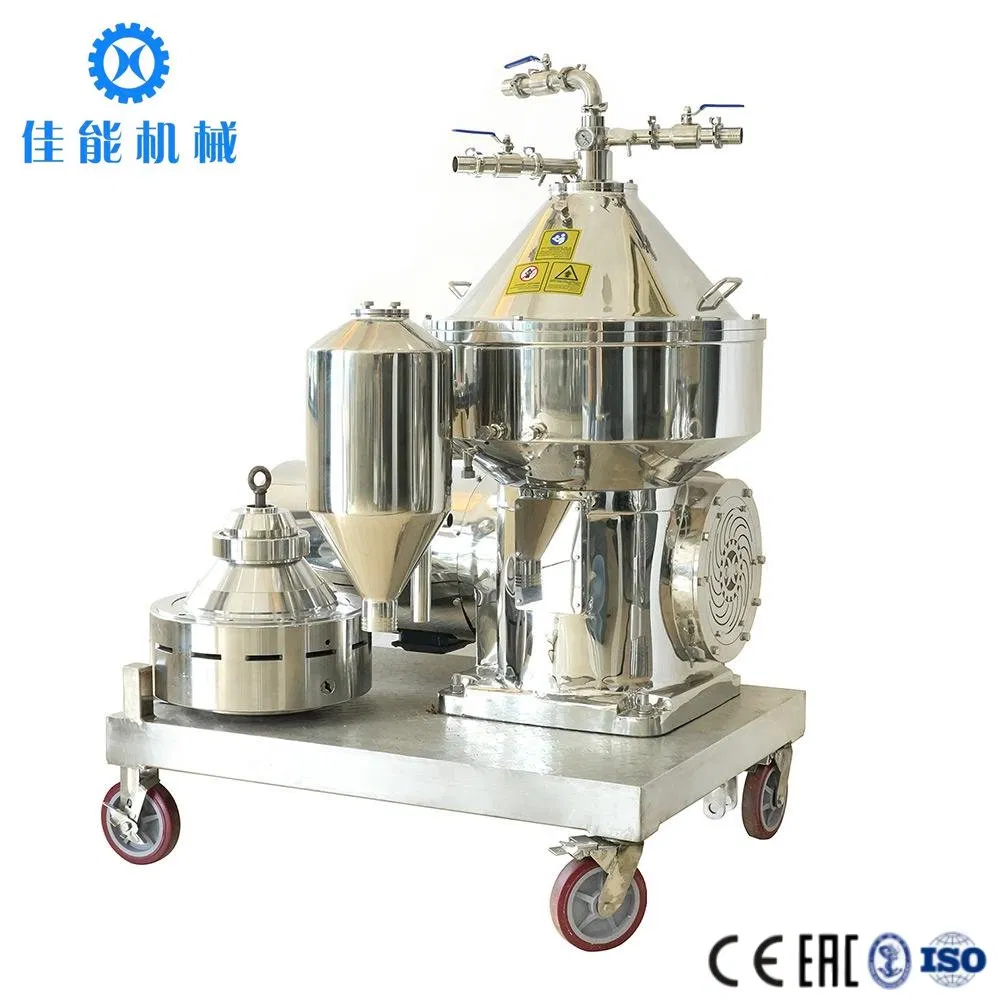

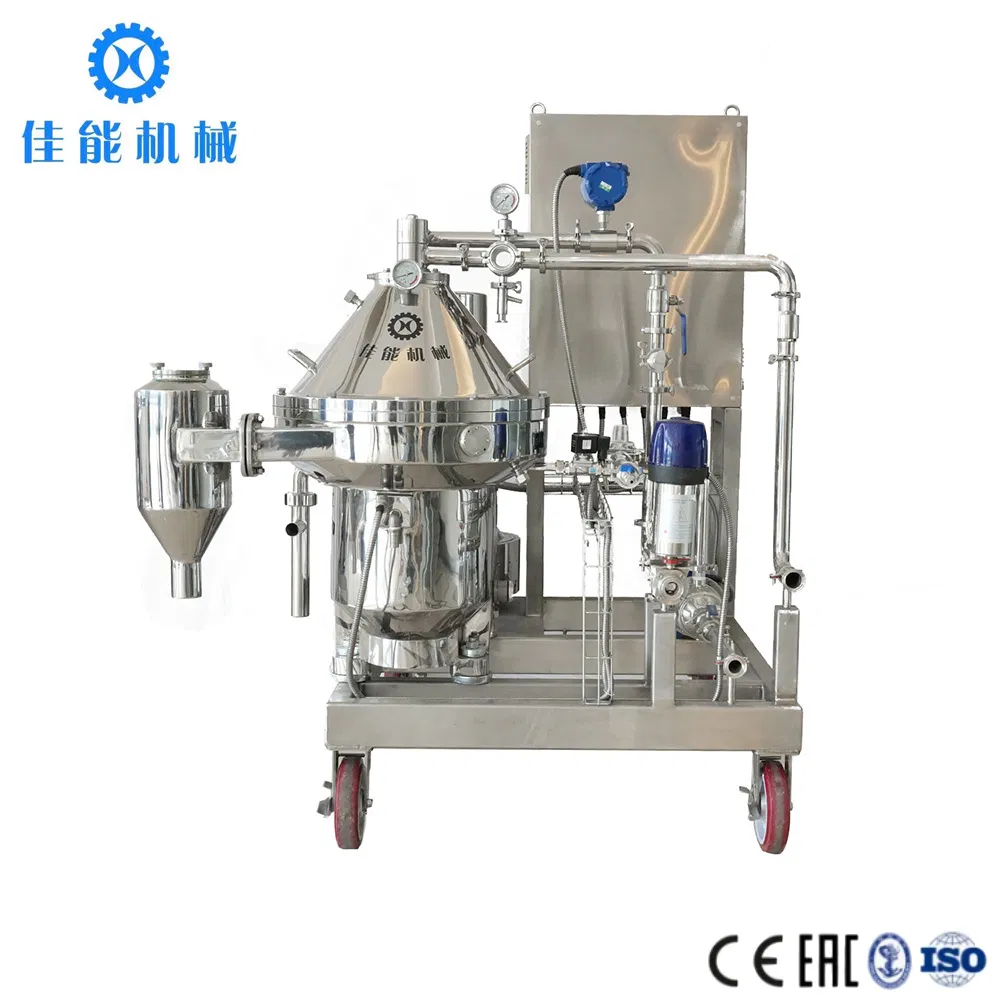

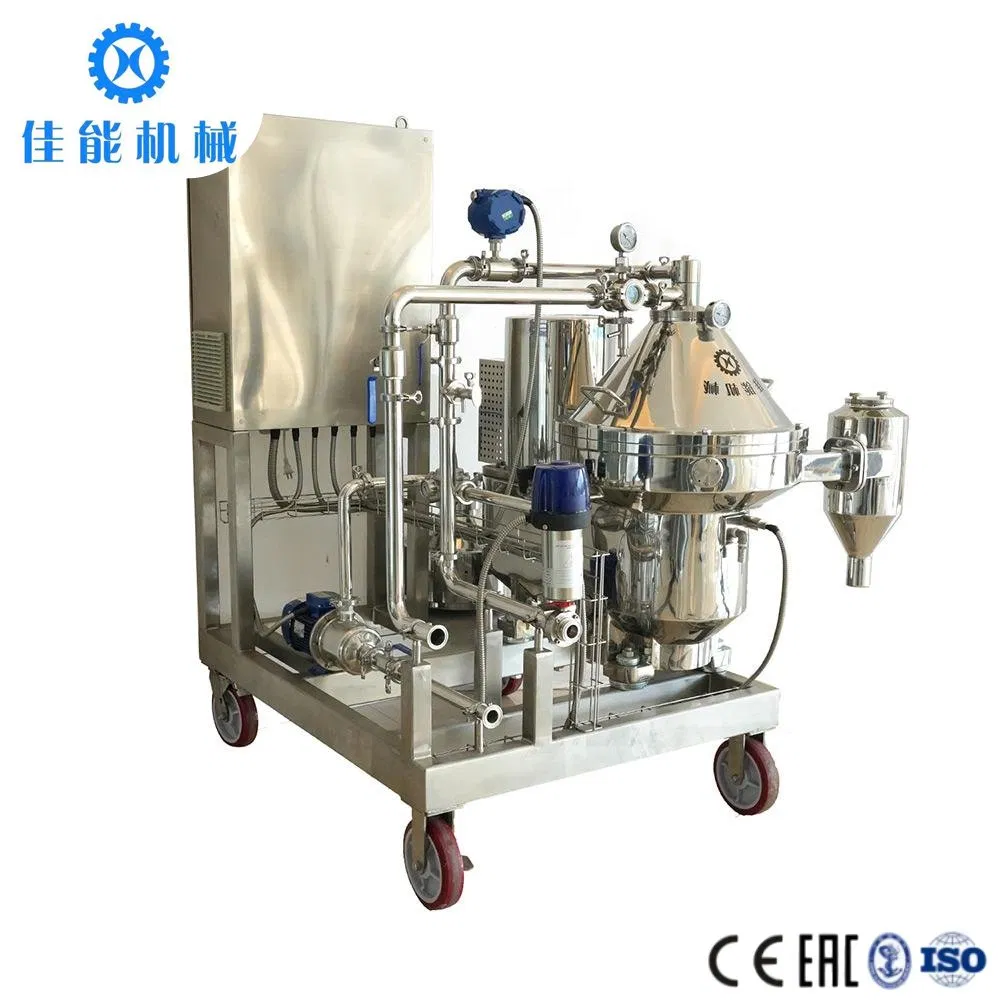

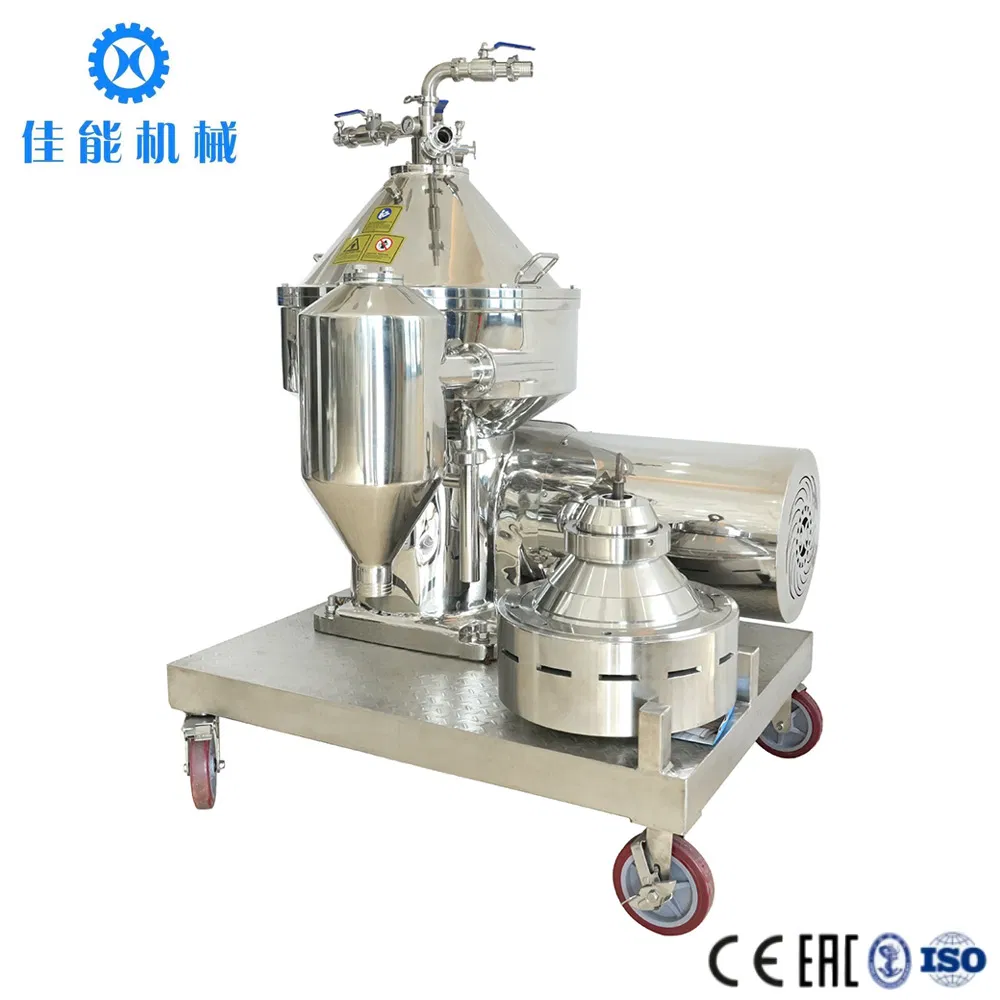

The RPDB330SJ Centrifuge is an advanced centrifugal separation system designed for high-efficiency processing of fermentation broths and biopharmaceutical applications.
| Technical Specification |
Value / Detail |
| Processing Capacity | 3000L/h |
| RPM | 8,500 RPM |
| Separation Factor | 12000 |
| Effective Working Inside Diameter of Piston | 300mm |
| Inside Diameter of the Drum | 330mm |
| Slag Chamber Volume | 2L |
| Number of Discs | 120 ± 3 |
| Method of Slagging | Small valve slagging (2-4 liters adjustable) |
| Inlet Liquid Pressure Requirements | 0.1MPa |
| Heavy Liquid Outlet Pressure | 0 to 0.2MPa |
| Starting Method | Variable frequency starting |
| Separator Net Weight | 612kg |
| Motor Power | 7.5 kW / 50 hz, 380 v |
Advanced Features & Configuration
Premium Materials: Piston and drum cover are crafted from robust, high-strength duplex stainless steel; all other contact parts are grade 304 stainless steel.
Dual Small Valve Design: Combines complete and partial row self-cleaning modes to maximize product yield and reduce waste.
Transmission System: Fortified by high-performance SKF bearings for minimized vibration and enhanced reliability.
Innovative Cooling: Advanced sandwich design reduces casing temperatures and operational noise.
Control System: Equipped with a state-of-the-art PLC automatic control and user-friendly touch screen interface.
Comprehensive Alarms: Real-time monitoring for overload, disconnection, material leakage, and vibration.

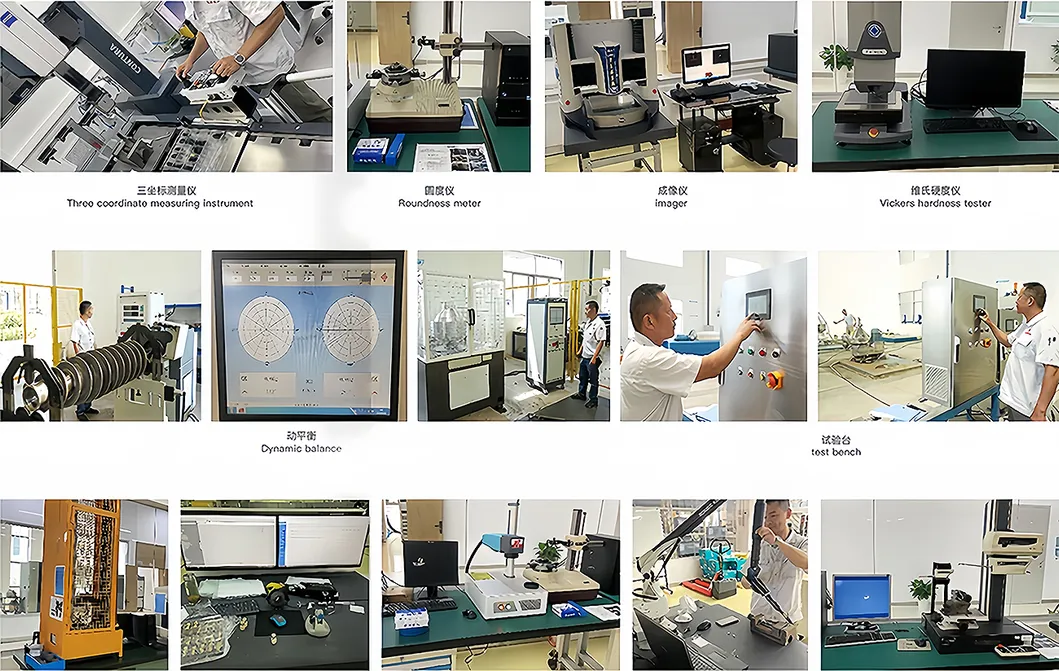

Quality Assurance & Warranty
Stringent manufacturing process conforming to national and industrial standards.
Equipment acceptance based on strict technical agreements and documentation.
Precision engineering synchronized with intricate design drawings.
Warranty Period: 12 months post-acceptance or 18 months post-delivery, whichever comes first.
Complimentary maintenance or replacement for malfunctions attributable to supplier liability during the warranty period.
Frequently Asked Questions
What is the maximum processing capacity of this disc centrifuge?
The RPDB330SJ model features a processing capacity of up to 3000 Liters per hour (L/h), making it ideal for industrial-scale fermentation broth separation.
What materials are used for the parts in contact with the product?
The critical components like the piston and drum cover are made from high-strength duplex stainless steel, while all other contact parts are made from superior-grade 304 stainless steel to ensure durability and hygiene.
How does the automatic self-cleaning (slagging) system work?
The drum features a dual small valve design that allows for both complete and partial row slagging. This is controlled via a Siemens PLC program, which reduces manual labor and minimizes product loss.
What kind of control system does the equipment use?
The centrifuge is equipped with an automatic electric control cabinet featuring a Siemens PLC and a touch screen interface. It uses frequency conversion for start-up to ensure mechanical reliability.
What safety alarms are integrated into the system?
The system includes a comprehensive alarm suite for overload, disconnection, lack of slag discharge, material leakage, and excessive vibration to ensure safe and uninterrupted operation.
What is the standard warranty for this equipment?
We offer a robust warranty period of 12 months after the acceptance of the goods or 18 months after delivery, whichever occurs first.
