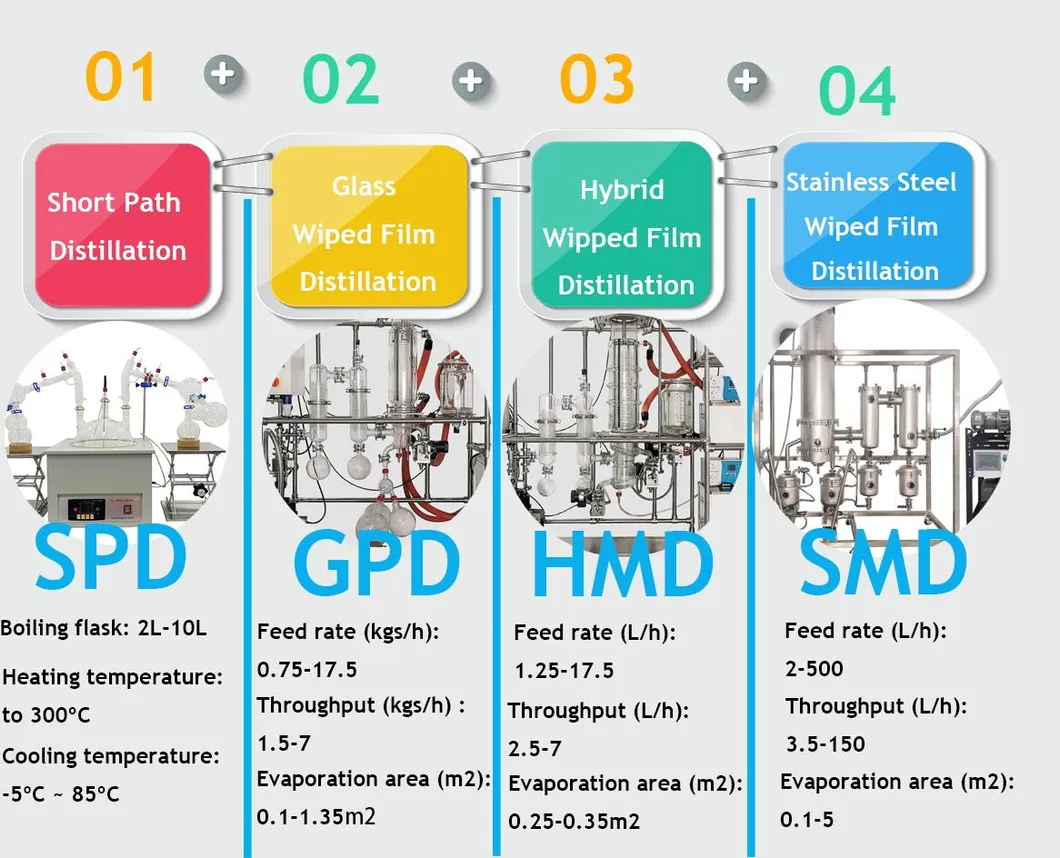

Our comprehensive series includes:
| Type | Pros | Cons |
|---|---|---|

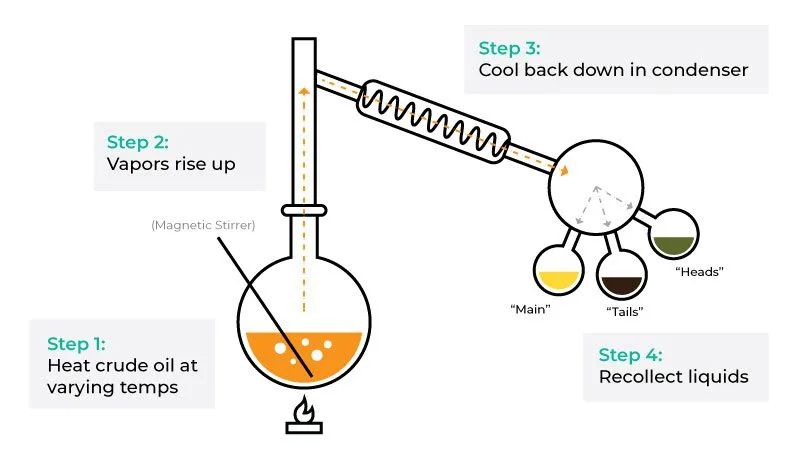

| Short Path Distillation | Produces high-quality product; multiple fractions possible by raising temperature; easy collection with multi-position flask. | Requires experienced operator; limited in scale and production; not ideal for large-scale operations. |

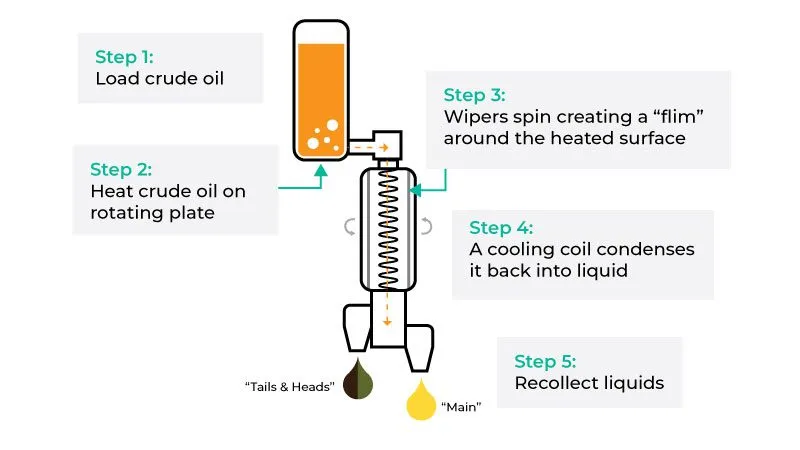

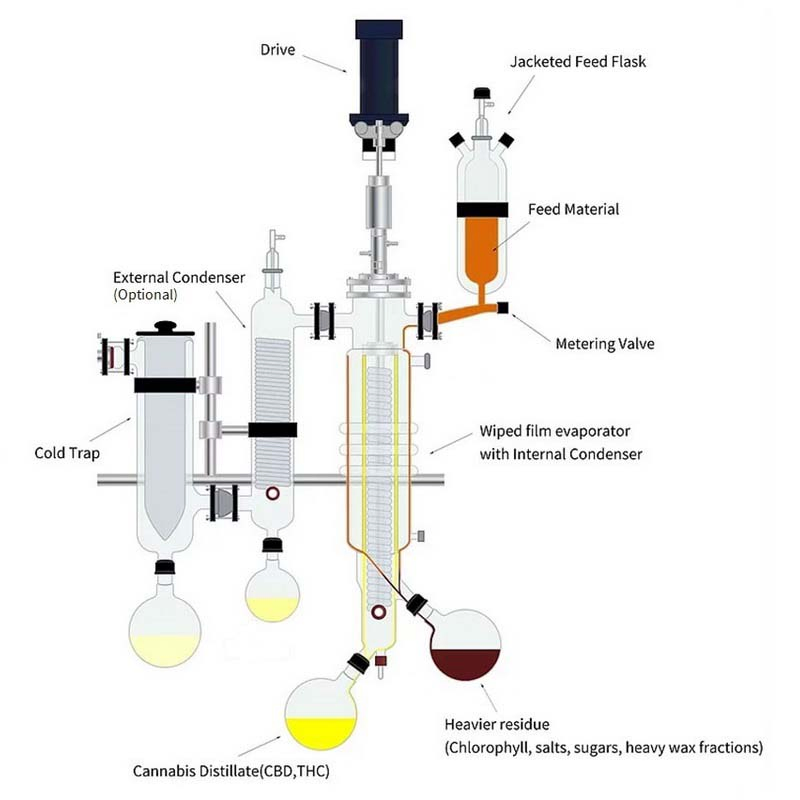

| Wiped Film Distillation | Extremely efficient heat transfer; ideal for large-scale productions; continuous mode reduces exposure time and increases productivity. | Two passes often required for high-quality distillate to remove leftover terpenes and volatiles. |

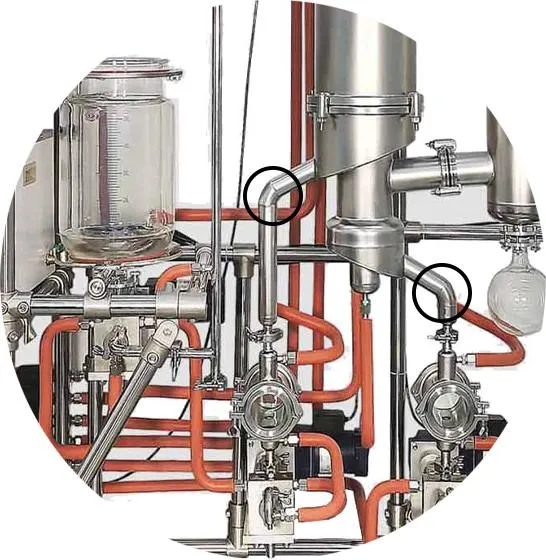

Jacketed pipes are better at heat preservation, ensuring process stability.

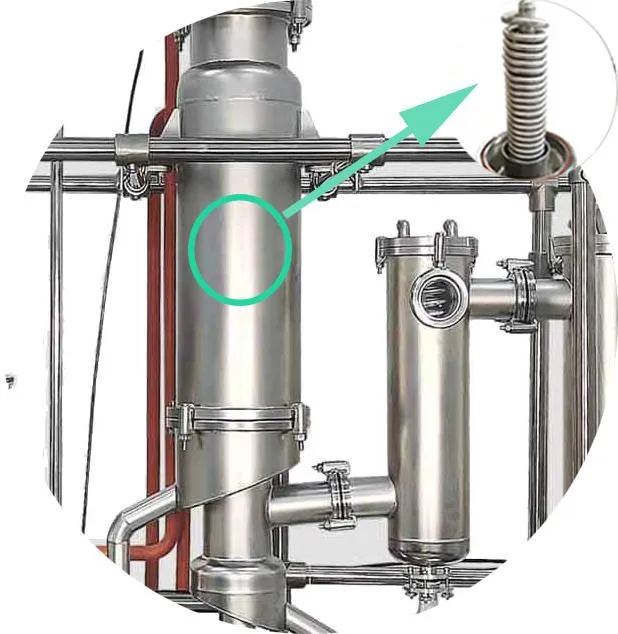

Utilizes a built-in condenser and a 3-layer insulation design for maximum efficiency.

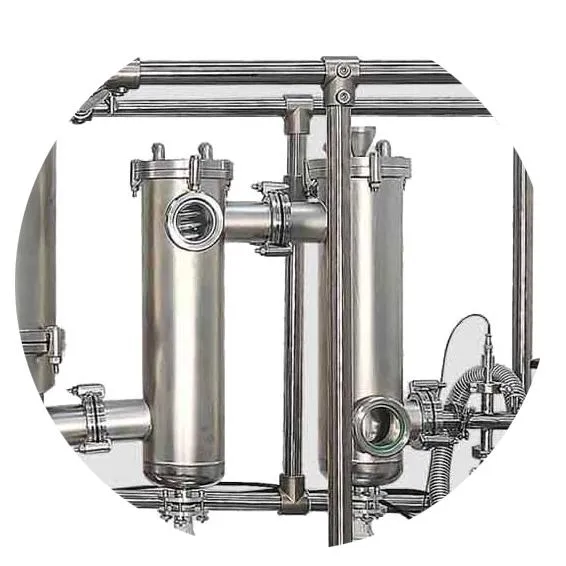

Dewar type cold trap and cooling coil cold trap are both suitable for this system.

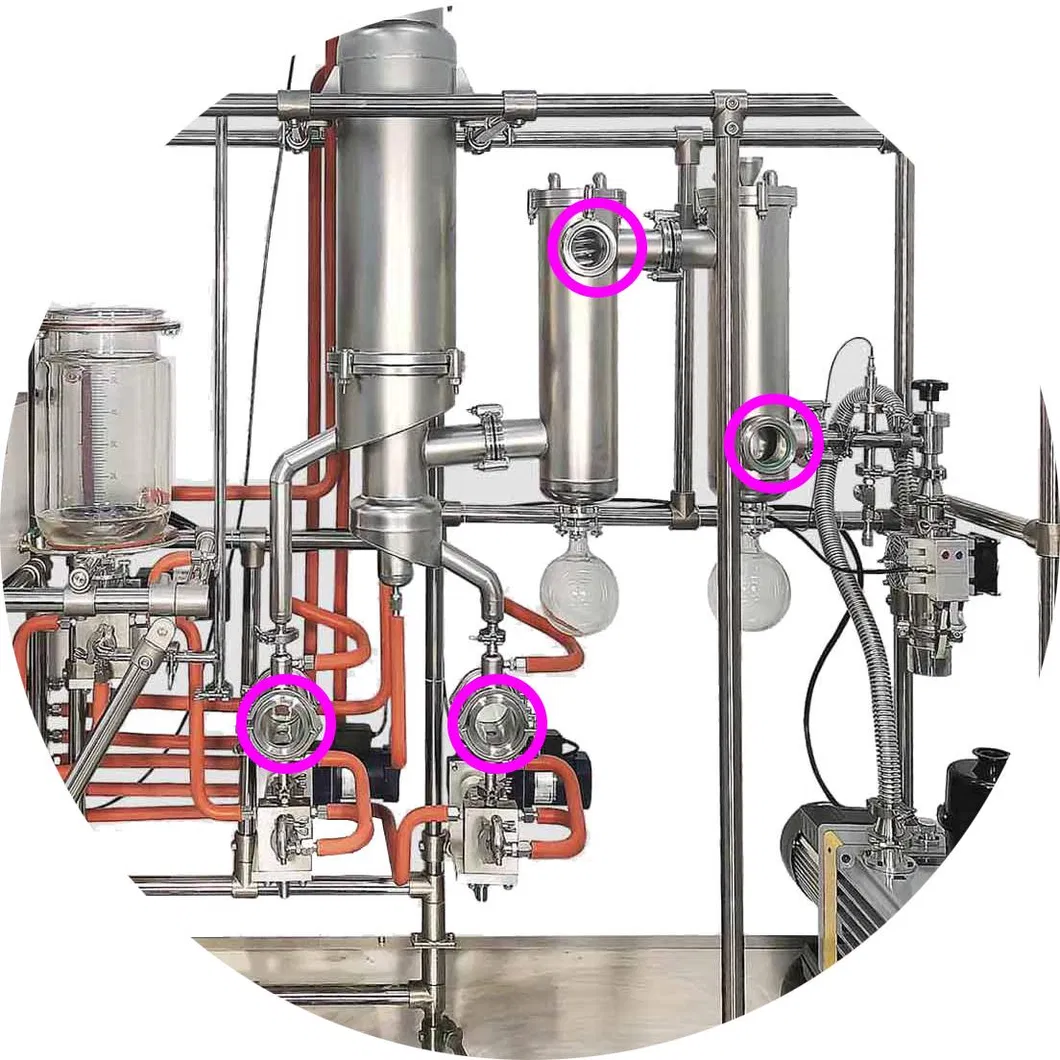

Equipped with glass windows for convenient monitoring of the distillation process.

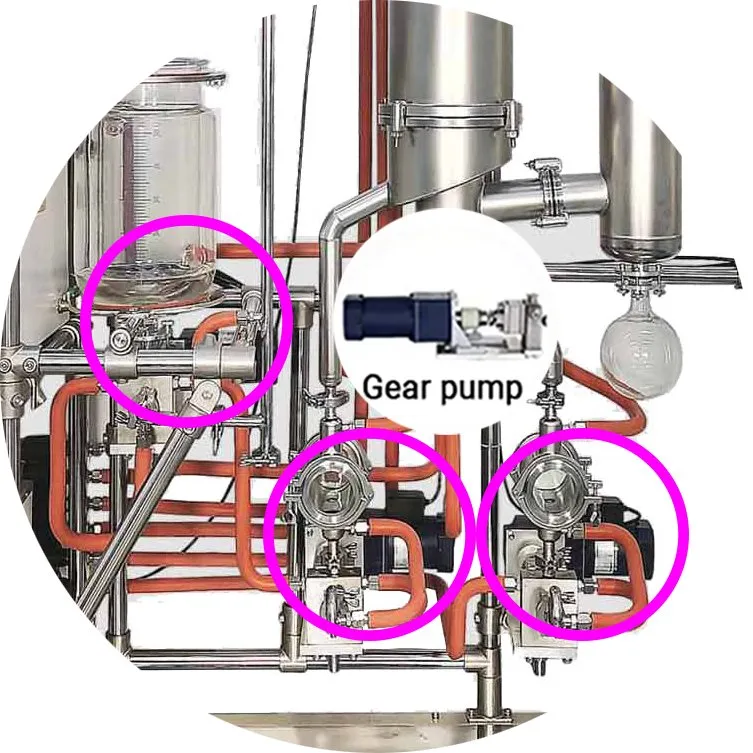

Enables continuous feeding and discharging with high precision control.
| Model | SPD - 02N | SPD - 10N | SPD - 20N |
|---|---|---|---|
| Boiling flask | 2L | 10L | 20L |
| Heating temp | to 300ºC | ||
| Cooling temp | -5ºC ~ 85ºC | ||
| Vacuum pump | ~ 5 Pa (optional 0.1 Pa) | ||
| Model | GMD - 100A | GMD - 150A | GMD - 200A |
|---|---|---|---|
| Feed rate (kgs/h) | 0.75 - 7.5 | 1.25 - 12.5 | 1.75 - 17.5 |
| Throughput (kgs/h) | 1.5 - 3 | 2.5 - 5 | 3.5 - 7 |
| Evaporation area (m2) | 0.1 | 0.25 | 0.35 |
| Model | Feed rate (L/h) | Throughput (L/h) | Area (m2) |
|---|---|---|---|
| SMD - 01 | 2 - 10 | 3.5 - 7 | 0.1 |
| SMD - 05 | 10 - 50 | 18 - 36 | 0.5 |
| SMD - 10 | 20 - 100 | 30 | 1 |
| SMD - 50 | 100 - 500 | 150 | 5 |
