🔷 Basic Information
Separation Mode
Filter Type
Operating Type
Continuous Type
Material
Stainless Steel 304/316L
Power Source
Electric (220V)
Process
Wiped Film Molecular Distillation
🔷 Product Description

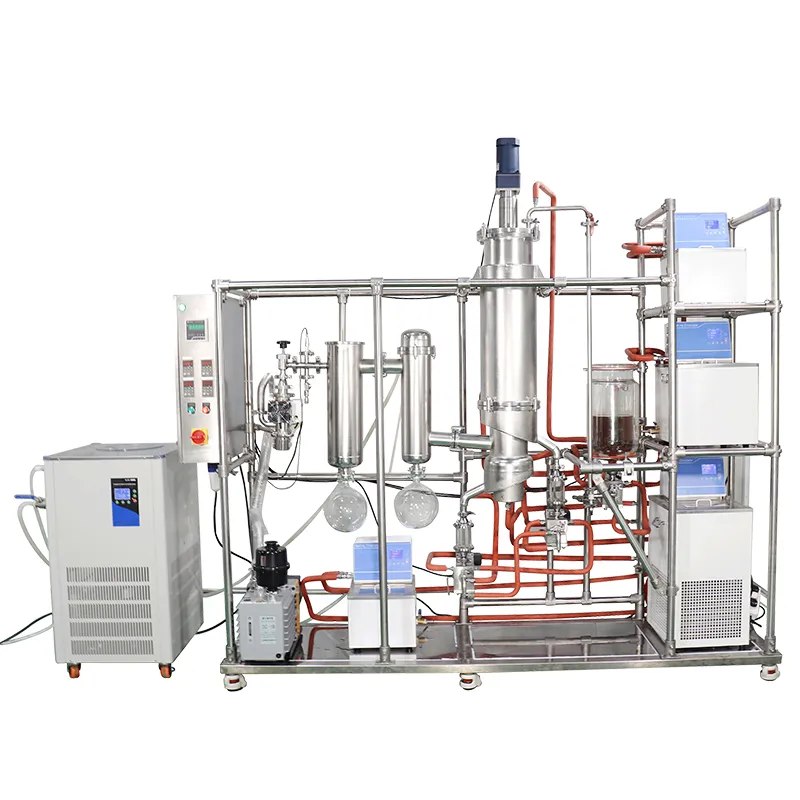

Molecular distillation is a special liquid-liquid separation equipment. Unlike traditional distillation, it relies on the difference of the average free path of different substances rather than boiling point differences. As the liquid mixture flows along the inner wall of the main evaporator and is heated, light and heavy molecules escape. Light molecules reach the built-in condensate pipe and are discharged, while heavy molecules flow along the wall, achieving high-purity separation.
Working Principle
Materials are transported from the feed tank to the jacketed main evaporator. The evaporator is continuously heated while a built-in scraper evenly spreads the material into a thin flowing liquid film. This allows for instant evaporation: light components vaporize and adsorb onto the condensing coil, while heavy components flow into separate receiving bottles.
🔷 Key Features
✔ Modularized design for flexible configuration options.
✔ Continuous feeding & collection modules to save labor and time.
✔ Fully jacketed design suitable for a wide range of materials.
✔ Constructed from high-grade SUS316L stainless steel for safety.
✔ Sight glass and quick-connect design for easy cleaning.
✔ Unique plate heating method to protect materials from oxidation.
✔ Gear pump automatic feeding for stable speed and long service life.
🔷 Technical Specifications
| Model |
LSMD-0.1 |
LSMD-0.15 |
LSMD-0.25 |
LSMD-0.35 |
LSMD-0.5 |
LSMD-1 |
LSMD-2 |
LSMD-5 |
| Condenser Area (㎡) |
0.17 |
0.3 |
0.4 |
0.7 |
1.7 |
2.7 |
4.9 |
8 |
| Evaporation Area (㎡) |
0.1 |
0.15 |
0.25 |
0.35 |
0.5 |
1 |
2 |
5 |
| Feeding Rate (L/H) |
5~12 |
6~15 |
10~25 |
15~30 |
20~60 |
50~120 |
100~200 |
200~500 |
| Rotation Speed (RPM) |
30 ~ 350 r/min |
| Max Temperature |
Within 350℃ |
🔷 Frequently Asked Questions
What is the primary advantage of molecular distillation?
It operates at temperatures far below the boiling point of the materials, which prevents thermal decomposition of heat-sensitive substances.
What materials are used in the construction of the LSMD series?
The equipment is primarily constructed from high-quality Stainless Steel 304 or 316L for excellent durability and chemical resistance.
Can this equipment handle continuous operation?
Yes, the design includes gear pump modules for automatic and continuous feeding and discharging, which reduces labor costs.
What is the maximum working temperature?
The LSMD series is designed to operate safely at temperatures up to 350℃.
What applications is this equipment suitable for?
It is ideal for hemp oil concentration, essential oil distillation, cosmetic ingredient separation, and lab research.
Is the voltage customizable?
The standard voltage is 220V 50Hz, but it can be customized according to local power requirements.
