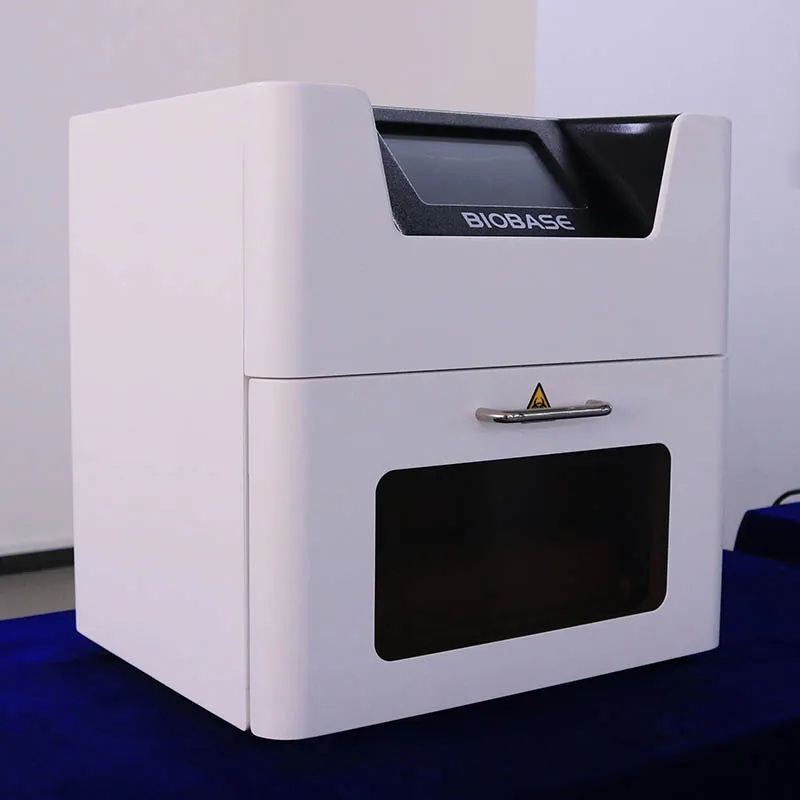

Molecular Diagnostics DNA Rna Nucleic Acid Extractor

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊 Basic Info.

Model NO.	BNP32	Certification	CE, ISO13485
Sample Quantity	32	Processing Volume	20μL-1000μL
Sample Volume	20-500μL	Sample Throughput	1-32
Magnetic Bead Recovery	>98%	Hole Difference	CV≤3%
Reagent Type	Magnetic Bead Open Platform	Extraction Time	15-40 Min/Round
Origin	China	HS Code	902780

🔬 Product Description

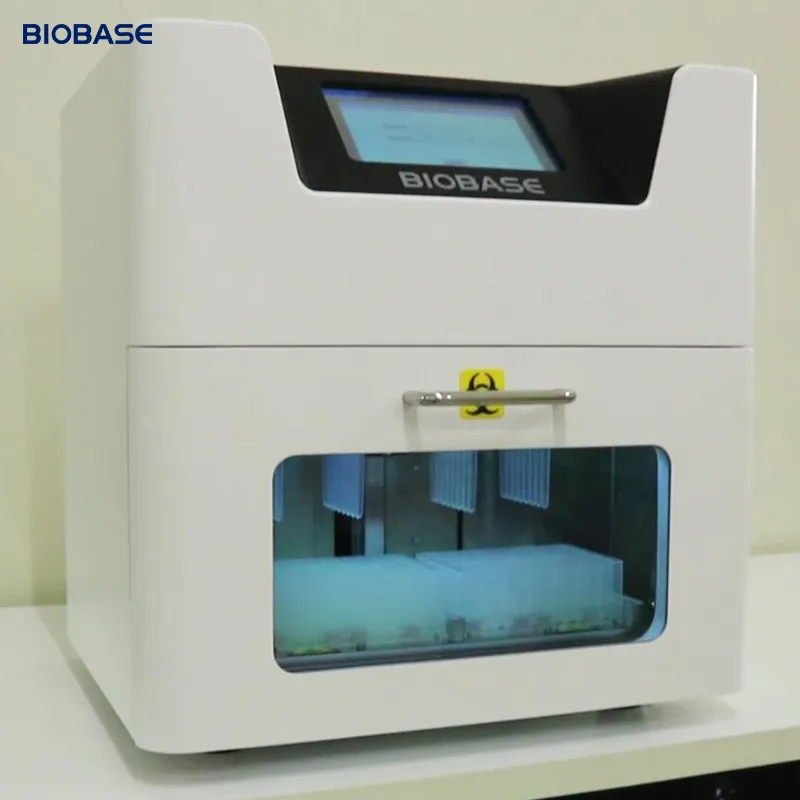

Auto Nucleic Acid Extraction System

BNP32

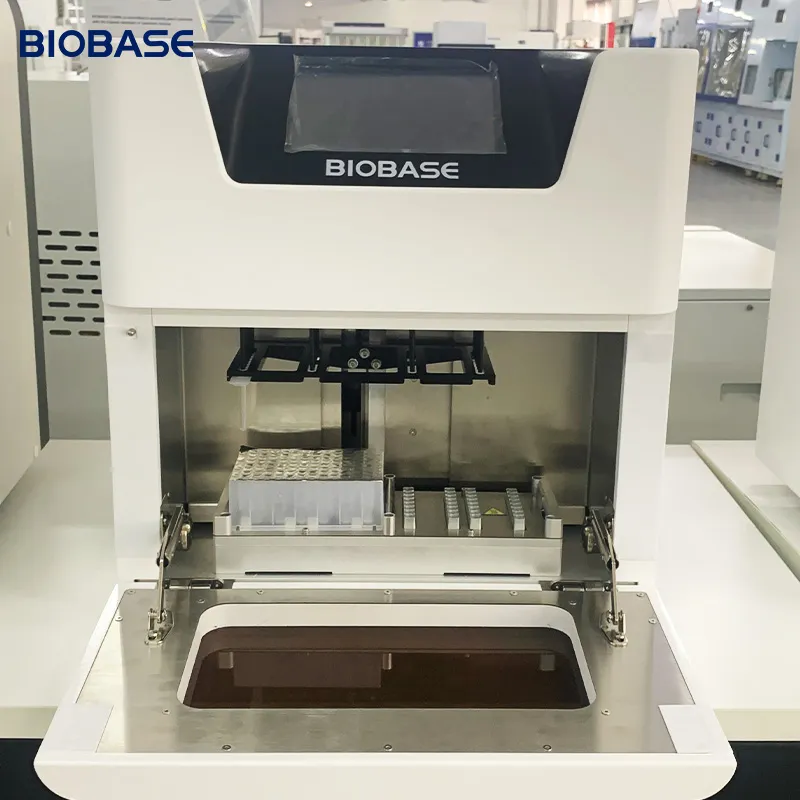

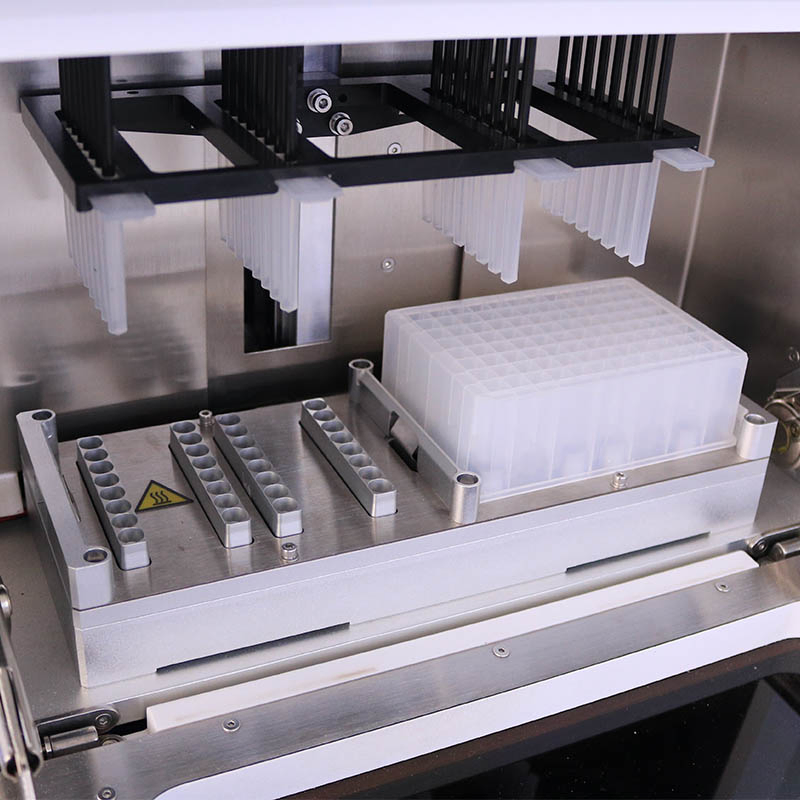

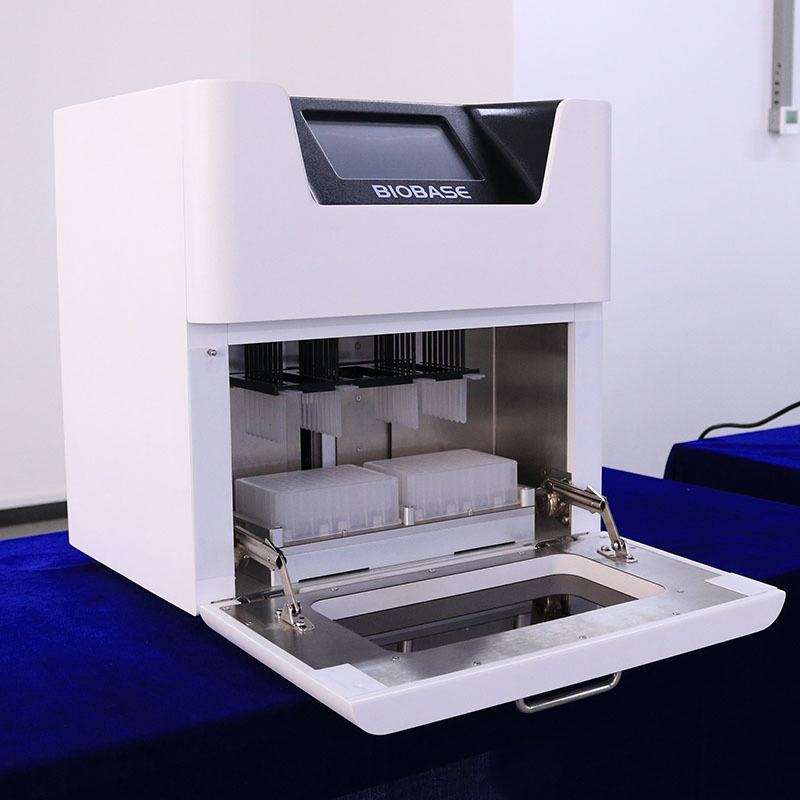

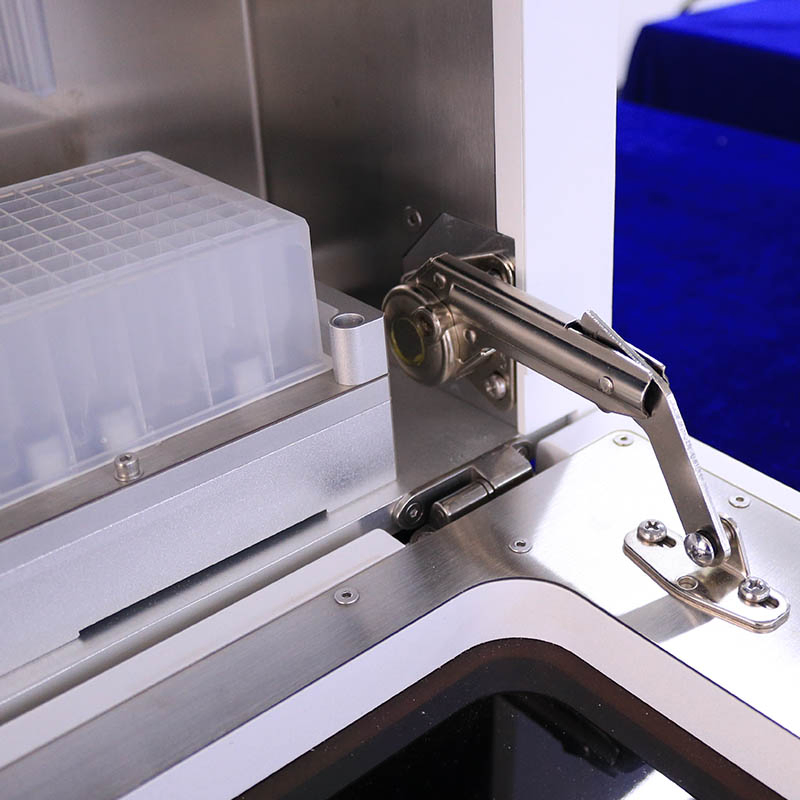

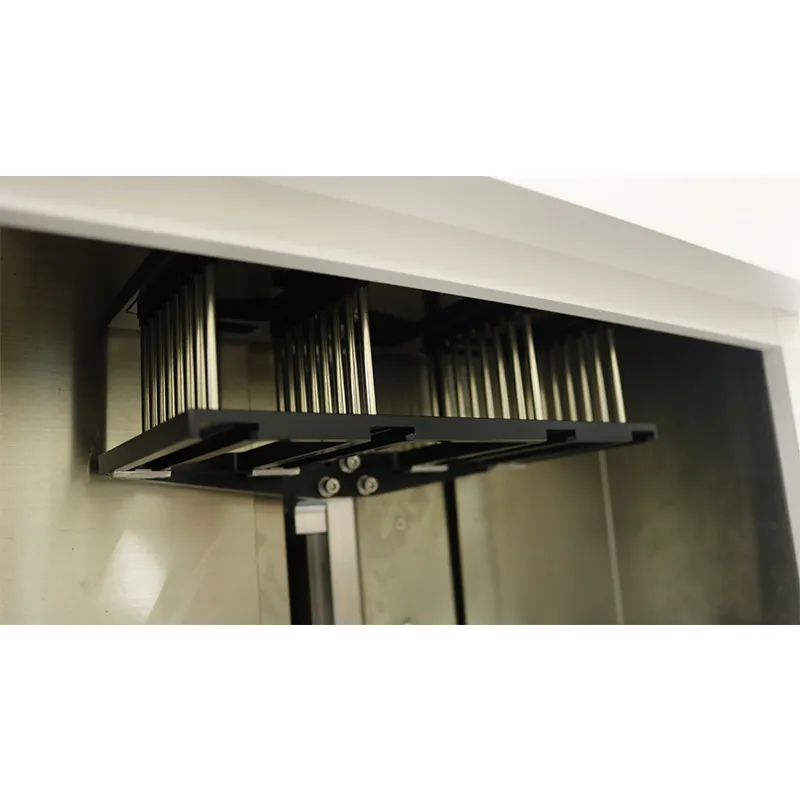

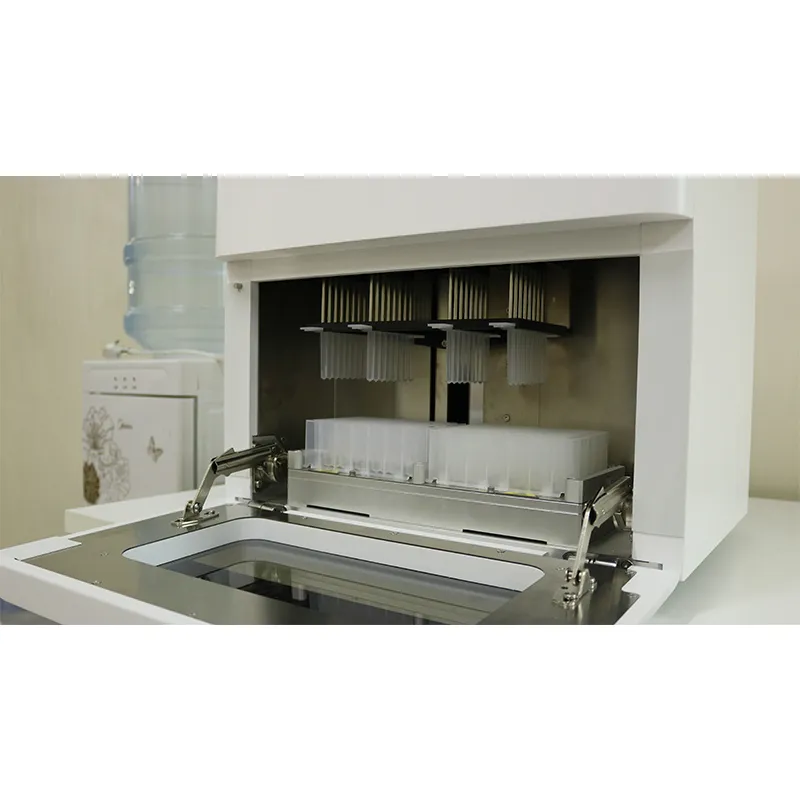

📸 Detail Photos

⚙️ Technical Parameters

Model	BNP32	BNP48
Sample Quantity	32	48
Processing Volume	20μL-1000μL
Heating Temperature	8 independent heating modules, customizable lysis and elution temperature
Oscillating Mixing	Low, medium and high gears adjustable
Internal Program	Store >100 groups of programs
Safety Door Design	Automatic suspension when door is opened
Built-in Air Duct	No	Yes
Ultraviolet Irradiation	Yes
Gross Weight (kg)	51	80

🌟 Key Features

7-inch touch screen, easy to use with fast response.
User-defined cracking and elution temperature settings.

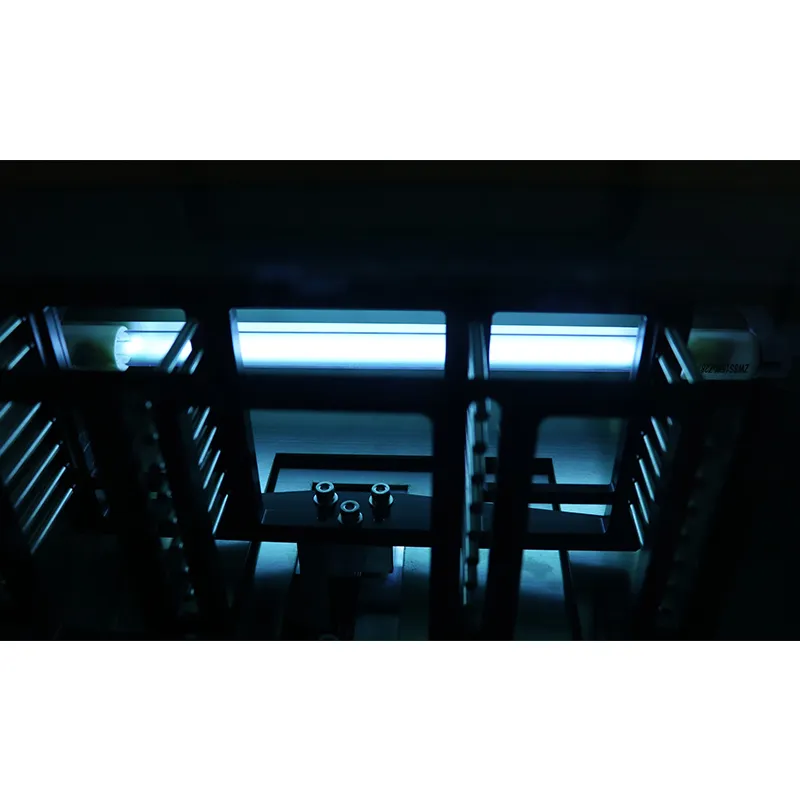

UV disinfection function with a time range of 1min-24hour.
Automatic control system, no need to connect to a computer.
Free programming to meet the needs of different reagents.
Open system, fully automatic, stable results and good repeatability.
Rapid extraction within 15-40 minutes for 32/48 samples simultaneously.

🛠️ Professional Service

Support Excellence

Pre-sale service: Online support anytime, multi-language availability, and regular updates on new arrivals.

After-sales: Professional team for problem-solving and installation guidance.

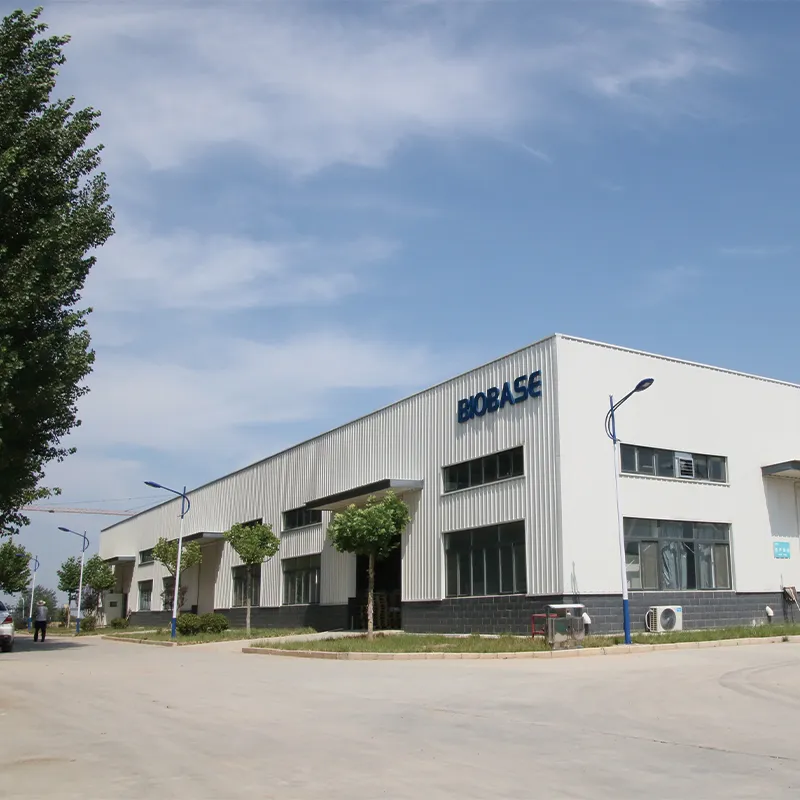

📜 Factory & Certificates

📦 Main Product Categories

Over 20 years of development in providing high-quality laboratory equipment.

Core Products: Biological Safety Cabinet, Fume Hood, Laminar Flow Clean Bench, Refrigerator, Incubator, Autoclave, Centrifuge, etc.

❓ Frequently Asked Questions

Q1: How many samples can the BNP32 process at one time? A: The BNP32 system can process between 1 to 32 samples per round.

Q2: What is the typical extraction time for a run? A: Depending on the reagent used, the extraction time typically ranges from 15 to 40 minutes per round.

Q3: Does the system require an external computer for operation? A: No, the system features an automatic control system with a 7-inch touch screen, making it completely standalone.

Q4: What is the efficiency of the magnetic bead recovery? A: The system achieves a high magnetic bead recovery rate of over 98%.

Q5: Can I customize the heating temperature for different reagents? A: Yes, the system includes 8 independent heating modules that allow you to customize lysis and elution temperatures according to your specific needs.

Q6: How does the safety door design work? A: For safety, the program operation automatically suspends if the door is opened and resumes once the door is closed.
