Precise Genotype Detection with 6 Modules in Nucleic Acid Analyzer

1 / 5

Precise Genotype Detection with 6 Modules in Nucleic Acid Analyzer

Customization:	Available
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	Molecular Diagnostic Instrument

Send Inquiry

Product Description

📊 Basic Information

Model NO.

BHF-VI

Certification

CE, ISO13485

Detection Platform

PCR & Reverse DOT Blot

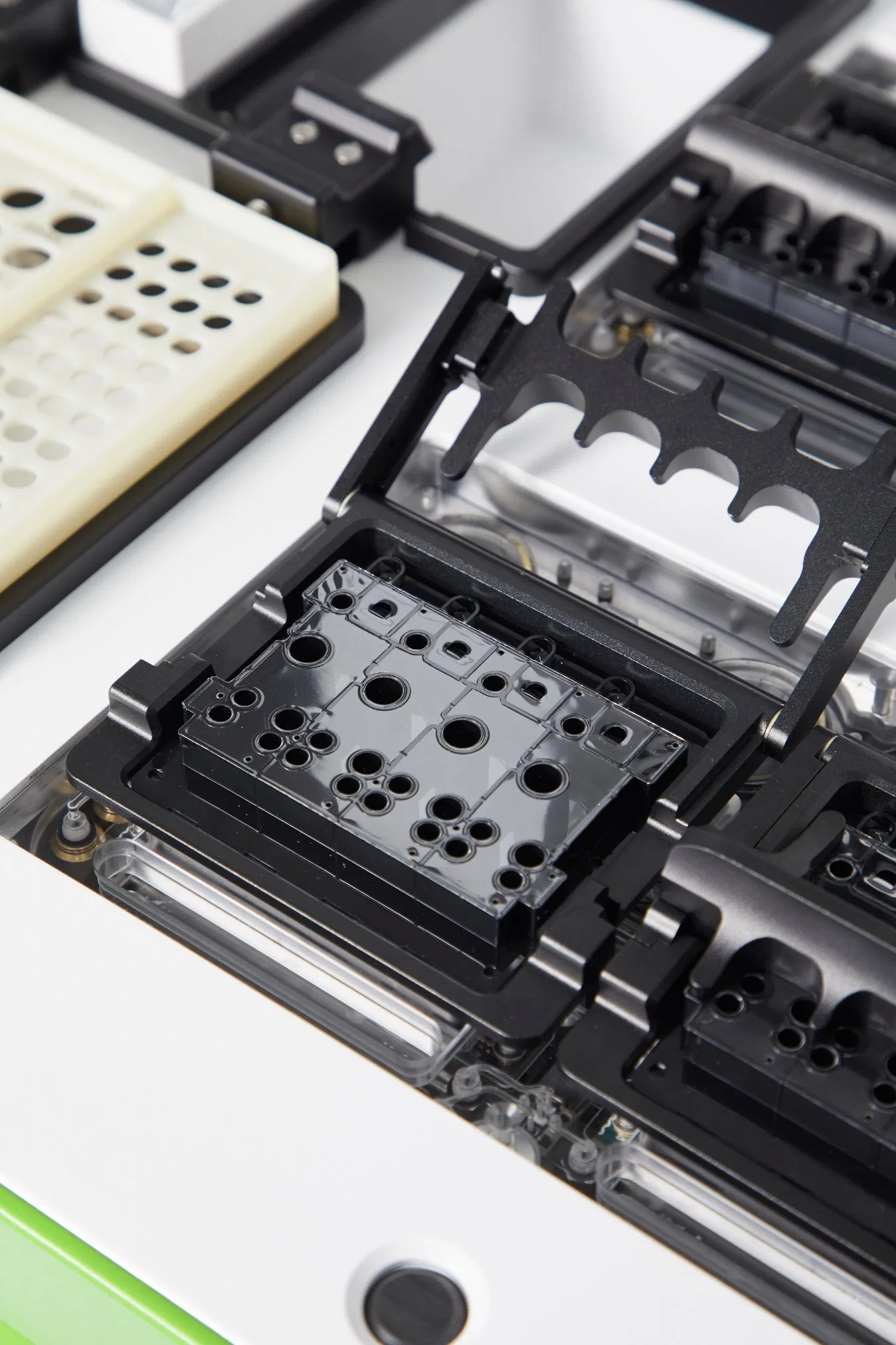

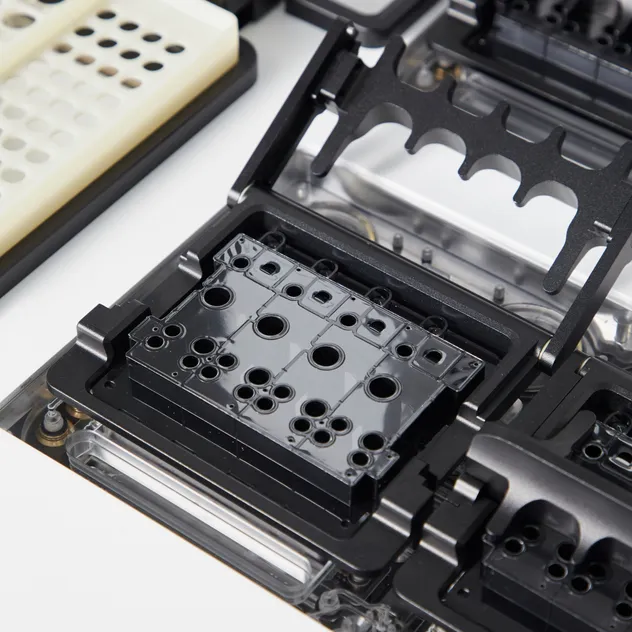

Detection Modules

6 Modules

Sample Capacity

Weight

≤80kg

Size

1000 X 610 X 690 mm

Power

220V 50Hz 600va

🔬 Technology Overview

The instrument uses reverse hybridization for qualitative virus sub-type analysis. Specimens are added, reagents are automatically processed, DNA is extracted, and PCR is amplified. Amplified products undergo reverse hybridization with virus sub-type probes on the Chip. If target gene products are present, spots appear post-coloration, indicating virus sub-type. Negative specimens show no spots.

🎯 Intended Use & Features

Sample Type: Exfoliated cervical epithelial cells

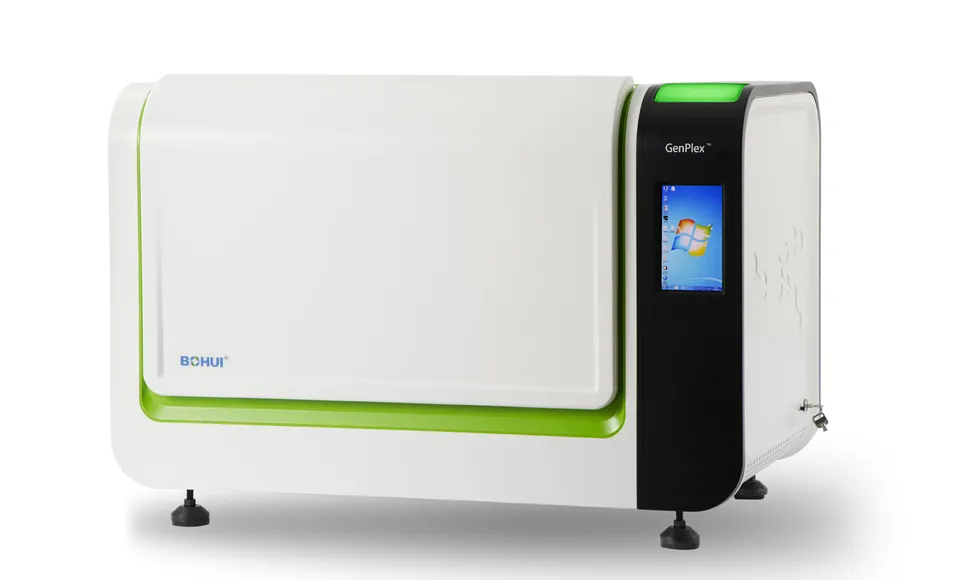

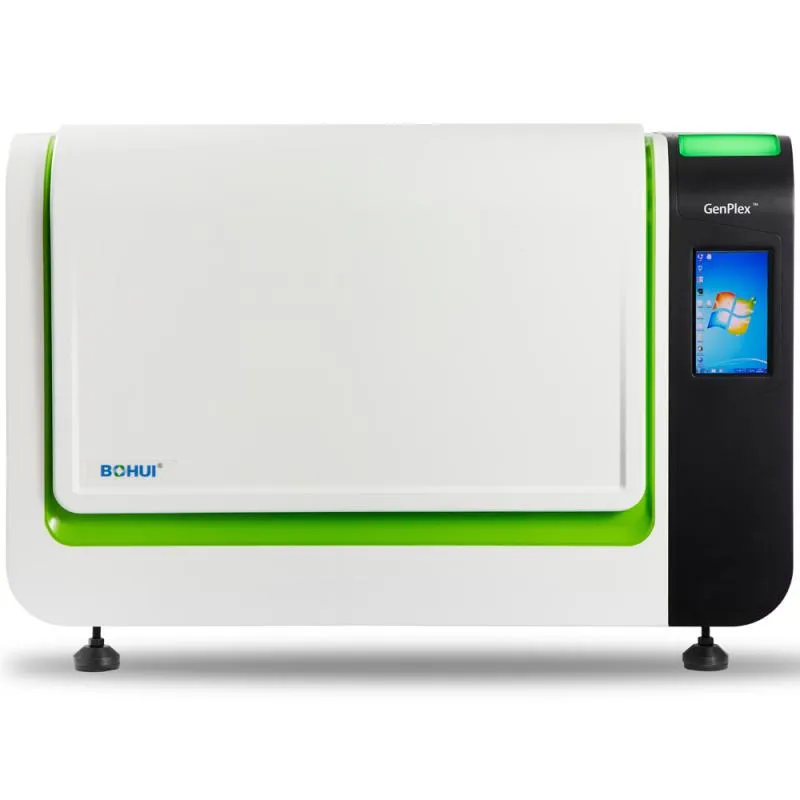

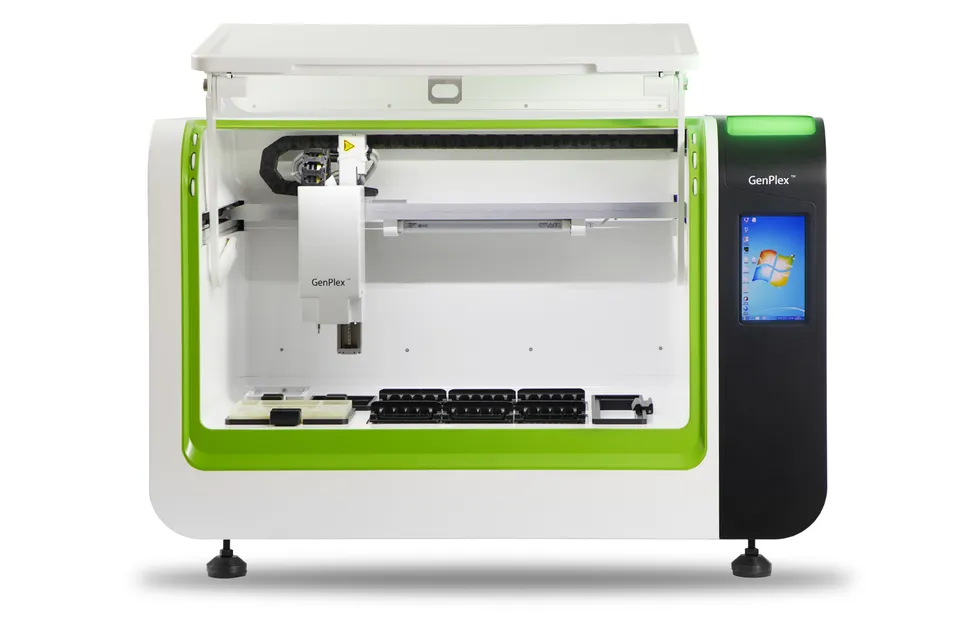

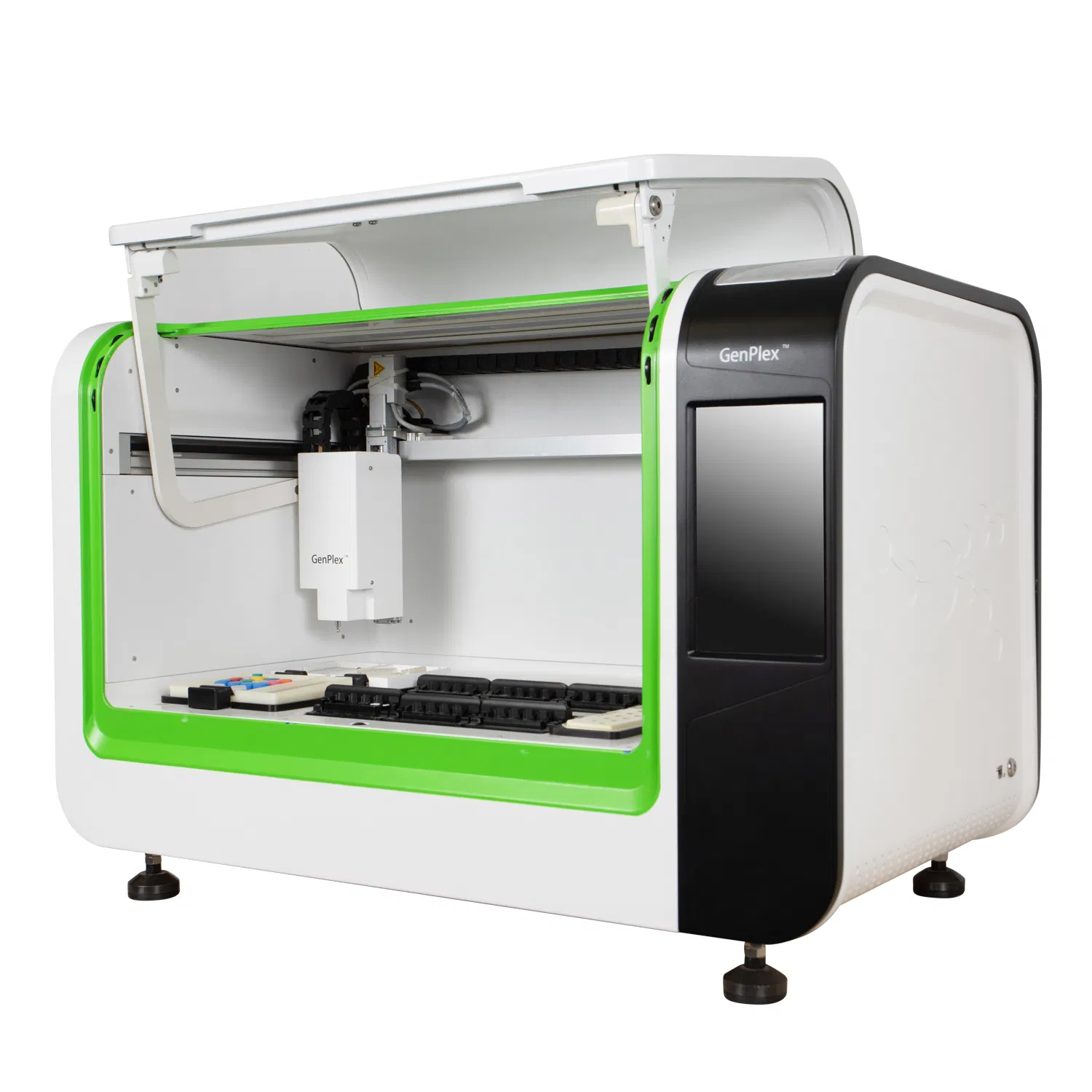

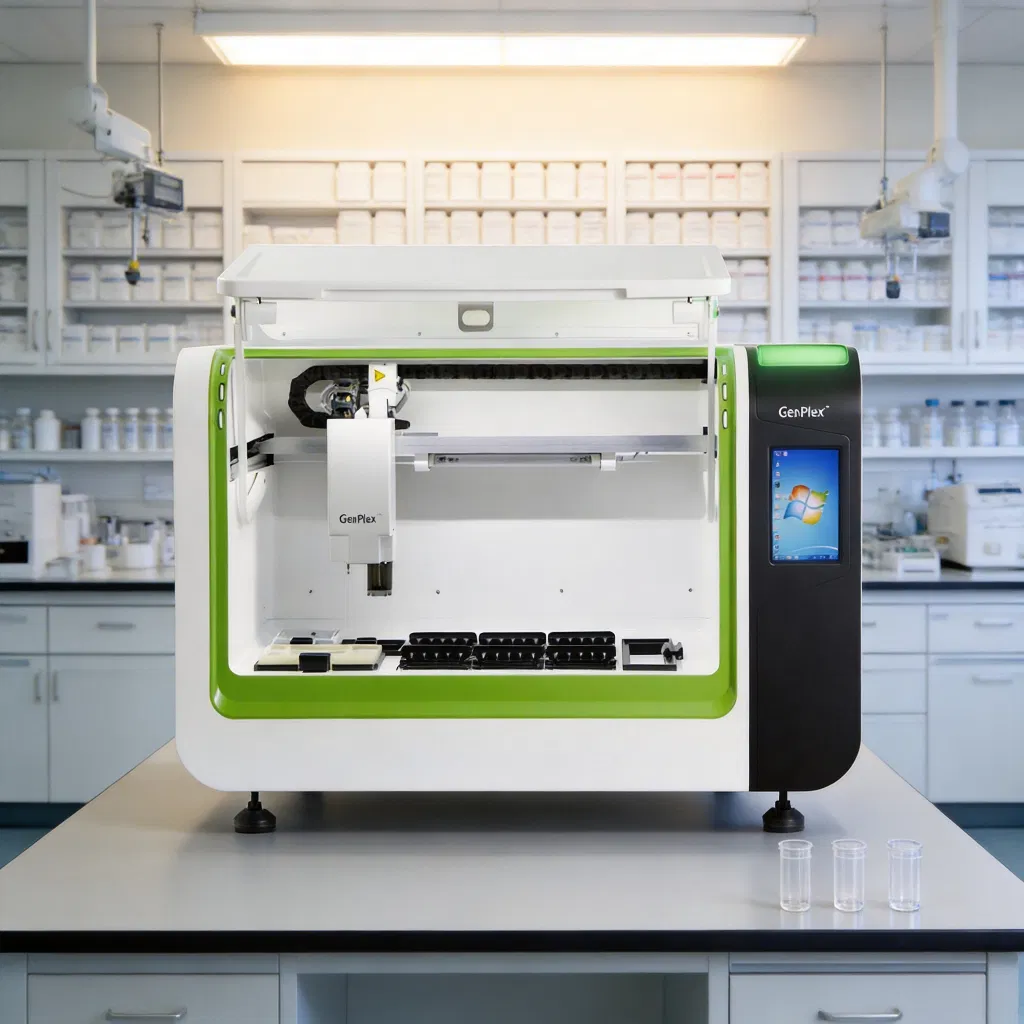

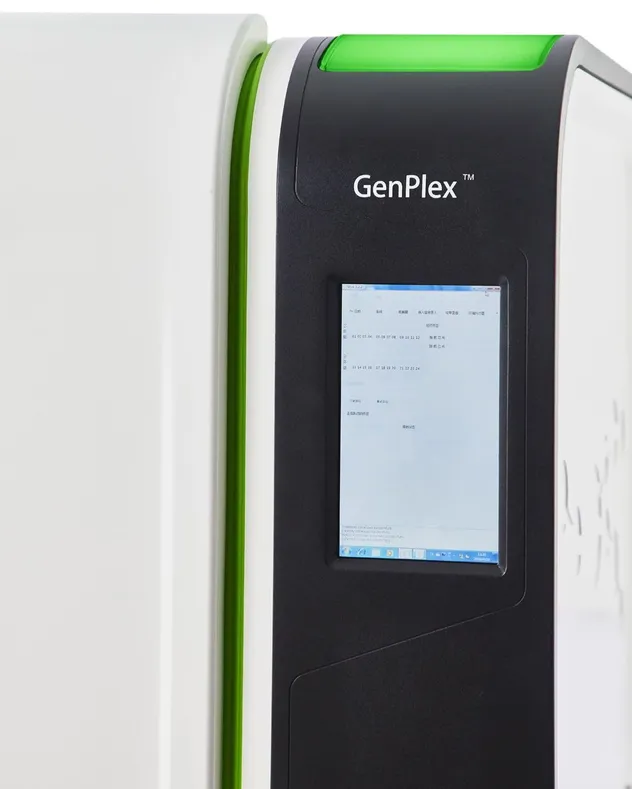

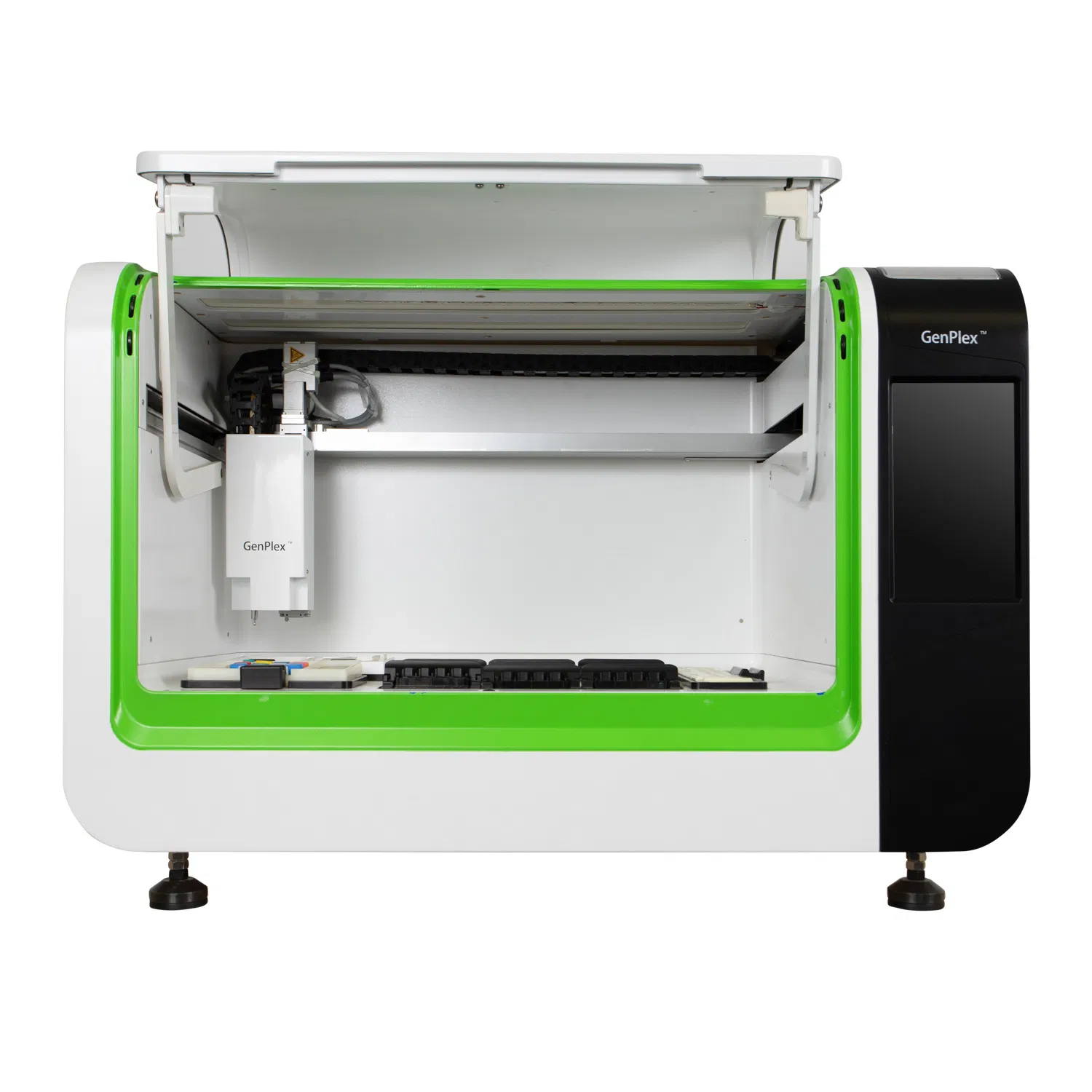

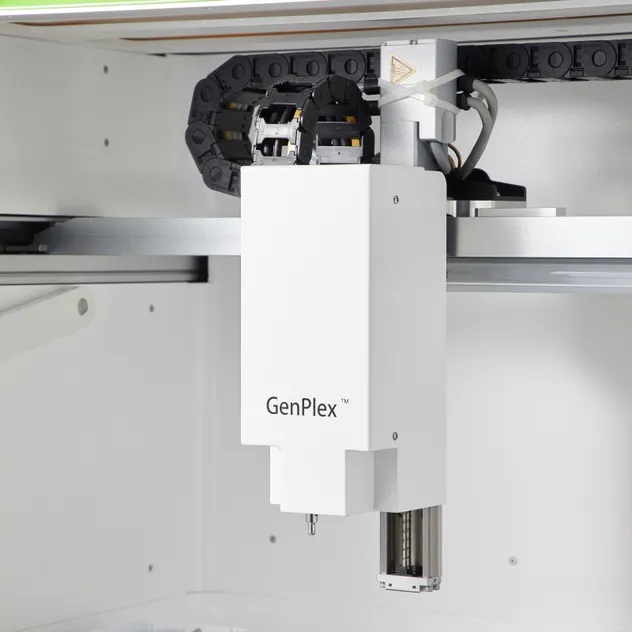

The GenPlex® BHF-VI host features systems for image display, reagent addition, gas path, temperature control, image detection, and 3D mobility.

⚡ Simple
5 mins hands-on

✅ Easy
No measuring

⏱️ Fast
3.5h Turnaround

📋 Test Menu

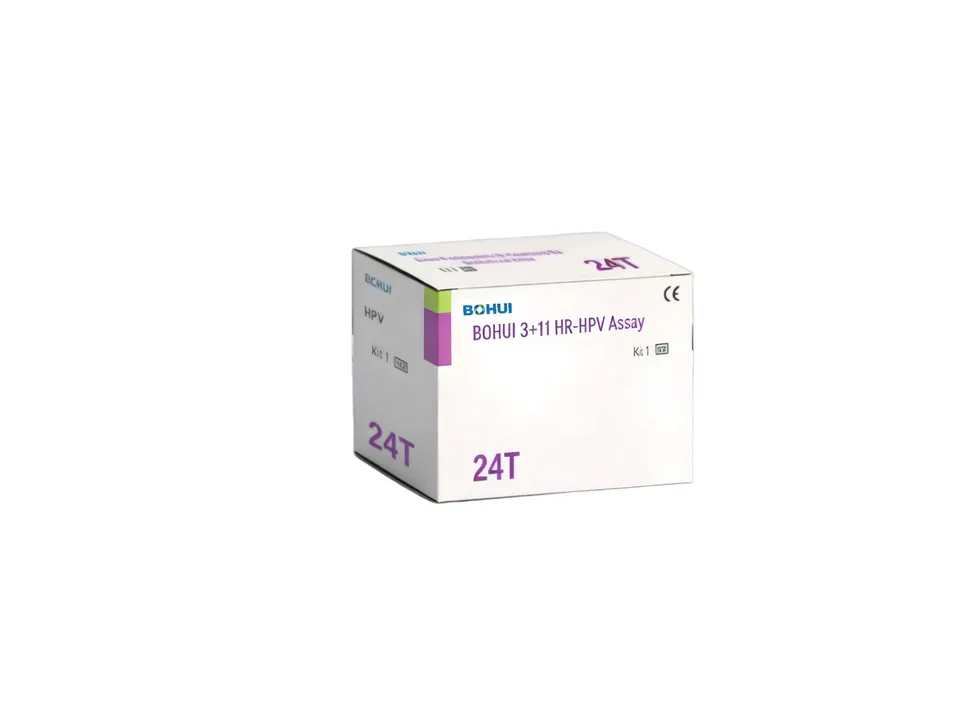

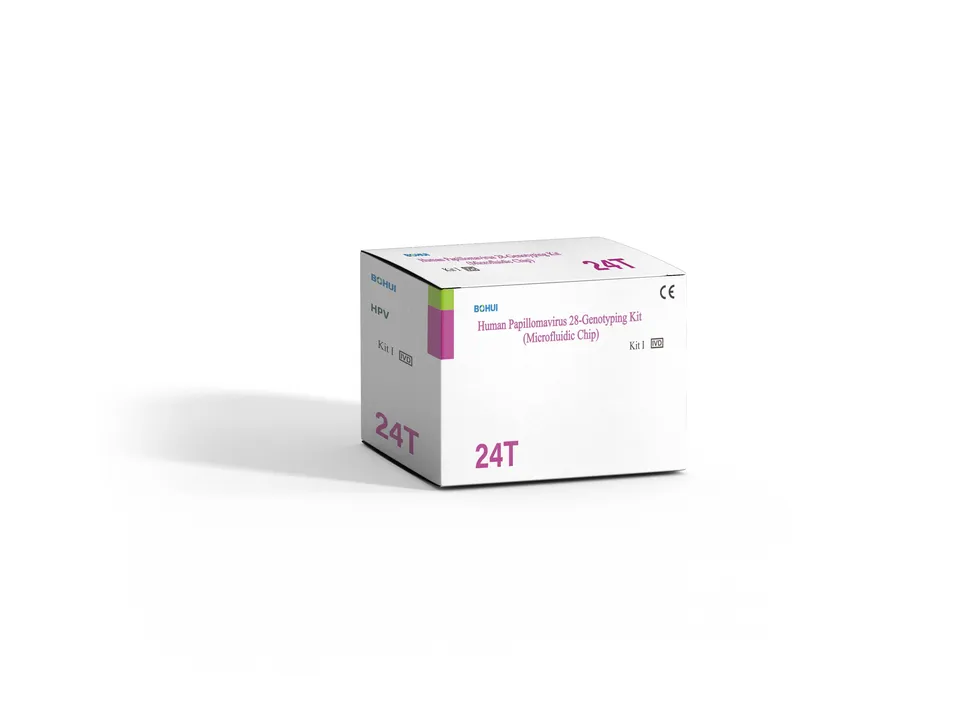

Human Papillomavirus Genotyping: Detection for 24/28 genotypes.
Mycobacterium tuberculosis: Complex and drug resistance genes detection.
Throughput: 1–24 samples per run.

⚙️ Technical Specifications

Parameter	Specification
Model	BHF-VI
Detection Platform	PCR & Reverse dot blot hybridization
Detection Modules	6 Modules
Sample Capacity	24
Heating rate	≥1.5 ℃/s (50℃ to 90℃)
Cooling rate	≥1.5 ℃/s (90℃ to 50℃)
Electrical specification	220V, 50Hz, 600VA
Dimension	1000 x 610 x 690±10 (mm)
Weight	≤80kg
