When a pipeline is full of water and cannot be emptied, traditional video testing methods often fail. The X4 pipeline section sonar imager is specifically designed for these conditions, applicable to various pipelines with diameters ranging from 125mm to 6000mm.
| Component | Specifications |
|---|---|

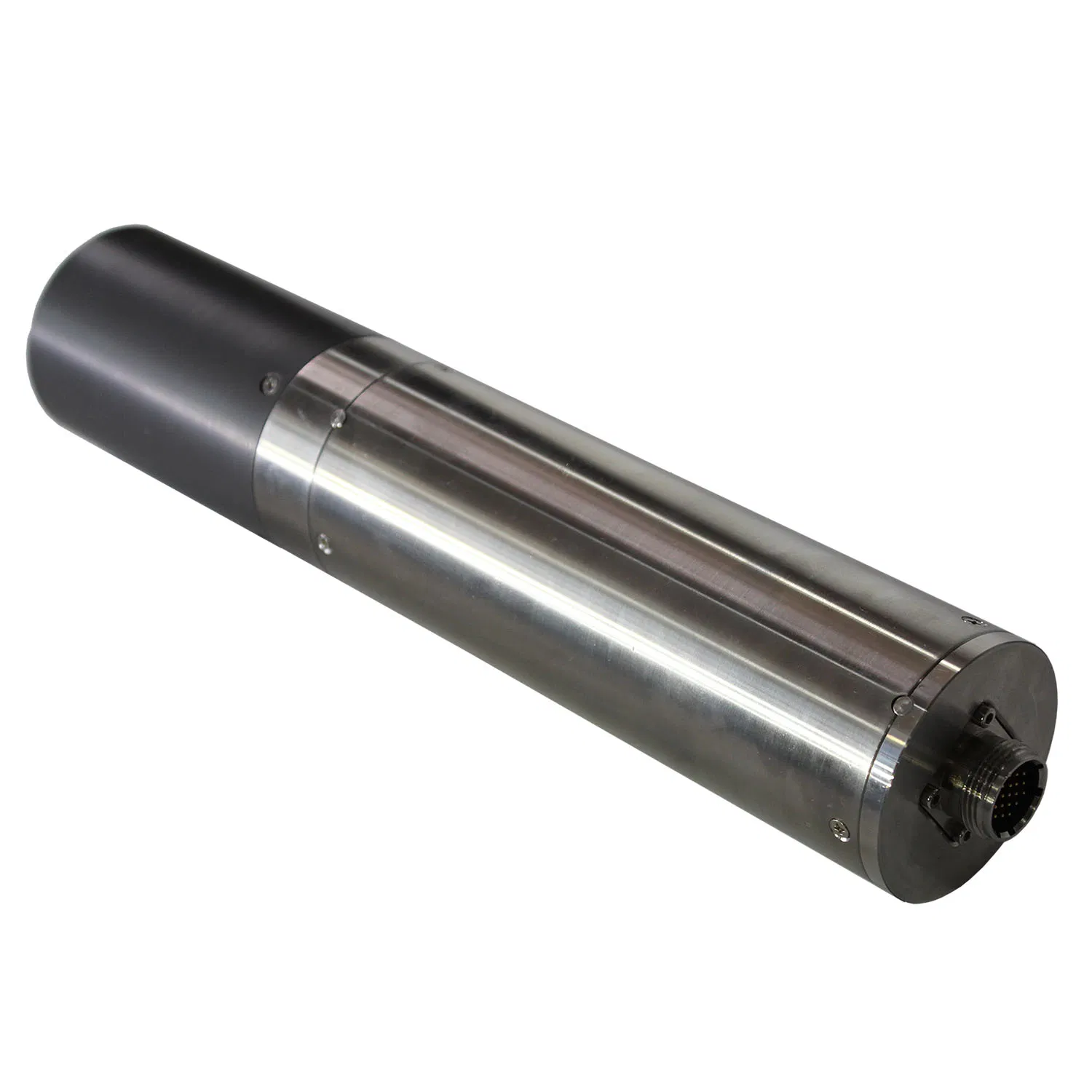

| Sonar Capsule | - Size: 346mm length; Diameter 50mm/70mm - Material: Stainless casing - Max Pipe Diameter: 6000mm - Power: 26V DC, 0.5A-1A - Weight: 3kg |

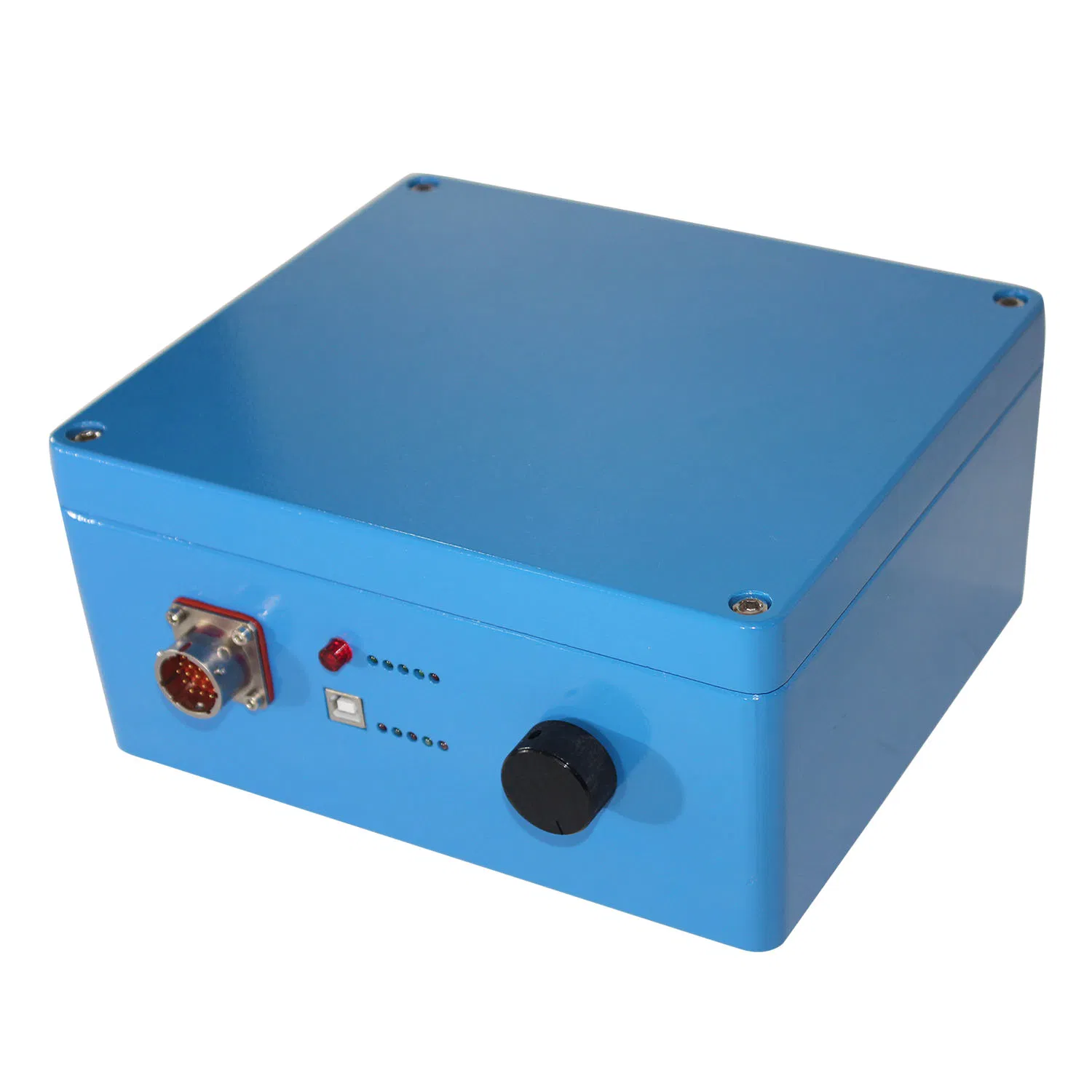

| Master Control Box | - Size: 110mm * 165mm * 35mm - Weight: 0.2kg - Power Supply: 220V |
| Manual Cable Reel | - High precision coder (+0.1M) for length measurement - Manual winding device; IP63 protection - Size: 330mm * 420mm * 570mm - Standard Length: 150m (Customizable) |
| Probe Floating Cylinder | - Stainless material; Integral cylinder design - Pipe range: 150mm~6000mm - Size: 140mm * 70mm * 400mm - Buoyancy: 5kg |

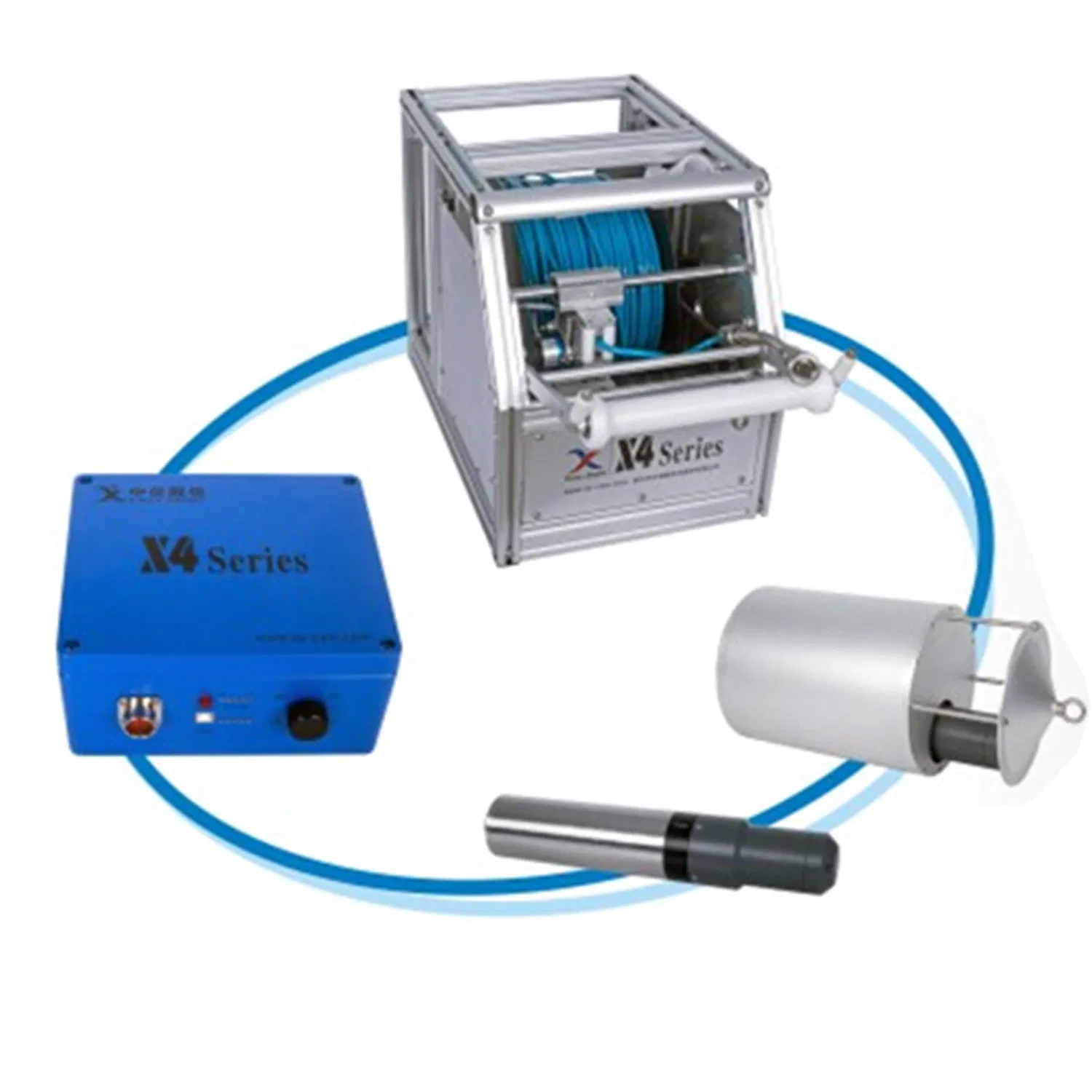

The X4 system is ideal for identifying structural defects (deformation, collapse, cracks, encrustation) and functional defects (deposition, floaters). It consists of four main parts: sonar capsule, cable reel, host computer, and imaging analysis software.

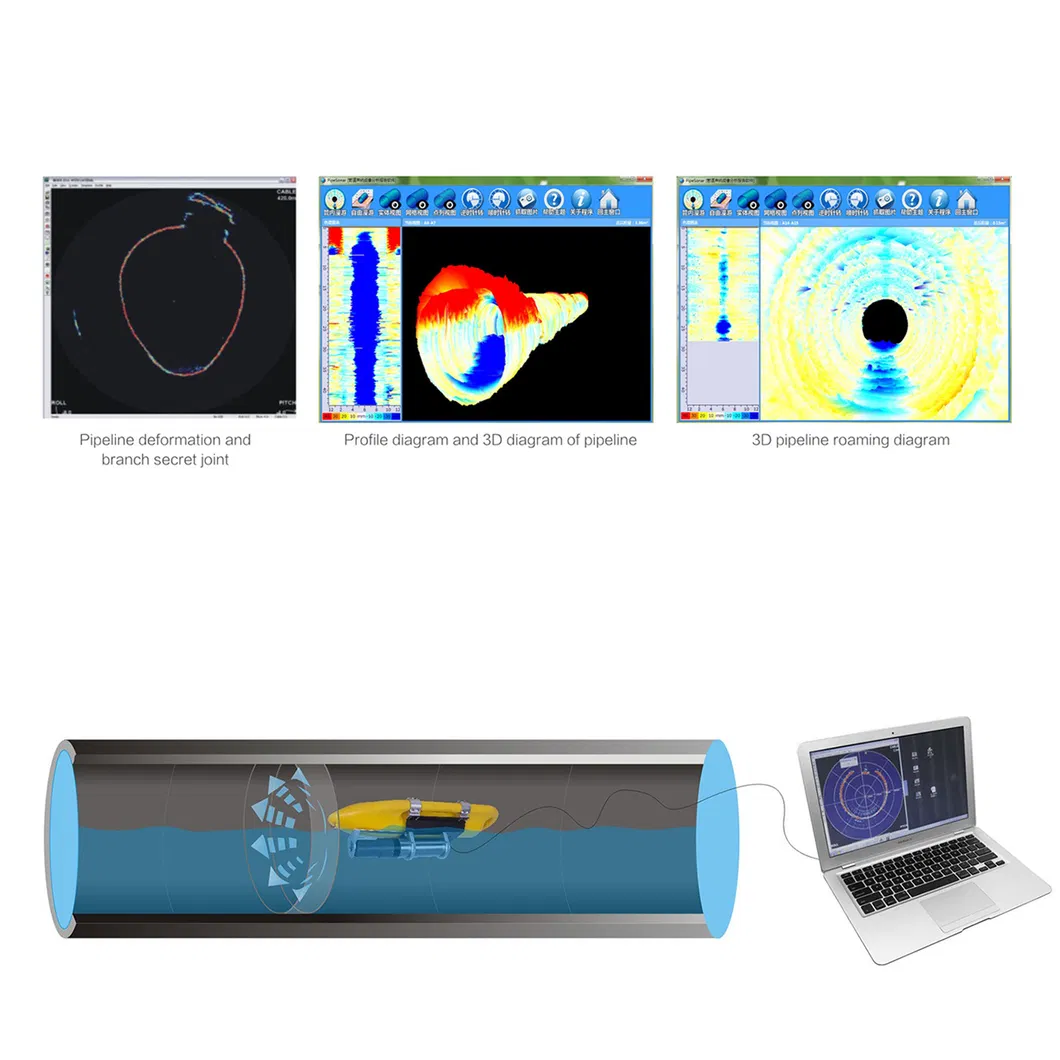

Three-dimensional Imaging: Provides 3D display and perspective to observe inner construction defects more clearly.
Deep Water Inspection: Effective in pipelines with water depth exceeding 300mm where drainage is not possible.
Synchronous Inspection: Can be equipped with floating valves to realize both CCTV (above water) and Sonar (underwater) inspection simultaneously.
