Underwater Sonar Imaging Devices System
Underwater Sonar Imaging Devices System
1 / 2
Underwater Sonar Imaging Devices System
Underwater Sonar Imaging Devices System

Underwater Sonar Imaging Devices System

Customization: Available
After-sales Service: Spare Parts Offered
Warranty: 12months
Send Inquiry

Product Description

Basic Information

Model NO.
X4
Type
Environmental Monitoring Instrument
Sonar Capsule Dimension
346*70mm
Sonar Capsule Pipe Diameter
6000mm
Main Controller Dimension
110*165*35mm
Cable Reel Dimension
420*330*520mm
Cable Length
150m
Signal Cable Length
5m
Transport Package
Packed in Plywood Case
Specification
Cable specification: DN8.5mm, 96.28g/m
HS Code
9031809090
Production Capacity
50 Sets Per Month

Product Overview

Underwater Sonar Imaging Devices System (Model: X4)
Underwater Sonar Imaging Devices System
When the pipeline is full of water without emptying conditions, any traditional video testing method fails to obtain a better testing effect. However, X4 pipeline section sonar imager is just applicable to such pipelines (various pipelines with diameter or section up to 125mm~6000mm).

Technical Parameters

Component Specifications

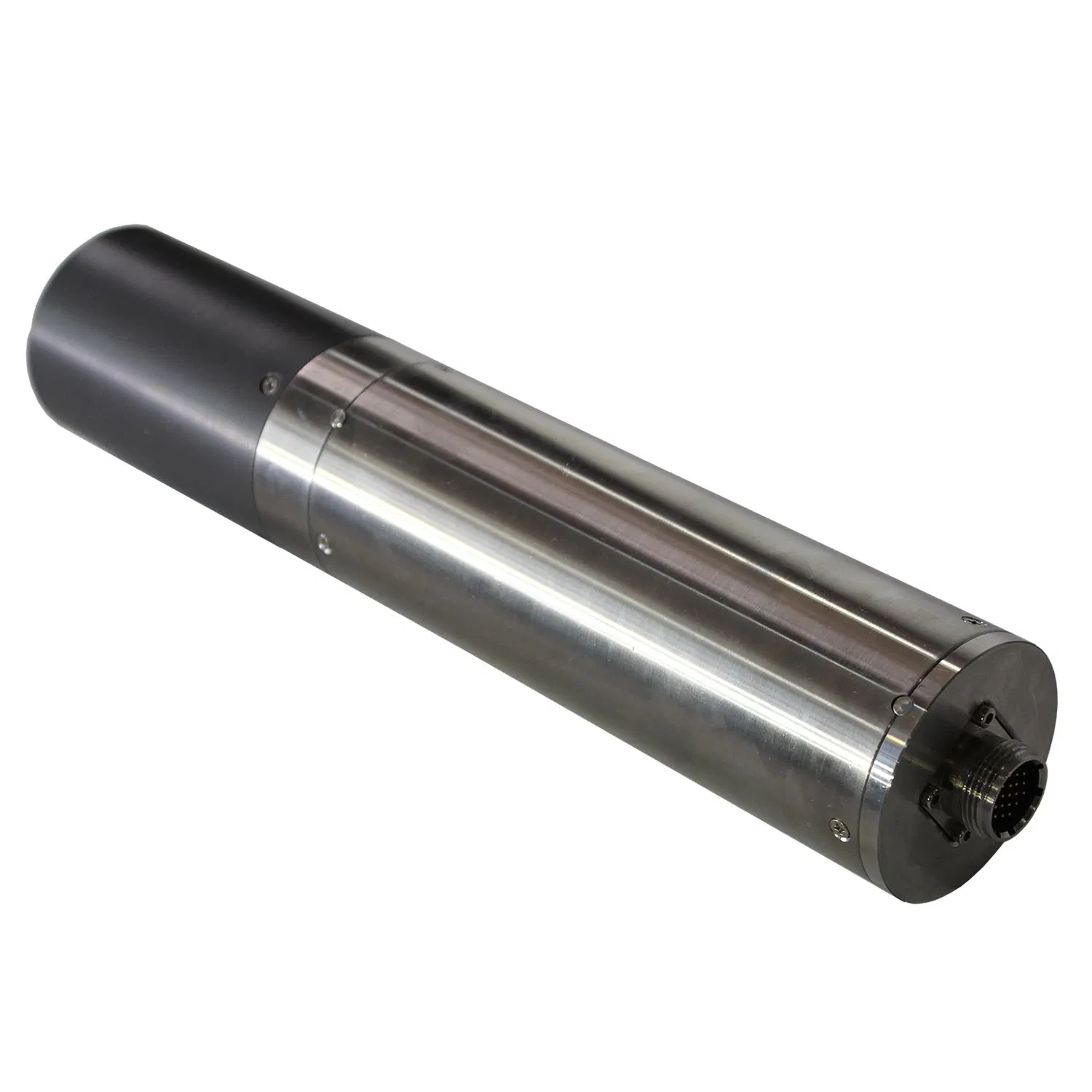

Sonar Capsule - Size: 346mm length; diameter 50mm/70mm
- Material: Stainless casing
- Max pipe diameter: 6000mm
- Power: 26V DC, 0.5A-1A peak
- Weight: 3kg
Master Control Box - Size: 110mm * 165mm * 35mm
- Weight: 0.2kg
- Power supply: 220V connection
Manual Cable Reel - Counting: High precision coder (+0.1M)
- Arrangement: Manual winding device
- Protection: IP63 dust/water resistance
- Size: 330mm * 420mm * 570mm
- Length: Standard 150m (customizable)
Probe Floating Cylinder - Material: Stainless steel
- Range: 150mm~6000mm pipe diameter
- Size: 140mm * 70mm * 400mm
- Buoyancy: 5kg

Product Application & Details

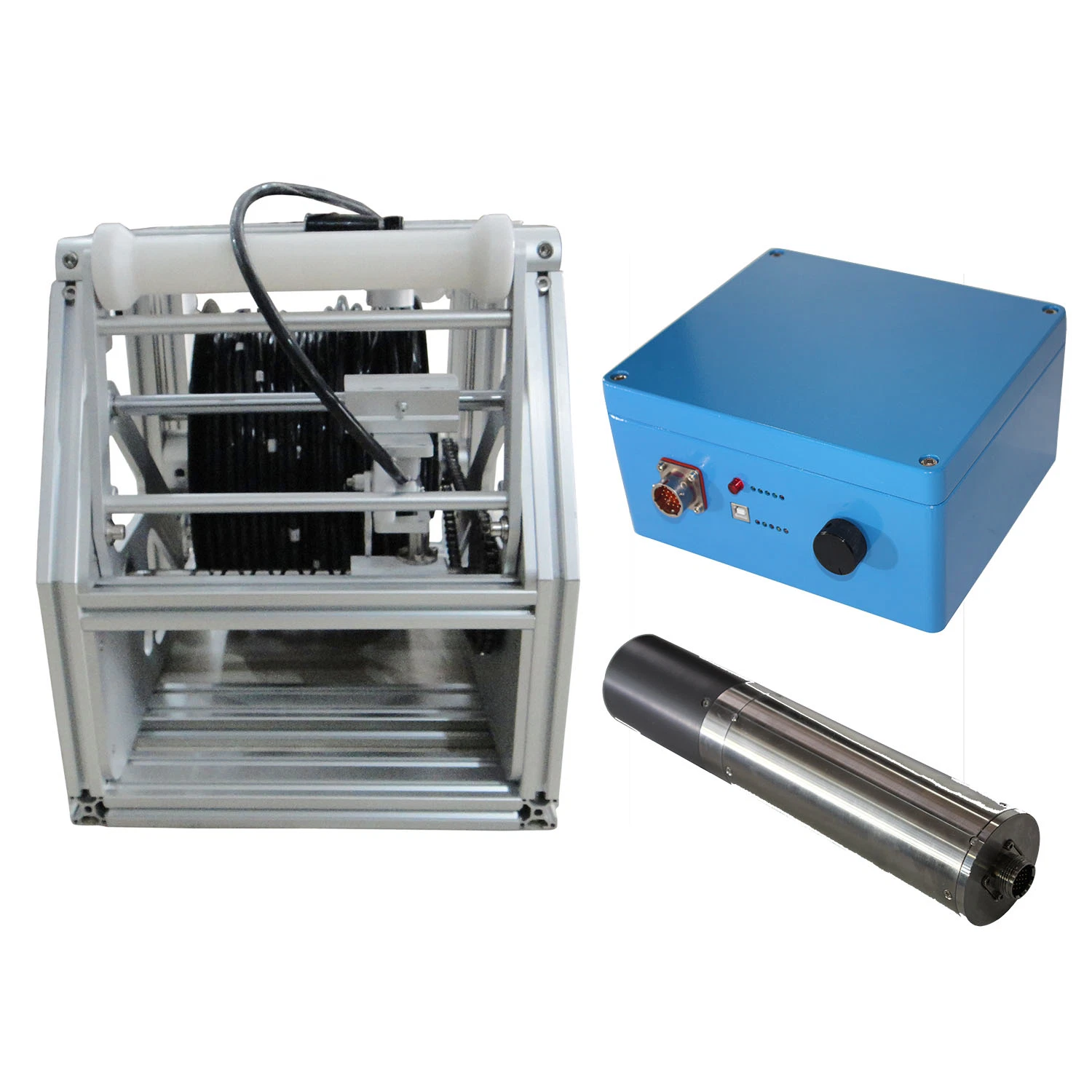

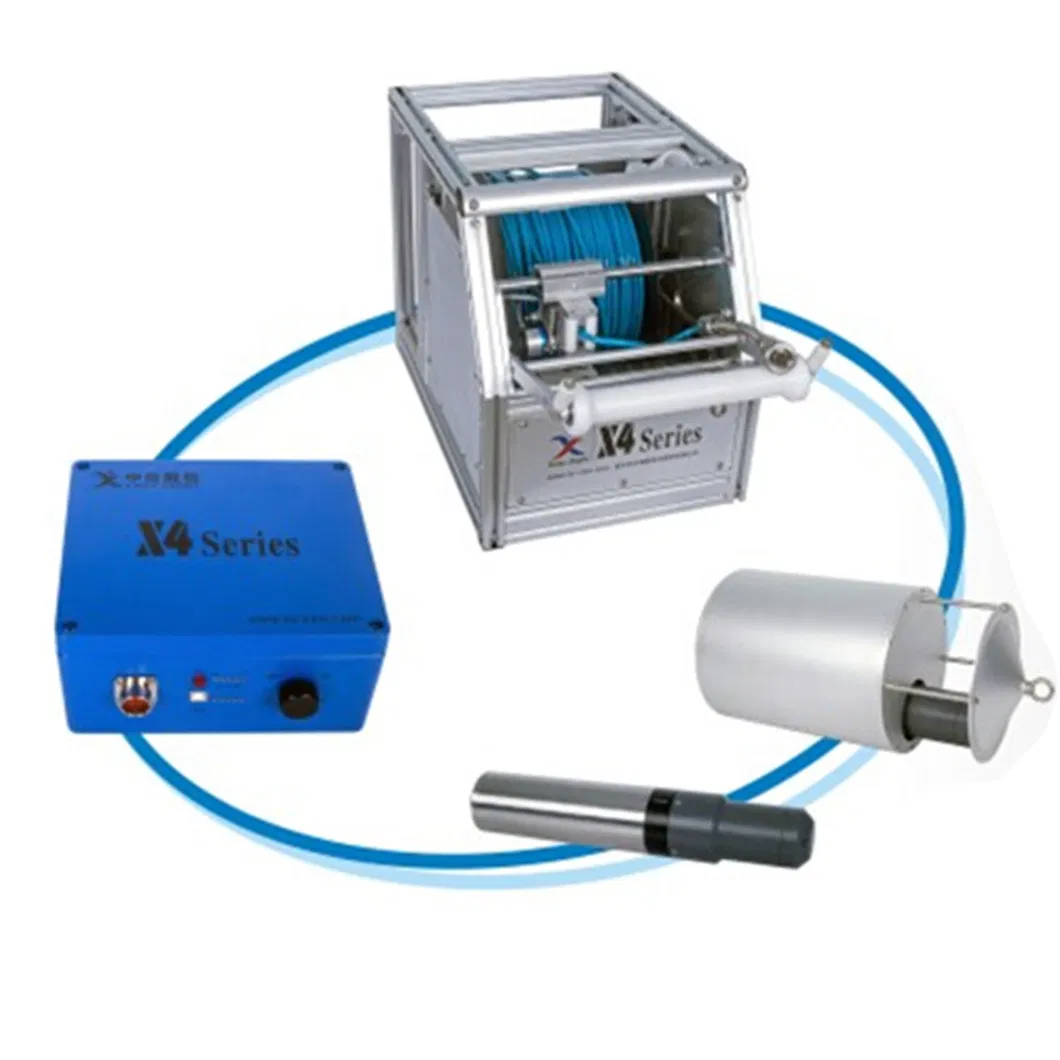

The X4 system accurately detects structural defects (deformation, collapse, cracks, encrustation) and functional defects (deposition, floaters). It consists of four parts: sonar capsule, cable reel, host computer, and specialized imaging analysis software.

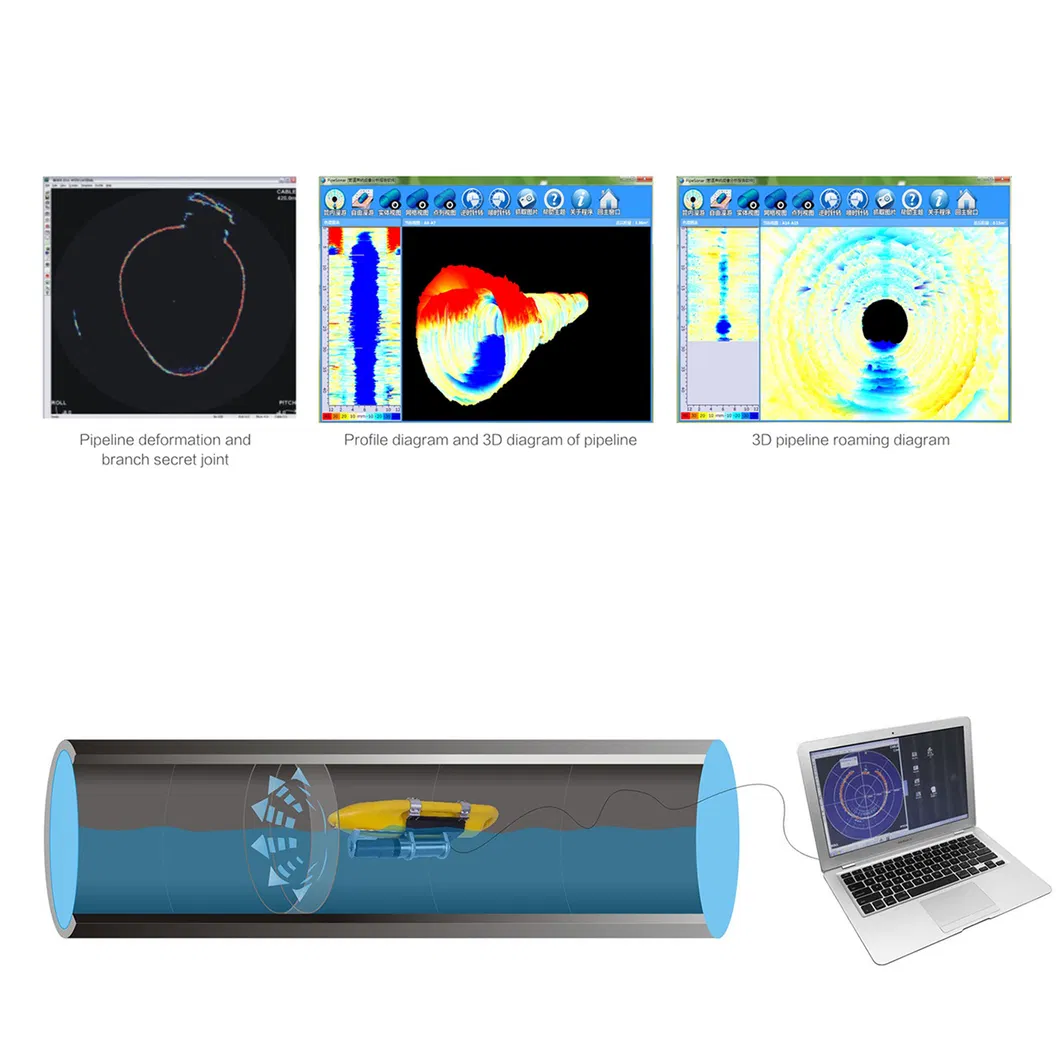

Product Details

Exhibition & Certification

Exhibition 1

Technical Exhibition (WEFTEC) in the US

Exhibition 2

Tokyo Sewage Works Exhibition

Certificates

Core Advantages

🌐 3D Imaging Technology

Observe pipe inner construction defects clearly with 3D display and rotatable orientation.

🌊 Deep Pipe Inspection

Ideal for water depths over 300mm where drainage is not possible.

🔄 Synchronous Inspection

Supports floating valves to realize both CCTV and sonar inspection above and under water.

Packing & Shipping

Packing and Shipping

Professional Service

  • 🛡️ 12-Month Warranty: Comprehensive coverage from arrival date with lifelong maintenance.
  • 🛠️ Technical Support: Specialized solutions for drainage network maintenance and repair.
  • ✅ Quality Assurance: Strict testing of every machine before packaging.
  • 📖 Training: Detailed English operational manuals and video training provided.
  • 🌍 Global Communication: Professional sales team ensuring zero communication barriers.

Frequently Asked Questions

What is the maximum pipe diameter the X4 can inspect?
The X4 sonar imager is designed for various pipelines with diameters ranging from 125mm up to 6000mm.
Can this equipment work in fully submerged pipelines?
Yes, the X4 is specifically designed for pipelines full of water where traditional CCTV methods cannot operate effectively.
How is the machine protected during international shipping?
We use standard plywood cases with foam padding to prevent shaking and a thickened plastic bag for waterproofing.
Is the cable length customizable?
The standard cable length is 150 meters, but it can be customized according to specific project requirements.
What should I do if the machine encounters a technical issue?
Please contact our technical support immediately. We respond within 24 hours to provide solutions and do not recommend unauthorized repairs.
Does the system support 3D visualization?
Yes, the system includes 3D sonar imaging which allows operators to rotate and check images from any orientation for better defect analysis.
