Water Supply Pipeline Sonar Inspection System (Model: X4)
When the pipeline is full of water without emptying conditions, any traditional video testing method fails to obtain a better testing effect. However, X4 pipeline section sonar imager is just applicable to such pipelines (various pipelines with diameter or section up to 125mm~6000mm).

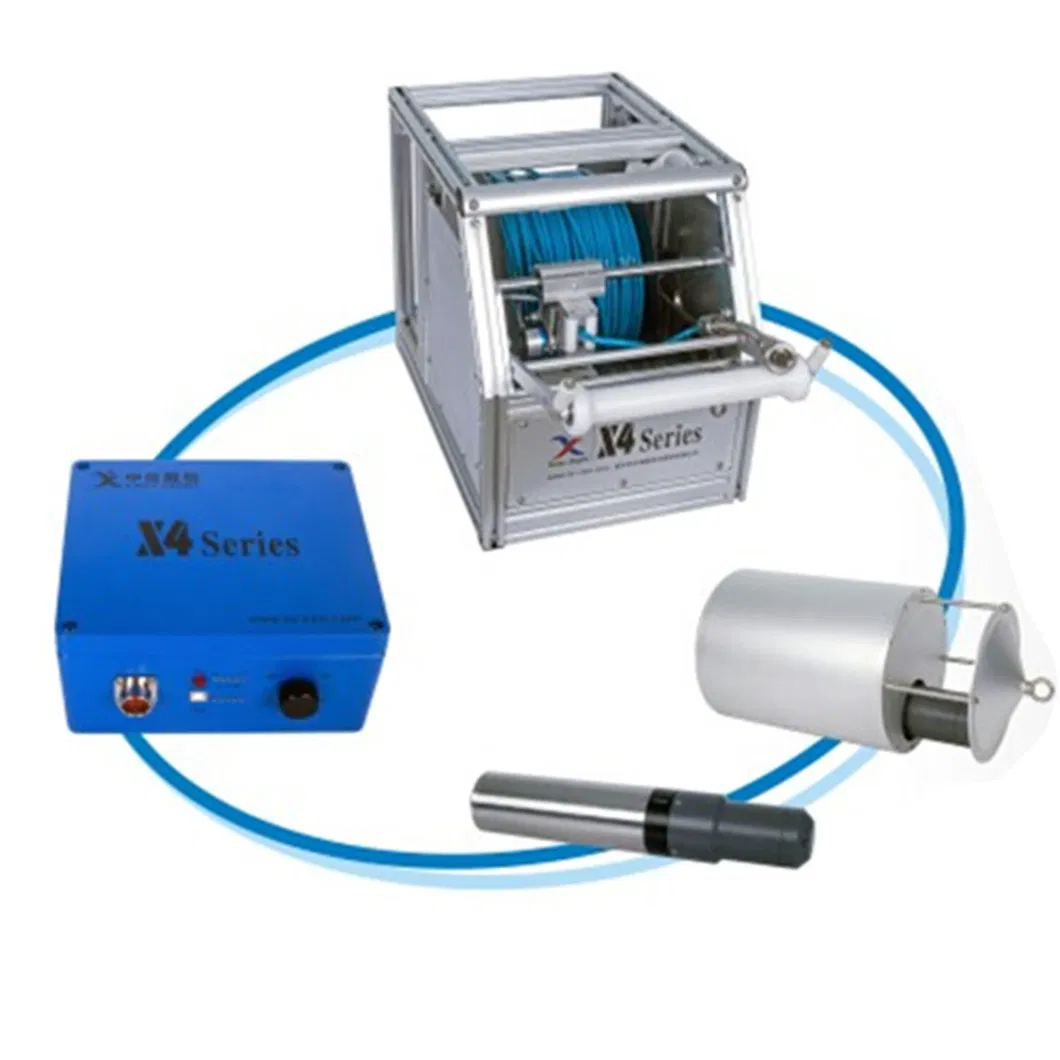

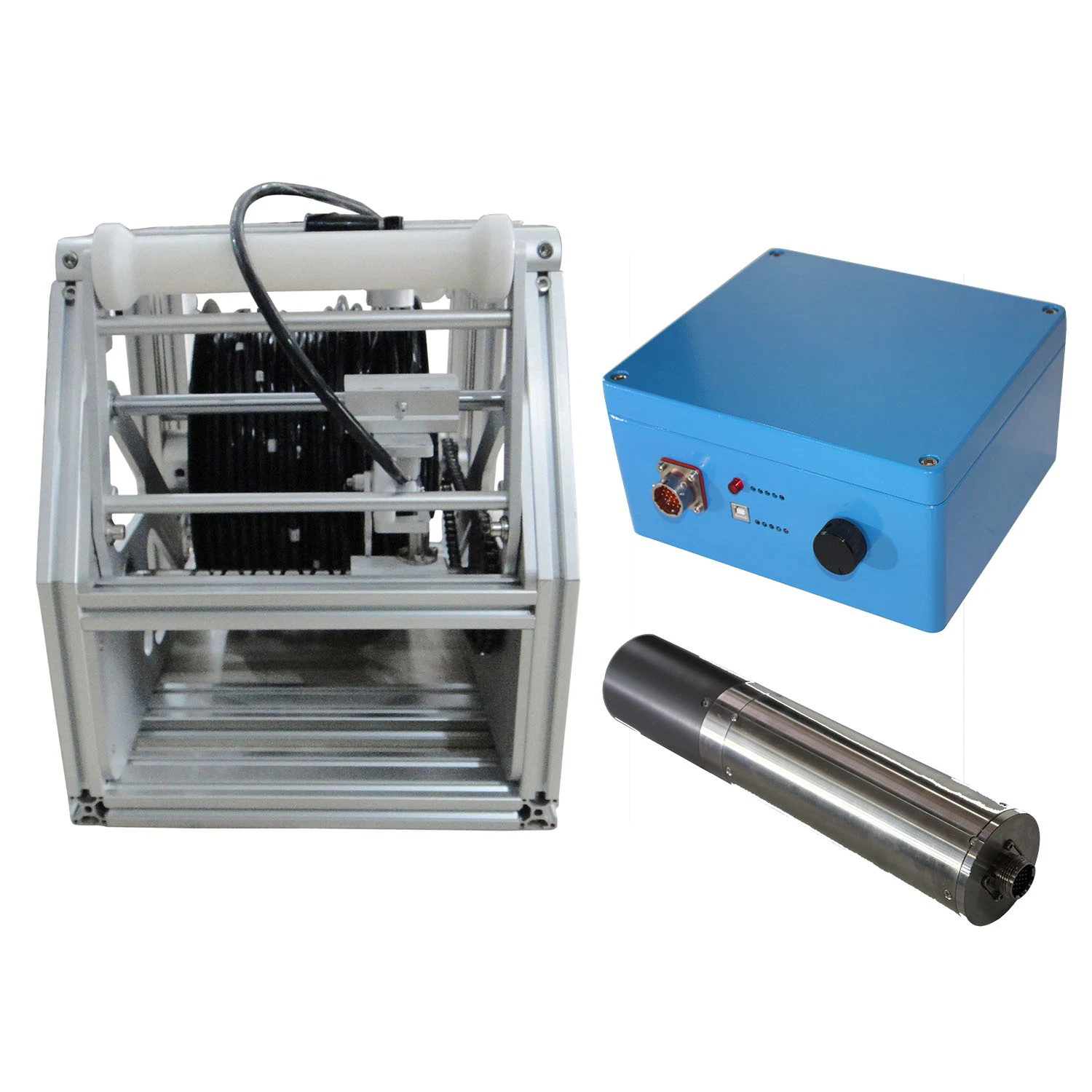

| Component | Specifications |
|---|---|
| Sonar capsule | - Size: 346mm length; diameter up to 50mm/70mm - Material: stainless casing - Max pipe diameter: 6000mm - Power: 26V DC, 0.5A-1A - Weight: 3kg |
| Master control box | - Size: 110mm * 165mm * 35mm - Weight: 0.2kg - Power supply: 220V |
| Manual Cable Reel | - Counting: high precision coder (+ 0.1M) - Cable arrangement: manual winding - Protection: IP63 dust/water resistance - Size: 330mm * 420mm * 570mm - Length: Standard 150m (customizable) |
| Probe Floating cylinder | - Material: Stainless steel - Pipe range: 150mm~6000mm - Size: 140mm * 70mm * 400mm - Buoyancy force: 5kg |

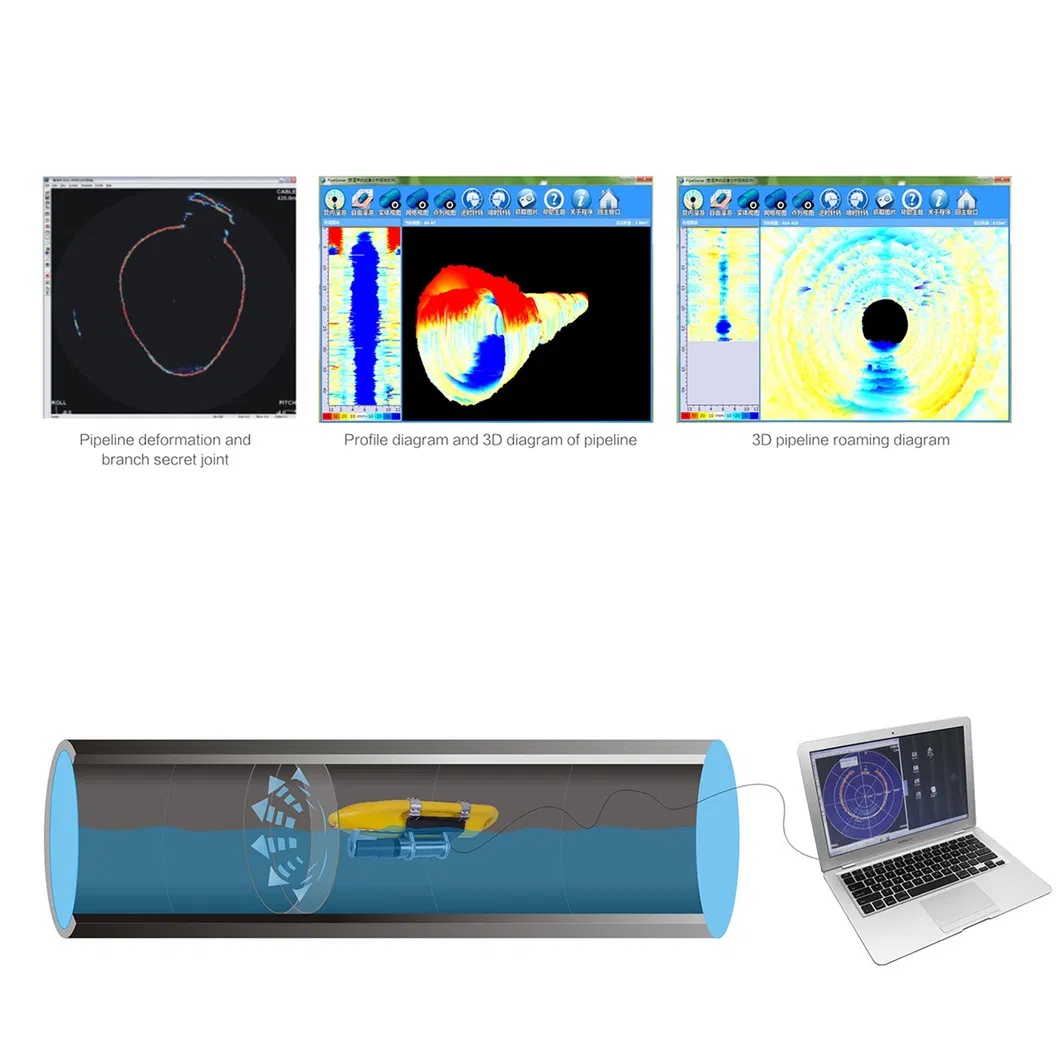

The X4 sonar imager accurately detects structural defects (deformation, collapse, cracks, encrustation) and functional defects (deposition, floaters) in pipelines. It utilizes sonar imaging technology for underwater scanning, moving via creeper or manual dragging.
