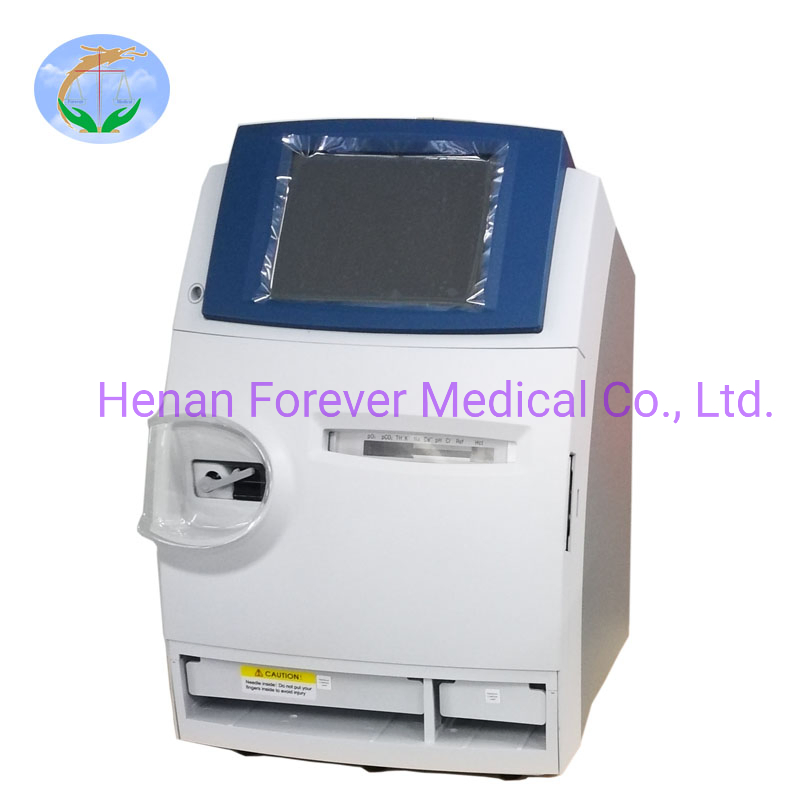

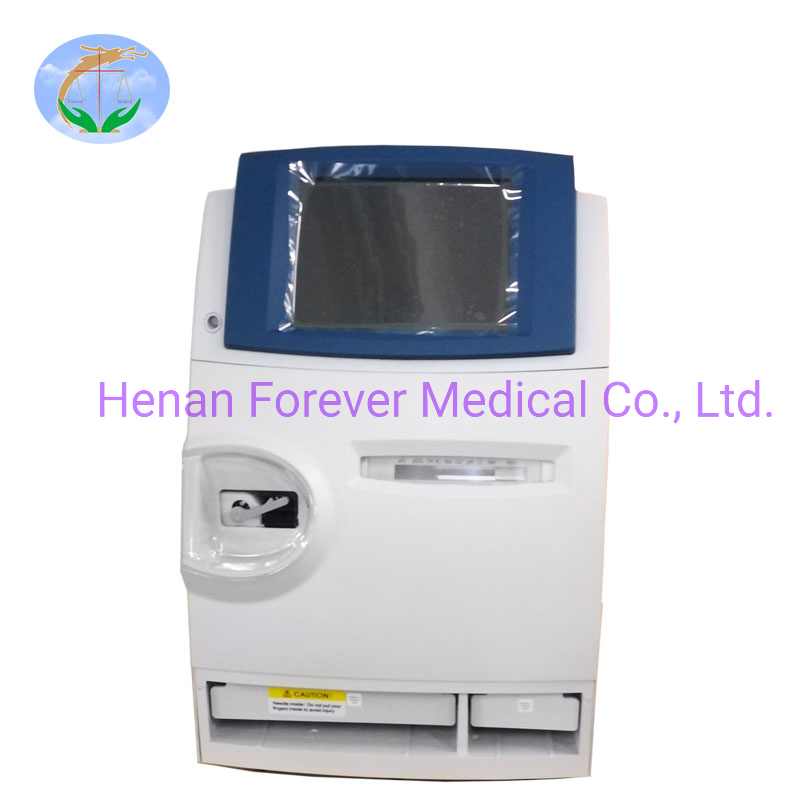

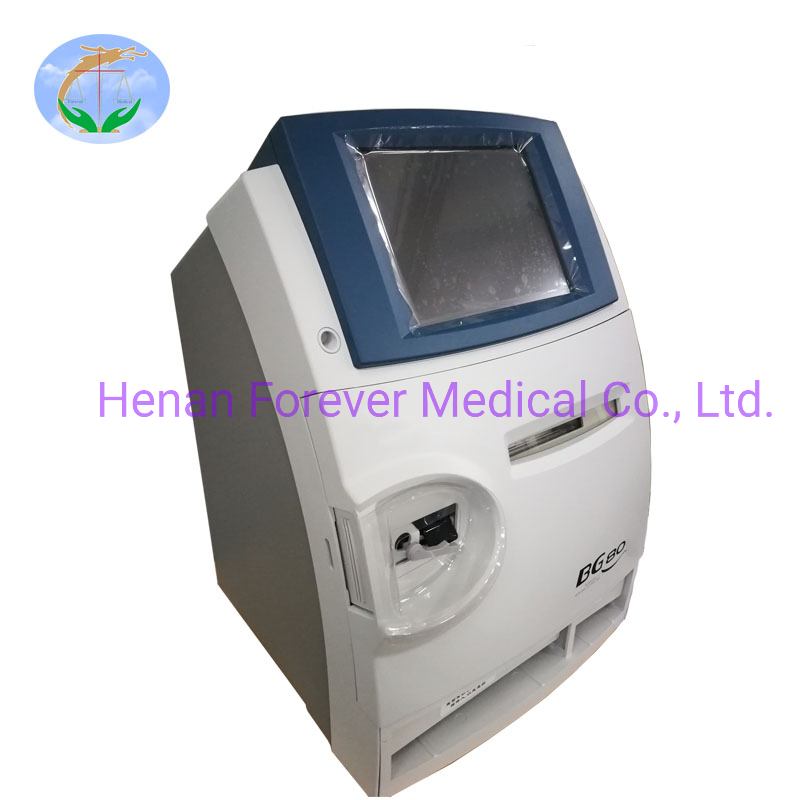

BG80 High End Fully Automatic Blood Gas Electrolyte Analyzer

Customization: Available
Classification: Biological Diagnostics
Type: Blood Gas Electrolyte Analyzer

Product Description

ℹ️ Basic Information
Model NO.
YJ-BG80
Certification
CE, EEC, MSDS, ISO13485
Sample Type
Whole Blood, Serum, Plasma, Dialysate, Csf
Test Items
pH/Pco2/Po2/K+/Na+/Ci-/Ca++/Hct
Power Supply
100-240V, 150va
Application
Hospital, Laboratory
Warranty
1 Year
Language
English & Spanish
📋 Product Description
YJ-BG80 Blood Gas & Electrolyte Analyzer

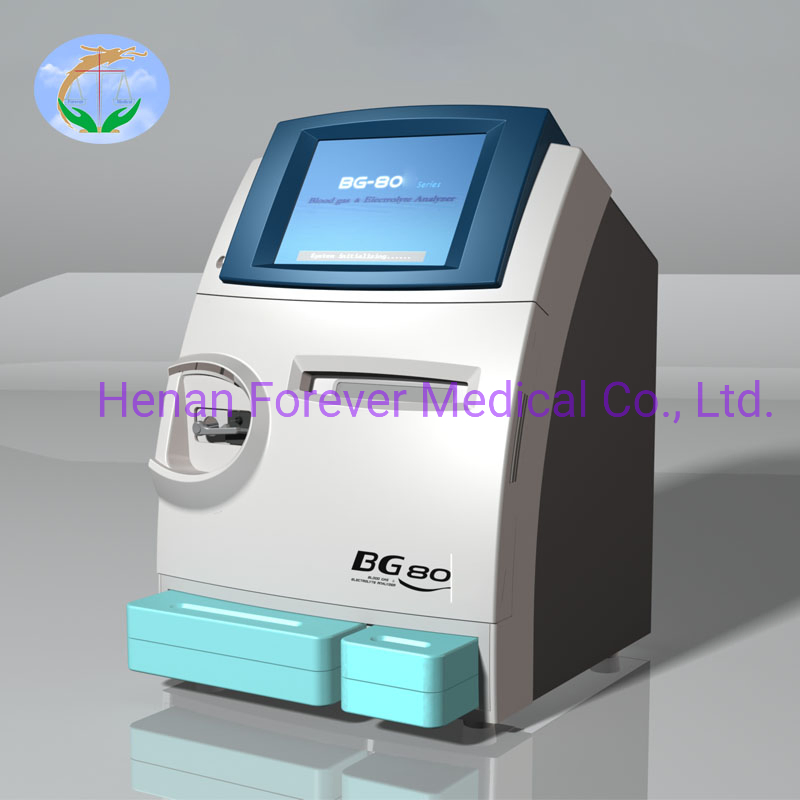

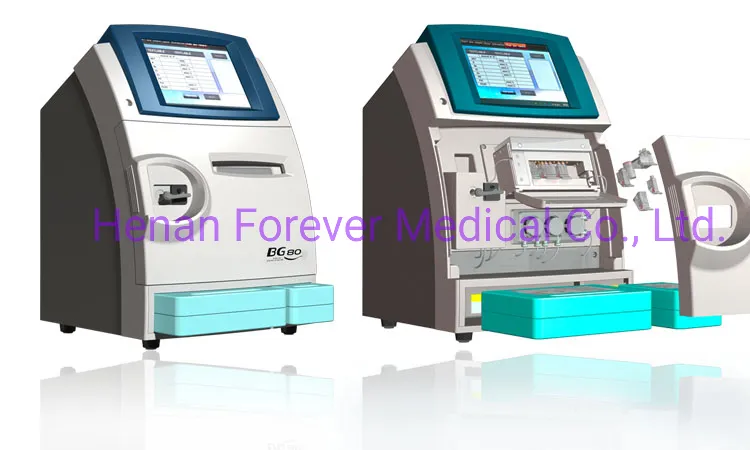

Blood Gas Analyzer Main View
Key Features
  • Gas tank free - More convenient for daily operation
  • Self-made maintenance-free electrodes
  • All-in-one reagent pack for simplified logistics
  • Optional Auto QC for high precision
  • User-friendly touch screen interface
  • Economical cost per test for long-term benefits
  • Fast results: 1 minute from aspiration to output
  • Battery backup for uninterrupted testing
⚙️ Technical Specifications
Working Temp
15ºC~30ºC
Storage Env
5ºC~45ºC
Instrument Size
400mm × 574mm × 344mm
Weight
18KG
Sample Volume
50UL (Capillary), 95UL (Whole Blood)
Data Storage
> 10,000 records
Analyte Measuring Range Unit
PH6.000-9.000pH scale
Carbon dioxide0.667-26.67kpa
Partial pressure5.0-200.0mmHg
pO20-106.7 / 0-800.0kpa / mmHg
K+0.5-15.0mmol/L
Na+50.0-200.0mmol/L
CI-20.0-200.0mmol/L
Ca++0.10-5.0mmol/L
Hct12.0-65.0mmol/L
Glucose1.1-66.7Mmol/L
Lactate0.4-30.0Mmol/L
🖼️ Product Gallery & Details

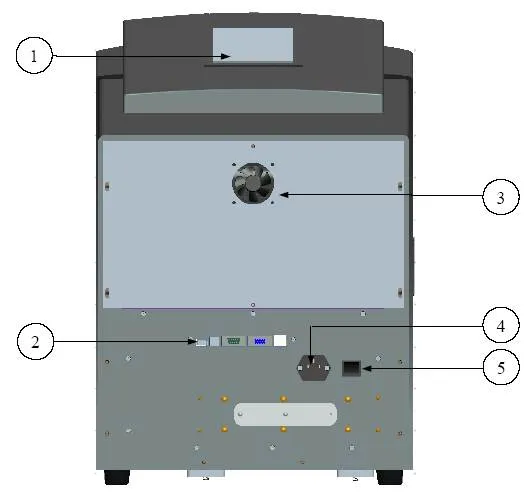

Interface and Components
Production Detail 1
Production Detail 2
Production Detail 3
Production Detail 4
Production Detail 5
Frequently Asked Questions
What sample types can the YJ-BG80 analyze?
The analyzer supports a wide range of samples including whole blood, serum, plasma, dialysate, and cerebrospinal fluid (CSF).
How long does it take to get a test result?
The system is highly efficient, providing results in just 1 minute from the point of sample aspiration.
Does this analyzer require external gas tanks?
No, the YJ-BG80 is designed to be gas tank free, utilizing an all-in-one reagent pack which makes it more convenient and space-saving.
What is the sample volume requirement for testing?
It is very sample-efficient, requiring only 50UL for capillary samples and 95UL for whole blood samples.
Are the electrodes difficult to maintain?
Not at all. The device uses self-made maintenance-free electrodes, significantly reducing the workload for laboratory staff.
What kind of data management does it offer?
The unit features a high-resolution color touch screen, storage for over 10,000 data records, and a rich interface for data management, including barcode system support.
