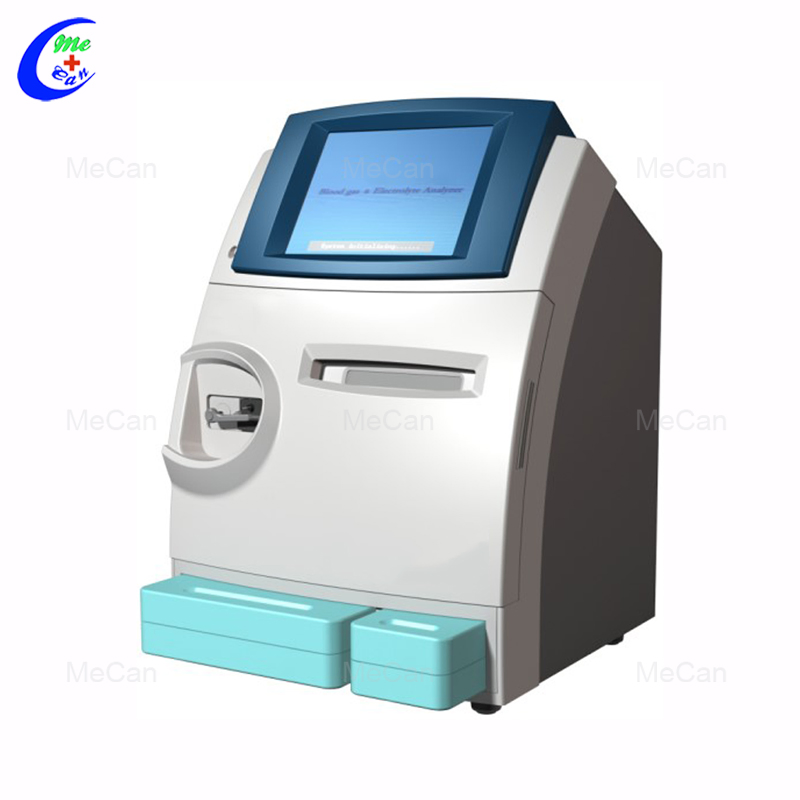

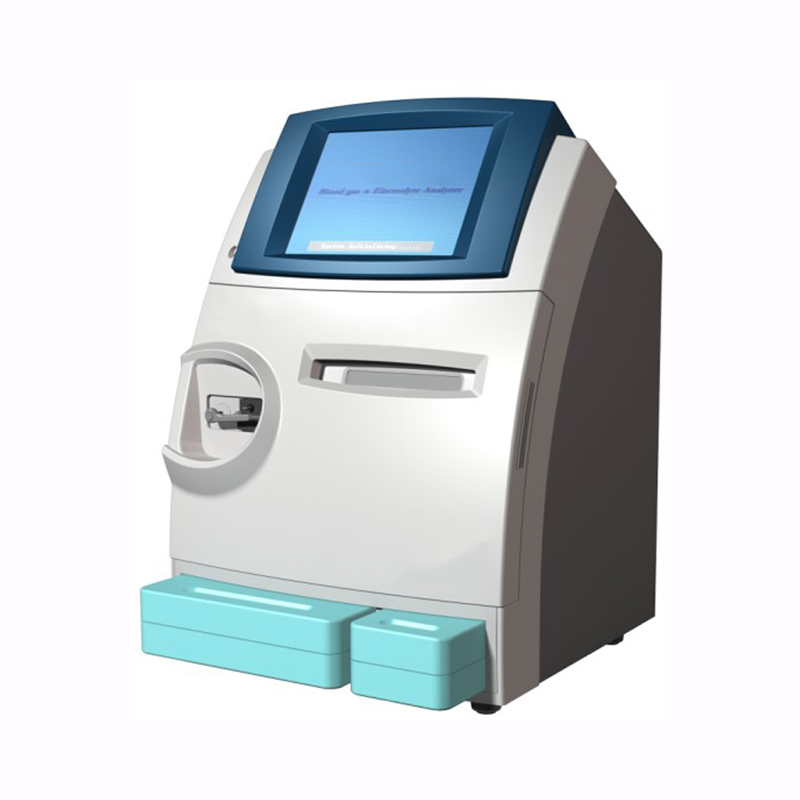

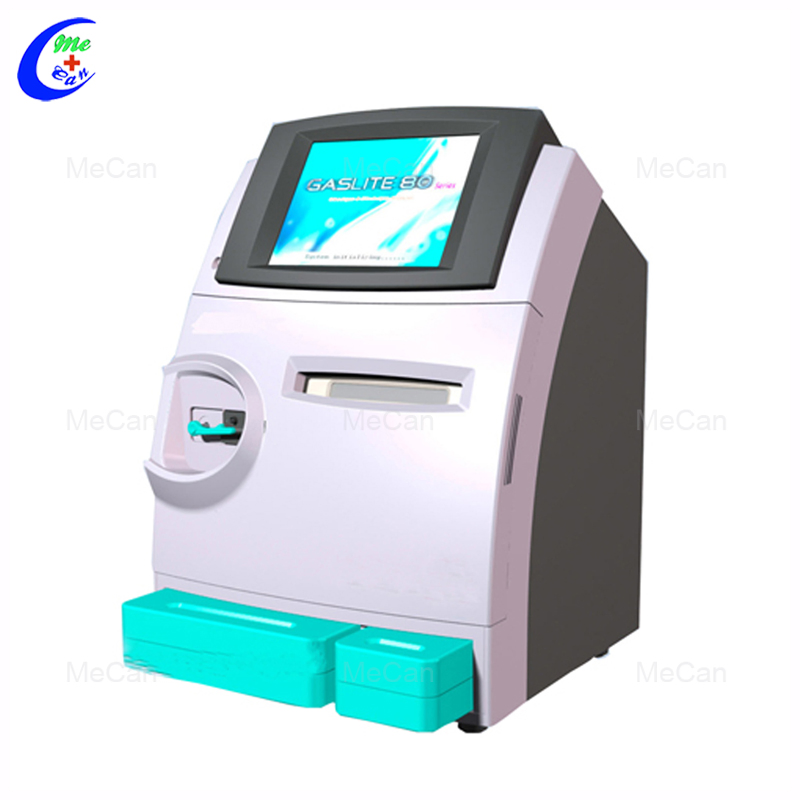

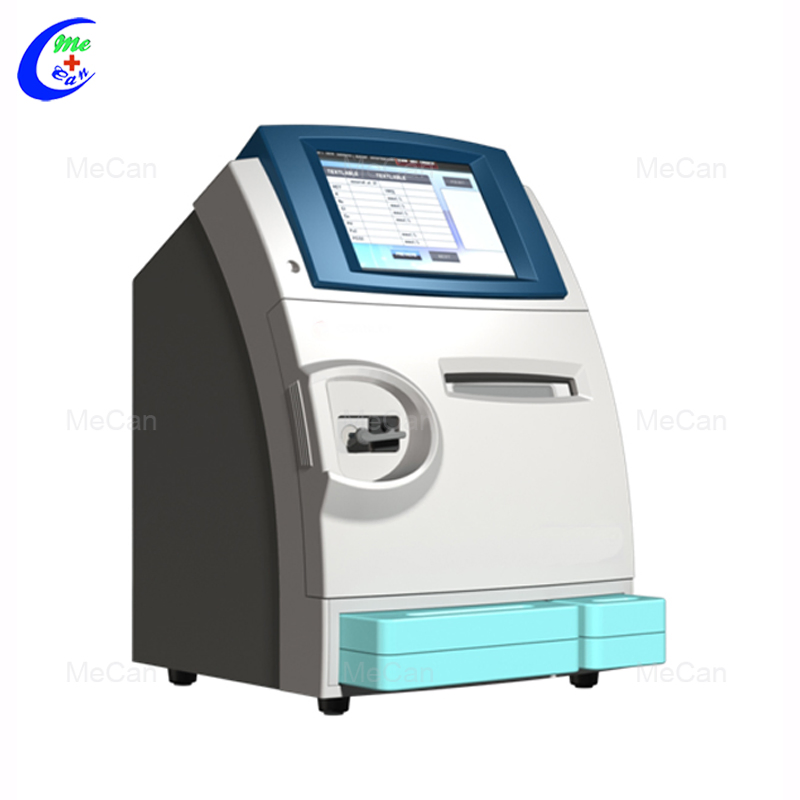

Medical Fully Automated Portable Blood Gas Electrolyte Analyzer

Customization: Available
Certification: CE
Product Name: Blood Gas Electrolyte Analyzer

Product Description

Basic Information
Model NO.
MCL0067
Analysis Time
<90s
Data Storage
>10000
Display
10.4" TFT Touch Screen
Battery
Nickel-Metal Hydride, 3.0ah
Transport Package
Standard Package
Specification
Standard Size
Origin
China
Capacity
1000 Pieces/Month
Product Description

Medical Fully Automated Portable Blood Gas Electrolyte Analyzer

Portable Blood Gas Electrolyte Analyzer

Key Features

Compact Cal Pack with liquid and tonometered calibrants
Auto QC Cartridge for convenience
Fully automated sampler entry and recognition
Reliable and high-precision temperature control module
Maintenance-free electrode

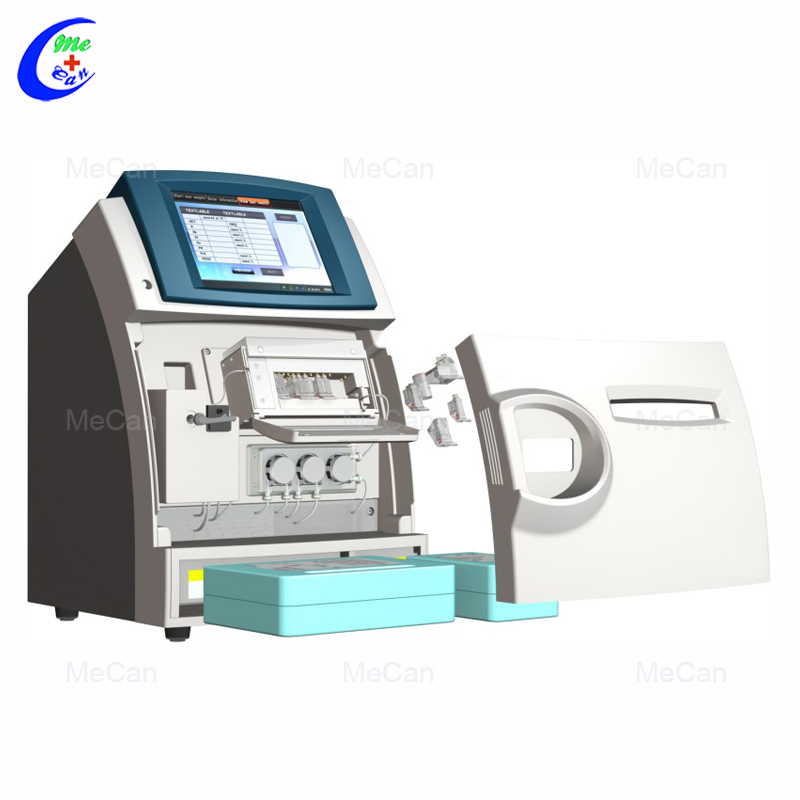

Integrated flow-path module design simplifies maintenance
Modular design assuring easy accessibility
Simple menus guide the user through operation
Self-diagnostic software for quick troubleshooting
Back-up battery/UPS ensures continuous testing
Multiple interfaces: LIS, USB, RS-232
Product Parameters
Parameter Specification
Sample TypeWhole blood, Serum, Plasma, Dialysate, CSF
Input ParametersPatient Temperature, Hemoglobin, FiO2, B.P.
Analysis Time<90s
Sample Volume95ul (whole blood), 35ul (capillary blood)
CalibrationAutomatic, Programmable, One-point and Two-point
Data StorageMore than 10000 Results
Display10.4'' TFT Touch Screen
BatteryLead Acid Battery, 2.3Ah
PrinterBuilt-in Thermal Printer, 70mm
Barcode ReaderUp to 14 Kinds Barcode Type
InterfaceRS-232, TCP/IP, USB Port, Integrated Bar-code Reader
EnvironmentWorking: 15ºC~30ºC | Storage: 5ºC~45ºC
Power Supply100-240V~50/60Hz
Analyte Measuring Range Unit
pH(CH)6.000-9.000-
pCO21.607-26.67 / 8.0-200.0kpa / mmHg
pO20-106.7 / 0-800.0kpa / mmHg
K+0.5-15.0mmol/L
Na+20.0-200.0mmol/L
CI-20.0-200.0mmol/L
Ca++0.3-5.0mmol/L
Hct12.0-65.0%
Glucose1.1-66.7mmol/L
Lactate0.4-30.0mmol/L
Product Display
Detailed View 1 Detailed View 2 Detailed View 3
Frequently Asked Questions
What is the warranty for this analyzer?
We provide a one-year warranty for the products free of charge.
How do you provide after-sales technical support?
We provide technical support through operating manuals and videos. Our engineers offer prompt responses via email or phone. For hardware issues within the warranty period, we provide free spare parts.
What are the available shipping methods and delivery times?
We offer Express (7-10 days), Air Freight (3-10 days), and Sea Freight (10-45 days depending on the port). We can also deliver to your forwarder in China.
What are the accepted payment terms?
Our payment terms include Telegraphic Transfer (T/T) in advance, Western Union, MoneyGram, PayPal, and Trade Assurance.
What types of samples can be analyzed?
The system is capable of analyzing Whole blood, Serum, Plasma, Dialysate, and Cerebrospinal Fluid (CSF).
What is the typical lead time for production?
Approximately 40% of products are in stock. Others require 3-10 days for production, while specialized items may take 15-30 days.
