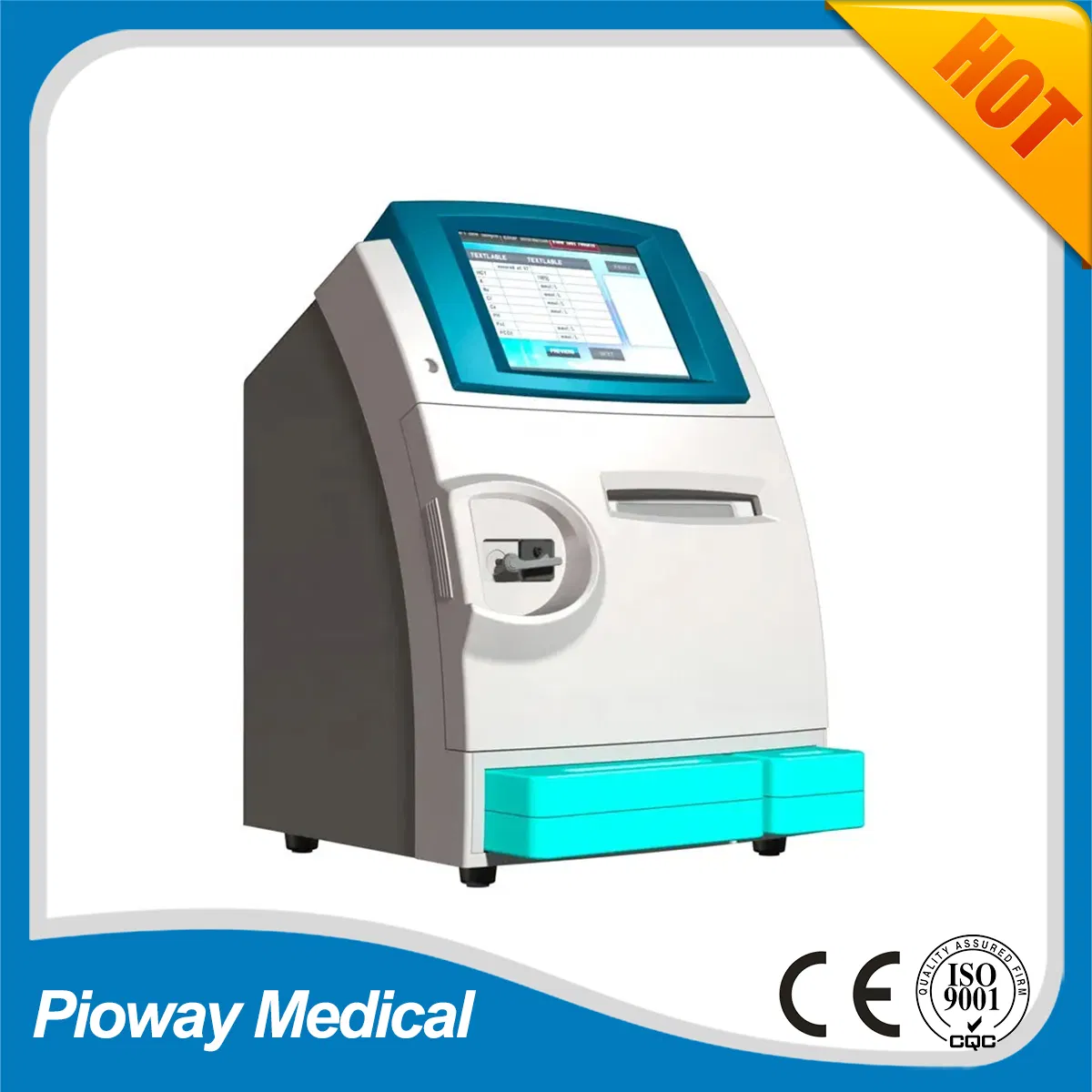

Hospital Lab Use Blood Gas Analyzer Bg-800

1 / 5

Hospital Lab Use Blood Gas Analyzer Bg-800

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Information

Model NO.

BG-800

Certification

CE, ISO13485

Product Name

Blood Gas Analyzer

Analysis Time

Less Than 90s

Sample Volume

95UL Whole Blood

Display

10.4" TFT Touch Screen

Lead Time

Within 7 Working Days

Warranty

12 Months

Production Capacity

6000 Pieces/Month

🔬

Product Description

Introduction: Blood gas analyzer can provide a safer alternative to follow ACCP suggested "pH is chemical process optimization of pleural effusion, and pH must be conducted using a blood gas analyzer determination". BG 800 wise blood gas analyzer has a pH measurement of pleural effusion dedicated mode, can provide accurate measurement results, at the same time reduce the risk of mistaken blood pH for pleural effusion.

🌟

Key Features

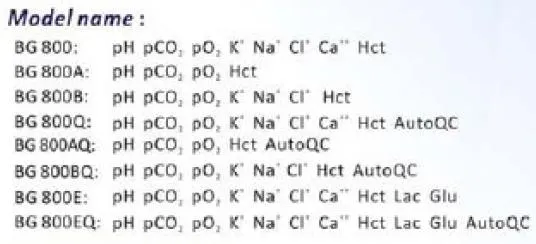

✔Multi-combination parameters

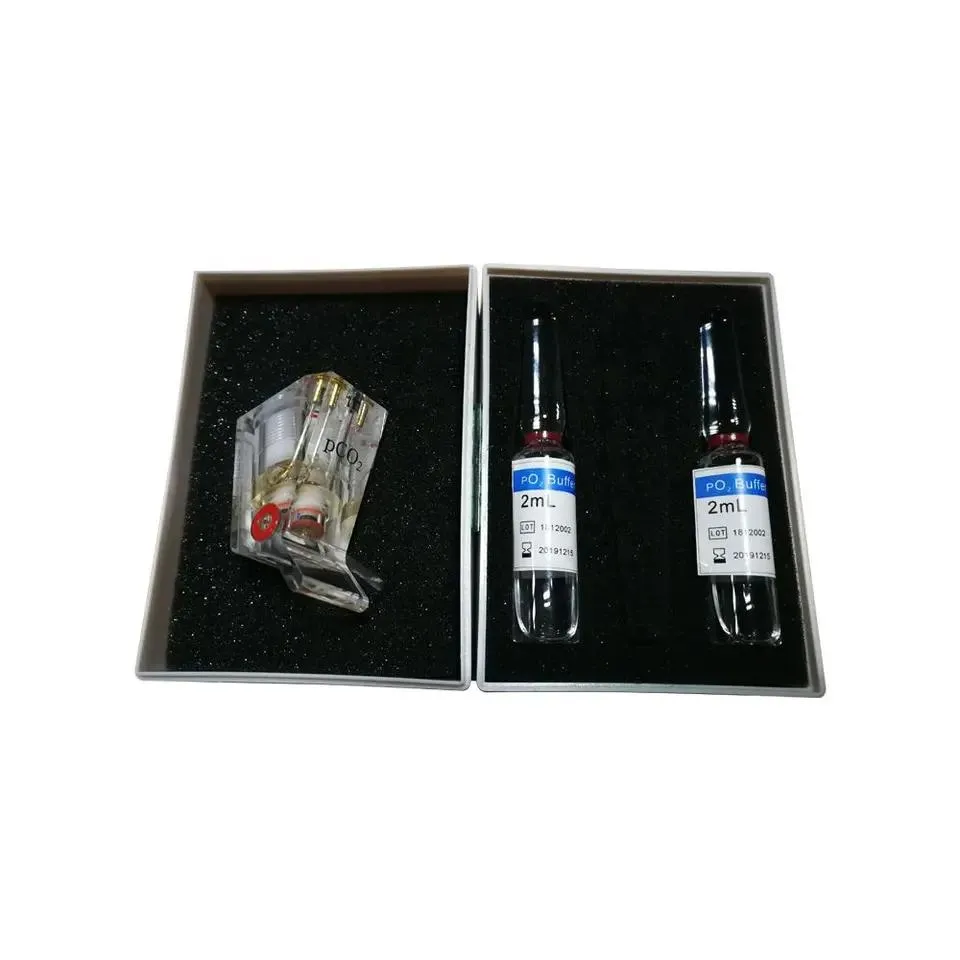

✔Self-made maintenance free electrodes

✔Both for syringes & capillary

✔35UL for capillary, 95UL for whole blood

✔1 min from the aspiration to result

✔Long-lasting fluid system

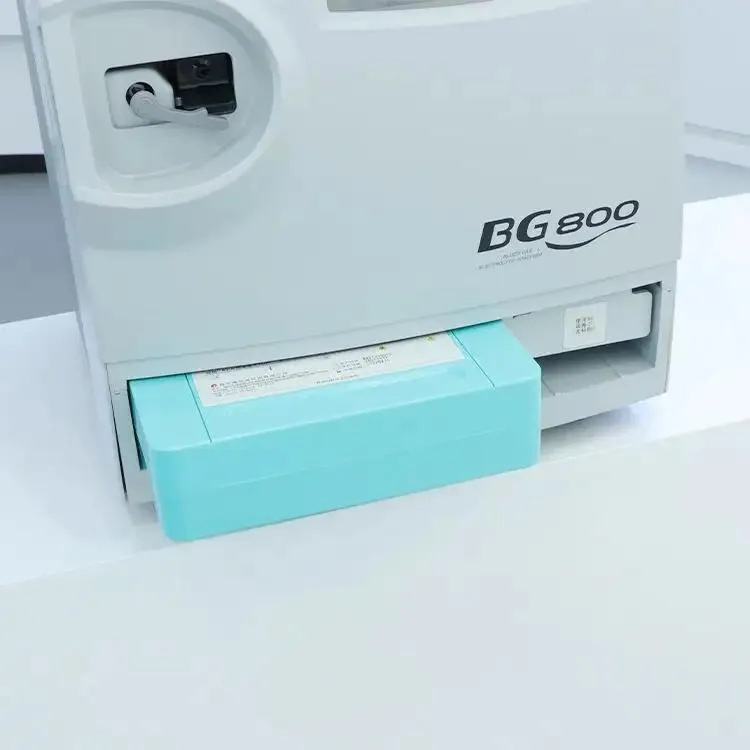

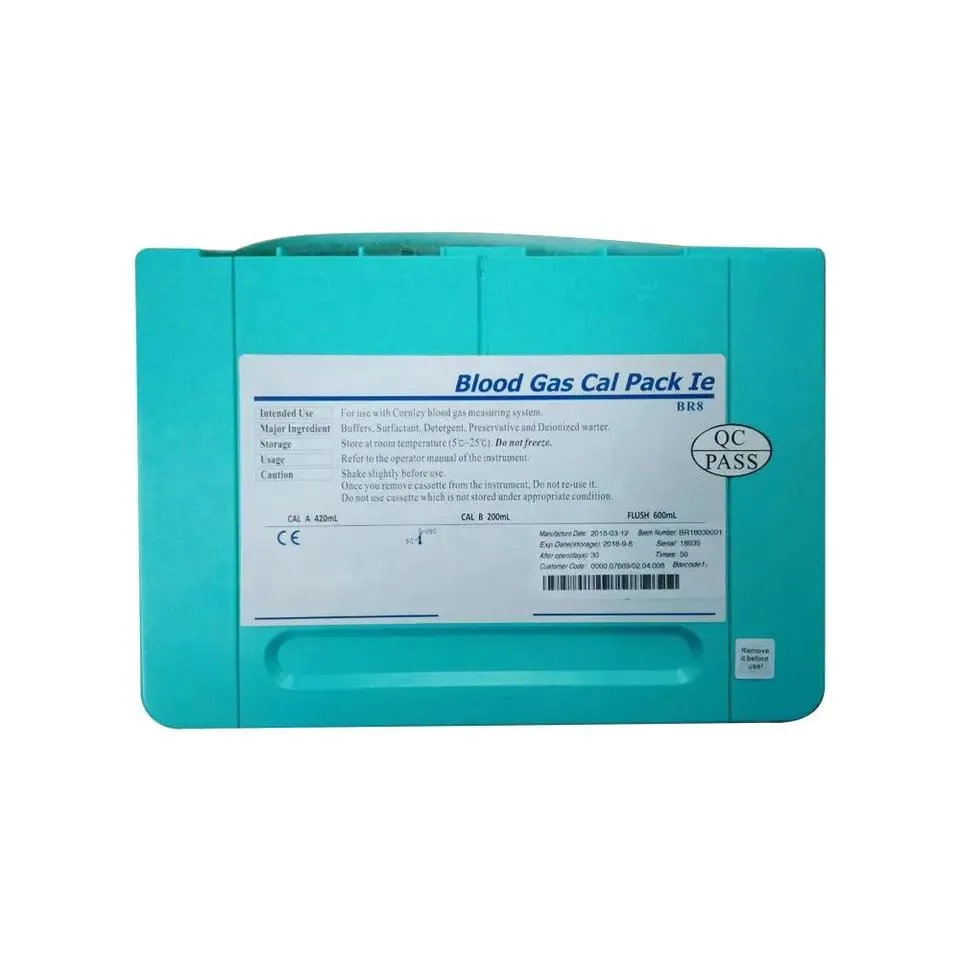

✔All-in-one design calibrate cartridge

✔Cartridge expiration alarm & residue

✔Preheats reagents & sample

✔Optional Auto QC cartridge (H/M/L)

✔Data storage >5,000

✔Colorful touch screen with high resolution

✔Friendly operation interface

✔Infrared human-detector

✔Battery backup & Built-in thermal printer

📊

Technical Parameters

Analyte	Measuring Range	Unit
pH(CH)	6.000-9.000	-
pCO2	1.607-26.67 / 8.0-200.0	kpa / mmHg
pO2	0-106.7 / 0-800.0	kpa / mmHg
Hct	12.0-65.0	%

System Specifications
Sample Type	Whole blood, Serum, Plasma, Dialysate, CSF
Input Parameter	Patient Temperature, Hemoglobin, FIO2, B.P.
Interface	RS-232, TCP/IP (LIS HL7), USB, Bar-code reader
Analysis Time	<90s
Calibration	Automatic; Programmable 1-point and 2-point
Display	10.4'' TFT touch screen
Battery	Nickel-metal Hydride Battery, 3.0Ah
Dimensions	400(W)574(H)344(D) mm
Weight	18kg
