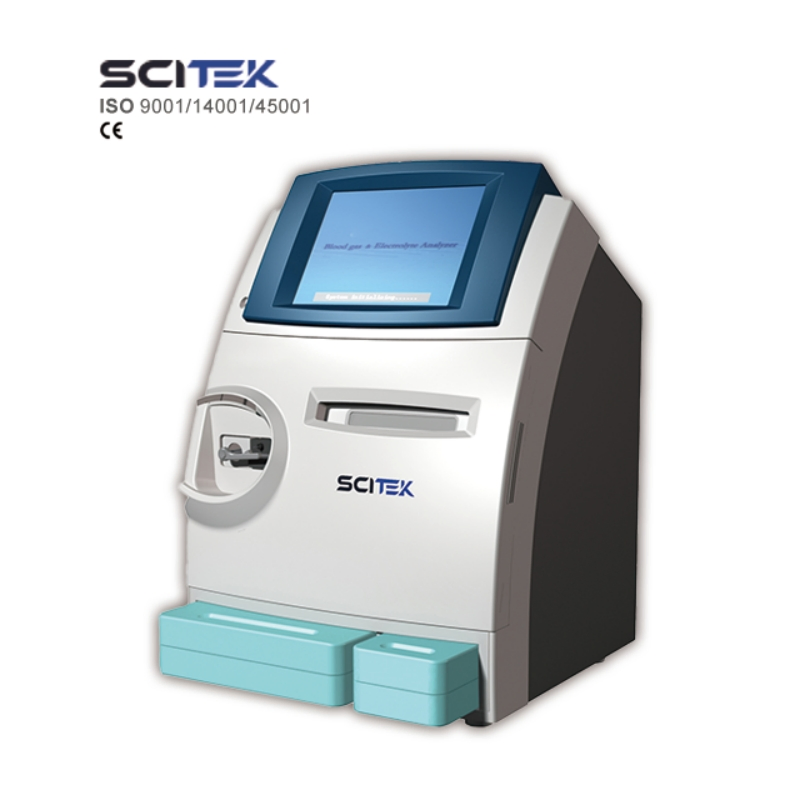

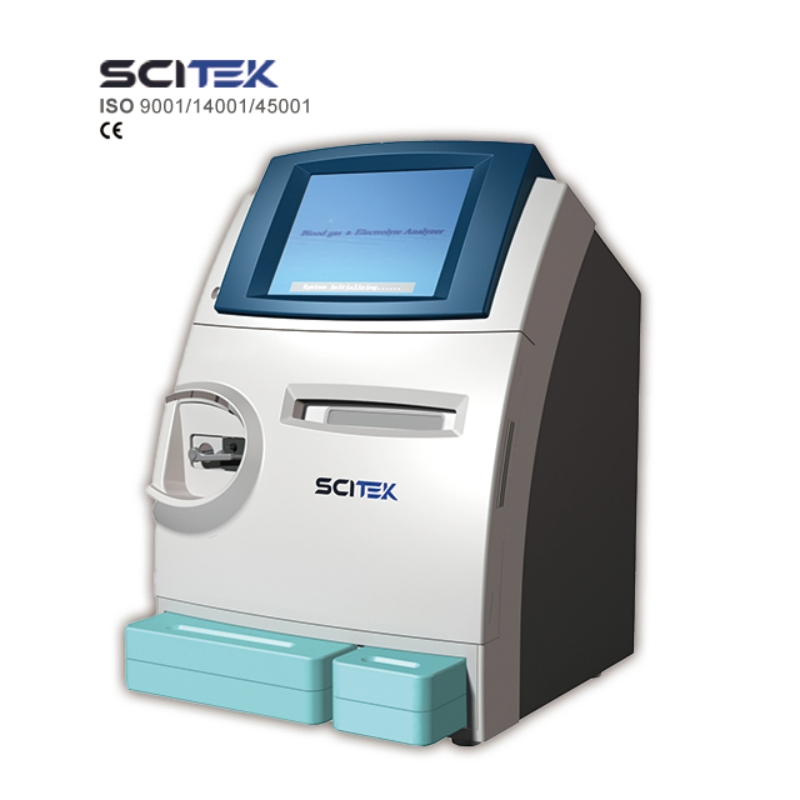

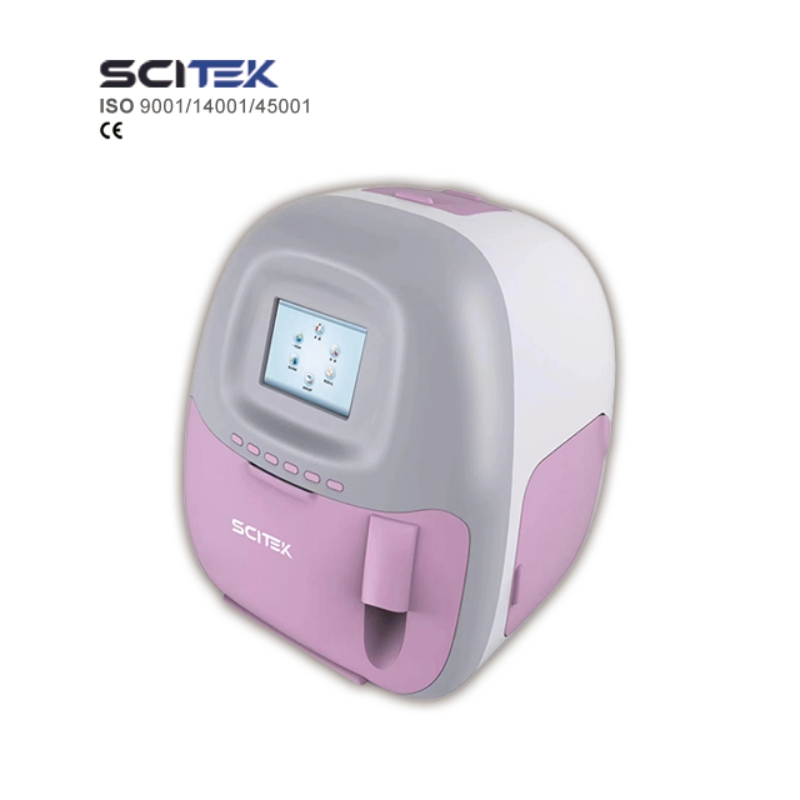

SCITEK Blood Gas And Electrolyte Analyzer Automatic Sampling LCD touch screen

Still deciding? Get samples of $ !
Request Sample

Product Description

📊 Basic Information
Model NO.
BGE-150I
Certification
CE, ISO13485, ISO 9001/14001/45001
Group
All groups
Measurement Items
PH, PCO2, PO2
Sample
Whole blood 150 microliters
Test Method
Automatic sampling
Testing time
50s
Printer
Build-in thermal printer
Interfaces
RS232
Power Supply
100V~240V , 50/60Hz
Origin
China
Production Capacity
100 Units/Months
📝 Product Description

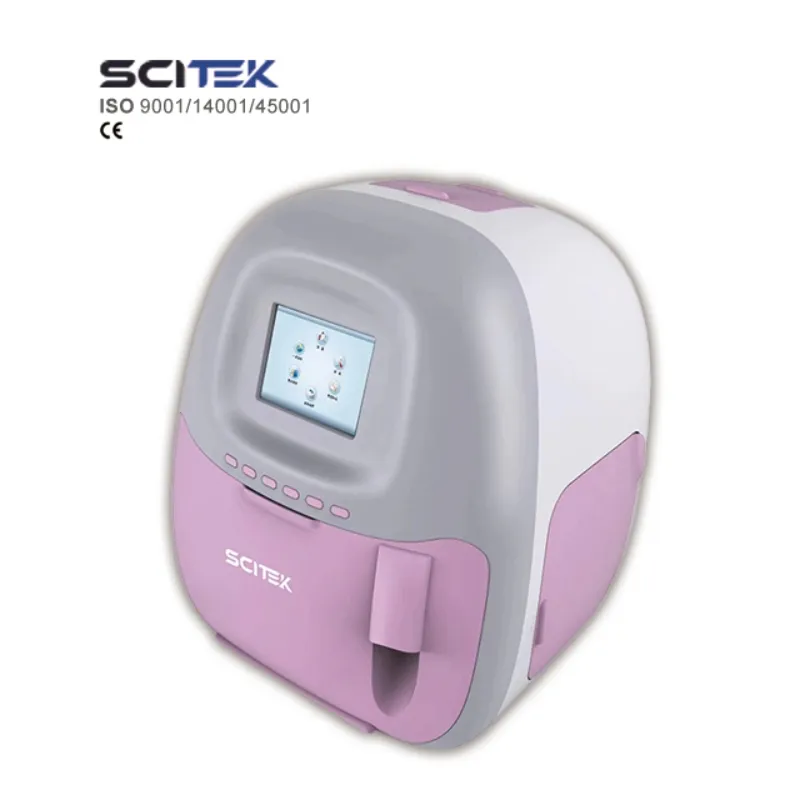

Blood Gas And Electrolyte Analyzer
  • The solid-state electrodes provide accurate measurements and a long service life. The solid-state electrode eliminates the interference of other ions in the sample, resulting in better reproducibility.
  • Full auto-sampling function to ensure the normal operation of the instrument and the safety of the operator.
  • Comprehensive testing of blood gases, electrolytes, oxygen saturation, etc., completing all tests in one go.
  • Electrode channels can be selected according to requirements, reducing actual consumption and minimizing maintenance costs.
  • Color touch screen for easy operation and viewing of test results.
⚙️ Product Parameters
Model BGE-150I
Measurement ItemsPH, PCO2, PO2
Calculation ParametersPH(TC), PCO2(TC), Po (TC), HCO3, SBC, BE, Beecf, TCO2, SO2%, P50, A-Ado2, RI
SampleWhole blood 150ul
Test MethodAutomatic sampling
Testing time50s
PrinterBuild-in thermal printer
Display screen8″TFT colorful LCD touch screen
Storage≥5000 test results
InterfacesRS232
Power supply100v~240V , 50/60Hz
Shipping size(W×D×H)(mm)650x600x700
N.W./G.W. (kg)30/40
Item Reference Range Linearity Range
PH7.35 - 7.453.000 - 12.0000
PO260 - 100 mmHg0 - 800.0 mmHg
PCO235 - 45 mmHg2.0 - 200.0 mmHg
📜 Certifications & Profile
Certifications
Profile
🚀 Advantages & Logistics
Advantages
Packaging and Shipping
FAQ
FAQ Header
FAQ Details
What are the primary measurement items of the BGE-150I?
The analyzer primarily measures PH, PCO2, and PO2 levels in the sample.
What type of sample and volume is required for testing?
The device requires 150 microliters of whole blood for a complete analysis.
How long does it take to get the test results?
The testing time is very efficient, taking only 50 seconds per sample.
What are the benefits of using solid-state electrodes?
Solid-state electrodes provide high accuracy, a long service life, and eliminate interference from other ions, ensuring excellent reproducibility.
Does the instrument support automatic operation?
Yes, it features a full auto-sampling function which ensures consistent operation and enhances safety for the operator.
How many test results can the device store?
The built-in storage can hold 5000 or more test results for easy retrieval and management.
