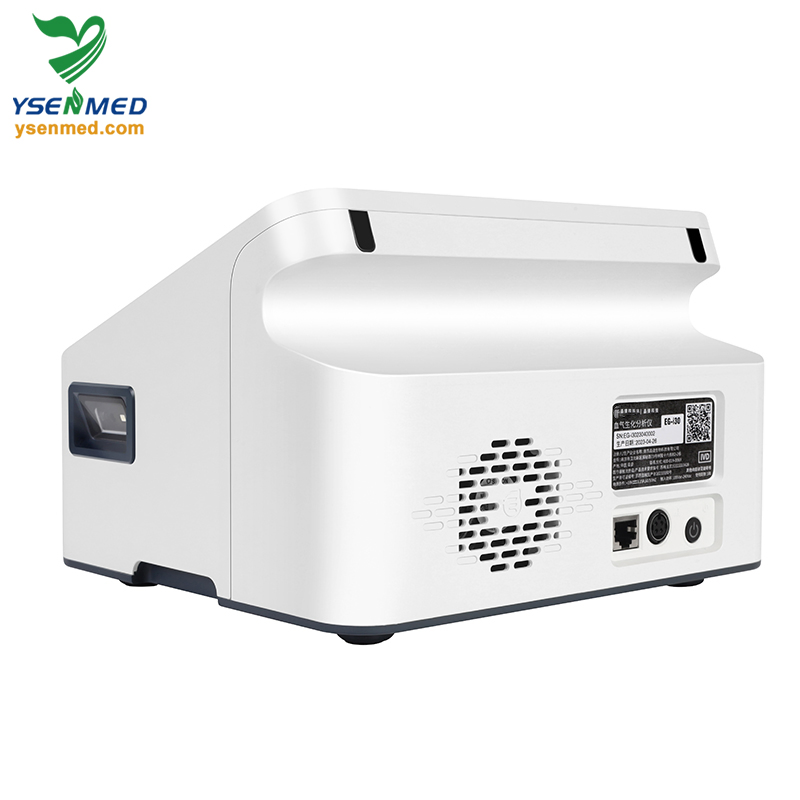

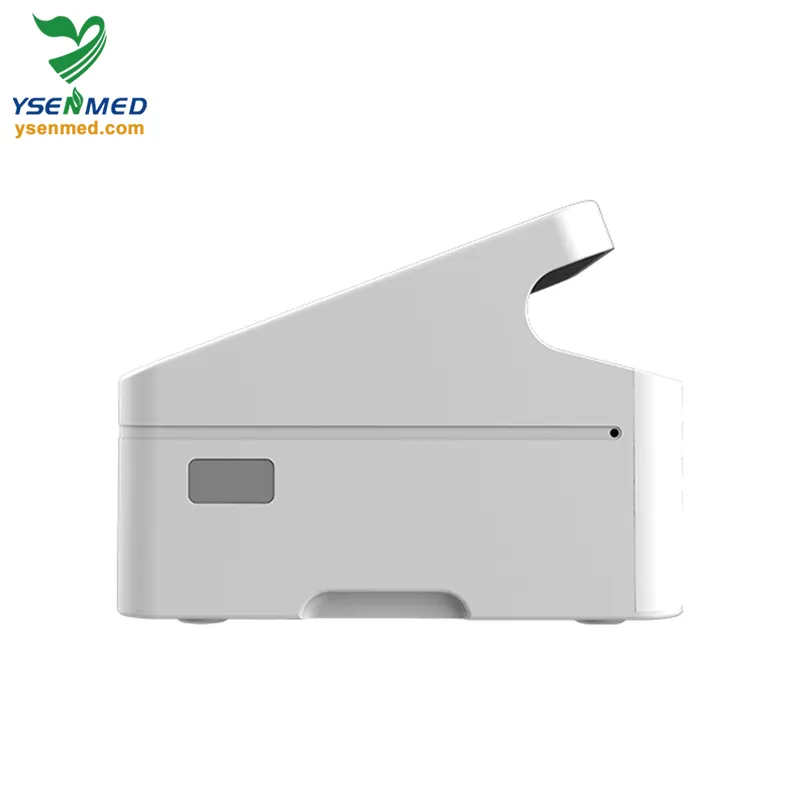

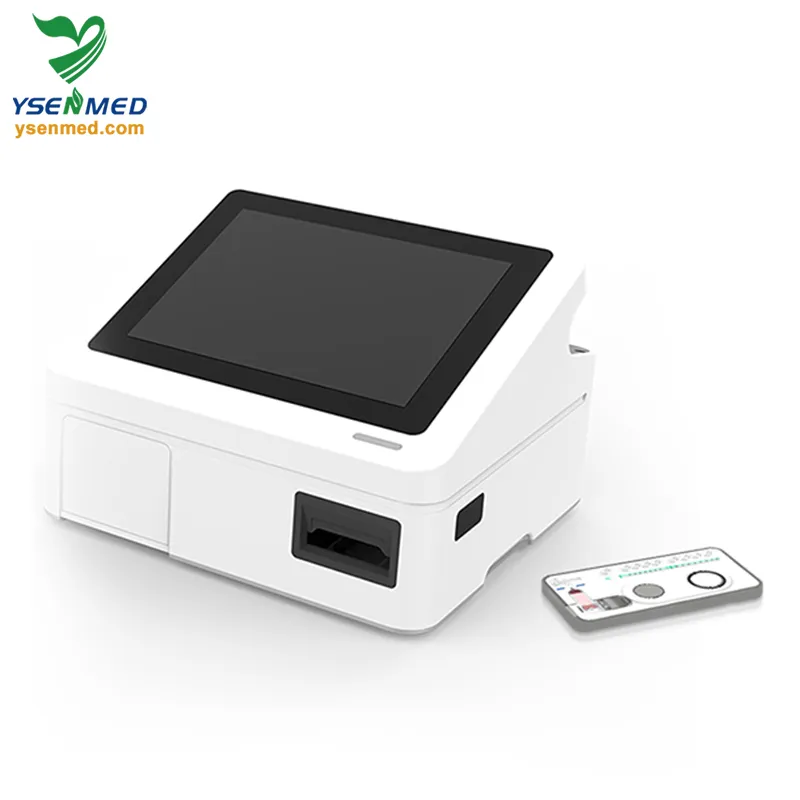

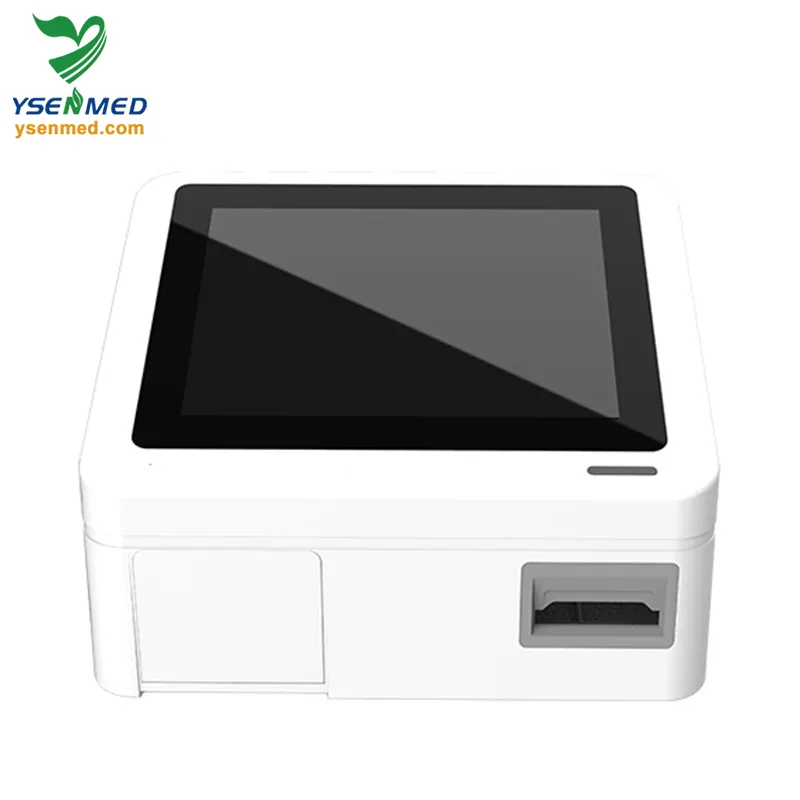

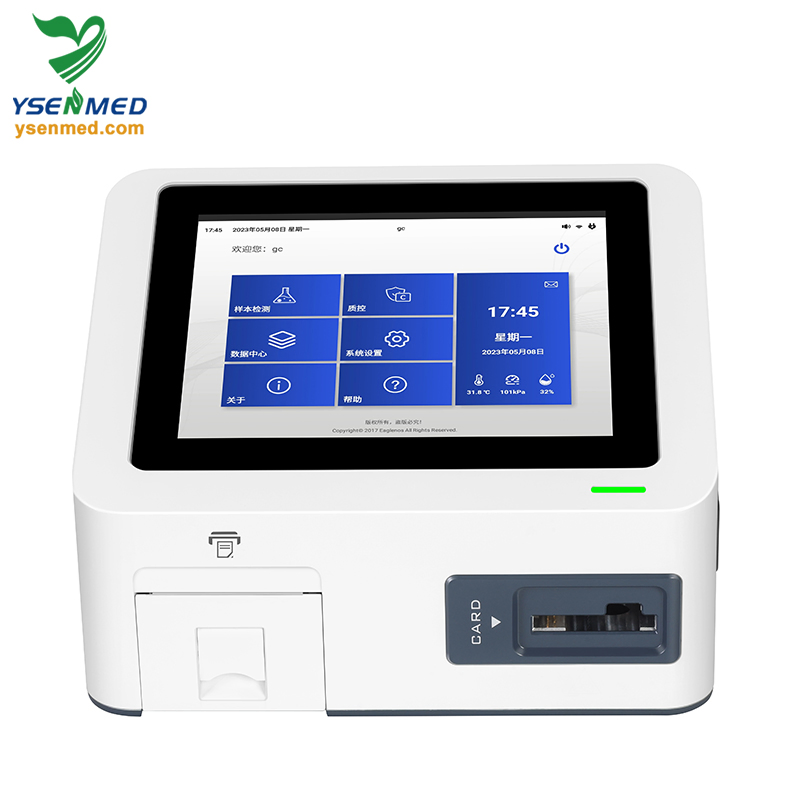

YSTE-BG100 Medical Equipment Laboratory Instrument Blood Gas Analyzer
Measures 10 parameters: pH, pCO2, pO2, K+, Na+, Cl-, iCa2+, Glucose, Lactate, Hct. Utilizes microfluidic electrochemical technology.
Instant operation with no pre-heating wait. Complete calibration and testing in just 3 minutes with laboratory-level results.

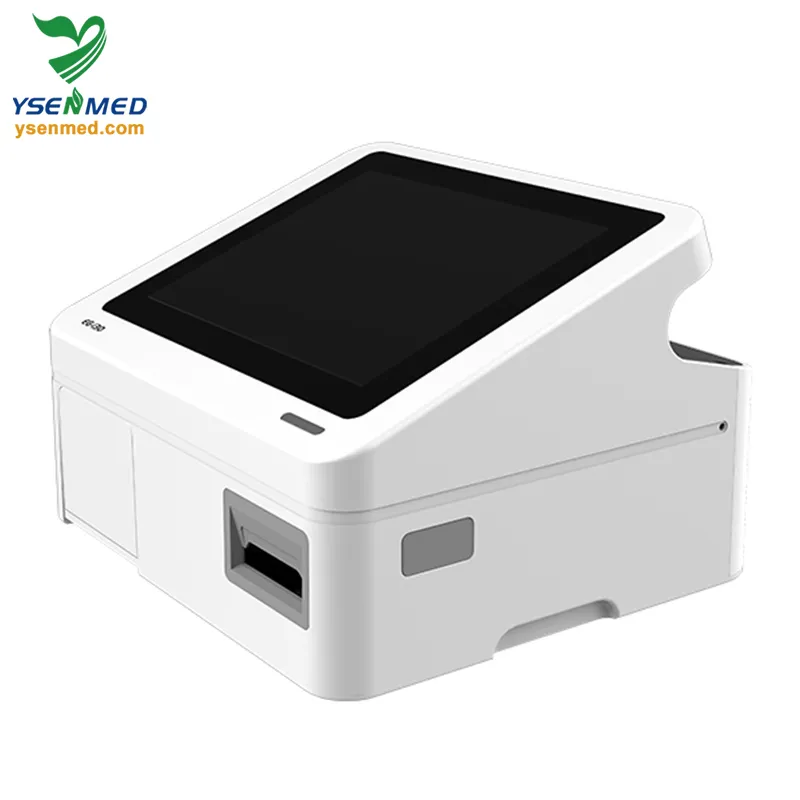

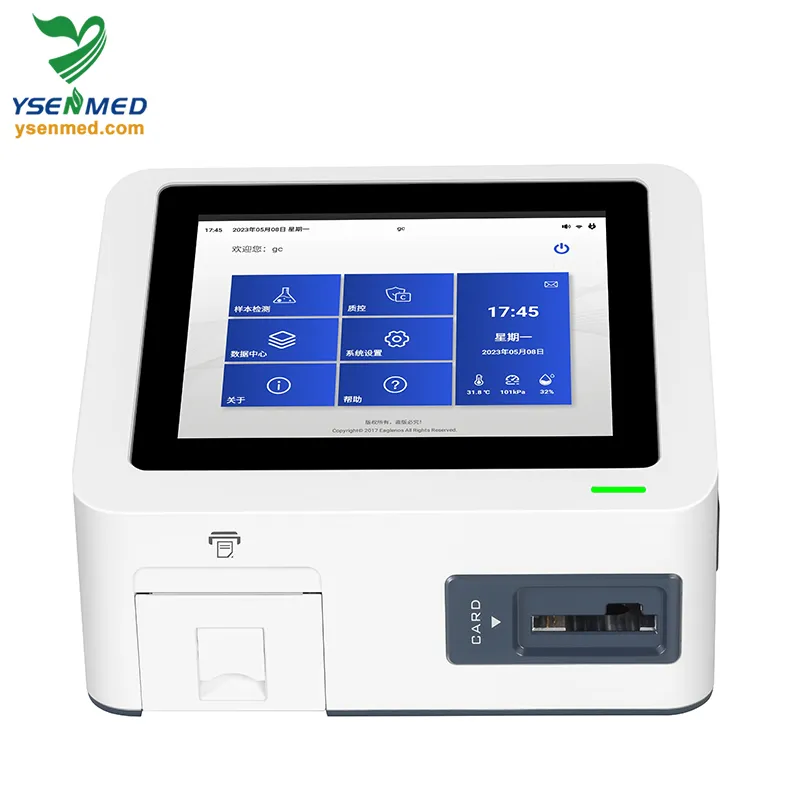

Maintenance-free design with no fluidic pathways. Features an 8-inch capacitive touch screen with built-in video tutorials.
Perform over 60 consecutive tests on a single charge. Stores over 100,000 records with LIS/HIS connectivity.
| Sample Type | Arterial and venous blood |
| Principle Method | Dry electrochemistry/microfluidic method |

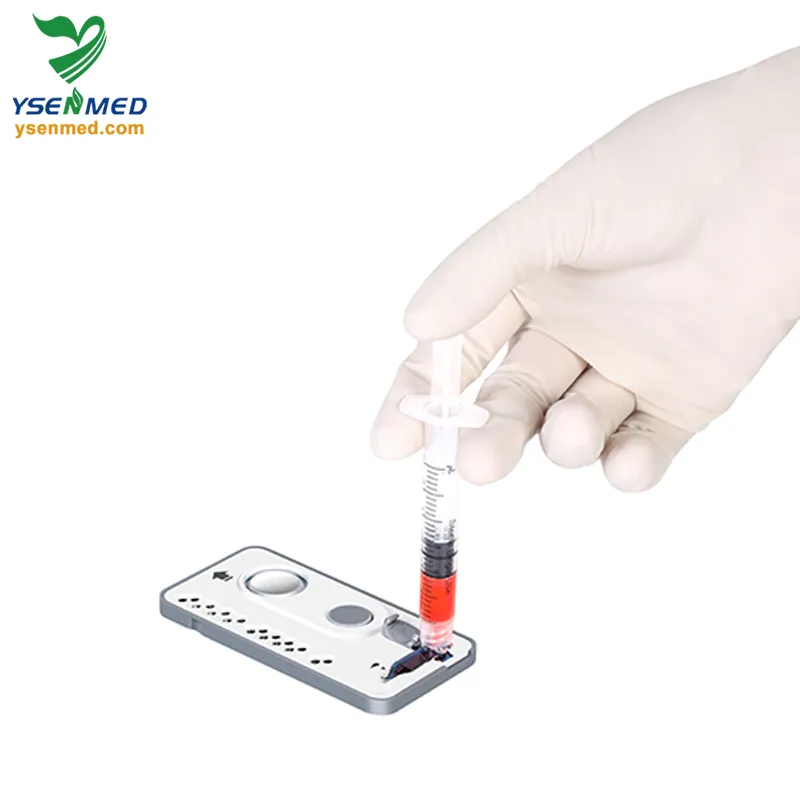

| Blood Sample Volume | 150μL |
| Test Time | 5± 1 min (including calibration) |
| Memory Capacity | 100,000 test results and 10,000 QC results |
| Operating Temp | 10 ºC ~ 30 ºC |

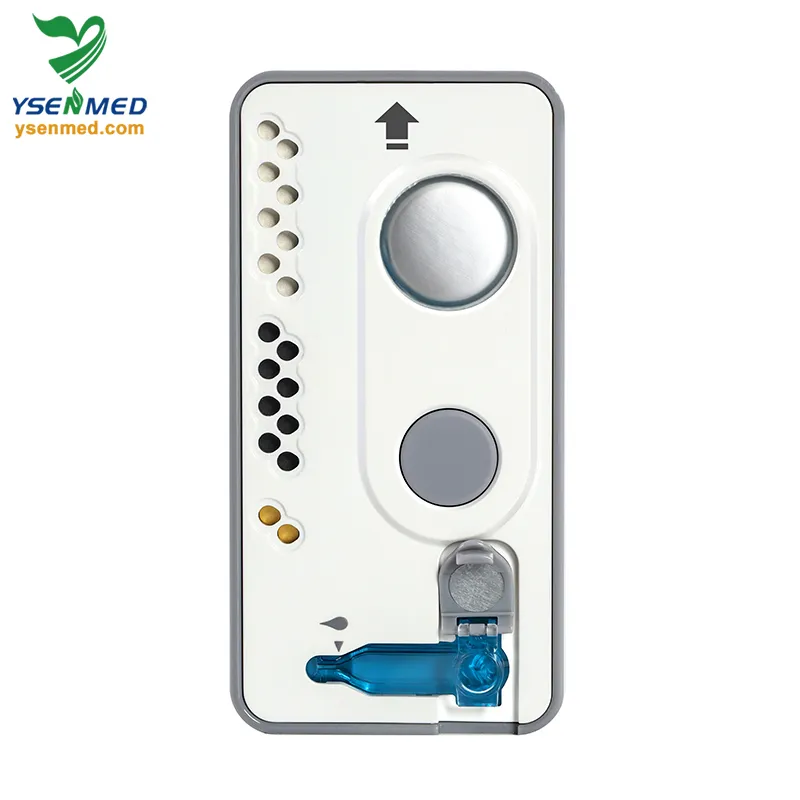

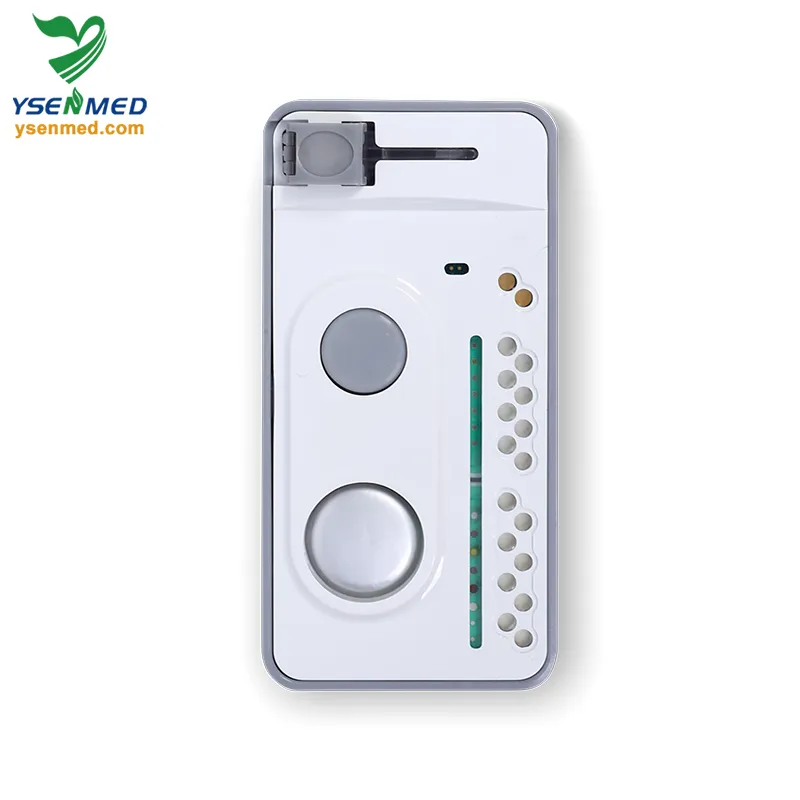

| Cartridge Storage | Room temperature up to 8 months |
| Dimensions | 235mm × 210mm × 160 mm |
| Weight | 3.0±0.5kg (including battery) |
