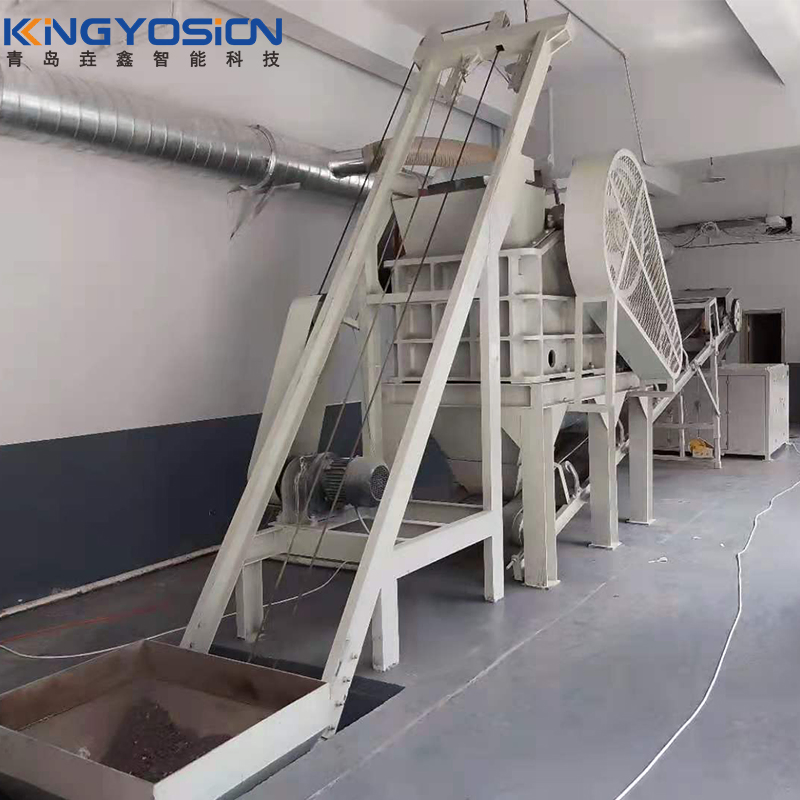

A jaw crusher is used to crush block samples up to 150mm to 20-35mm. According to laboratory requirements, a grinder can be added to the system to prepare samples with smaller particle sizes.

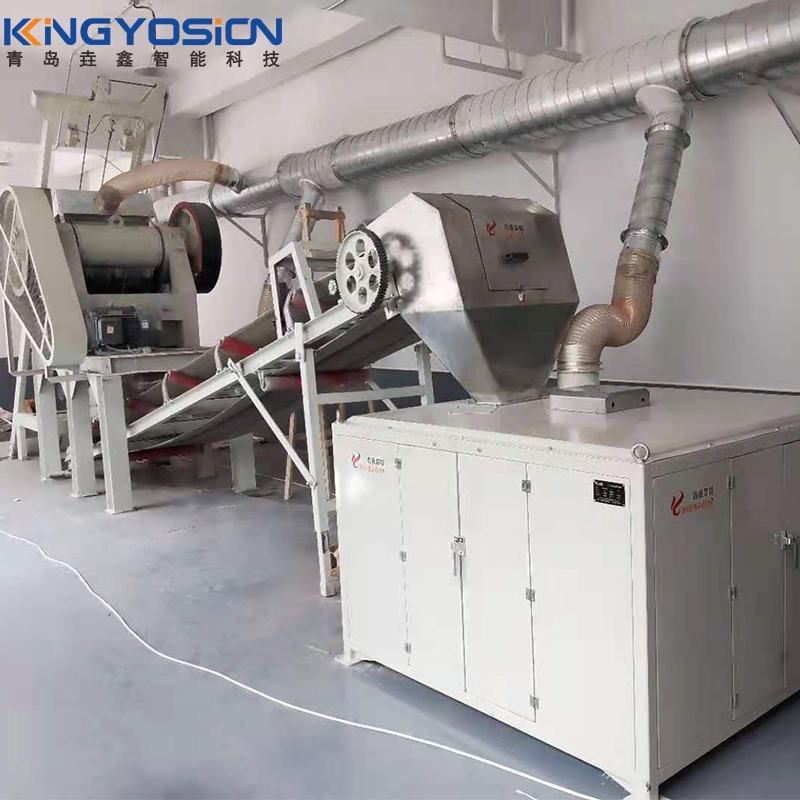

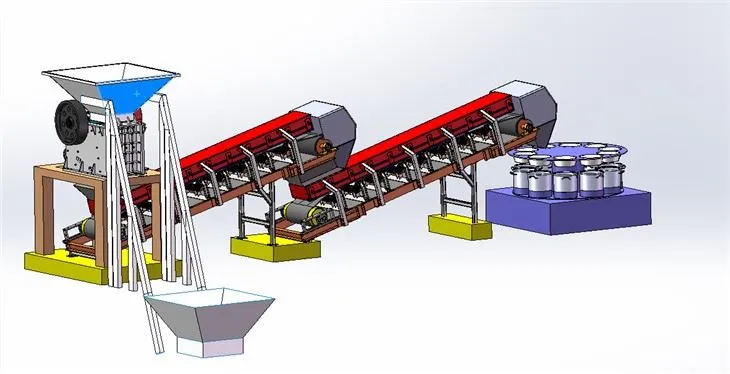

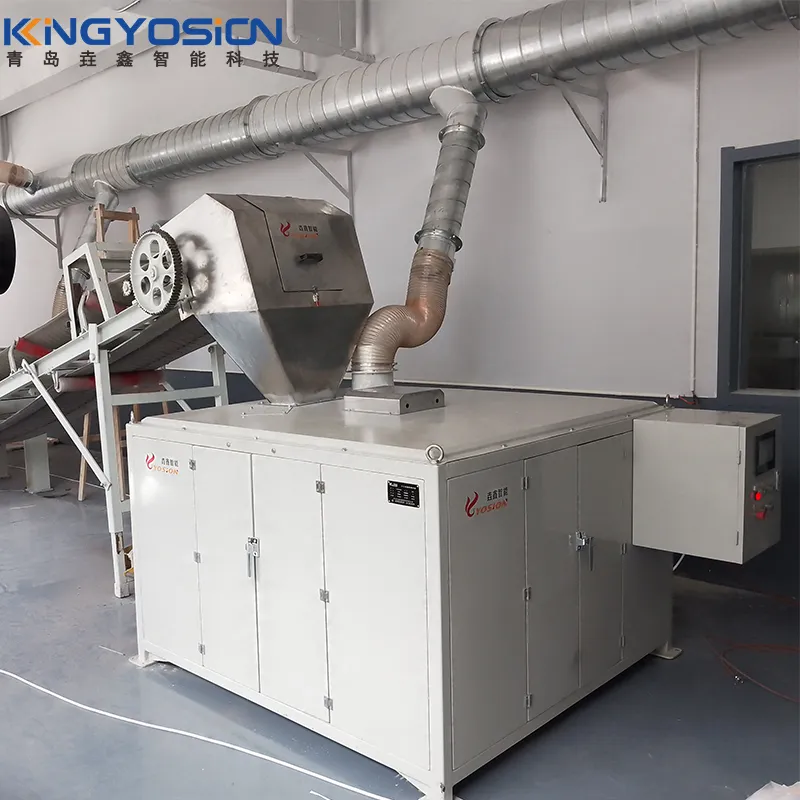

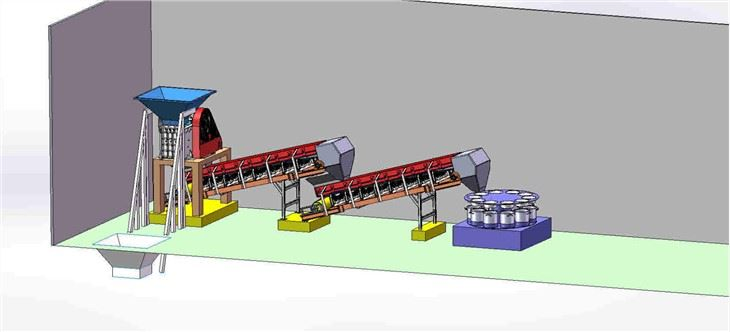

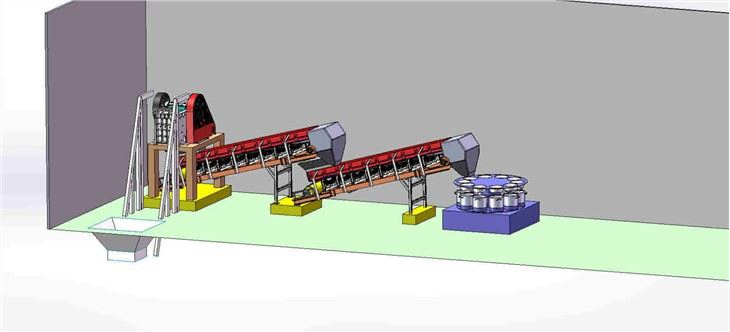

After crushing, the samples are transported to the rotary sample divider through the primary and secondary belt conveyor for reduction. The speed of the conveyors and the splitting are adjustable. The drop between the primary and secondary conveyors allows the samples to be mixed.
Bulk sample processing of bulk materials, ore, coal, geological samples, industrial raw materials, waste materials and other products.
The Automatic Batch Sample Crushing Splitting Preparation System can realize mass sample crushing, division and mixing, etc., and provide representative test samples for subsequent chemical analysis.
| Feeding Size (mm) | ≤150 |
| Feeding Hopper Mass (Kg) | 100-300 |
| Lifting Height (mm) | 2500 |
| Output Size (mm) | 20-35 |
| Conveyor Speed | Adjustable |
| Splitting Speed | Adjustable |
| Division Rate | 1:8 or 1:10 |
| Dimension (LxWxH mm) | 8000x4000x3000 |
| Weight (Kg) | 6850 |
