Product Description

Desktop Cold Magnetron Sputtering System

Desktop Cold Magnetron Sputtering Deposition System For Conductive Coating Of SEM Sample Preparation

Model: JY-JS02 - Cold Magnetron Sputtering Deposition System

Basic Information
Coating
Vacuum Coating
Substrate
Other
Certification
CE, ISO, RoHS
Condition
New
MOQ
1
Voltage
110V/220V
Transportation
Sea; Express etc
Trade Term
EXW; FOB; DDP; DAP etc
Transport Package
Wood Packing
Specification
Customized
Origin
China

Product Description

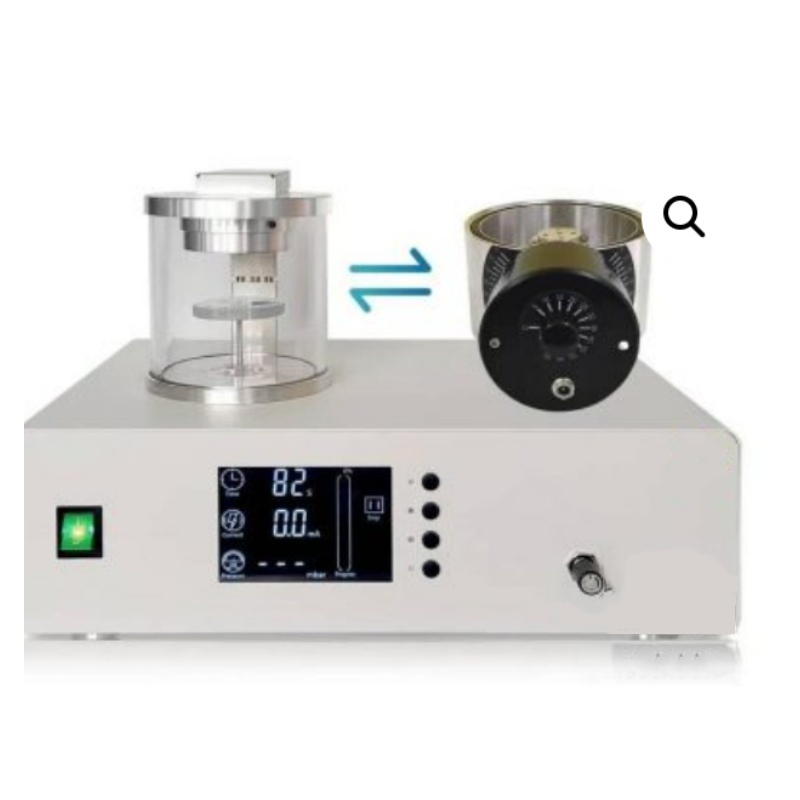

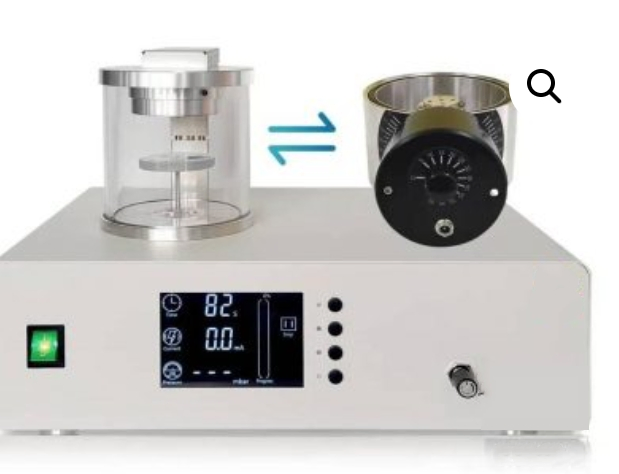

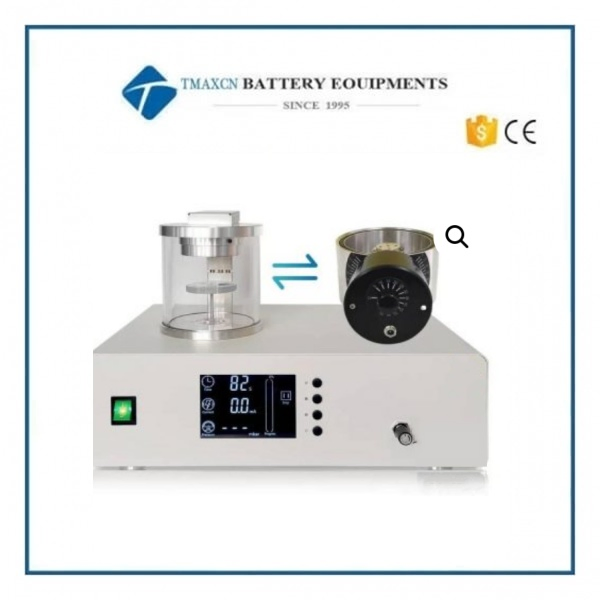

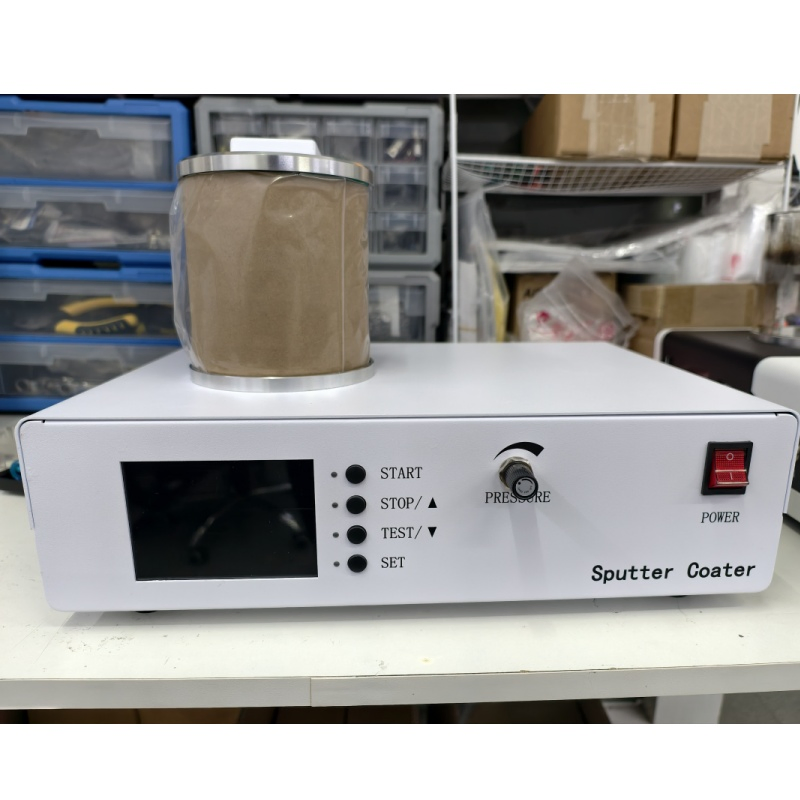

The JY-JS02 is a benchtop cold magnetron sputtering coating system equipped with a standard rotating/tilting sample stage. It is specifically designed for high-quality conductive coating of non-conductive samples with varied surface morphologies for SEM imaging. It also meets the requirements for electrode coating, semiconductor materials, and other thin-film applications.

Key Features
1
"Ultra-Cold" Sputtering: Utilizes a high-efficiency, low-voltage DC magnetron source to prevent thermal damage to sensitive samples.
2
Wide-Angle Coverage: Innovative magnetron design ensures uniform coating coverage, even for closely positioned samples.
3
Fast Operation: Independent solenoid valves for venting, purging, and exhaust enable rapid system cycling.
4
Stable Coating Performance: Precisely controlled sputtering current ensures consistent deposition rates and optimal coating quality.
5
Multi-Material Compatibility: Supports various metal targets (Pt standard, optional Au, Au/Pd, or Pt/Pd) with quick target replacement.

Technical Specifications

Sputtering System
Parameter Specification
Target MaterialStandard: Pt (57mm diameter × 0.1mm thickness); Optional: Au, Au/Pd, Pt/Pd
Sample Stage Rotation0-60 rpm (continuously adjustable)
Sample Stage Tilt-45° to +45° (continuously adjustable)
Stage Diameter40mm (holds 4 standard sample holders; custom sizes available)
Sputtering CurrentMicroprocessor-controlled (0-99 mA) with safety interlock
Vacuum RangeAtm ~3 Pa
Control MethodProgrammable (1-999s) with Start/Pause buttons; automatic pumping/sputtering/venting
Vacuum Pump
Parameter Specification
Pumping Speed133 L/min
Ultimate Vacuum0.05 Pa
Noise Level56 dB

Applications & Advantages

Ideal for SEM Sample Preparation: Ensures high-conductivity coatings without thermal damage.
Versatile Material Deposition: Suitable for Pt, Au, and alloy coatings in nanotechnology and materials research.
User-Friendly Operation: Automated processes and ergonomic design enhance efficiency.
Compact & Reliable: Benchtop design saves lab space while delivering professional-grade performance.

Certifications

Certification 1 Certification 2 Certification 3 Certification 4 Certification 5

Frequently Asked Questions

What is the primary application of this sputtering system?
The system is primarily used for high-quality conductive coating of non-conductive samples for SEM (Scanning Electron Microscopy) imaging, as well as electrode coating and thin-film applications.
How does "Ultra-Cold" sputtering protect my samples?
It uses a high-efficiency, low-voltage DC magnetron source which minimizes heat generation during the sputtering process, preventing thermal damage to delicate or heat-sensitive samples.
Can I use different target materials?
Yes, while Platinum (Pt) is standard, the system is compatible with Gold (Au), Gold/Palladium (Au/Pd), and Platinum/Palladium (Pt/Pd) targets.
Is the sample stage adjustable?
Absolutely. The sample stage features continuous rotation (0-60 rpm) and tilting (-45° to +45°) to ensure uniform coating coverage across varied surface morphologies.
What are the vacuum capabilities of the included pump?
The vacuum pump provides a pumping speed of 133 L/min and can reach an ultimate vacuum of 0.05 Pa, ensuring a clean environment for high-quality deposition.
How is the sputtering process controlled?
The system is microprocessor-controlled and fully programmable (1-999s). It features automated pumping, sputtering, and venting cycles for consistent results.
