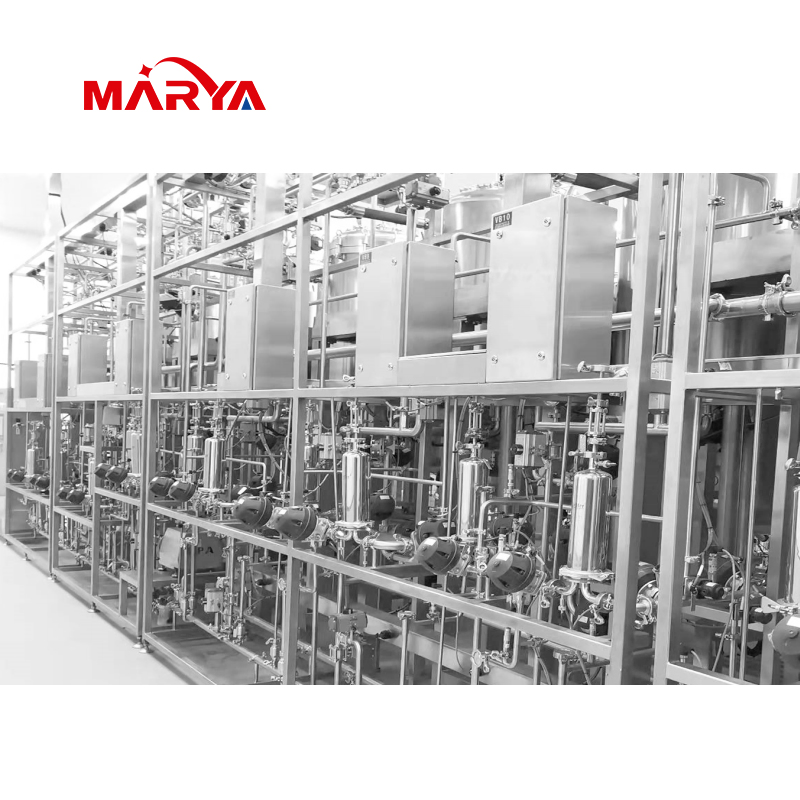

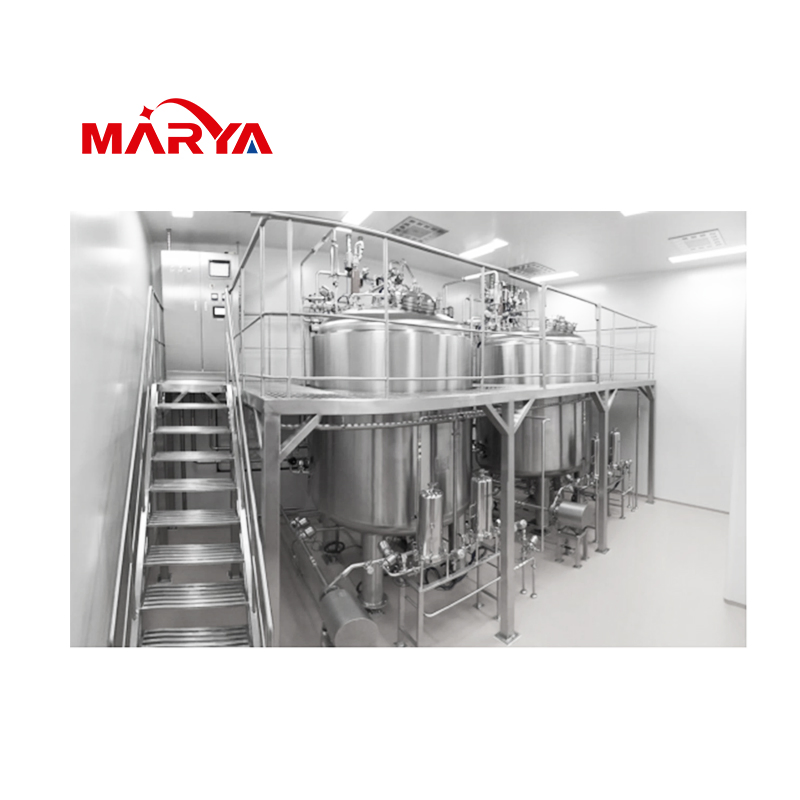

Marya Pharmaceutical Injectable Sample Dispensing System Automatic Sampling Preparation System

1 / 5

Marya Pharmaceutical Injectable Sample Dispensing System Automatic Sampling Preparation System

Customization:	Available
Application:	Biotechnology Industry, Chemical industry, Clinical Diagnosis, Food & Beverage Factory, Food Safety, Forensic Science, Pharmaceutical Industry
Capacity:	20000 L/hr

Send Inquiry

Product Description

Basic Specifications

Model NO.	MY-FS
Certification	CE, FDA, GMP, ISO
Control System	Fully Automatic
Treatment Process	Filtration, Ultrafiltration
Tank Material	Stainless Steel 316L
Working Volume	2~15000L
Temperature Resistance	150℃
Power Supply	380V 50Hz
Protection Level	IP65

Introduction

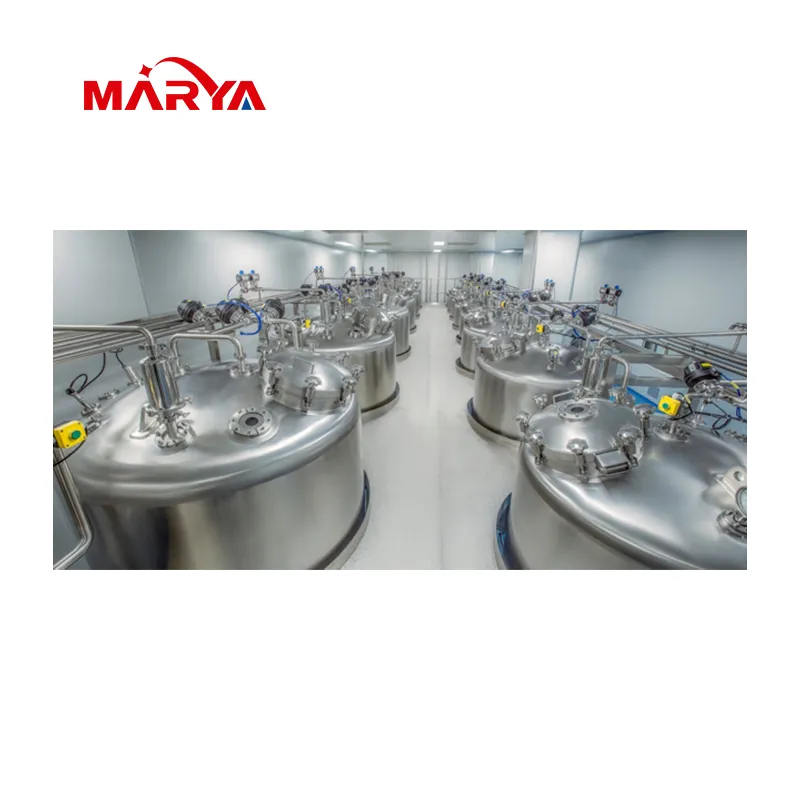

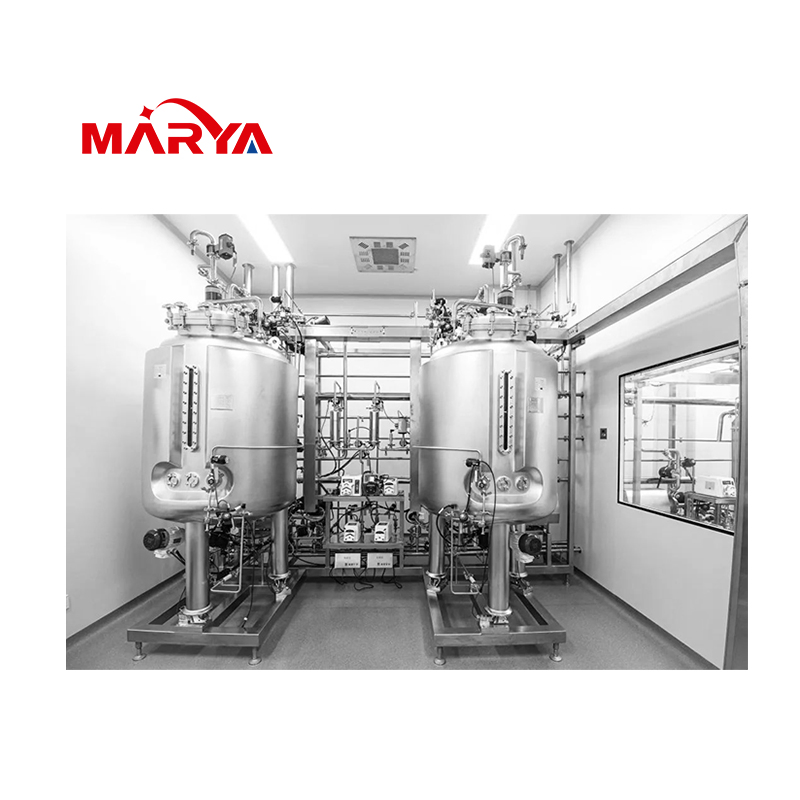

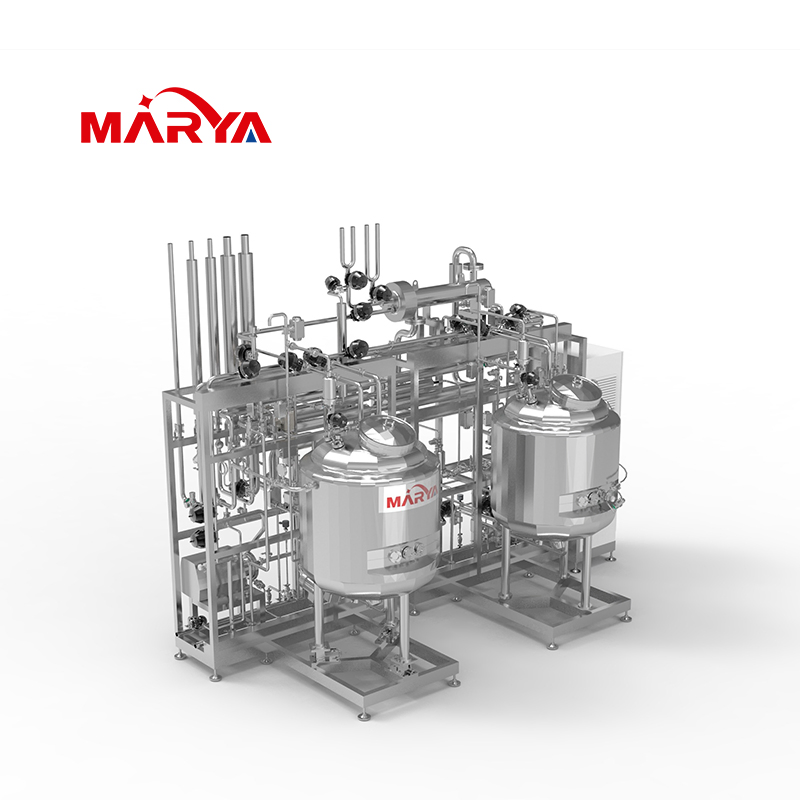

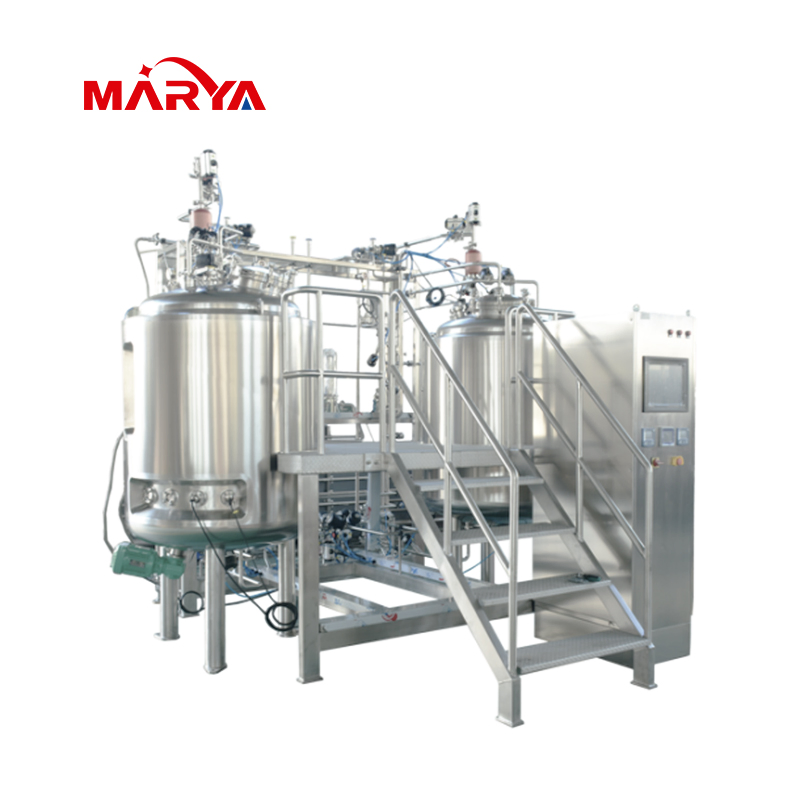

The preparation system is a type of pharmaceutical equipment used to mix and dispense liquids by adding an API to a solvent such as water for injection, and then formulating it into a pharmaceutical agent that meets the desired concentration after stirring, heating, sterilization and filtration.

System Classification

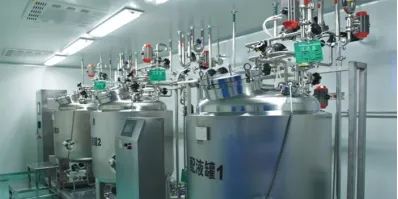

1. General preparation system: Used for general small molecule chemical preparation, such as aqueous injection and lyophilized powder injection.

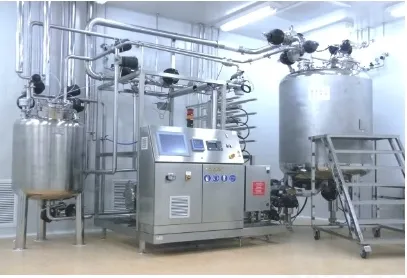

2. Complex preparation system: Used for preparations with complex processes, such as suspensions, emulsions, liposomes, and microspheres.

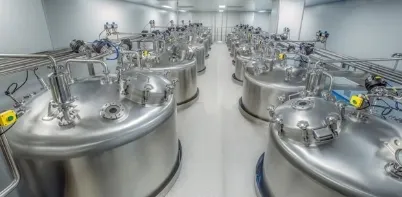

3. Biological preparation system: Used for biological engineering products like antibodies, vaccines, blood products, and recombinant proteins.

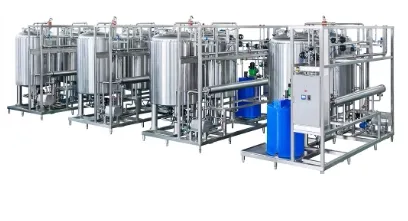

4. CIP station system: Used for on-line cleaning of tanks and pipelines, controlled separately or integrated with other systems.

Key Features

✓ Fully automatic modular design for convenient installation and maintenance.

✓ Follows ASME BPE and GMP design concepts with 3D blind corner requirements.

✓ One-key CIP and SIP control with recipe management and audit tracking.

✓ Real-time monitoring of temperature, dissolved oxygen, and PH with alarm systems.

✓ Stainless steel 316L tanks (2L to 15000L) with electrolytic polishing (Ra < 0.4μm).

✓ Sterilizing-grade PES liquid filters resistant to pH 1-14 and up to 150ºC.

Product Parameters

Name	Parameters
Working volume	2~15000L
Stirring speed control accuracy	Range 0~450rpm ±3.0%
Temperature control accuracy	Range -10~150ºC ±0.2ºC
Pressure control accuracy	Range -0.01Mpa~0.06Mpa ±0.01MPa
Weighing control accuracy	3‰
Power supply	380V 50Hz
Sealing and protection levels	IP65

Product Gallery

Frequently Asked Questions

Q: What is the working volume range of the system? A: The system supports a wide working volume range from 2L up to 15,000L to accommodate various production scales.

Q: What materials are used for the pharmaceutical tanks? A: The tanks are made of high-quality Stainless Steel 316L with an internal surface roughness (Ra) of less than 0.4μm, achieved through electrolytic polishing.

Q: Does the system comply with international pharmaceutical standards? A: Yes, the system follows ASME BPE and GMP design concepts and meets the requirements for EU PED and FDA certifications.

Q: How is the cleaning and sterilization process managed? A: The system features a fully automatic CIP (Clean-in-Place) and SIP (Sterilize-in-Place) control system that can be activated with a single key.

Q: What are the temperature and pH limits for the filtration system? A: The sterilizing-grade PES liquid filters are resistant to solutions with pH values from 1 to 14 and temperatures up to 150ºC.

Q: Can the system monitor key process parameters in real-time? A: Yes, it provides controllable production and automatic detection for parameters such as temperature, dissolved oxygen, and PH, with built-in alarm functions.
