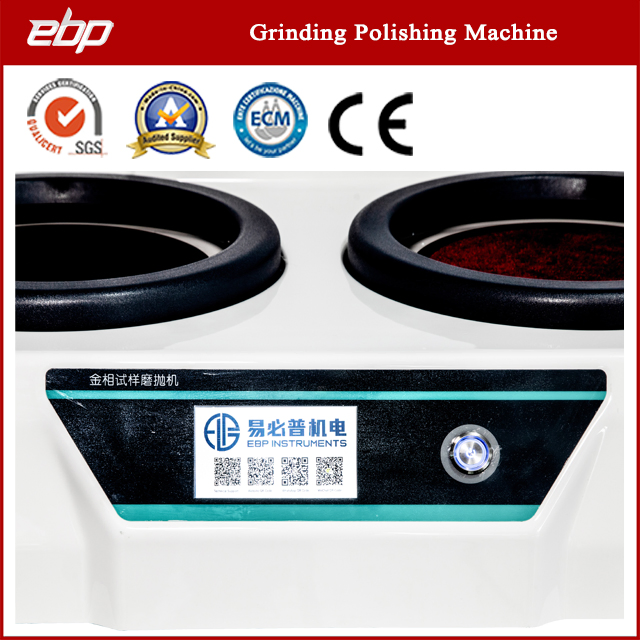

Grinding & Polishing System for Metallographic Sample Preparation

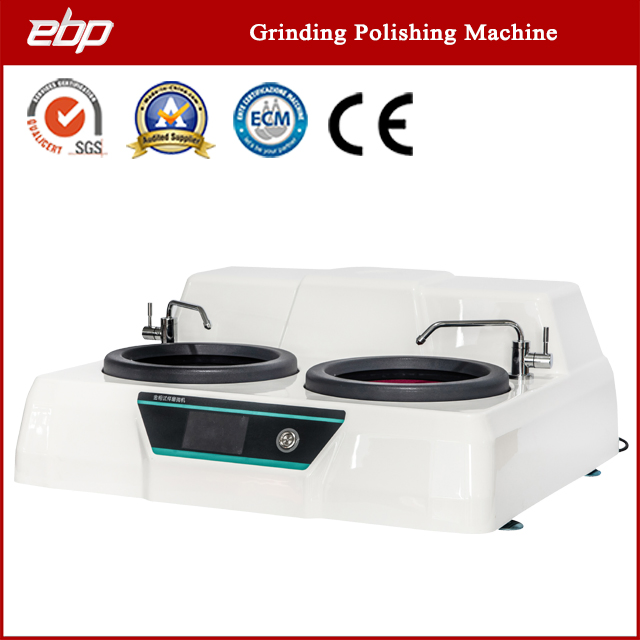

In the process of metallographic sample preparation, the grinding and polishing of the sample is an indispensable process. After the sample is ground and polished, a bright mirror-like surface can be obtained. The eGP-2T metallographic sample grinding and polishing machine adopts high quality touch screen control, adjustable stepless speed between 50-1000r/min. The grinding and polishing of the sample can be completed by replacing the metallographic sandpaper and polishing fabric. It is especially suitable for metallographic laboratories in factories, colleges and research institutes.
| Model | eGP-2T |
|---|---|
| Working Plate Size | Standard φ203mm (optional 230mm, 250mm) |
| Speed Range | Stepless: 50-1000r/min; 8 Constant speeds available |
| Rotate Direction | Clockwise - Anticlockwise (reversible) |
| Speed Display | Touch screen |
| Working Mode | Manual |
| Motor Power | 0.55KW |
| Power Supply | AC220V, 50Hz |
| Dimension | 770 x 730 x 320mm |
| Weight | 42kg |
| Item | Quantity | Item | Quantity |
|---|---|---|---|
| Pressing ring φ203 | 2 pieces | Water outlet pipe φ32 | 1 piece |
| Abrasive paper | 2 pieces | Water retaining ring | 2 pieces |

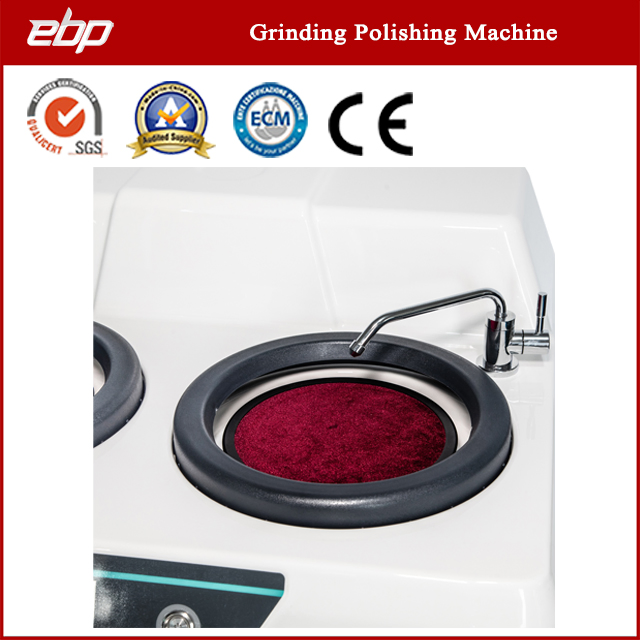

| Polishing cloth | 2 pieces | Water inlet pipe | 1 piece |
| Manual | 1 piece | Certificate | 1 piece |

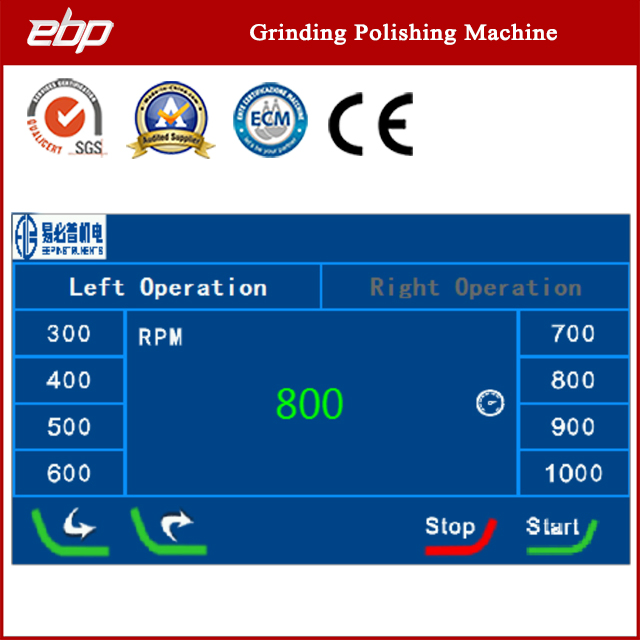

A1: The machine features stepless speed adjustment ranging from 50 to 1000 r/min, along with 8 pre-set constant speeds (300 to 1000 r/min) for easier operation.
A2: Yes, the system supports both clockwise and anticlockwise (reversible) rotating directions to suit different grinding and polishing needs.

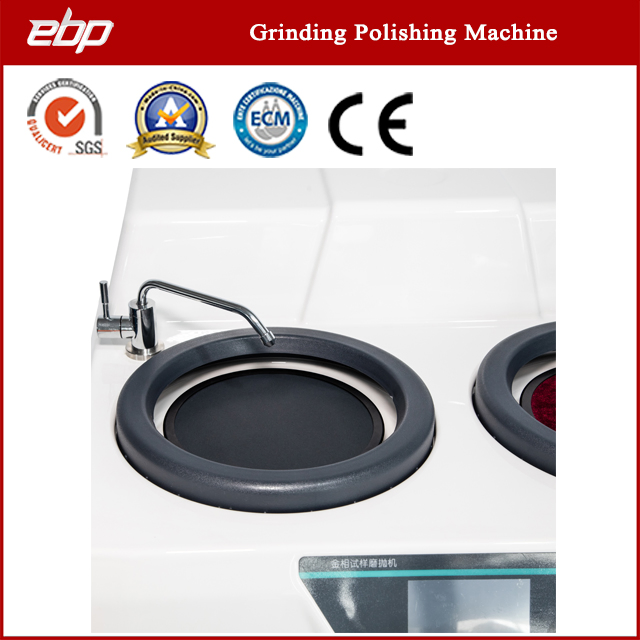

A3: The standard working plate diameter is 203mm. Optional sizes of 230mm and 250mm are also available upon request.

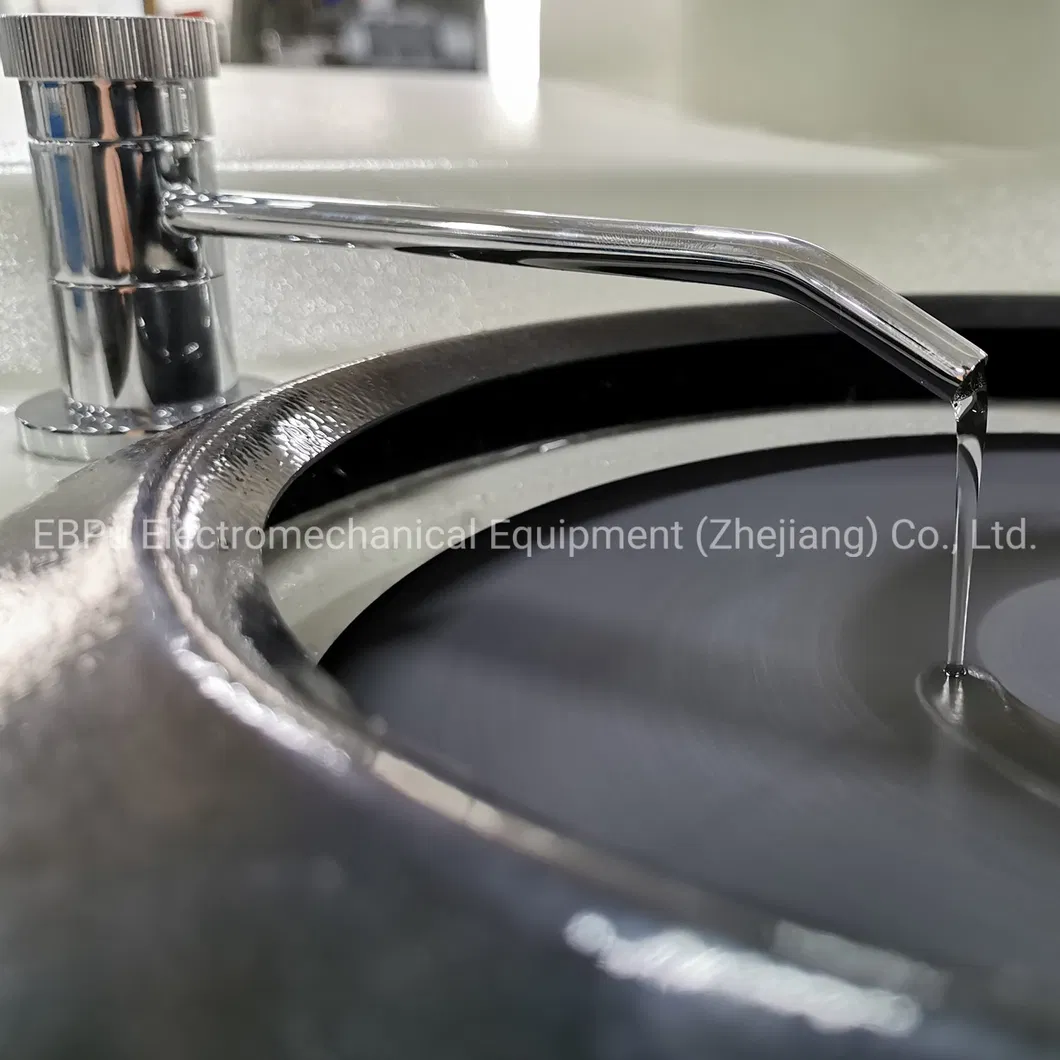

A4: The machine includes a built-in water cooling system with a stainless steel 304 faucet to prevent sample overheating, ensuring the metallographic structure remains undamaged.
A5: Absolutely. It is a multi-usage system designed for coarse grinding, fine grinding, and both coarse and fine polishing within a single unit.
A6: The shell is made of high-end ABS material, which provides a novel, beautiful appearance and excellent durability for laboratory environments.
