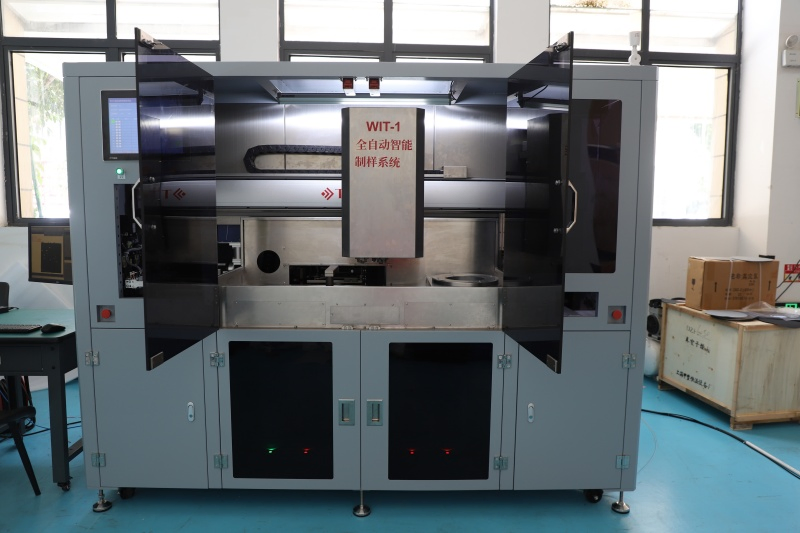

Intelligent WIT-1 Sample Preparation System for Efficient Laboratory Workflows

Customization:	Available
After-sales Service:	1 Year
Processing Method:	Grind

i

Basic Information

Warranty

1 Year

Environment

Normal Pressure and Temperature

Display

Digital Display

Performance

Automatic

Power Supply

220V

Certification

CE

Weight

3000kg

Speed

100-1000rpm

Diameter

250mm

Direction

Cw/Ccw

Torque

20-360n

Rated Current

20A

Power

220V, 750W

Accuracy

0.1mm

Quantitative Height

0.1mm-10mm

Transport Package

Wooden Case

Specification

1.3mx2.5m*2.3m

HS Code

90241090

Production Capacity

500PCS/Year

P

Product Description

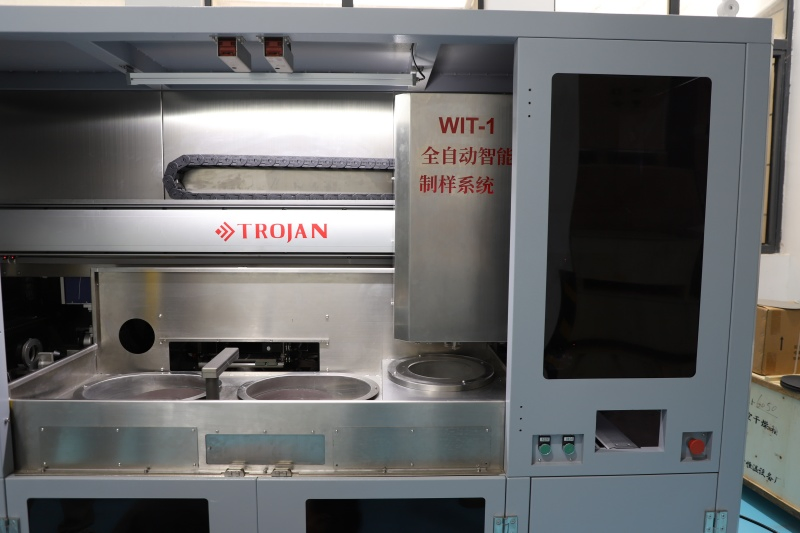

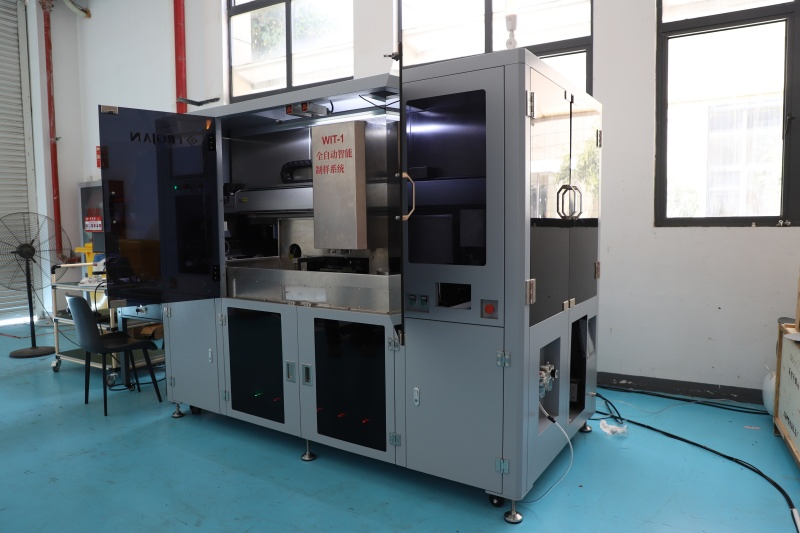

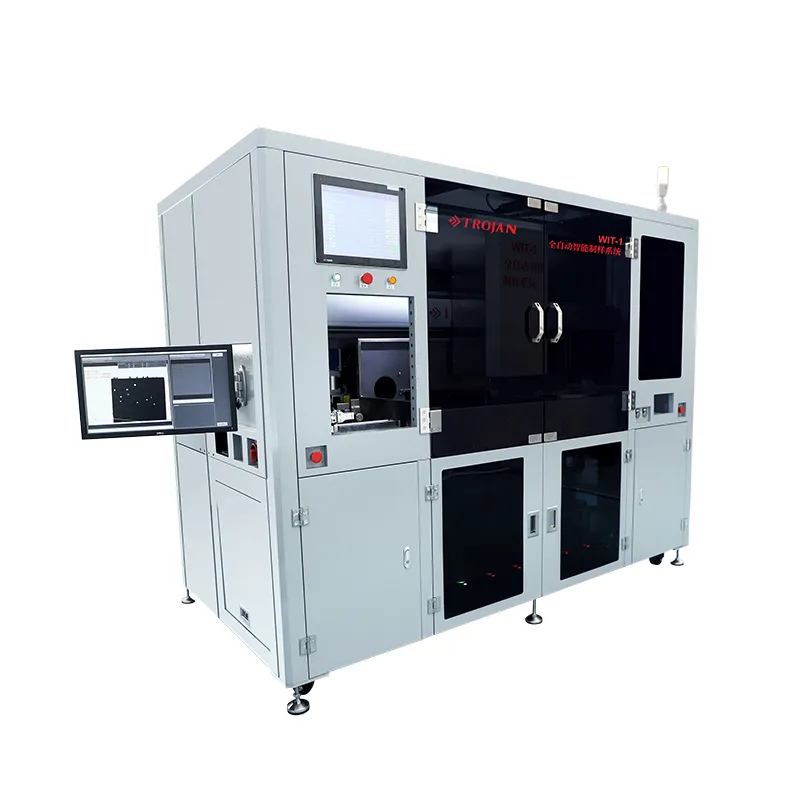

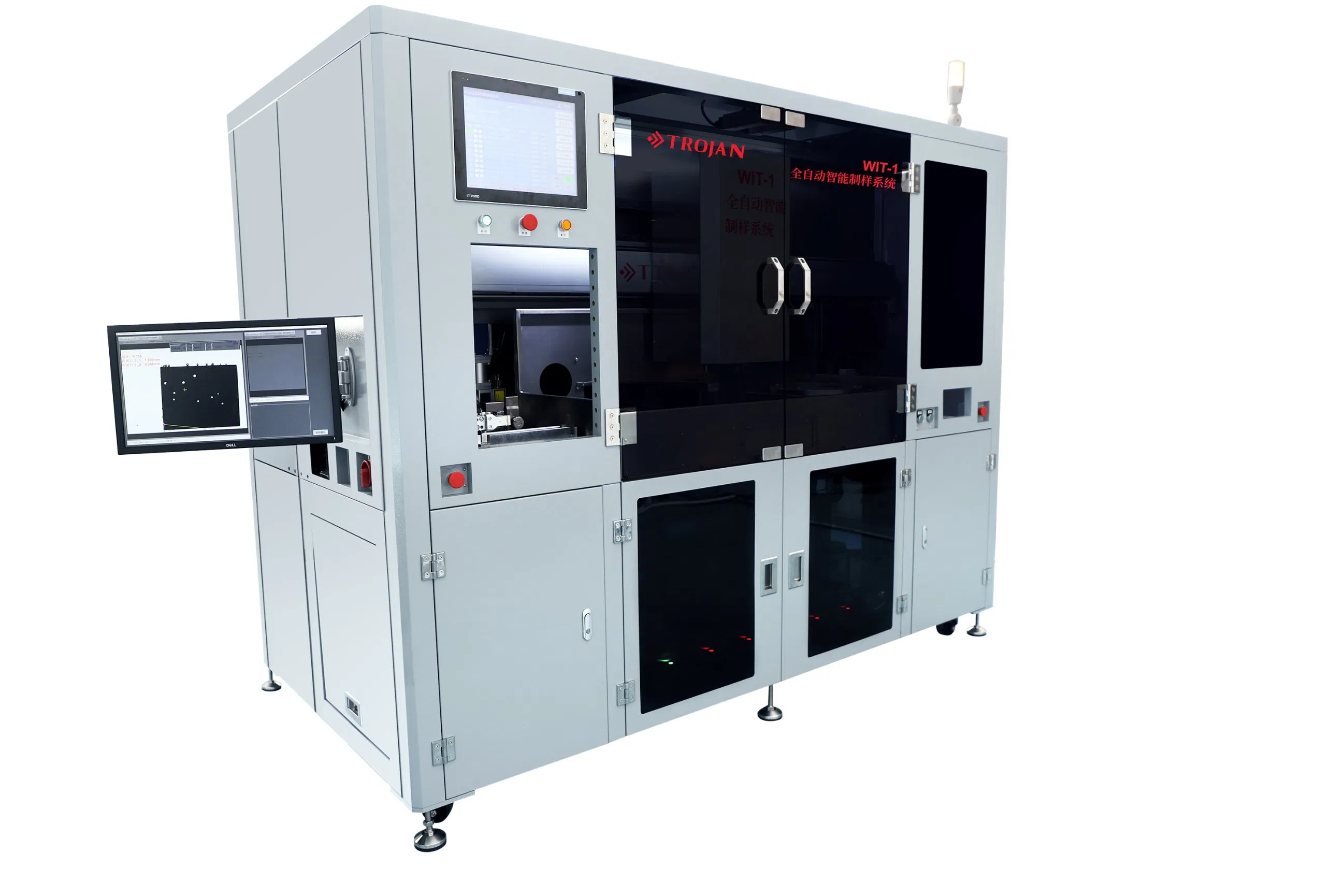

The WIT-1 fully automatic intelligent sample preparation system is specifically developed for cross-sectional slice detection in industries such as semiconductors and PCB. It is used for precise positioning detection and analysis of PCB holes, copper, solder joints, and tin balls. Using a high-definition CCD camera, it automatically completes processes including rough grinding, fine grinding, fine polishing, and cleaning.

Technical Specifications		Details
Input Requirements	Electricity	220VAC, 20A
	Compressed Air	Pressure > 0.6MPa
	External Water	Water pressure < 0.3MPa
Sample Mounting	Square Box	22x15x12, 30x27x12, and 46x39x12mm
Alignment Station	Sample Quantity	21
	Camera Pixel	25 Million
	Marking	Laser marking / code
Grinding Head	Rotation	360-degree rotation
Grinding Head	Pressure	5-100N (Single sample)
Working Disc	Speed	100-1000rpm
Working Disc	Diameter	250mm

F

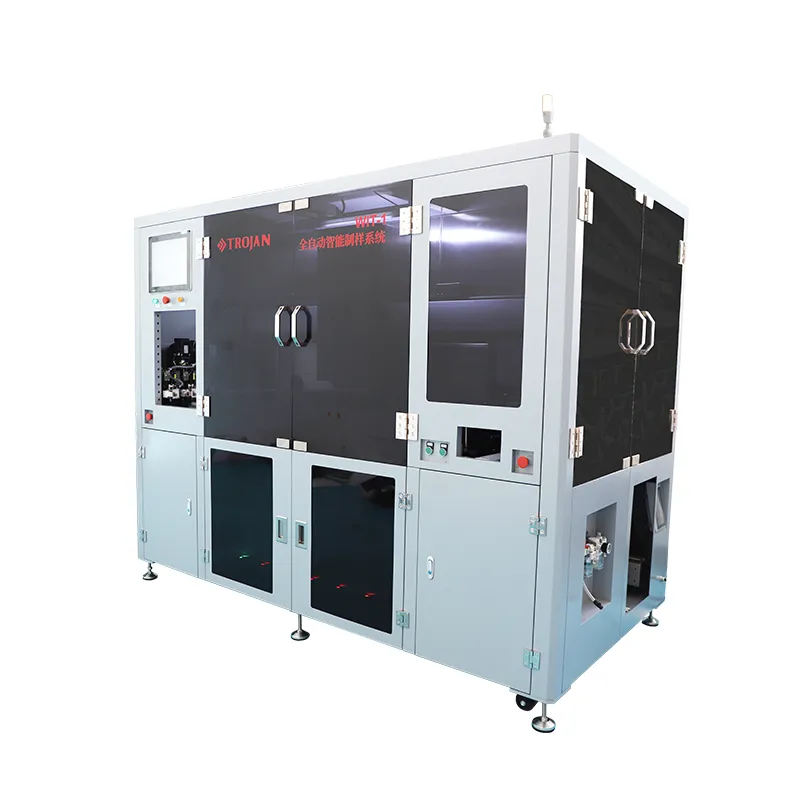

Key Features

High-precision CCD lenses with grinding precision of ±10μm.
Multiple grinding lines calibration at once for automated sequential processing.
Sample cache area allows processing all samples without waiting.
Simultaneous grinding and polishing of up to 3 samples.
Controlled pressure and speed to prevent sample cracking.
Laser marking or coding for full sample traceability.

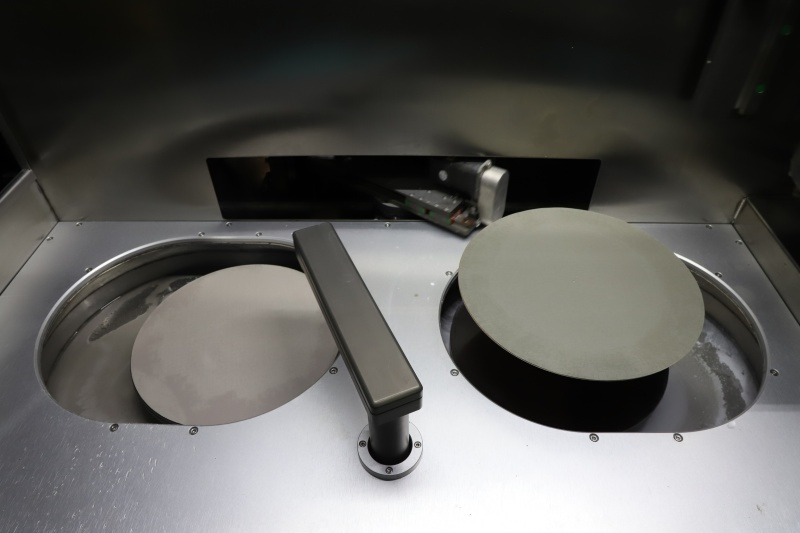

Dual working disks with automatic replacement (up to 10 disks storage).
Integrated cleaning station with ultrasonic, water, and air flow drying.

S

Scope of Application

C

Certifications & Exhibition

L

Packaging & Shipping

?

Frequently Asked Questions

Q: Is the machine easy to operate for beginners? A: Yes, we provide English tutorials and guide videos. We also offer support via email and online chat to ensure smooth operation.

Q: What is the grinding precision of the WIT-1 system? A: The system uses high-precision CCD lenses to achieve a grinding precision of ±10μm.

Q: How many samples can be processed at once? A: The mobile grinding head can hold and process up to 3 samples simultaneously.

Q: What safety features are included in the system? A: It is equipped with an emergency stop switch, a transparent locking protective door, safety light curtains, and three-color warning lights.

Q: How does the system handle sample cleaning? A: The machine includes a dedicated cleaning station with ultrasonic cleaning, water flow, air flow, and air drying functions.
