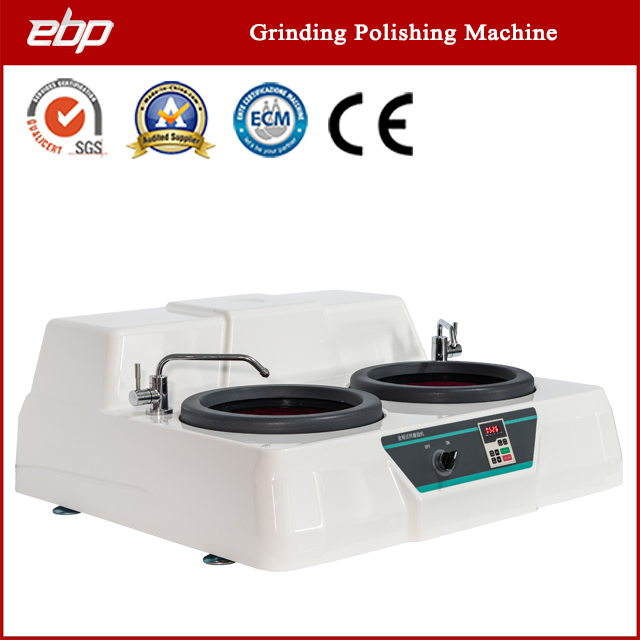

Metallographic Equipment Two Plates Polishing & Grinding Systems

Customization:	Available
Warranty:	1 Year
Function:	Sample Preparation, Grinding and Polishing

i

Basic Specifications

Model NO.

eGP-2S

Rotate Direction

Clockwise - Anticlockwise

Cooling

Water Cooling

Speed

Stepless Speed 50 - 1000 R/Min

Plate Size

Diameter 203mm (230mm/250mm optional)

Package

Plywood Box

HS Code

9024109000

Capacity

100 Sets Per Month

★

Product Overview

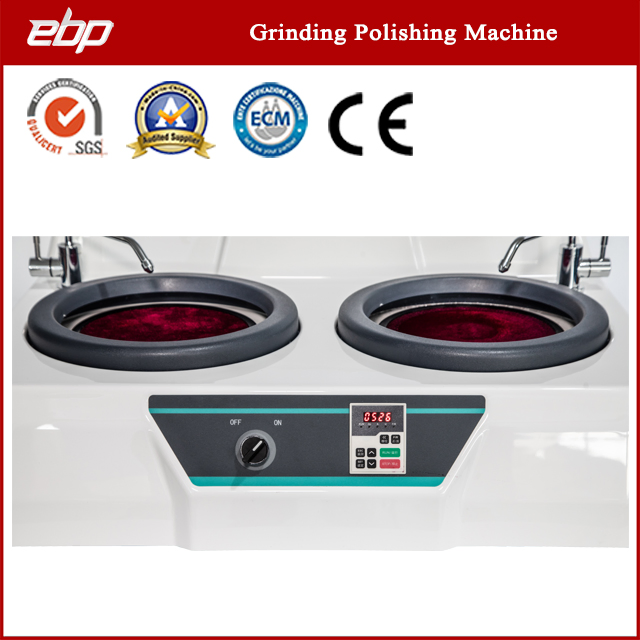

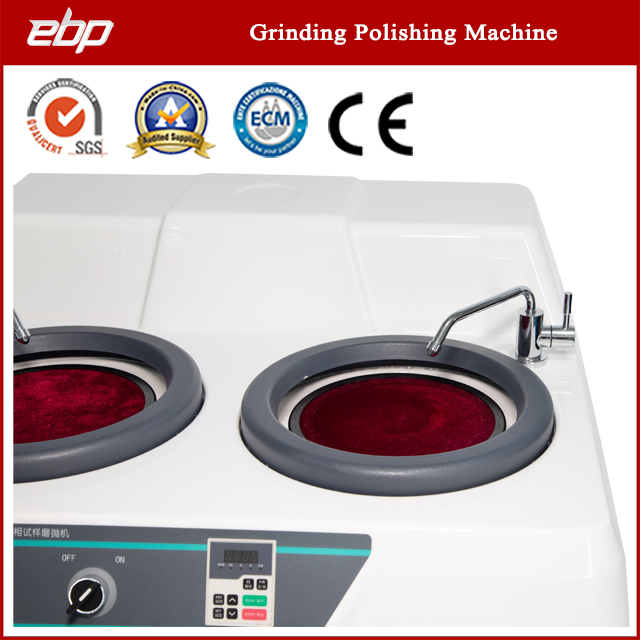

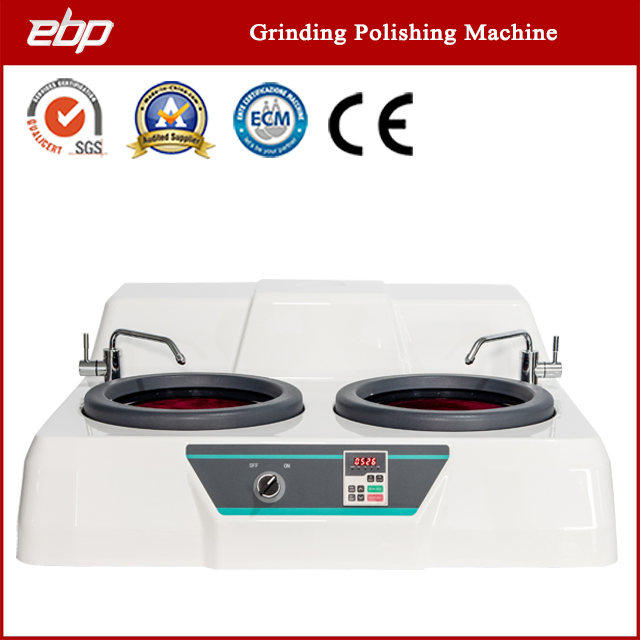

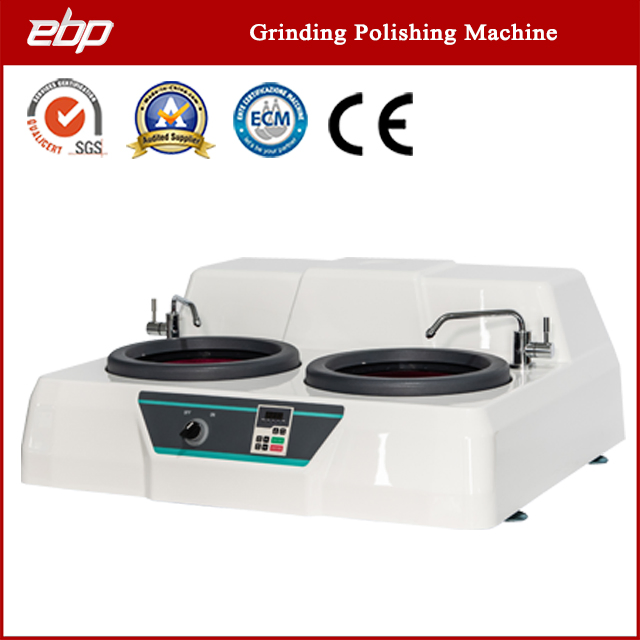

Metallographic Equipment Two Plates Polishing & Grinding Systems

In the process of metallographic sample preparation, grinding and polishing are indispensable. The eGP-2S system utilizes a frequency converter for infinite speed adjustment between 50-1000r/min. By replacing sandpaper and polishing fabrics, it handles the entire preparation cycle. This equipment is ideal for laboratories in factories, colleges, and research institutes seeking high-quality metallographic surfaces.

✔

Key Features

All-in-one design: Supports rough grinding, fine grinding, and polishing.

High-end ABS shell: Durable, novel, and professional appearance.

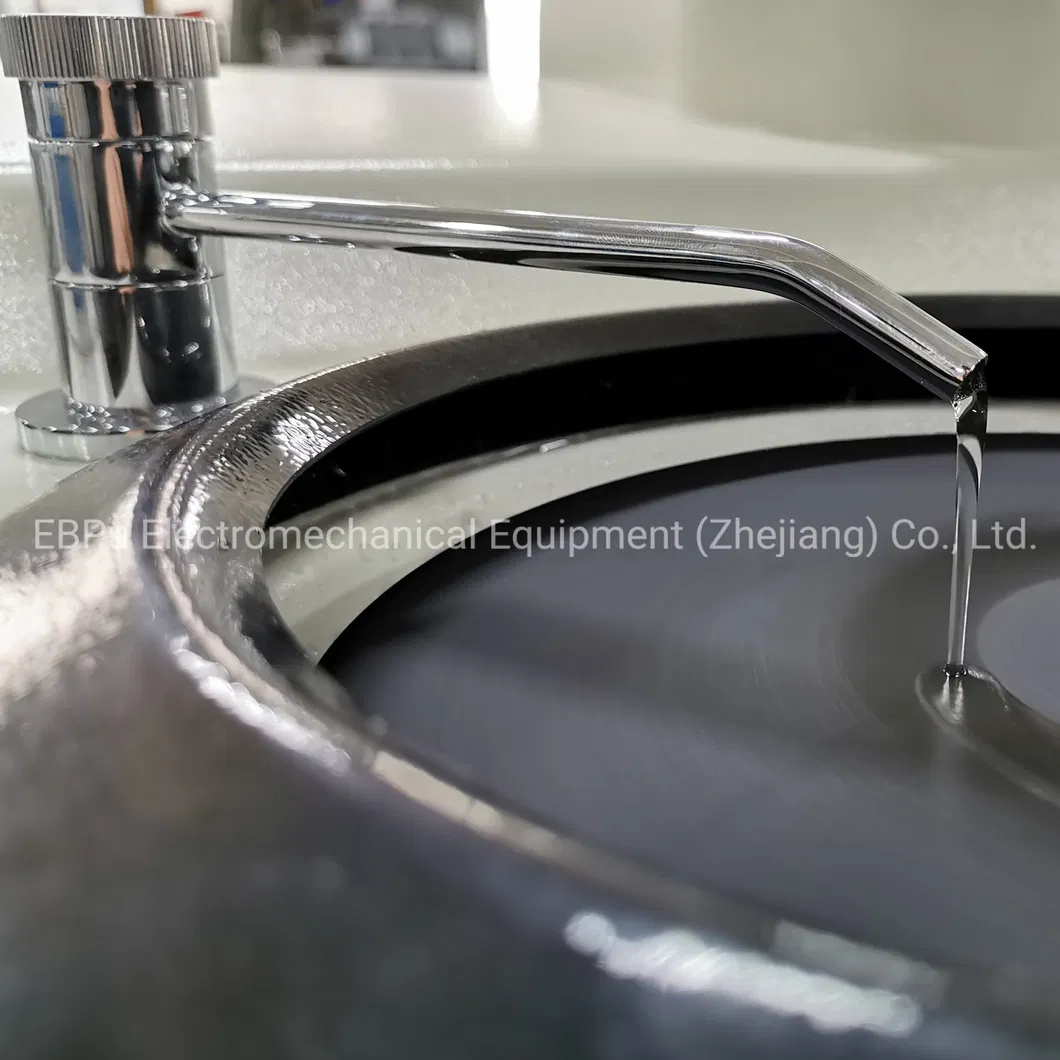

Stainless steel 304 faucet: Excellent corrosion resistance for long-term use.

Stepless speed: Stable performance with low noise for precise control.

Double plates: Dual φ203mm working plates for significantly higher efficiency.

Bi-directional rotation: Supports clockwise and anticlockwise operation with one key switch.

Advanced cooling: Integrated water system prevents sample overheating damage.

⚙

Technical Specification

Parameter	Details
Model	eGP-2S
Plate Diameter	φ203mm (optional 230mm / 250mm)
Rotate Speed	50-1000 r/min (stepless adjustable)
Motor Power	0.55KW
Machine Size (LWH)	770×730×320mm
Net Weight	42KG
Power Supply	220V, 50Hz

📦

Packing List

Name	Quantity
Grinding plate Φ203 (on machine)	2
Water retaining ring (on machine)	2
Pressing ring φ203 (on machine)	2
Abrasive paper φ203	2
Polishing cloth φ203	2
Water inlet & outlet pipes	1 Each
Manual & Certificate	1 Piece Each

?

Frequently Asked Questions

Q1: What is the speed range of the eGP-2S model? A: The machine features a stepless speed design, allowing adjustments between 50 and 1000 r/min.

Q2: Can this machine perform both grinding and polishing? A: Yes, it is a 4-in-1 system capable of rough grinding, fine grinding, rough polishing, and fine polishing.

Q3: What are the dual working plates' advantages? A: The double φ203mm plates allow for simultaneous operations, greatly improving lab efficiency.

Q4: Is the rotation direction fixed? A: No, the working plates support both clockwise and anticlockwise rotation with an easy one-key switch.

Q5: How does the cooling system work? A: It features a water cooling system that prevents sample overheating, ensuring the integrity of the metallographic structure.

Q6: What material is used for the faucet and shell? A: The faucet is made of 304 stainless steel for corrosion resistance, and the shell is constructed from high-end ABS.
