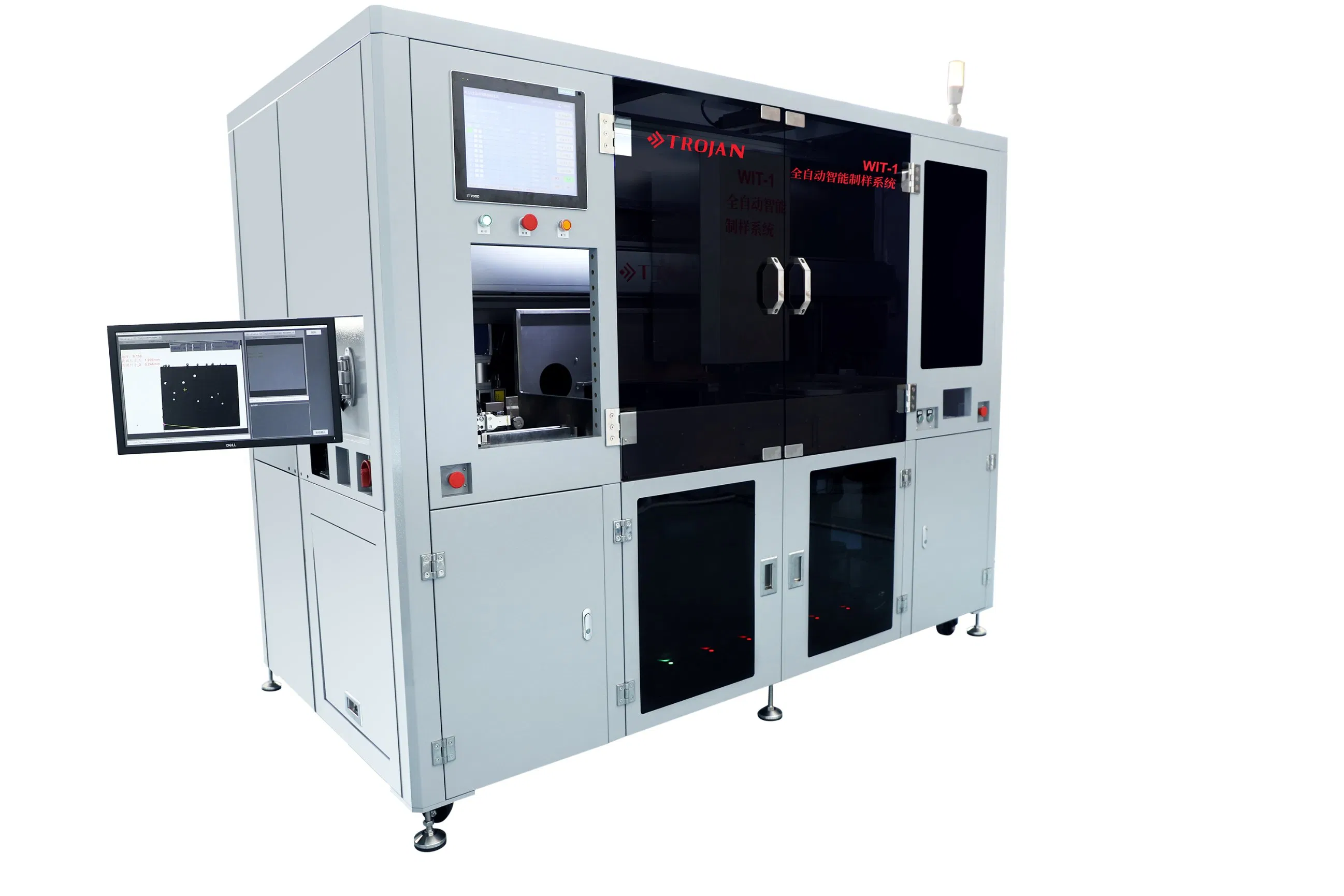

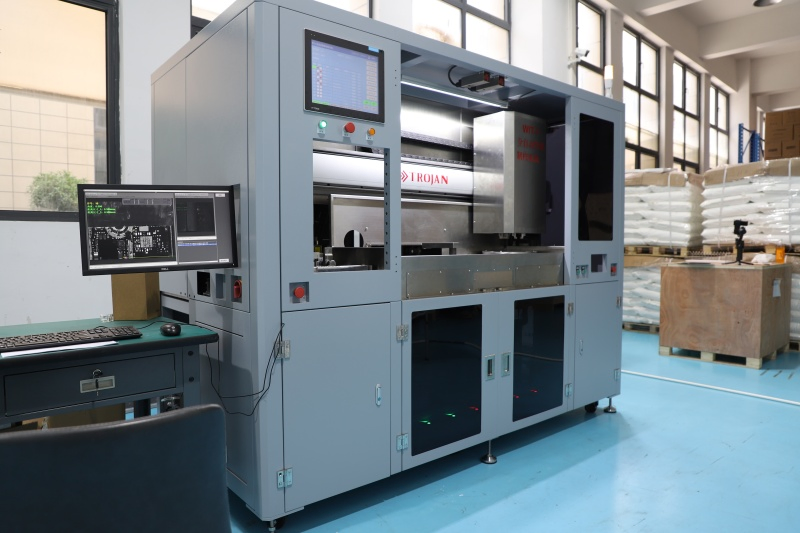

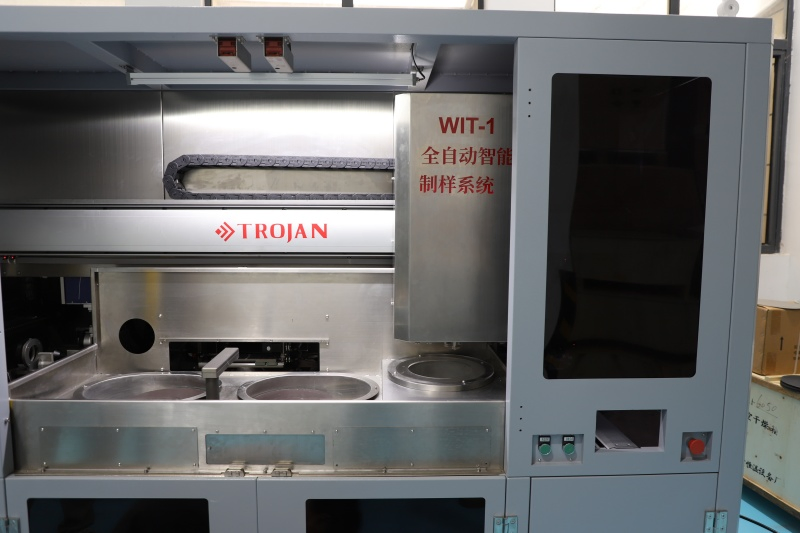

Trojan WIT-1fully Automatic Intelligent Sample Preparation System
Trojan WIT-1fully Automatic Intelligent Sample Preparation System
Trojan WIT-1fully Automatic Intelligent Sample Preparation System
Trojan WIT-1fully Automatic Intelligent Sample Preparation System
Trojan WIT-1fully Automatic Intelligent Sample Preparation System
1 / 5
Trojan WIT-1fully Automatic Intelligent Sample Preparation System
Trojan WIT-1fully Automatic Intelligent Sample Preparation System
Trojan WIT-1fully Automatic Intelligent Sample Preparation System
Trojan WIT-1fully Automatic Intelligent Sample Preparation System
Trojan WIT-1fully Automatic Intelligent Sample Preparation System

Trojan WIT-1fully Automatic Intelligent Sample Preparation System

Customization: Available
After-sales Service: 1 Year
Processing Method: Grind
Send Inquiry

Product Description

Basic Information
Model NO.
WIT-1
Warranty
1 Year
Environment
Normal Pressure and Temperature
Display
Digital Display
Performance
Automatic
Power Supply
220V
Certification
CE
Weight
3000kg
Speed
100-1000rpm
Diameter
250mm
Accuracy
0.1mm
HS Code
90241090
Product Description

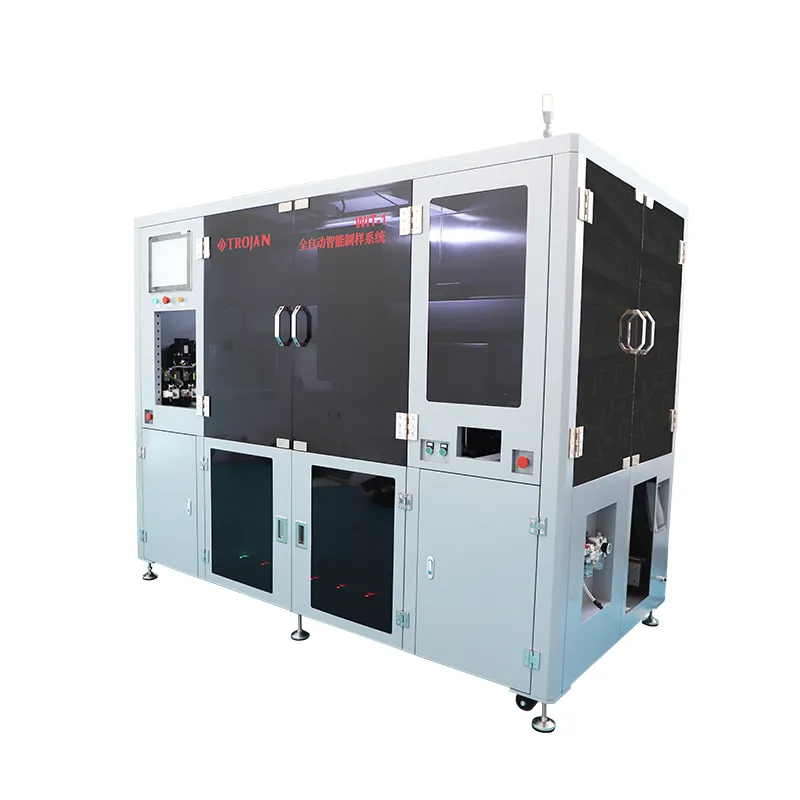

Intelligent Sample Preparation System

The WIT-1 Fully Automatic Intelligent Sample Preparation System is specifically developed for cross-sectional slice detection in industries such as semiconductors and PCB. It is designed for precise positioning detection and analysis of PCB holes, copper, solder joints, and tin balls.

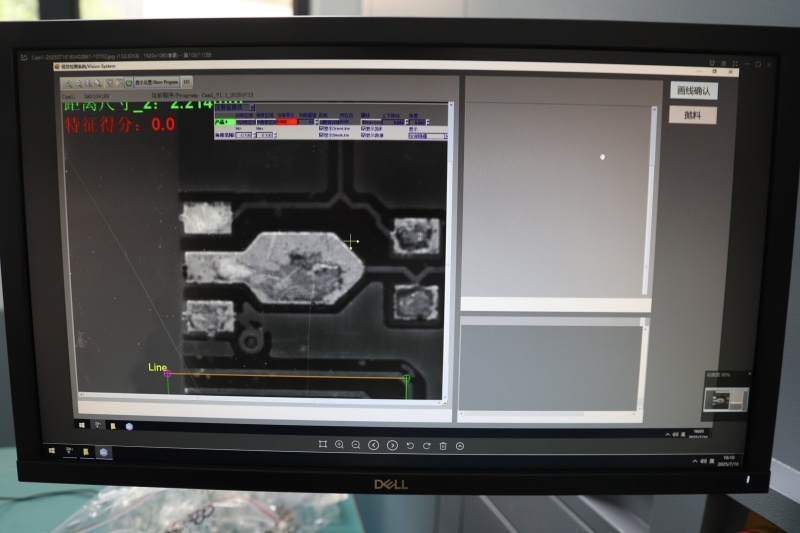

Utilizing a high-definition CCD camera to determine the grinding position, the system automatically completes rough grinding, fine grinding, fine polishing, and cleaning processes.

Technical Parameters Specifications
Input Requirements Electricity 220VAC, 20A
Compressed Air Pressure > 0.6MPa
Water Connection Water pressure < 0.3MPa
Alignment Station Camera Pixel 25 Million
Mobile Grinding Head Rotation 360-degree rotation
Grinding Station Rotational Speed 100-1000rpm
Storage Grinding Discs 10 layers with life reminder
Key Features
  • High-precision CCD lenses for calibration with grinding precision of ±10μm.
  • Multiple grinding lines can be calibrated at once for continuous operation.
  • Sample cache area allows manual calibration of all samples without waiting.
  • Simultaneous holding and grinding-polishing of up to 3 samples.
  • Controllable pressure and speed to prevent sample cracking.
  • Automatic replacement of grinding disks (up to 10 disks).
  • Integrated cleaning station with ultrasonic, water flow, and air drying.
  • Laser marking or coding available for full sample traceability.
Product Showcase

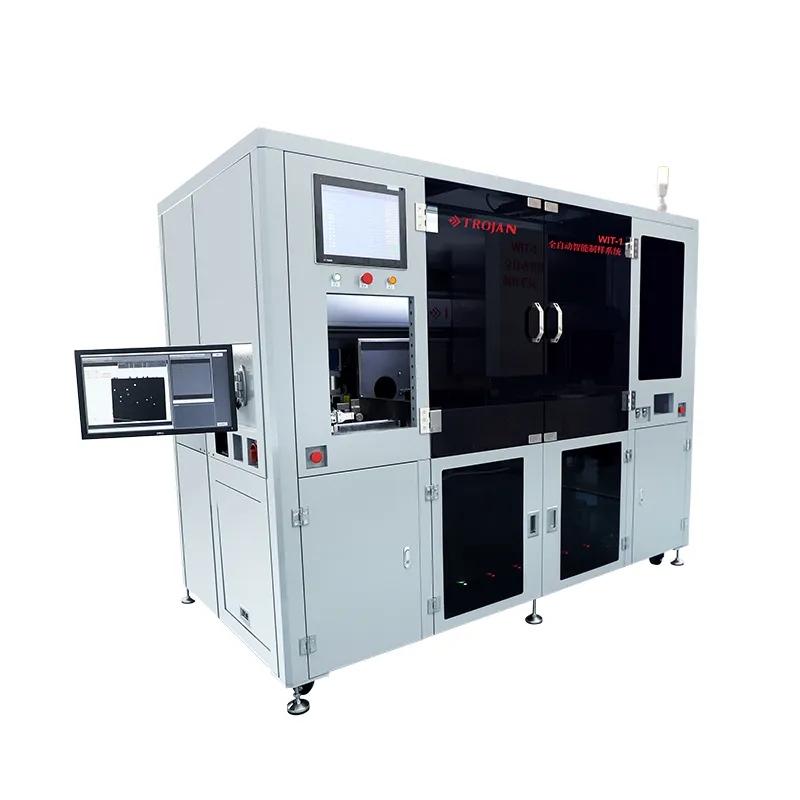

System View 1
System View 2
System View 3
Scope of Application
Application Scope
Certifications & Exhibition
Certification
Exhibition
Packaging & Shipping
Packaging
Frequently Asked Questions
Is this machine easy to operate for a first-time user?
Yes. We provide comprehensive English tutorials and guide videos. Support is also available via email and online consultation to ensure smooth operation.
What happens if the machine encounters a problem?
During the warranty period, we provide free replacement parts for any issues occurring under normal use.
What are the accepted payment terms?
We accept various terms including TT, PayPal, LC, and Western Union under EXW, CIF, or FOB conditions.
How many samples can be processed simultaneously?
The system is designed to hold and grind-polish up to 3 samples at a single time.
What is the grinding precision of the WIT-1 system?
The system achieves a high grinding precision of ±10μm thanks to its high-precision CCD lenses.
Does the system include a cleaning function?
Yes, it features a dedicated cleaning station that includes ultrasonic cleaning, water flow, air flow cleaning, and air drying.
