Customization: Available
After-sales Service: 1 Year
Processing Method: Grind
Send Inquiry

Product Description

Basic Information
Model NO.
WIT-1
Warranty
1 Year
Environment
Normal Pressure and Temperature
Display
Digital Display
Performance
Automatic
Power Supply
220V
Certification
CE
Weight
3000kg
Speed
100-1000rpm
Diameter
250mm
Torque
20-360n
Accuracy
0.1mm
Product Description

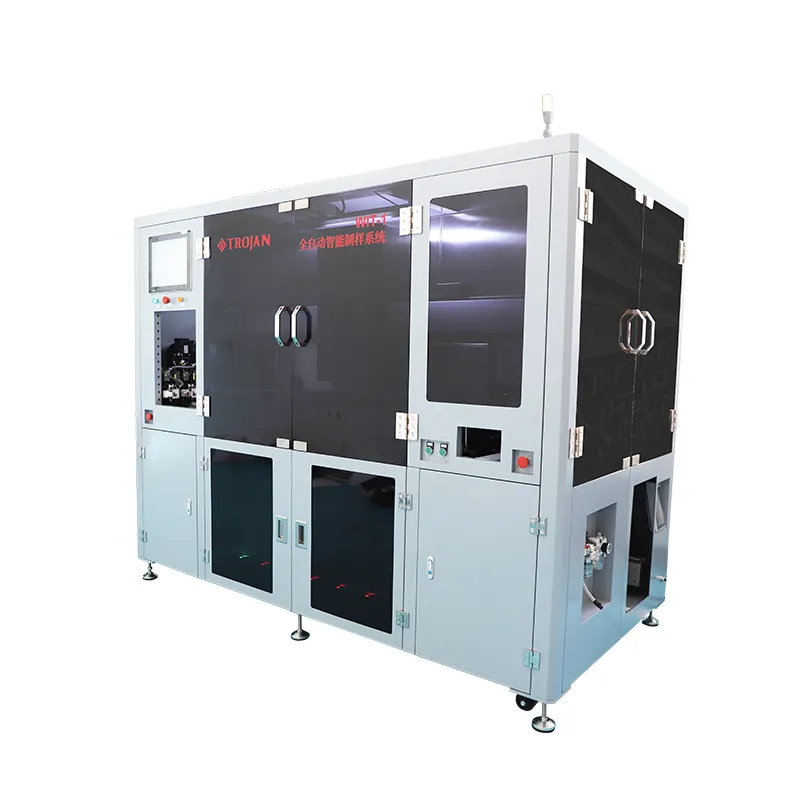

Advanced Fully Automatic Intelligent Sample Preparation System

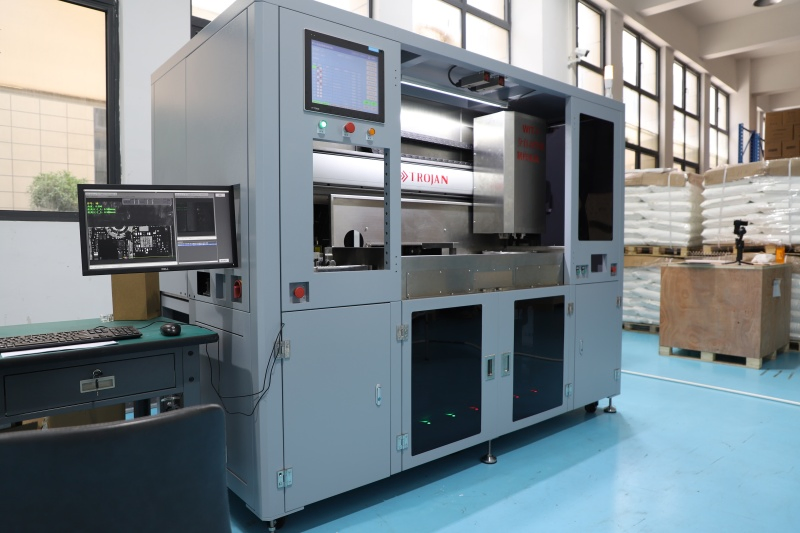

WIT-1 Fully Automatic Intelligent Sample Preparation System

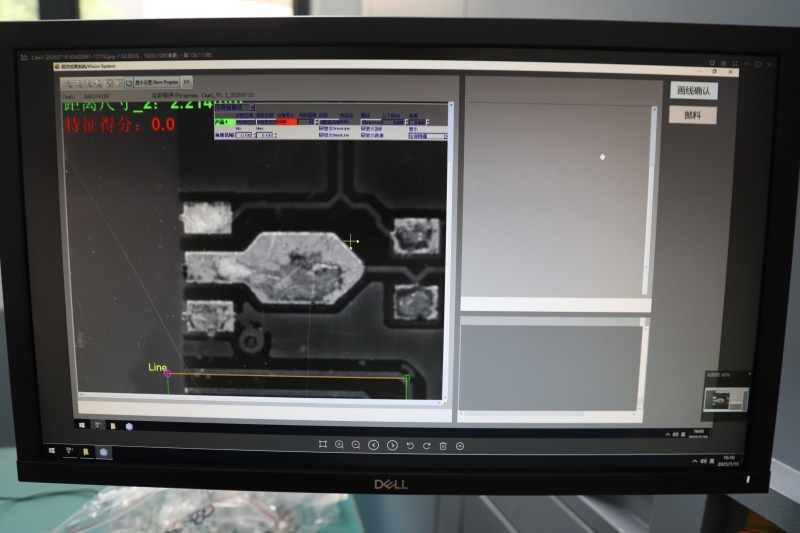

The WIT-1 fully automatic intelligent sample preparation system is specifically developed for cross-sectional slice detection in industries such as semiconductors and PCB. It can be used for precise positioning detection and analysis of PCB holes, copper, solder joints, and tin balls. It uses a high-definition CCD camera to determine the grinding position, enabling it to automatically complete processes such as rough grinding, fine grinding, fine polishing, and cleaning.

Key Features:
✔High-precision CCD lenses with grinding precision of ±10μm.
✔Multiple grinding lines calibration at once for continuous processing.
✔Sample cache area for efficient manual calibration.
✔Simultaneous holding and grinding of up to 3 samples.
✔Controllable pressure and speed to prevent sample cracking.
✔Laser marking or coding for full sample traceability.
✔Automatic replacement of up to 10 grinding disks.
✔Configurable polishing liquids (up to 6) with independent stirring.
✔Integrated cleaning station with ultrasonic, water, and air flow.
✔Orderly arrangement in recycling box to avoid surface scratching.
Technical Specifications
Parameter Specification
InputElectricity220VAC, 20A
Compressed airPressure > 0.6MPa
External waterWater pressure < 0.3MPa
Sample BoxSquare shape22x15x12, 30x27x12, 46x39x12mm
AlignmentSample quantity21
Camera pixel25 million
MarkingLaser marking / code
Grinding HeadMotor0.4KW
Rotation360-degree
Pressure5-100N
Work DiscRotational speed100-1000rpm
Diameter250mm
StorageGrinding Disks10 layers with life reminder
Product Gallery & Applications

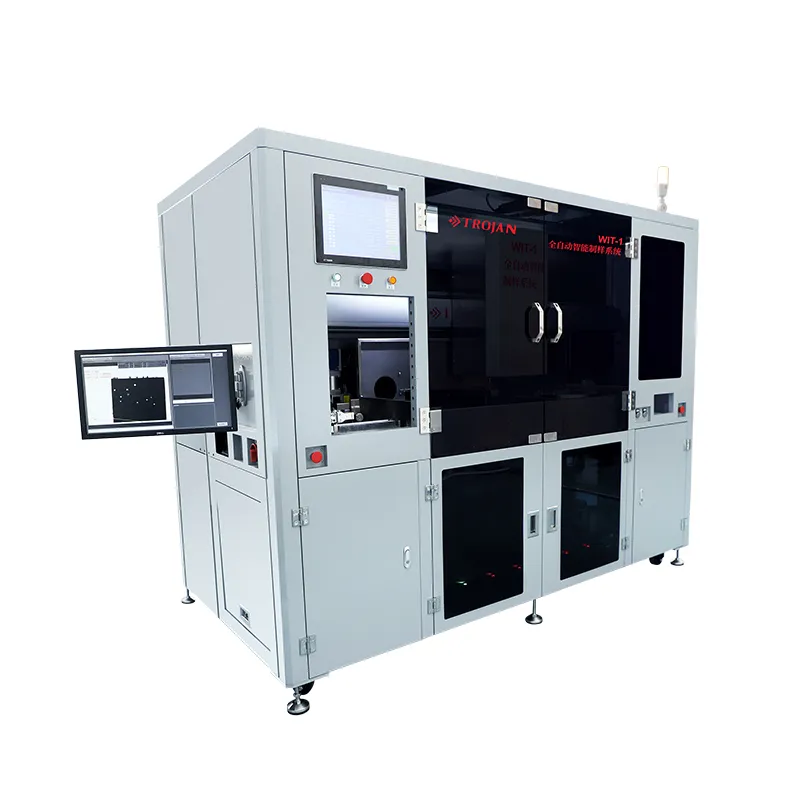

System Overview
Internal Component Operation Interface
Scope of Application
Application Scope
Certifications & Exhibition
Certifications Exhibition Display
Packaging & Shipping
Packaging Details
Frequently Asked Questions
Q: I haven't used this kind of machine before, is it easy to operate? A: Yes. We provide comprehensive English tutorials and guide videos. We also offer support via email and online chat to ensure you can handle the machine smoothly.
Q: What is the grinding precision of the WIT-1 system? A: The system uses high-precision CCD lenses for calibration, achieving a grinding precision of ±10μm.
Q: How many samples can be processed simultaneously? A: The mobile grinding head can hold and grind-polish up to 3 samples at a time.
Q: What happens if the machine encounters a problem? A: We provide free replacement parts during the warranty period for any issues occurring under normal use.
Q: Does the system include a cleaning process? A: Yes, it features a dedicated cleaning station that includes ultrasonic cleaning, water flow, air flow cleaning, and air drying.
Q: What are the accepted payment and trade terms? A: We accept EXW, CIF, and FOB terms. Payment can be made via TT, PayPal, LC, or Western Union.
