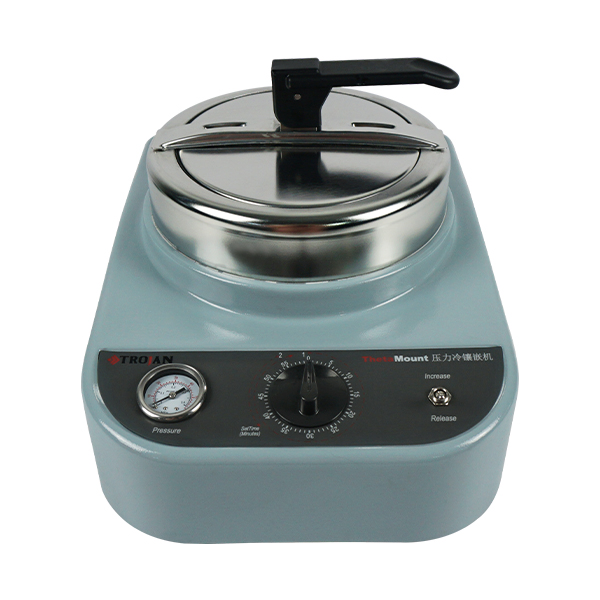

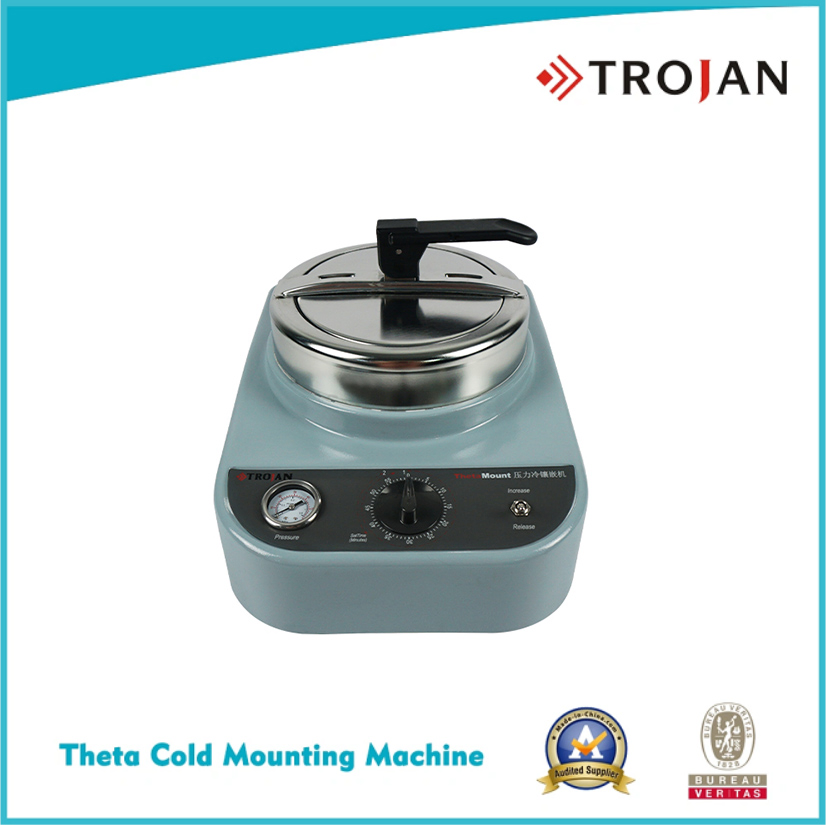

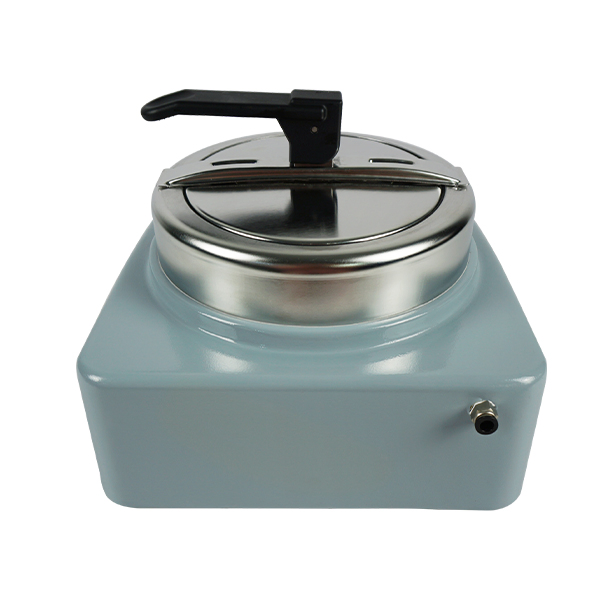

Vacuum Pressure Mounting System for Cold Mounting Sample Preparation

Customization:	Available
Specification:	Standard export package, wooden case
Trademark:	trojan

Send Inquiry

Product Description

Model NO. TJ 2000

Origin Suzhou China

Production Capacity 500,000 PCS/Year

Product Description

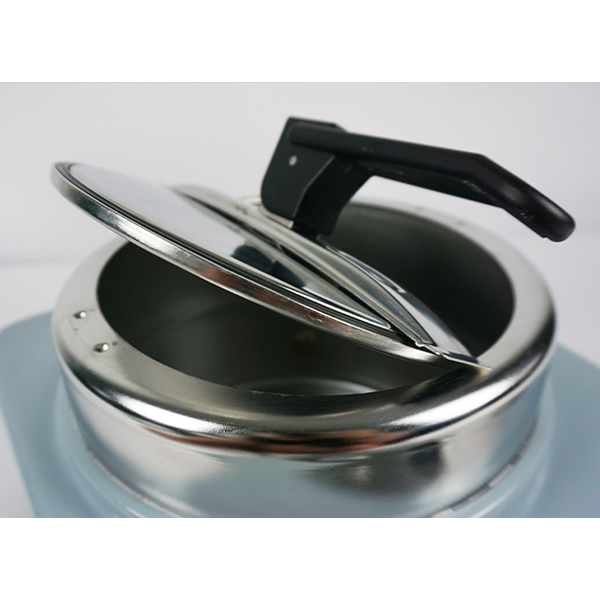

✓ The cabinet material is Makrolon Polycarbonate. The containers under pressure are made of INOX (oxidation resistant) steel.
✓ Technomat pressure pot is particularly suitable for resin fast curing systems while maintaining resin physical and chemical properties.
✓ Ensures curing resin is free of air bubbles, resulting in high-quality samples (ideal for curing systems such as TJ 2210).
✓ No unpleasant odor during the polymerization process.

Technical Parameters

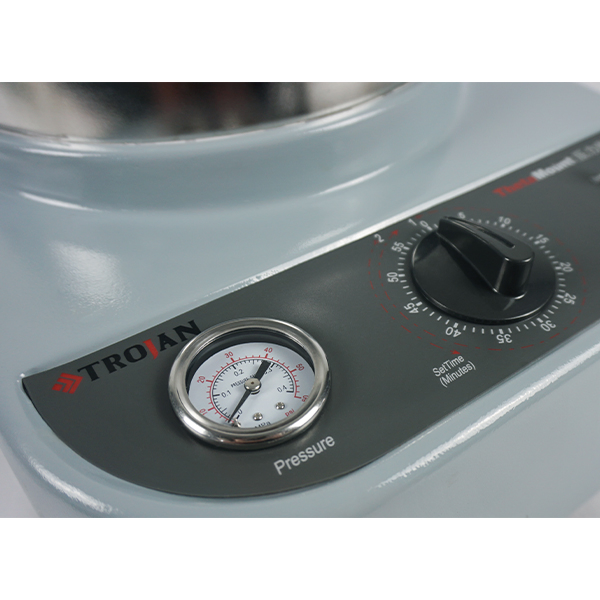

Pressure Load	2.0 bar
Safety Valve	2.8 - 3.3 bar
Dimension	340 * 340 * 255 mm
Weight	4.0 kg

💡 TIPS & TECHNIQUES

Epoxy and Acrylic castable mounting systems are recommended for specimens sensitive to high pressures and temperatures. Epoxy systems provide good physical adherence, low shrinkage, and excellent infiltration into pores and cracks. Acrylic systems are selected for short cure times.

● Use a vacuum system to evacuate air trapped in epoxy systems to eliminate gaps at the sample interface.
● To improve edge retention for acrylic systems, coat the sample in liquid hardener before pouring the mixed compound.
